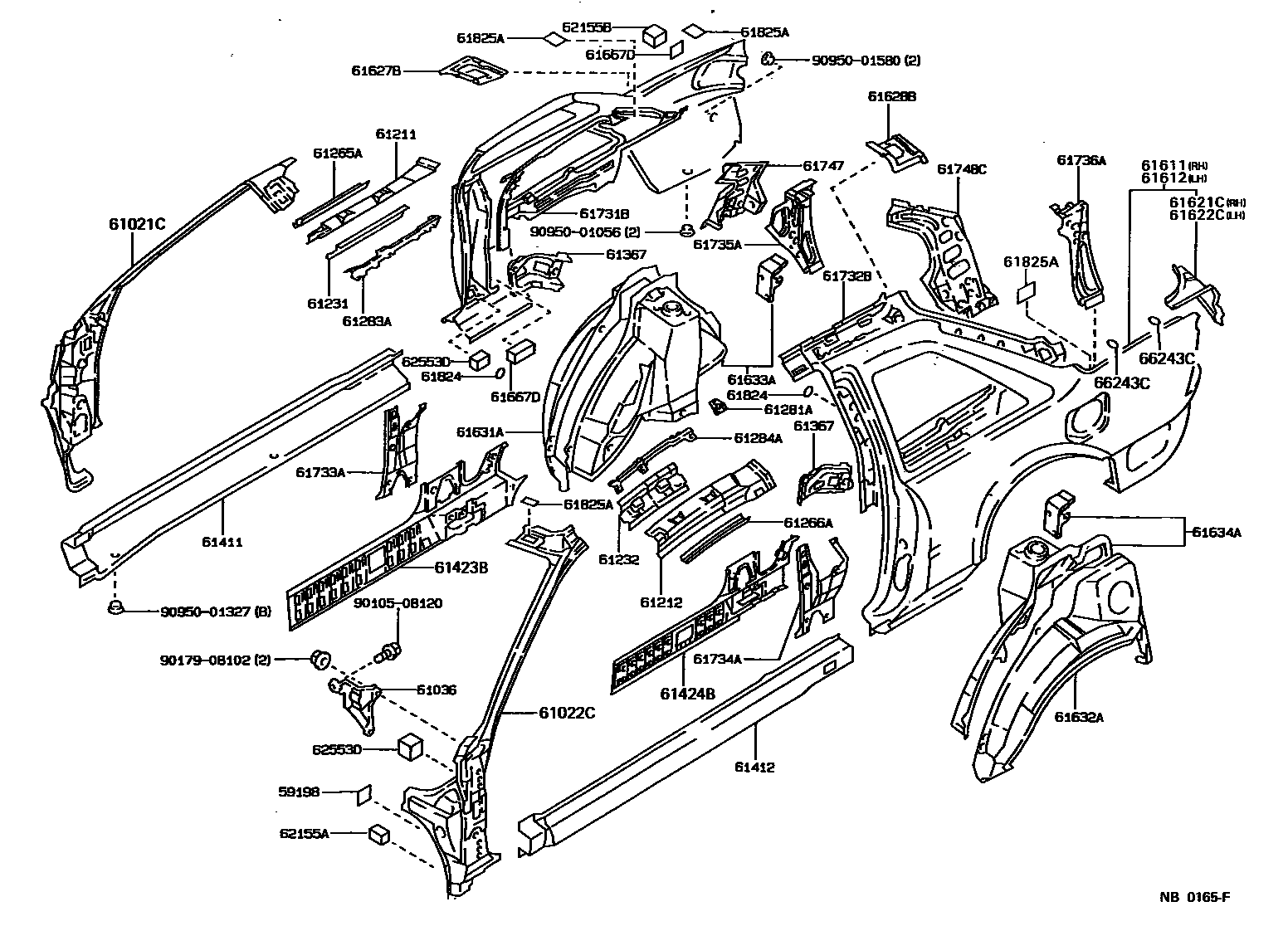

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 59198 | Silencer panel seal | 59198-12010 |
| 61021C | Right body front pillar sub-assembly | 61021-12740 |
| 61022C | Left body front pillar sub-assembly | 61022-12750 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-12060 |
| 61211 | Roof right outer longitudinal beam | 61211-12260 |
| 61212 | Roof left outer longitudinal beam | 61212-12260 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12630 |
| 61232 | Roof left inner longitudinal beam | 61232-12490 · 61232-12580 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12150 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12150 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-12040 · 61281-12070 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-12050 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-12050 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-12050 · 61368-12030 · 61368-12040 |
| 61411 | Right door outer sill panel | 61411-12400 · 61411-12430 |
| 61412 | Left door outer sill panel | 61412-12390 · 61412-12410 |
| 61423B | Right side door sill panel No. 3 reinforcement | 61423-12020 · 61423-12050 |
| 61424B | Left side door sill panel No. 3 reinforcement | 61424-12010 · 61424-12040 |
| 61611 | Right side hoarding | 61601-1E903 · 61601-1E905 · 61601-1E907 |
| 61612 | left side panel | 61602-1E906 · 61602-1E908 · 61602-1E909 |
| 61621C | Luggage right opening slot | 61621-12320 · 61621-12321 |
| 61622C | Luggage trunk left opening slot | 61622-12320 · 61622-12321 |
| 61627B | Right rear side panel extension | 61627-12050 |
| 61628B | Extension on left rear side panel | 61628-12070 |
| 61631A | Right wheel cover outer panel | 61631-12240 · 61631-12250 |
| 61632A | Left side wheel cover outer panel | 61632-12240 · 61632-12250 |
| 61633A | Right wheel housing lining panel | 61607-12110 · 61607-12280 |
| 61634A | Left side wheel housing lining panel | 61608-12270 · 61608-12280 |
| 61667D | Side panel seals | 61667-12060 · 61667-12070 |
| 61731B | Roof right inner panel | 61705-12950 · 61705-12953 |
| 61732B | Roof left inner panel | 61706-12955 · 61706-12958 |
| 61733A | Right front roof inner panel | 61733-12140 |
| 61734A | Left front roof inner panel | 61734-12140 |
| 61735A | Right rear roof inner panel | 61735-12901 |
| 61736A | Left rear roof inner panel | 61736-12901 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12150 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12150 |
| 61824 | Noise Control Panel No. 1 | 61824-12020 · 61824-12040 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 · 61827-12010 |
| 62155A | Front and lower side muffler pads | 62155-12010 |
| 62155B | Side panel lining | 62155-12010 |
| 62553D | No. 3 column pad | 62553-12120 |
| 66243C | Rear body protection piece No. 1 | 66243-20010 |
