Toyota COROLLA 地板垫和地毯 — Figure 5804

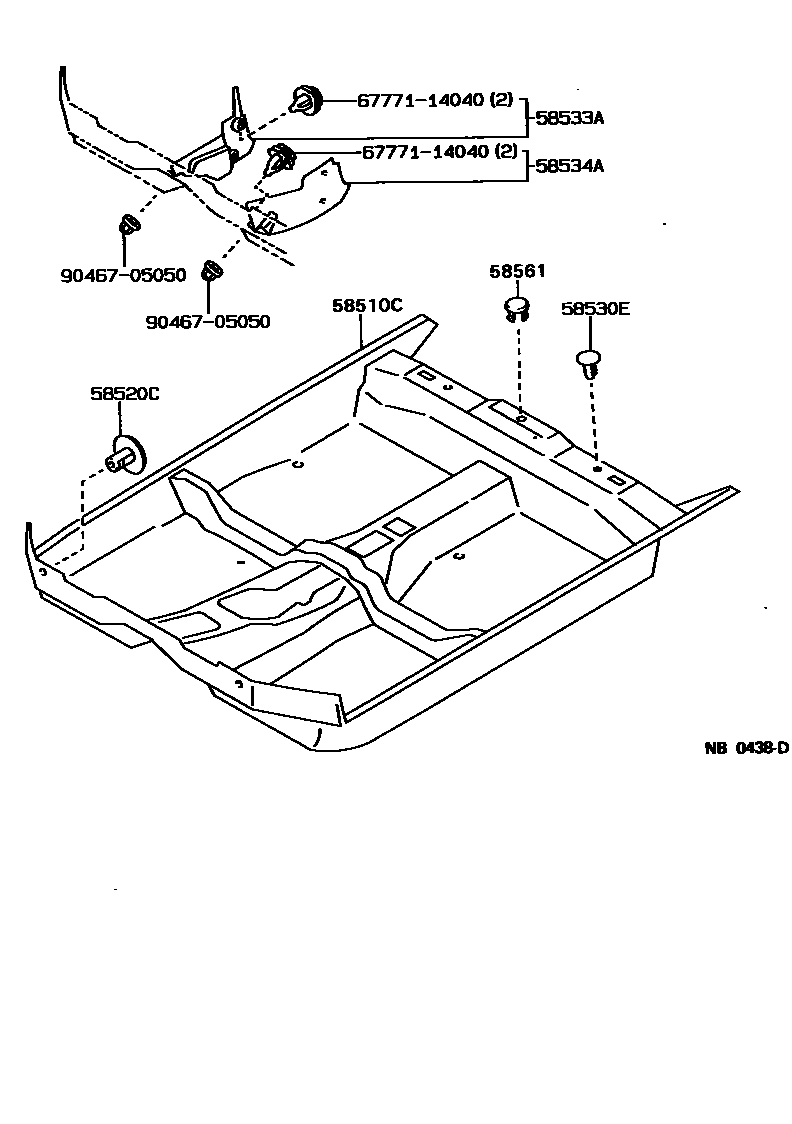

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58533A | Right center carpet cover | 58533-12020 |
| 58534A | transmission cover gasket | 58534-12010 |
| 58561 | Floor mat fastener No. 1 | 58561-12010 |
