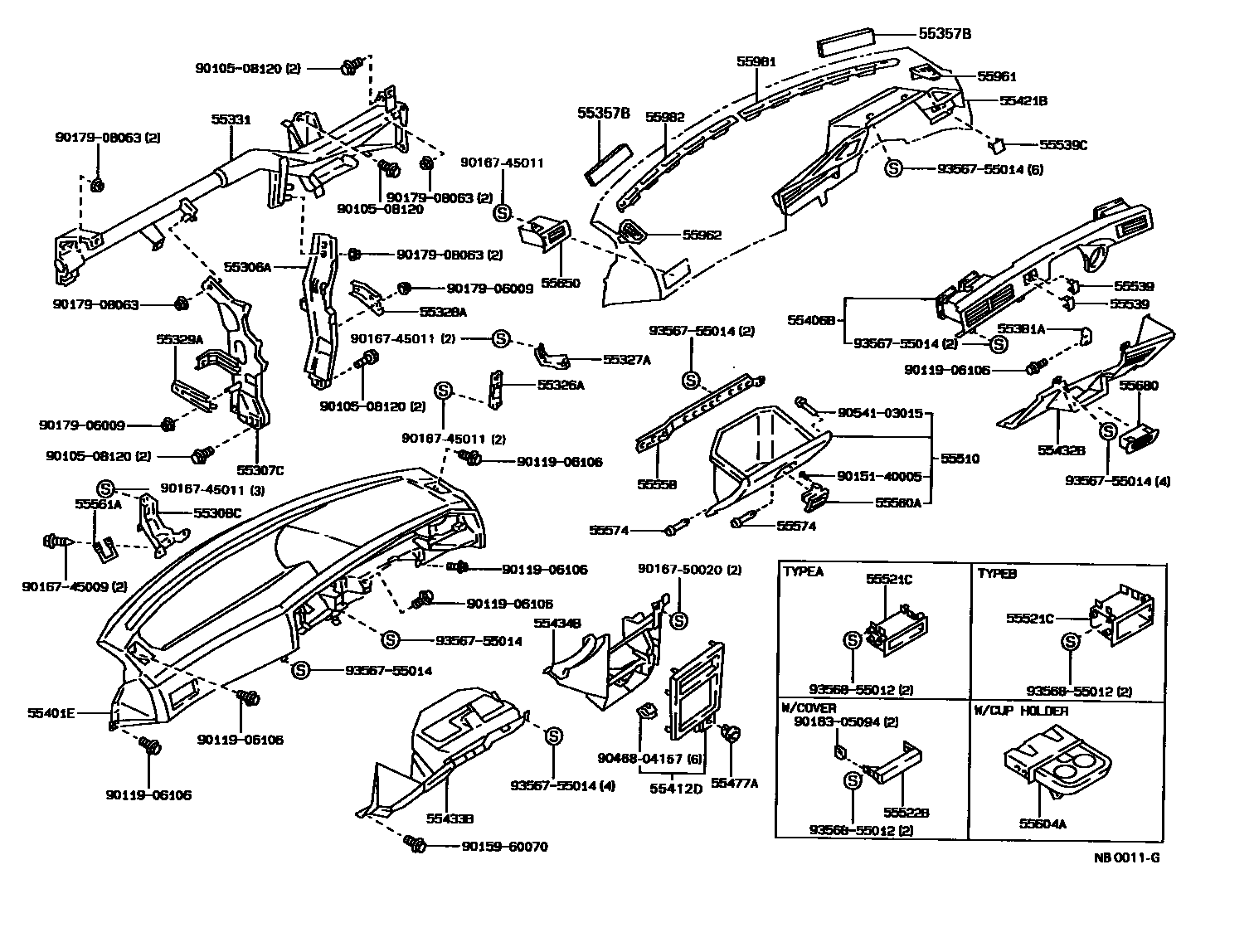

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12080 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12130 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12160 |
| 55326A | Dashboard No. 1 stay | 55326-12080 |
| 55327A | Instrument panel support No. 2 | 55327-12090 |
| 55328A | Dashboard No. 3 stay | 55328-12050 |
| 55329A | Dashboard instrument bracket | 55329-12040 |
| 55331 | Dashboard reinforcement | 55330-12180 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-22010 |
| 55381A | Decorative panel mounting bracket | 55381-12040 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12290 |
| 55421B | Decorative panel on instrument cluster | 55421-12140 |
| 55477A | Cigarette lighter hole frame | 55477-12090 |
| 55521C | stereo system hole cover | 55521-16030 · 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-16030 |
| 55539 | Spare switch hole cover | 55539-12100 |
| 55539C | Spare switch hole cover | 55539-12080 |
| 55558 | Glove box cover reinforcement | 55558-12070 |
| 55561A | Glove box lid lock | 55561-12050 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55604A | Dashboard cup holder sub-assembly | 55604-12020 |
