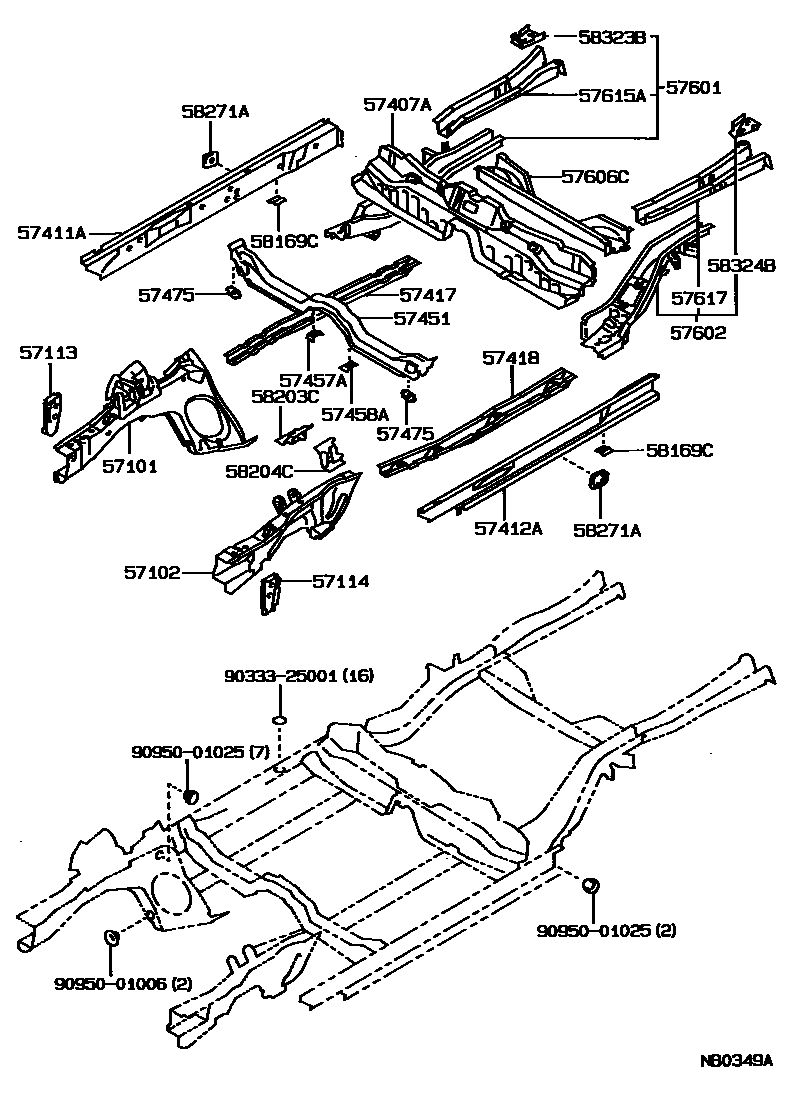

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-12340 · 57101-12380 · 57101-12390 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12360 · 57102-12370 |
| 57113 | Right front longitudinal beam extension | 57113-12110 |
| 57114 | Left front longitudinal beam extension | 57114-12110 |
| 57407A | Center floor beam sub-assembly | 57407-12020 |
| 57411A | Floor right inner longitudinal beam | 57411-12190 |
| 57412A | Floor left inner longitudinal beam | 57412-12190 |
| 57417 | Front floor lower right reinforcement | 57417-12080 |
| 57418 | Front floor lower left reinforcement | 57418-12040 |
| 57451 | front floor cross member | 57451-12110 · 57451-12111 |
| 57457A | Front floor No. 2 right cross member plate | 57457-12020 |
| 57458A | Front floor No. 2 left cross member plate | 57458-12020 |
| 57475 | Front floor cross member panel | 57475-32010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12590 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12490 · 57602-12680 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-12100 |
| 57615A | Rear floor right rear longitudinal member | 57615-12030 · 57615-12031 |
| 57617 | Rear floor left rear longitudinal member | 57616-12030 · 57616-12031 |
| 58169C | Front floor rear lining | 58169-12010 |
| 58203C | Exhaust pipe mounting bracket sub-assembly | 58203-12030 |
| 58204C | Left exhaust pipe mounting bracket sub-assembly | 58204-12010 |
| 58271A | Seat belt anchor No. 3 to floor pan reinforcement | 58271-12050 |
| 58323B | Rear bumper arm right bracket reinforcement | 58323-12040 · 58323-12041 · 58323-12090 |
| 58324B | Rear bumper arm left bracket reinforcement | 58324-12020 · 58324-12021 · 58324-12040 |
