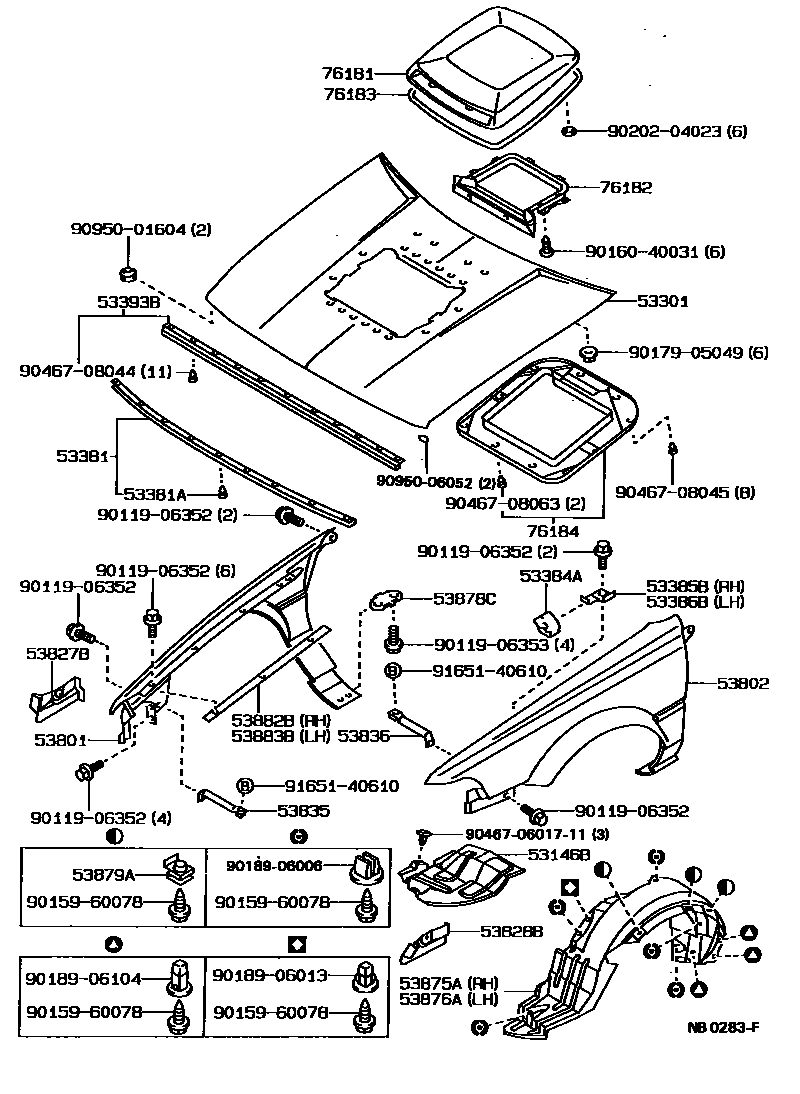

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53146B | Left headlight guard | 53146-12010 · 53146-12030 |
| 53301 | Engine cover sub-assembly | 53301-12600 · 53301-12610 |
| 53381 | Engine cover to radiator bracket seal | 53381-12140 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-14010 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-12040 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-12040 |
| 53393B | Engine cover front protector | 53393-12010 |
| 53801 | Right front fender sub-assembly | 53801-1E520 · 53801-1E530 |
| 53802 | Left front fender sub-assembly | 53802-1E400 · 53802-1E410 |
| 53827B | Front fender side panel protectors | 53827-12020 |
| 53828B | Left front fender side panel protector | 53828-12020 |
| 53835 | Right front fender to extension stay | 53835-12060 |
| 53836 | Left front fender to extension stay | 53835-12060 |
| 53875A | Right front fender lining | 53875-12160 · 53875-12190 |
| 53876A | Left front fender lining | 53876-12150 · 53876-12180 |
| 53878C | front fender spacer | 53878-20030 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-12080 |
| 53883B | Left front fender seal | 53882-12080 |
| 76181 | hood bulge | 76181-12900 |
| 76182 | Engine cover air intake duct | 76182-12010 |
| 76183 | Engine cover bump protector No. 1 | 76183-12010 |
| 76184 | No. 2 engine cover bump protector | 76184-12010 |
