Toyota COROLLA 后保险杠及附件 — Figure 5202

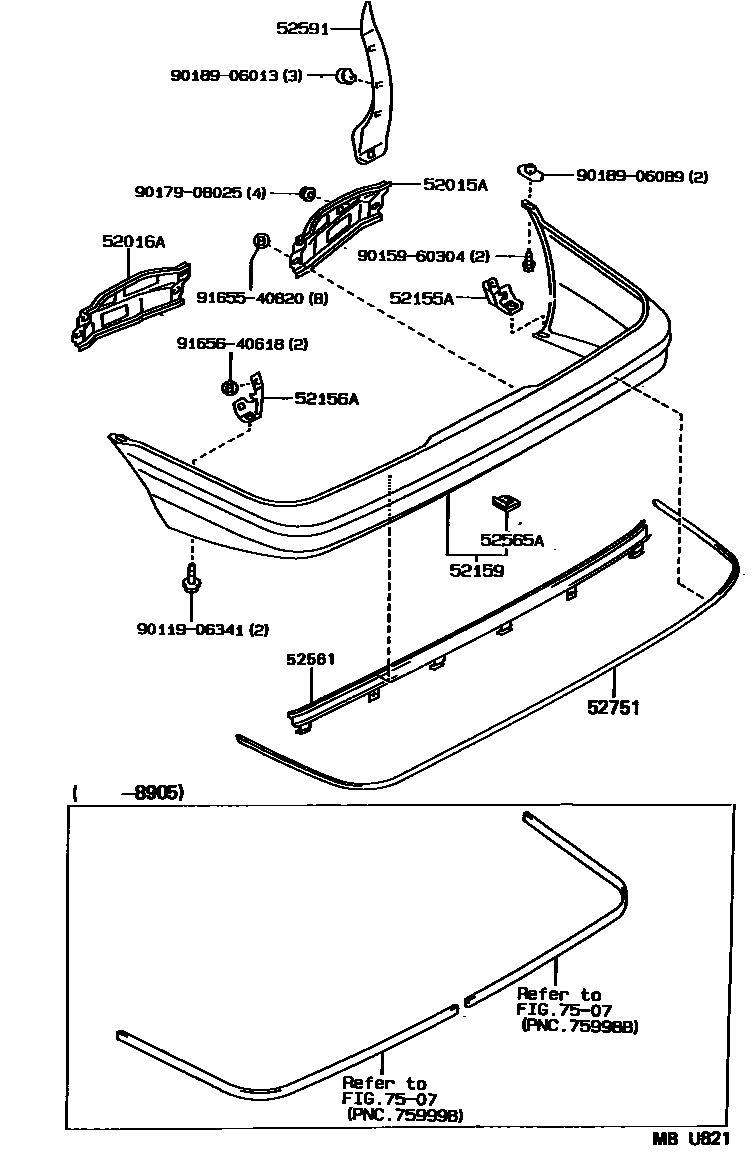

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52181-12300 · 52181-12370 |
| 52016A | Rear bumper left arm sub-assembly | 52182-12250 · 52182-12290 |
| 52155A | Rear bumper right side bracket | 52155-12160 |
| 52156A | Rear bumper left bracket | 52156-12130 |
| 52159 | rear bumper cover | 52159-12820 |
| 52561 | Rear bumper upper center fixing bracket | 52508-12020 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 |
| 52591 | Rear bumper right seal | 52591-12070 |
| 52751 | Rear bumper protection strip | 52751-12180 · 52751-12230 |
