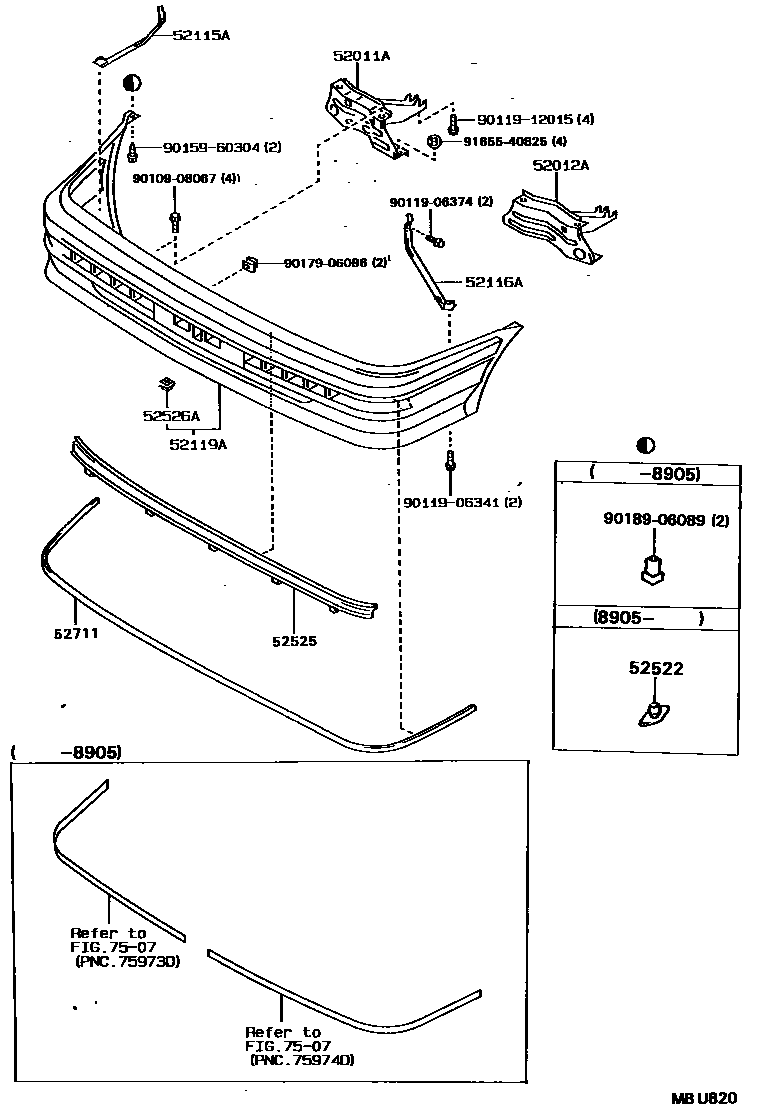

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-12390 · 52011-12450 |
| 52012A | Front bumper left arm sub-assembly | 52012-12400 · 52012-12460 |
| 52115A | Front bumper right side bracket | 52115-12280 · 52115-12290 |
| 52116A | Front bumper left bracket | 52116-12220 · 52116-12230 |
| 52119A | front bumper cover | 52119-1A250 |
| 52522 | Front bumper upper side fixing bracket | 52522-12050 |
| 52525 | Front bumper lower center fixing bracket | 52506-12030 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52565-12040 |
| 52711 | Front bumper protection strip | 52711-12200 · 52711-12250 |
