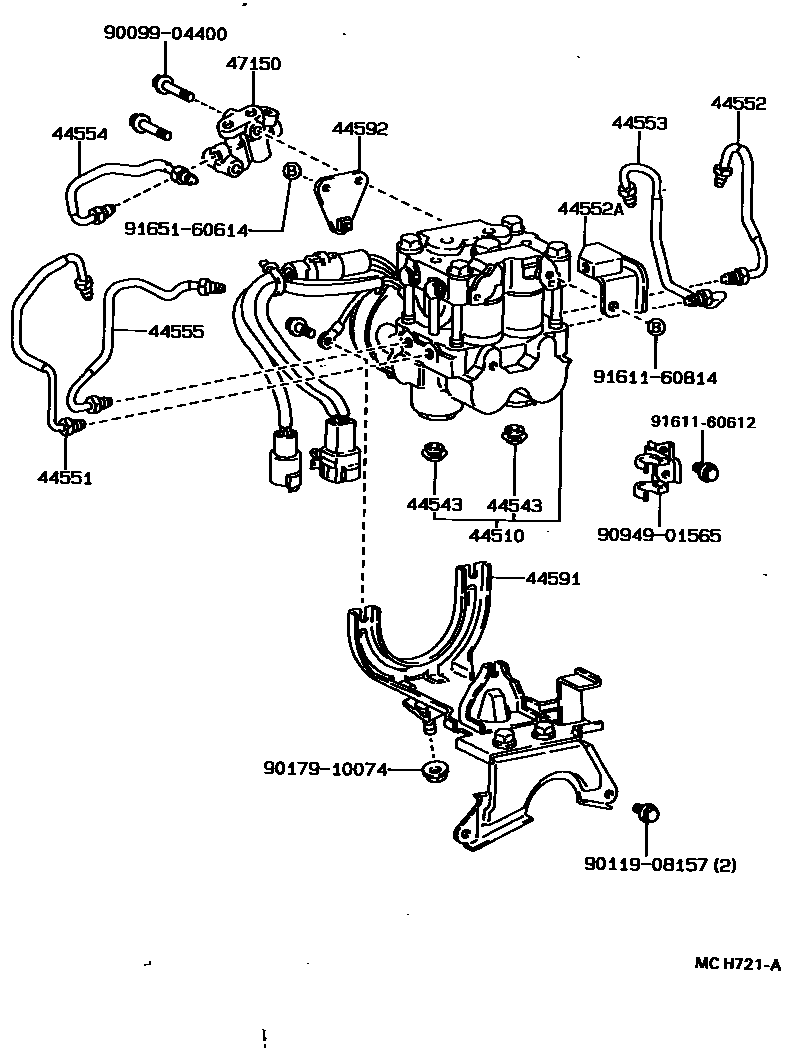

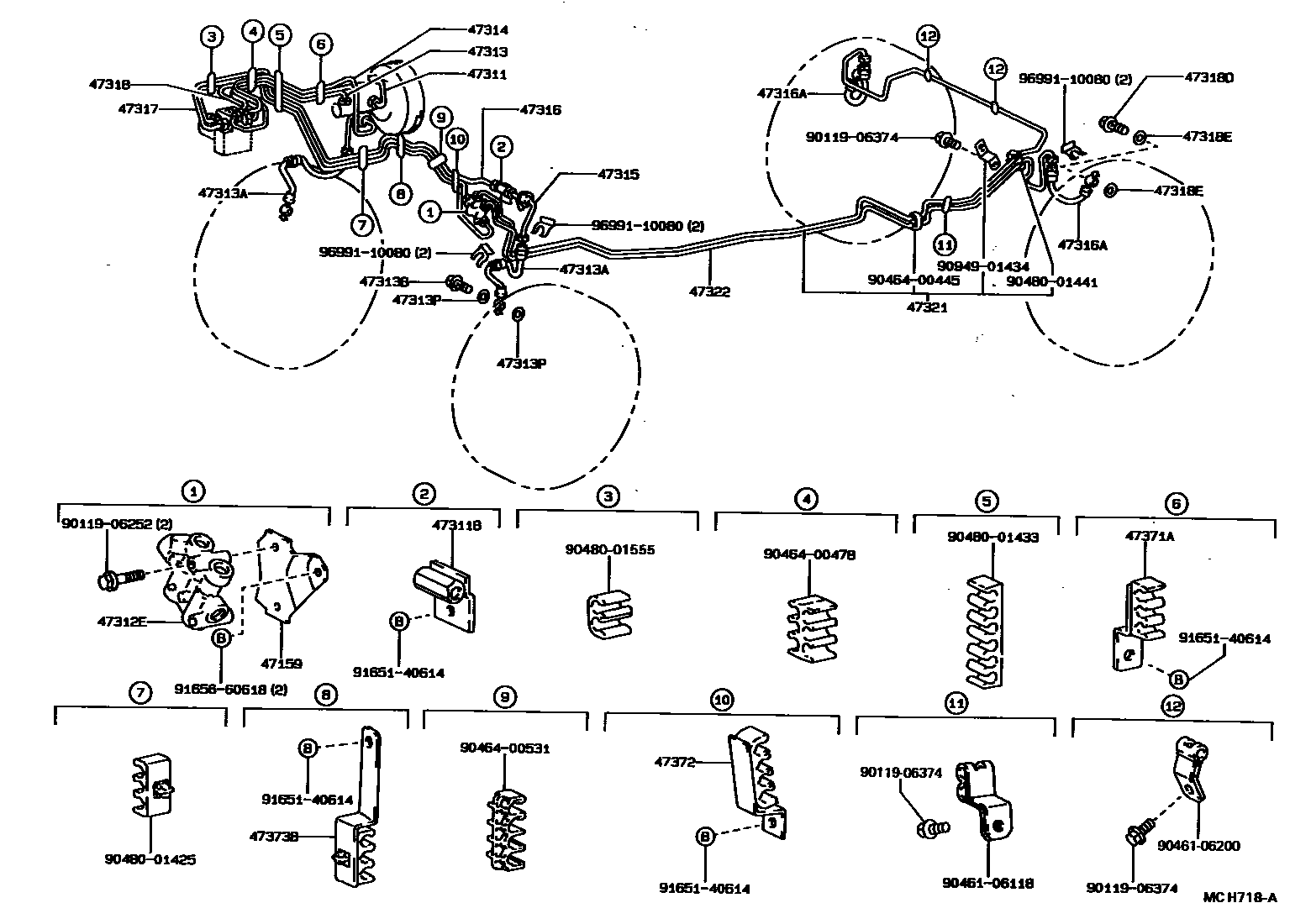

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-12010 |
| 44543 | rubber cap | 44543-14010 |
| 44551 | No. 1 brake actuator pipe | 44551-12020 |
| 44552 | No. 2 brake actuator pipe | 44552-12010 |
| 44552A | Pipe joint No. 2 (for brake actuator) | 90413-10215 |
| 44553 | No. 3 brake actuator tube | 44553-12020 |
| 44554 | No. 4 brake actuator tube | 44554-20030 |
| 44555 | No. 5 brake actuator tube | 44555-12010 |
| 44591 | No. 1 brake actuator bracket | 44591-12010 |
| 44592 | No. 2 brake actuator bracket | 44592-20010 |
| 47150 | Proportional valve assembly | 47150-12060 · 47150-12070 · 47150-12091 · 47150-16070 · 47150-20140 |
| 47159 | Proportional valve bracket | 47159-12050 |
| 47311 | No. 1 front brake pipe | 47311-12380 · 47311-12410 · 47311-12430 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10116 · 90413-10164 · 90413-10221 |
| 47312 | No. 2 front brake pipe | 47312-12270 · 47312-12280 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10140 |
| 47313 | No. 3 front brake pipe | 47313-12180 · 47313-12220 · 47313-12240 |
| 47313A | No. 1 front flexible hose | 90947-02532 · 90947-02587 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12260 · 47314-12300 |
| 47315 | No. 5 front brake pipe | 47315-12400 · 47315-12430 |
| 47316 | No. 6 front brake pipe | 47316-12170 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02533 · 90947-02541 |
| 47317 | No. 7 front brake pipe | 47317-12020 |
| 47318 | No. 8 front brake pipe | 47318-12160 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47321 | No. 1 rear brake pipe | 47321-12030 · 47321-12080 |
| 47322 | No. 2 rear brake pipe | 47322-12180 · 47322-12230 |
| 47323 | No. 3 rear brake pipe | 47323-12210 |
| 47324 | No. 4 rear brake pipe | 47324-12170 |
| 47371A | No. 1 brake pipe clamp | 47371-12030 |
| 47372 | No. 2 brake pipe clamp | 47371-12040 |
| 47373B | No. 3 brake pipe clamp | 47371-12050 |
