Toyota COROLLA Steering Wheel — Figure 4504

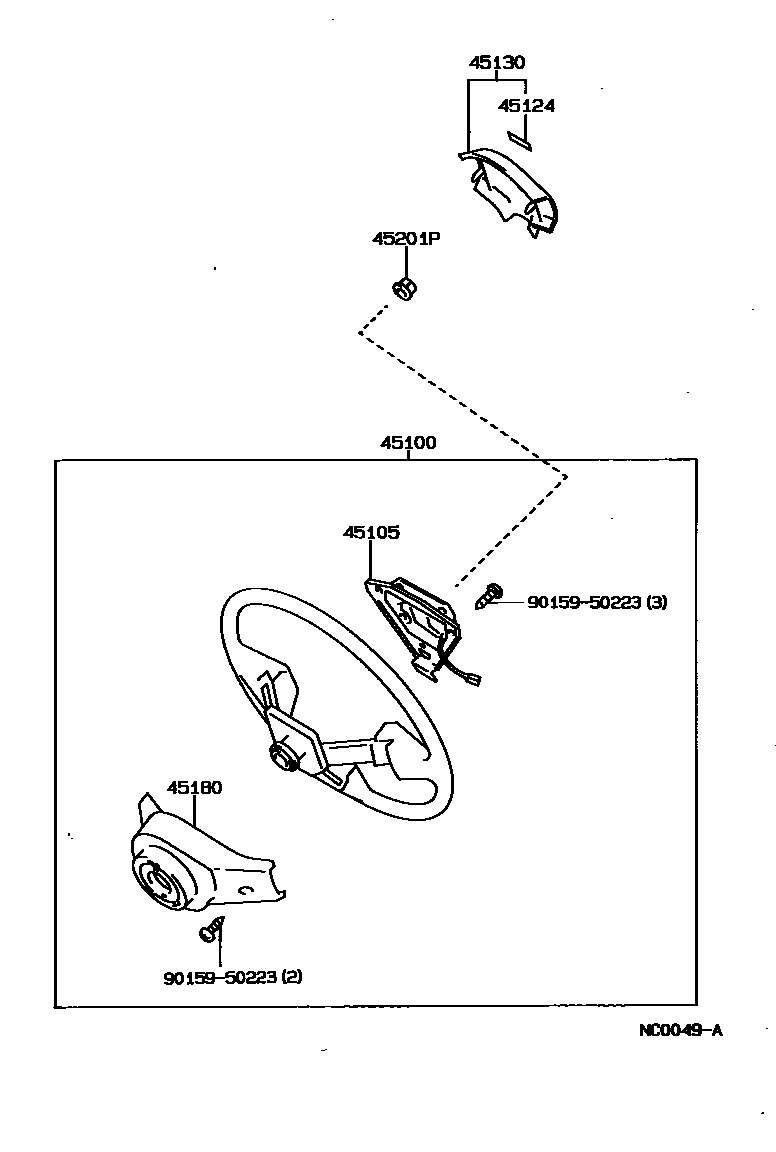

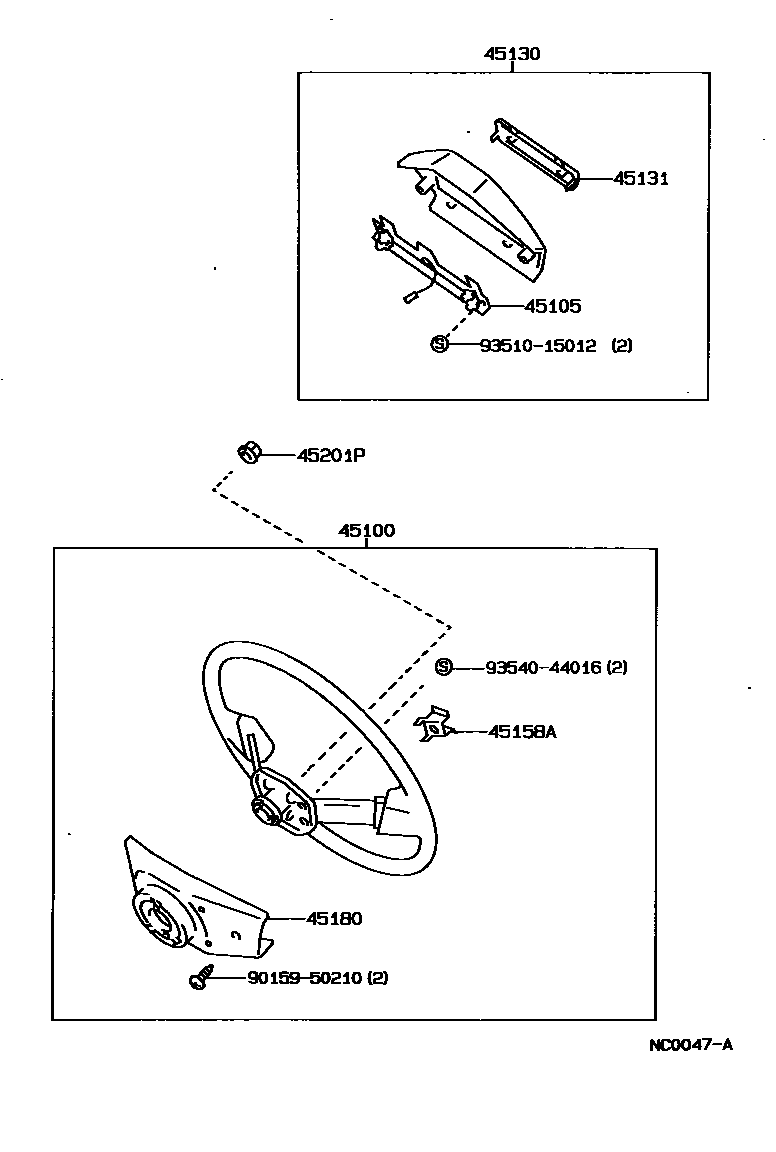

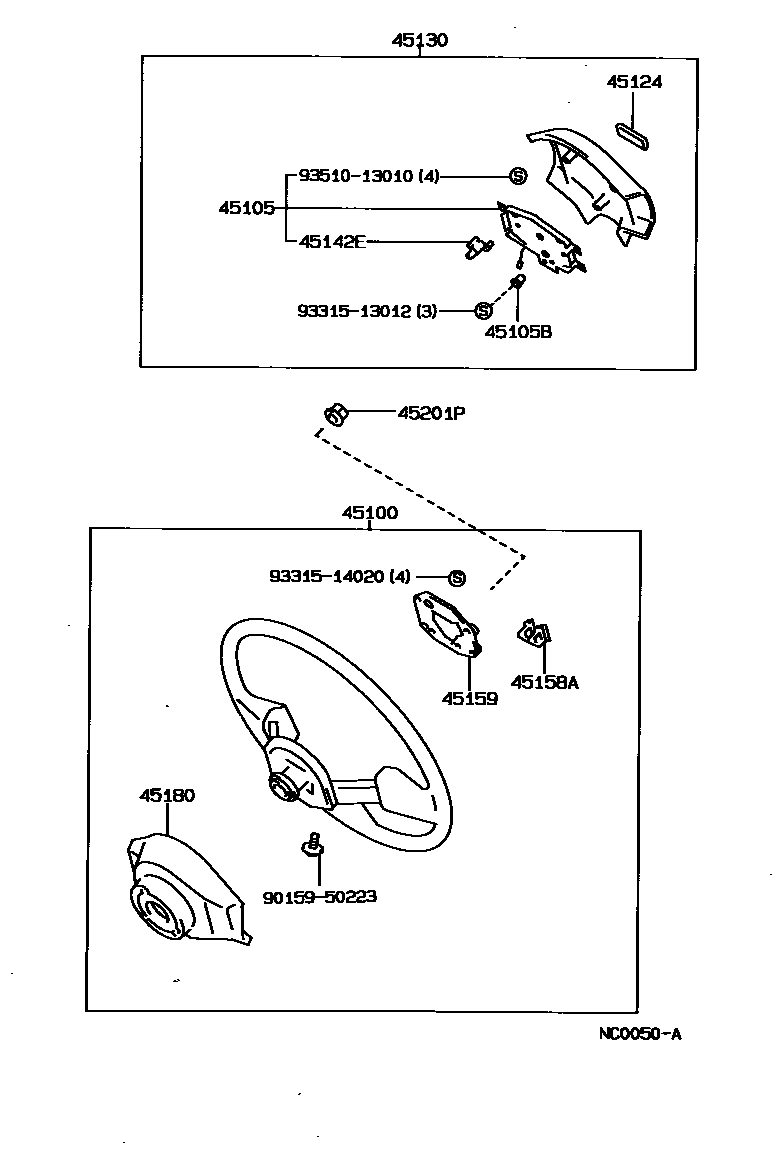

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-12050 · 45105-12070 · 45105-12080 · 45105-12120 |
| 45105B | Spacer (for horn button contact piece) | 90561-02001 |
| 45124 | Steering wheel mark trim | 45124-12050 · 45124-12080 · 45124-12190 |
| 45142E | Speaker contacts | 45142-12090 |
| 45158A | Speaker button connector sleeve | 45158-12020 · 45158-12030 |
| 45159 | Steering wheel decorative cover fixed retaining ring | 45159-12010 · 45159-12020 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
