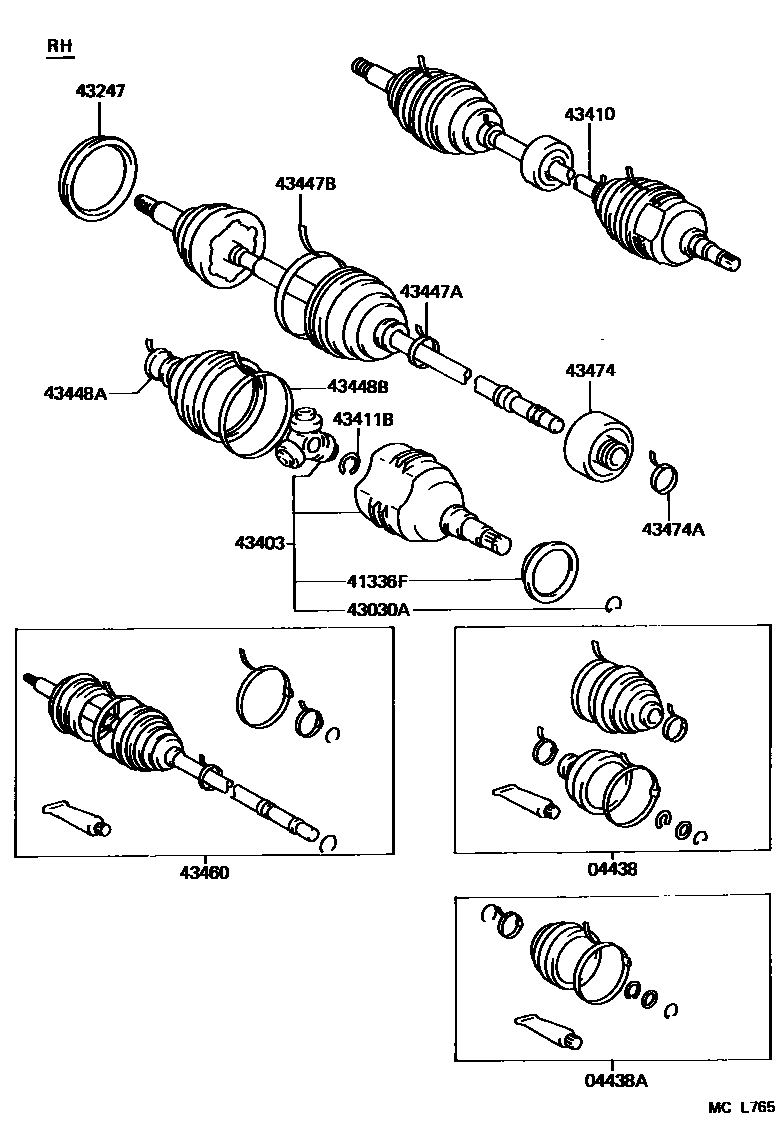

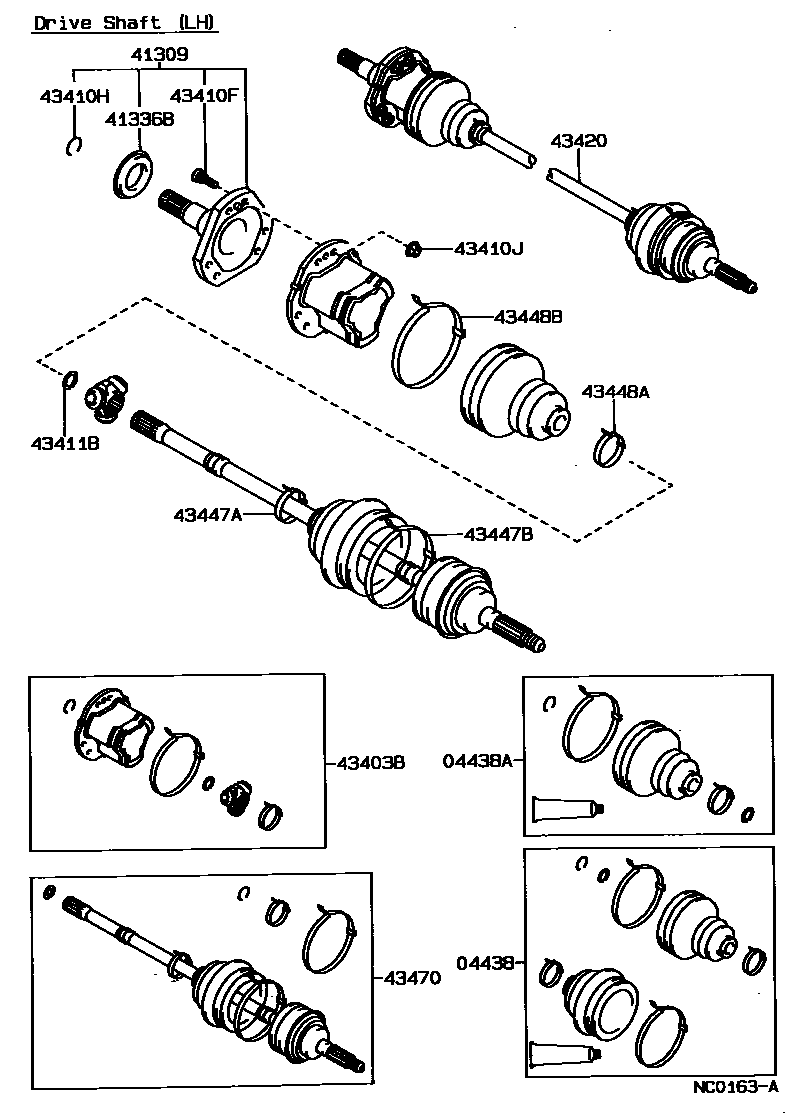

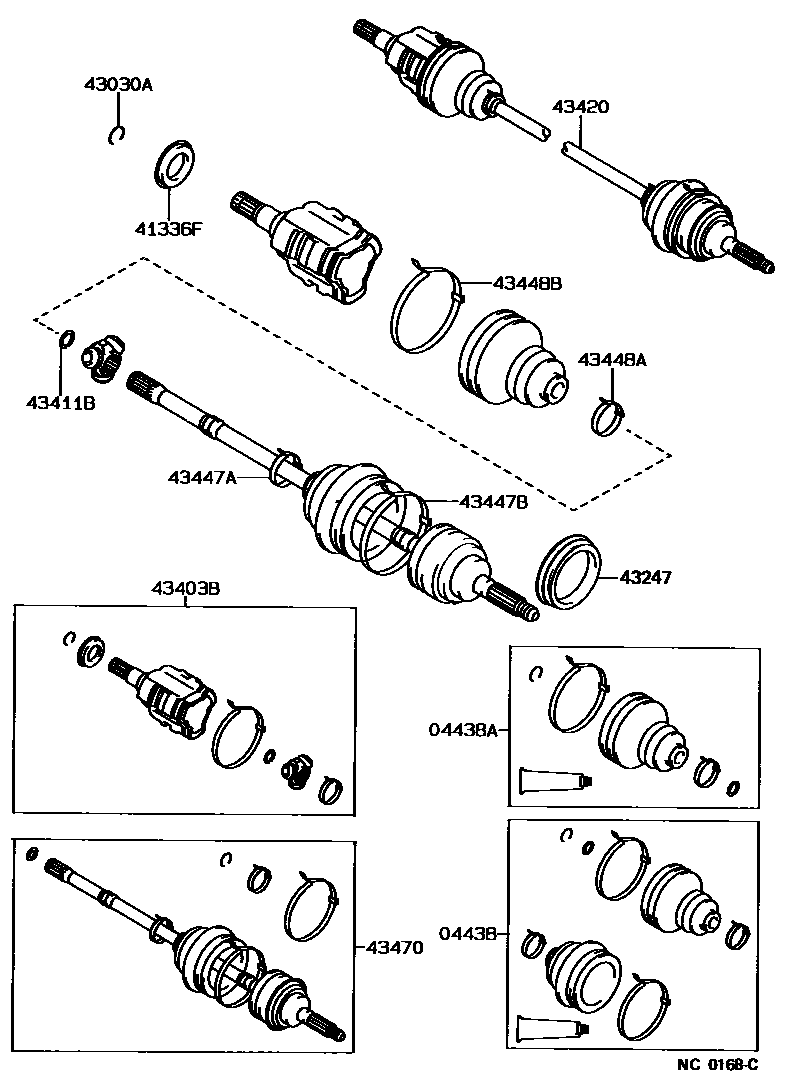

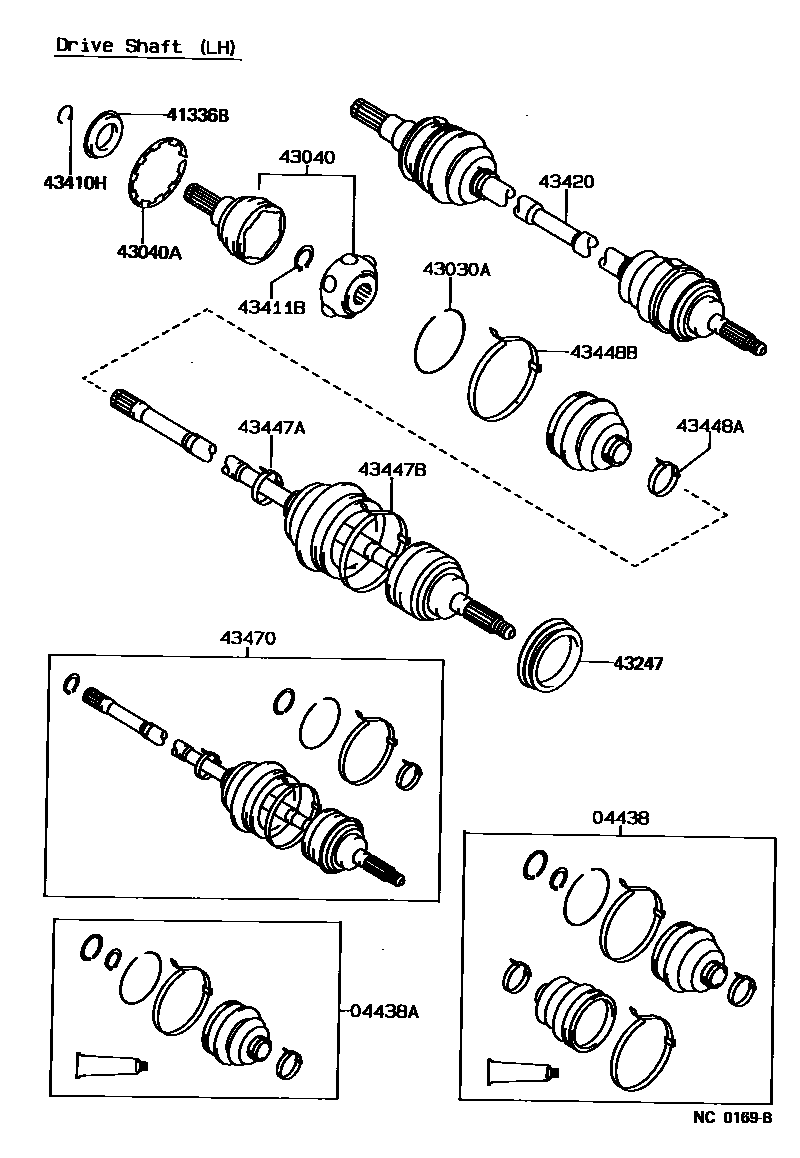

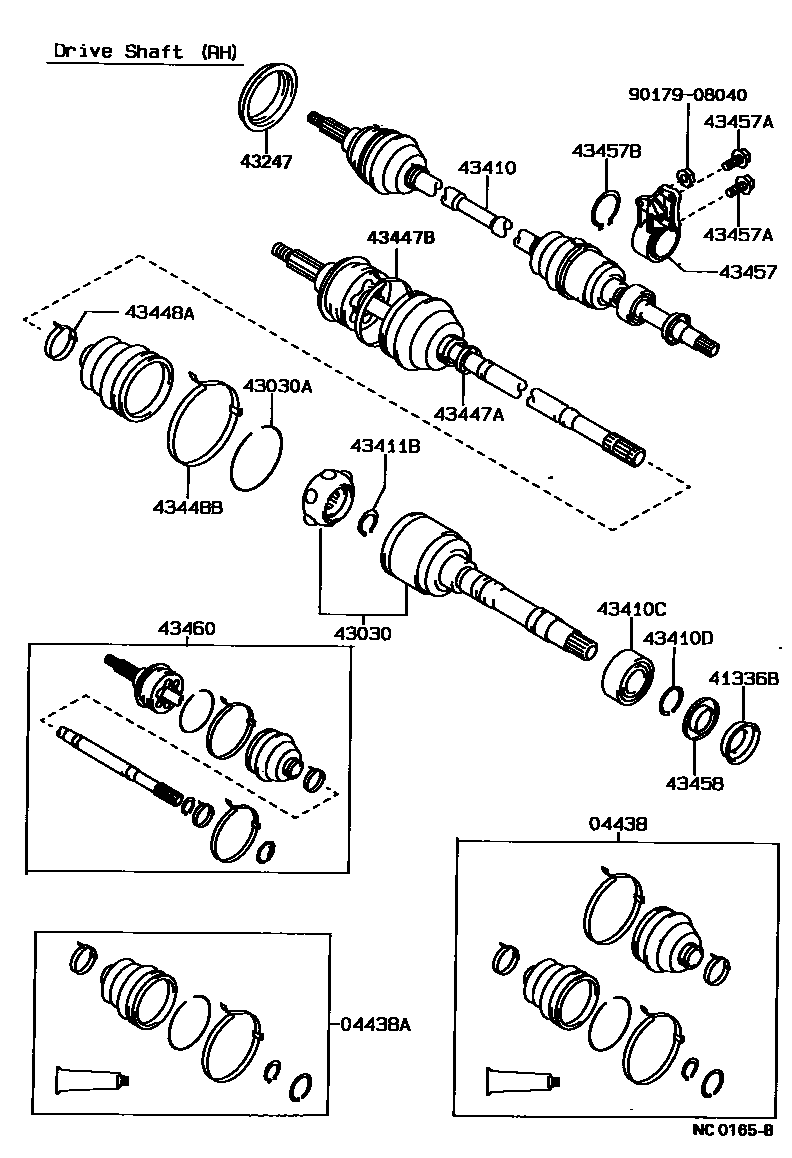

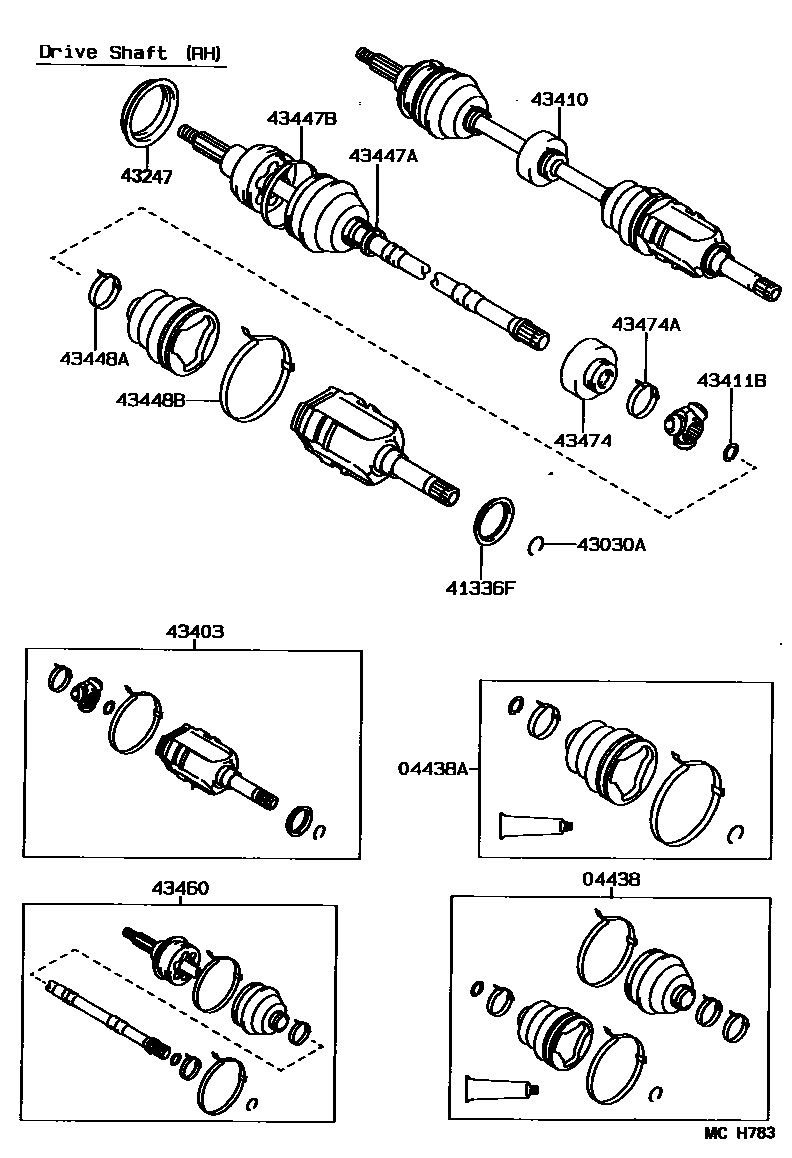

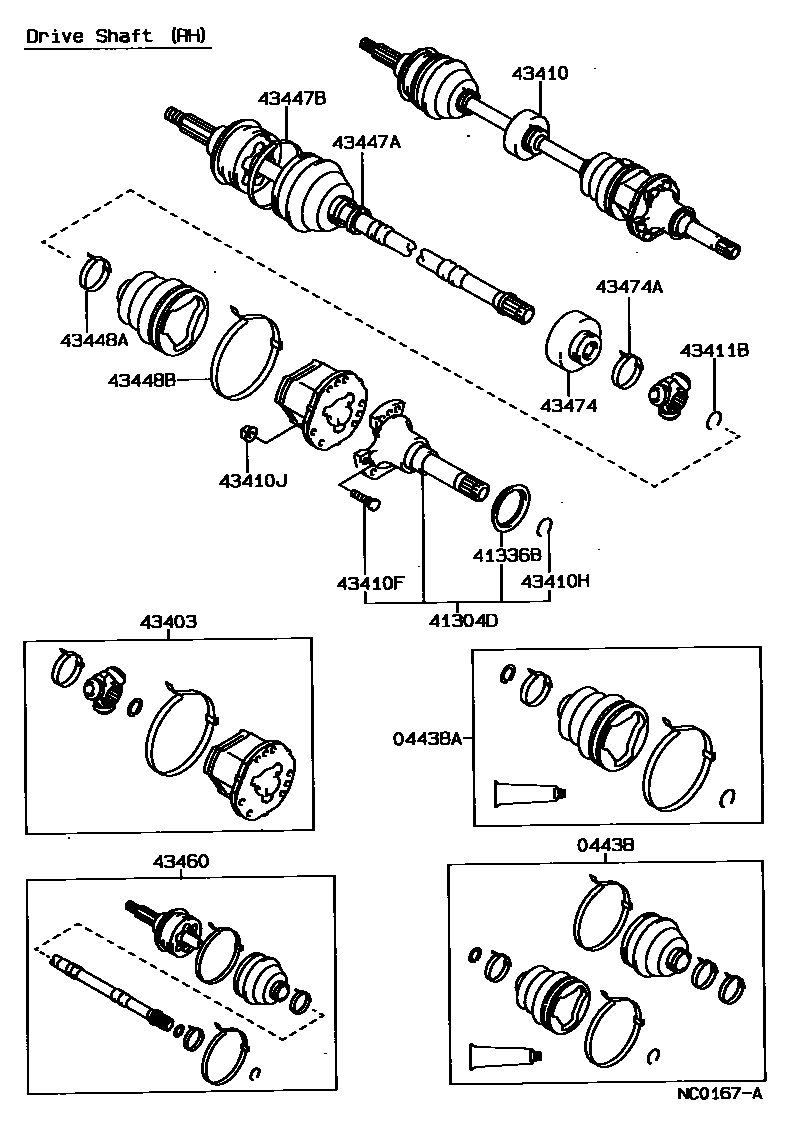

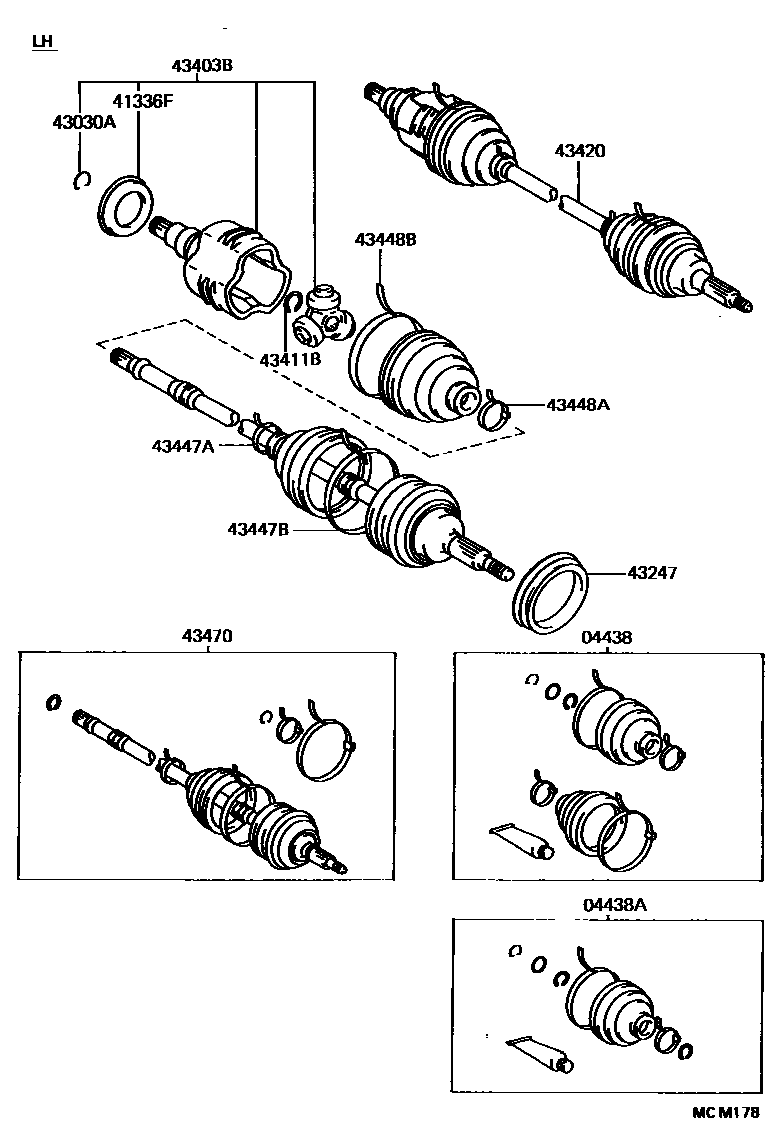

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 8 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04438-12040 · 04438-12080 · 04438-12100 · 04438-12120 · 04438-12170 · 04438-12171 · 04438-12190 · 04438-12191 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-12060 · 04438-12070 · 04438-12090 · 04438-12160 · 04438-12161 |
| 41304D | Right differential side gear shaft sub-assembly | 41304-17010 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-17010 |
| 41336B | Dust cover (for front drive shaft) | 41336-12010 · 41336-12020 · 41336-12030 |
| 41336F | Dust cover (for front axle inner universal joint assembly) | 41336-12010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12010 |
| 43030A | Hole snap ring (for front drive shaft inboard universal joint) | 90521-26004 · 90521-81001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-12010 |
| 43040A | Shaft snap ring (for left front drive shaft inboard universal joint) | 90520-86003 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-12010 · 43247-32011 |
| 43403 | Right front axle inner universal joint assembly | 43403-12040 · 43403-19055 · 43403-19085 · 43403-39025 |
| 43403B | Left front axle inner universal joint assembly | 43403-12040 · 43403-19055 · 43403-19085 · 43403-39025 |
| 43410 | Right front driveshaft assembly | 43410-12130 · 43410-12131 · 43410-12140 · 43410-12160 · 43410-12161 · 43410-12170 · 43410-12171 · 43410-12190 · 43410-12191 · 43410-12200 · 43410-12201 · 43410-12210 · 43410-12211 |
| 43410C | Bearings (for front driveshaft) | 90363-41001 · 90369-41001 |
| 43410D | Shaft snap ring (for front drive shaft) | 90520-38015 |
| 43410F | Serrated threaded bolt (for front drive shaft) | 90114-08006 |
| 43410H | Hole snap ring (for front driveshaft) | 90521-26002 · 90521-33002 |
| 43410J | Nut (for front driveshaft) | 90179-08053 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-22005 · 90520-26037 |
| 43420 | Left front drive shaft assembly | 43420-12090 · 43420-12091 · 43420-12100 · 43420-12120 · 43420-12121 · 43420-12140 · 43420-12141 · 43420-12160 · 43420-12161 · 43420-12170 · 43420-12171 · 43420-12180 · 43420-12181 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 42345-14010 · 42345-22020 · 90949-01078 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90949-01076 · 90949-01080 · 90949-01400 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14010 · 42345-22020 · 90949-01078 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14020 · 42346-22020 · 90949-01076 |
| 43457 | drive shaft bearing bracket | 43457-12010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-08144 · 90105-10198 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19275 · 43460-19276 · 43460-19285 · 43460-19305 · 43460-19306 · 43460-19355 · 43460-19356 · 43460-19365 · 43460-19366 · 43470-19255 · 43470-19256 · 43470-19295 · 43470-19296 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19215 · 43470-19216 · 43470-19235 · 43470-19255 · 43470-19256 · 43470-19295 · 43470-19296 · 43470-19305 · 43470-19306 · 43470-19315 · 43470-19316 · 43470-39085 · 43470-39086 |
| 43474 | drive shaft damper | 43474-12020 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
