Toyota COROLLA 车轮和车轮盖 — Figure 4103

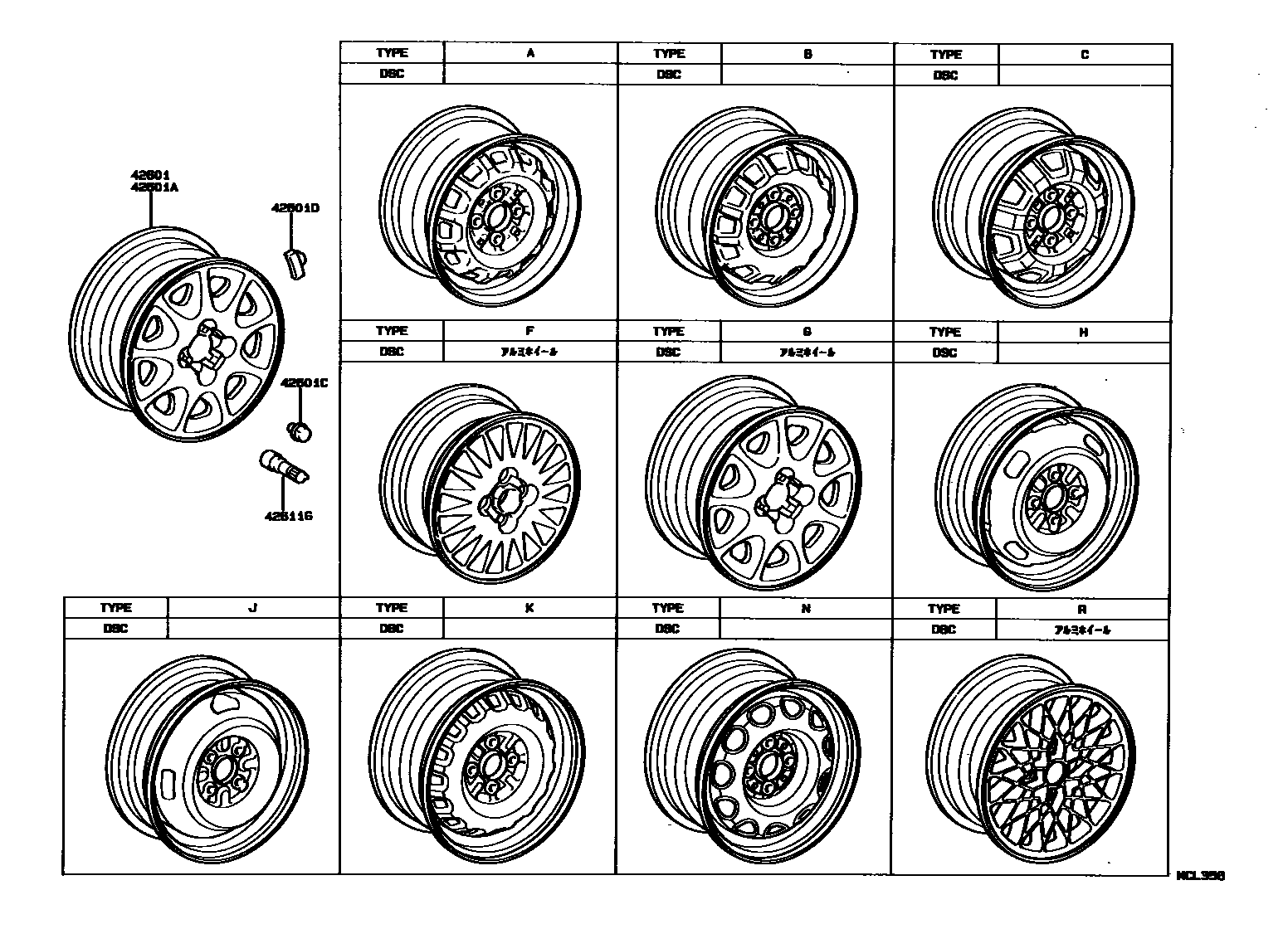

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12820 · 42611-12840 · 42611-12850 · 42611-12870 · 42611-12880 · 42611-20300 |
| 42601A | Spoke wheel (for spare tire) | 42611-16200 · 42611-17040 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01058 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03119 · 90942-03120 · 90942-03121 · 90942-03122 · 90942-03123 · 90942-03124 · 90942-03125 · 90942-03126 · 90942-03127 · 90942-03128 · 90942-03129 · 90942-03130 · 90942-03131 · 90942-03132 · 90942-03133 · 90942-03146 · 90942-03147 · 90942-03148 · 90942-03149 · 90942-03150 · 90942-03151 · 90942-03152 · 90942-03153 · 90942-03154 · 90942-03155 · 90942-03156 · 90942-03157 · 90942-03158 · 90942-03159 · 90942-03160 · 90942-03161 · 90942-03163 · 90942-03167 |

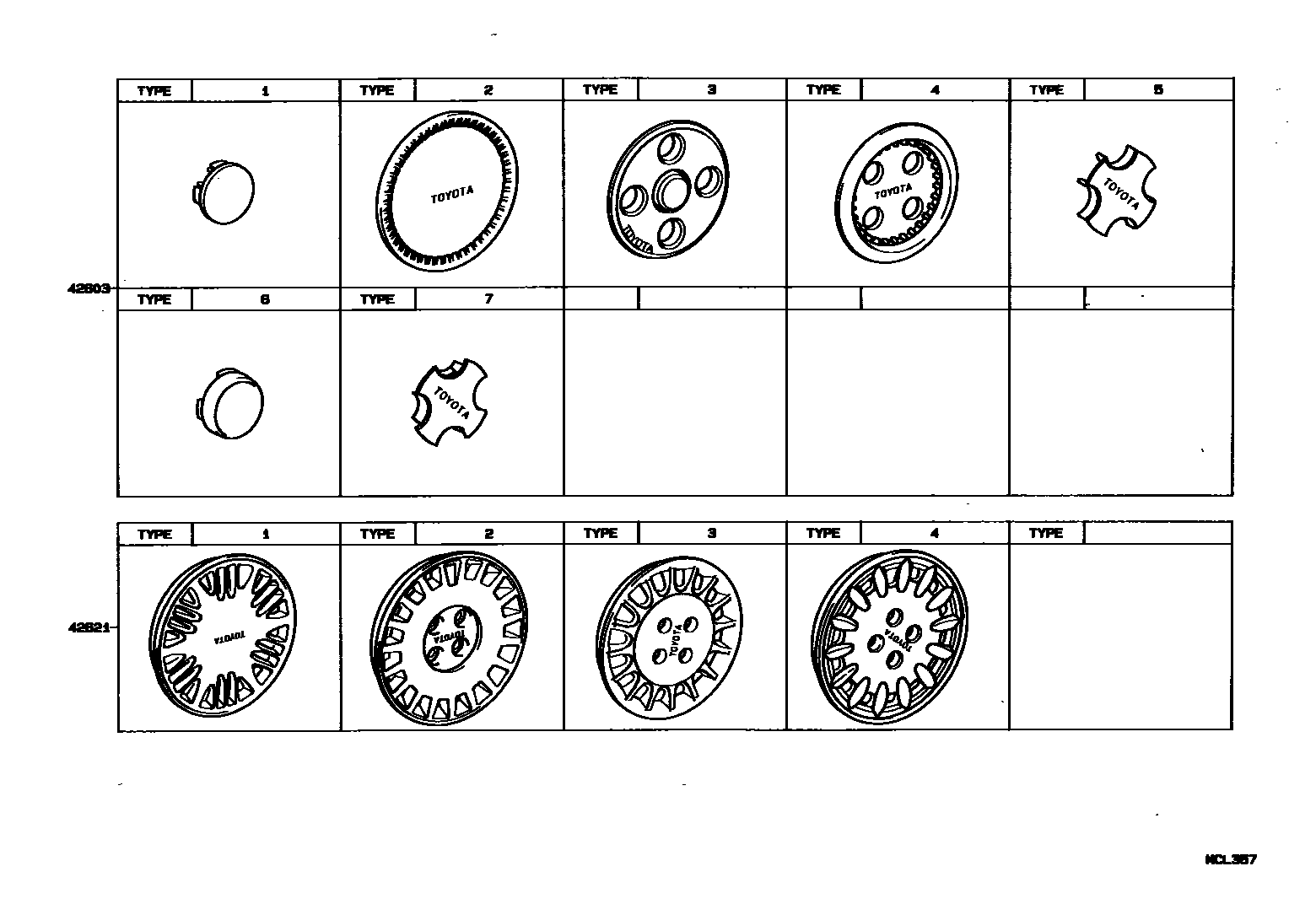

| 42603 | Wheel hub decorative parts sub-assembly | 42603-10140 · 42603-12170 · 42603-12370 · 42603-12390 · 42603-12400 · 42603-12410 · 42603-12440 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
