Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

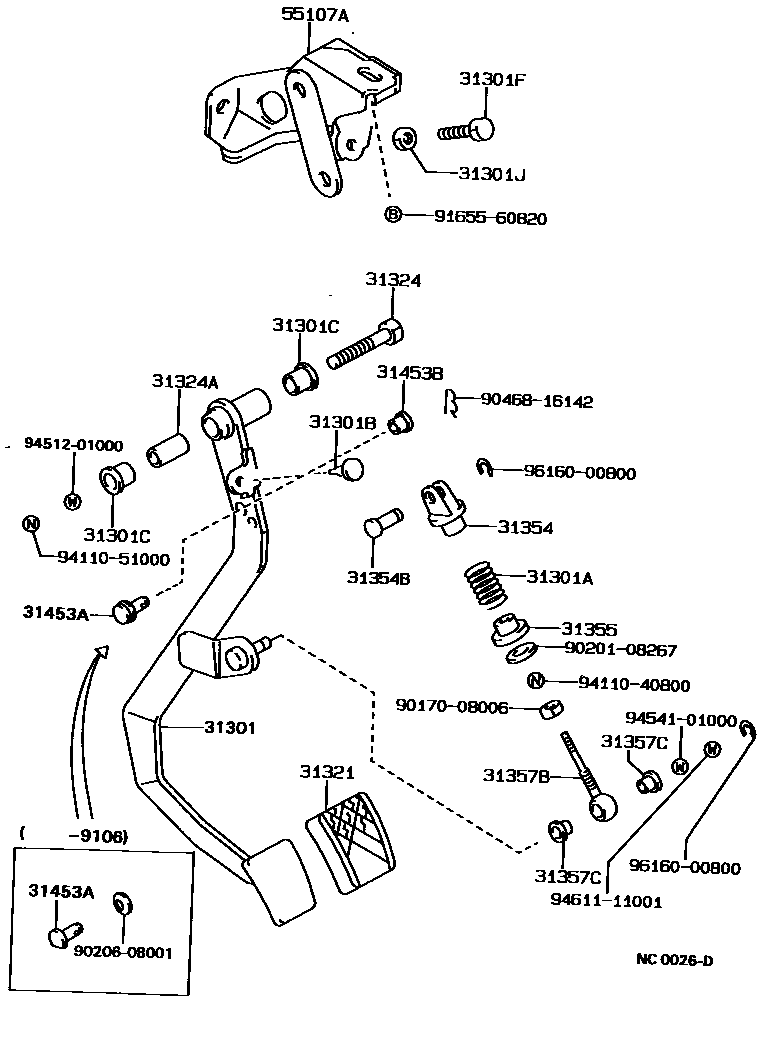

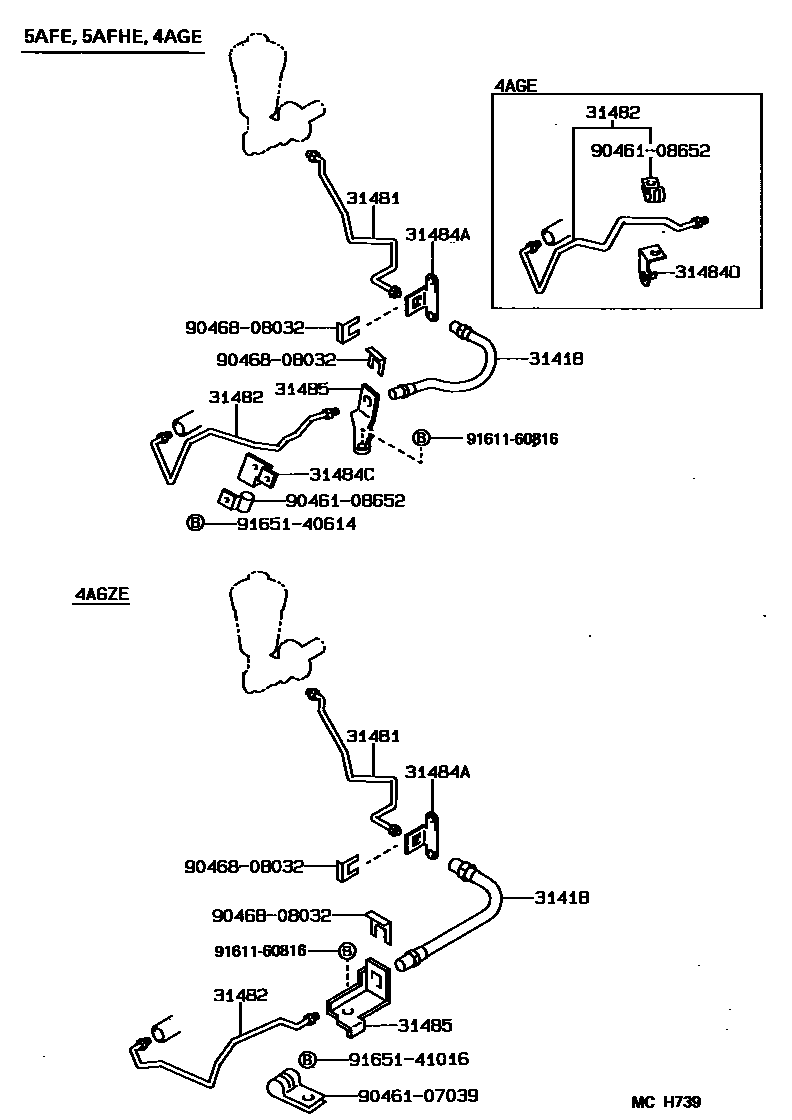

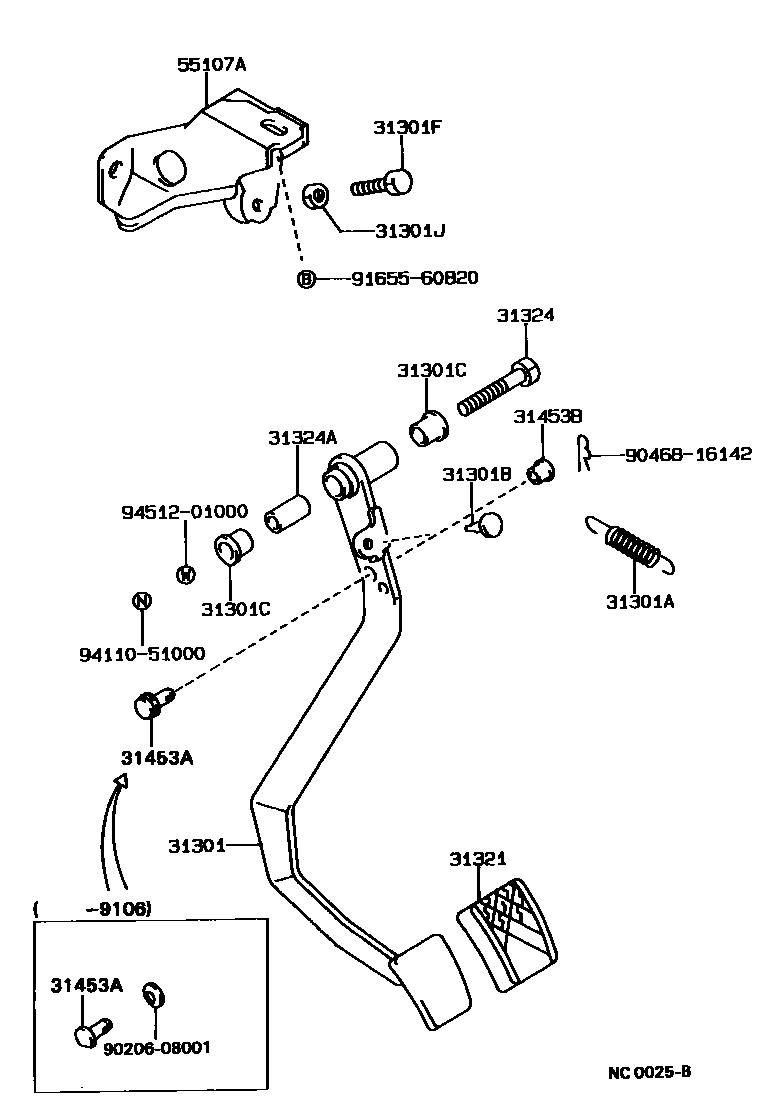

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12330 · 31310-12020 · 31310-12021 |
| 31301A | Spring (for clutch pedal) | 90501-40015 · 90506-14002 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 · 90541-07010 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 · 90386-13192 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94120-41000 |
| 31321 | clutch pedal pad | 31321-12030 · 31321-12040 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10081 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31354 | Clutch pedal spring upper seat | 31354-12010 |
| 31354B | Pin with hole (for clutch pedal spring upper seat) | 90249-10127 |
| 31355 | Clutch pedal spring lower seat | 31355-20020 |
| 31357B | center adjustment lever | 31357-32020 |
| 31357C | Bushing (for center adjustment lever) | 90386-10019 |
| 31418 | clutch hose | 90931-01041 · 90931-01061 · 90931-01062 · 96816-50295 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08006 · 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12180 · 31481-12181 · 31481-12200 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-12050 · 31482-12051 · 31482-12052 · 31482-12060 · 31482-12080 · 31482-12081 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12050 · 31484-12160 · 31484-12170 |
| 31484C | No. 1 clutch tube bracket | 31484-12110 |
| 31484D | No. 2 clutch tube bracket | 31484-12150 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12120 · 31484-12130 · 31484-12140 · 31484-12180 · 31484-12200 · 31484-12210 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-12110 · 55107-12120 |
