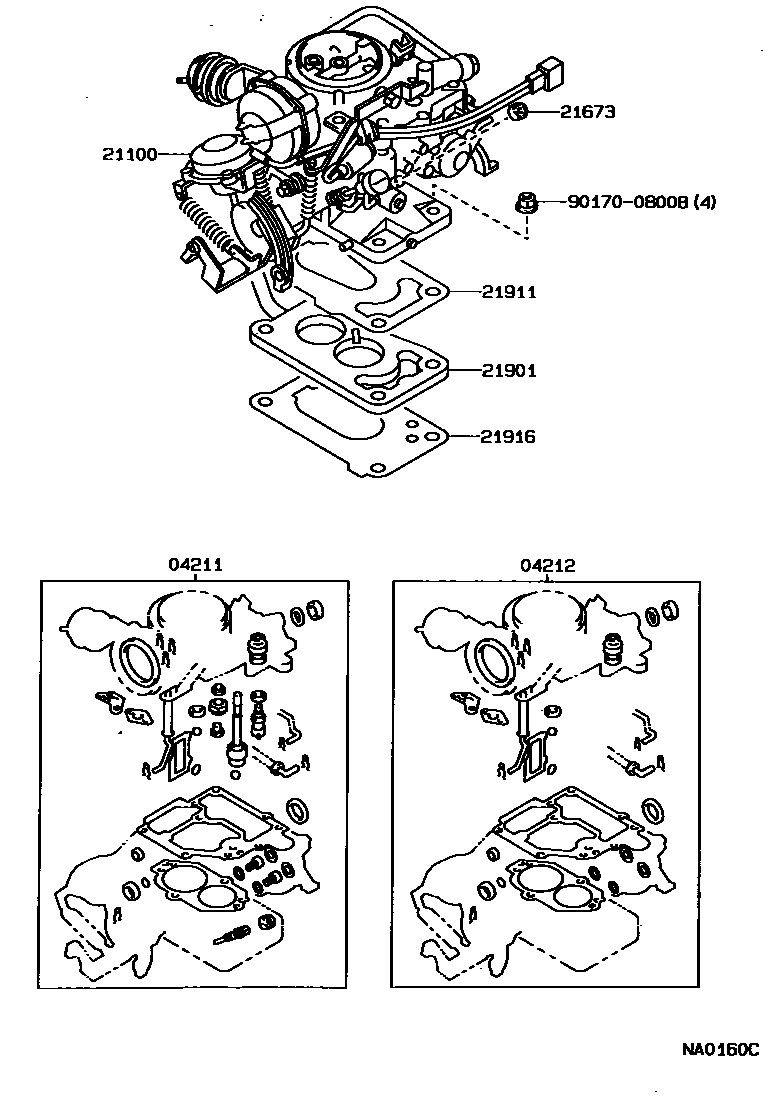

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-15180 · 04211-15181 |
| 04212 | carburetor gasket assembly | 04212-16070 |
| 21100 | carburetor assembly | 21100-15500 · 21100-15501 · 21100-15510 · 21100-15511 |
| 21673 | Idle speed limit cap | 21673-13280 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-15091 |
| 21911 | carburetor gasket | 21911-15071 |
| 21916 | No. 2 carburetor gasket | 21916-15040 |
