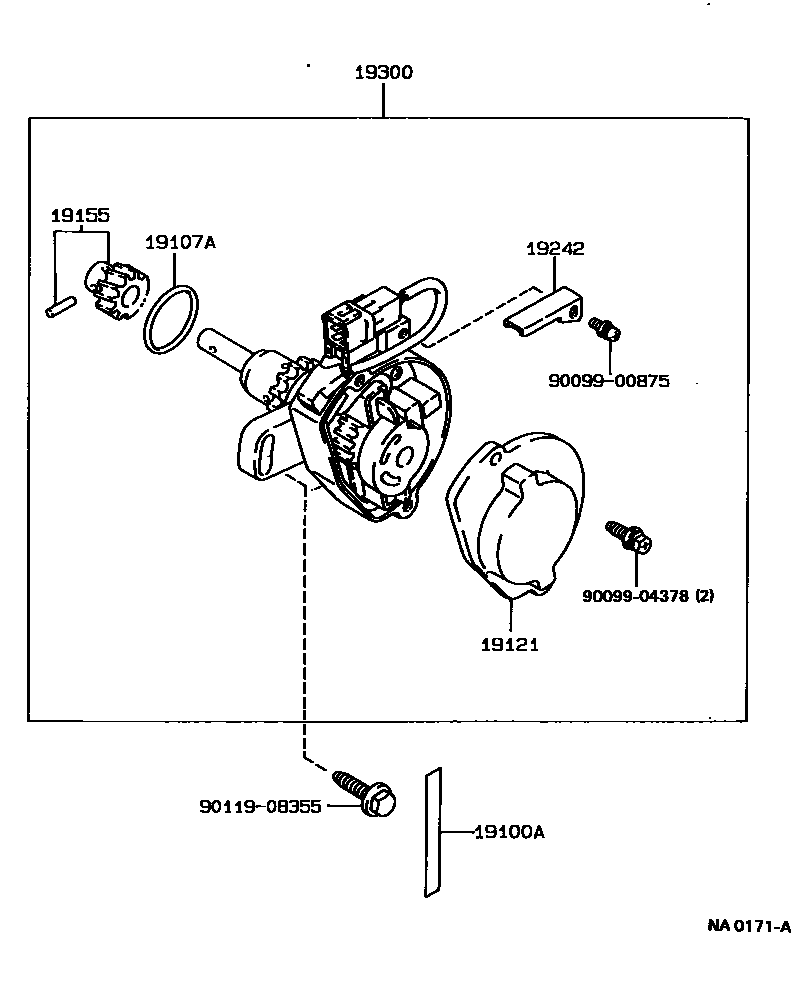

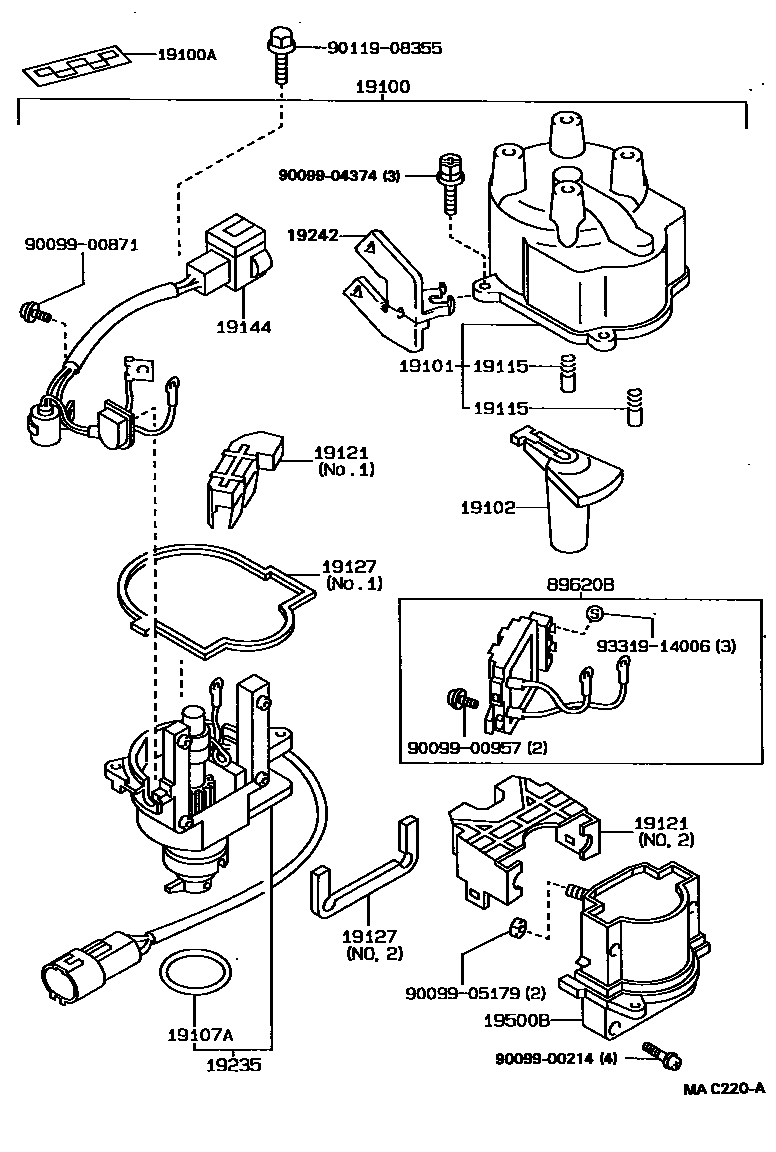

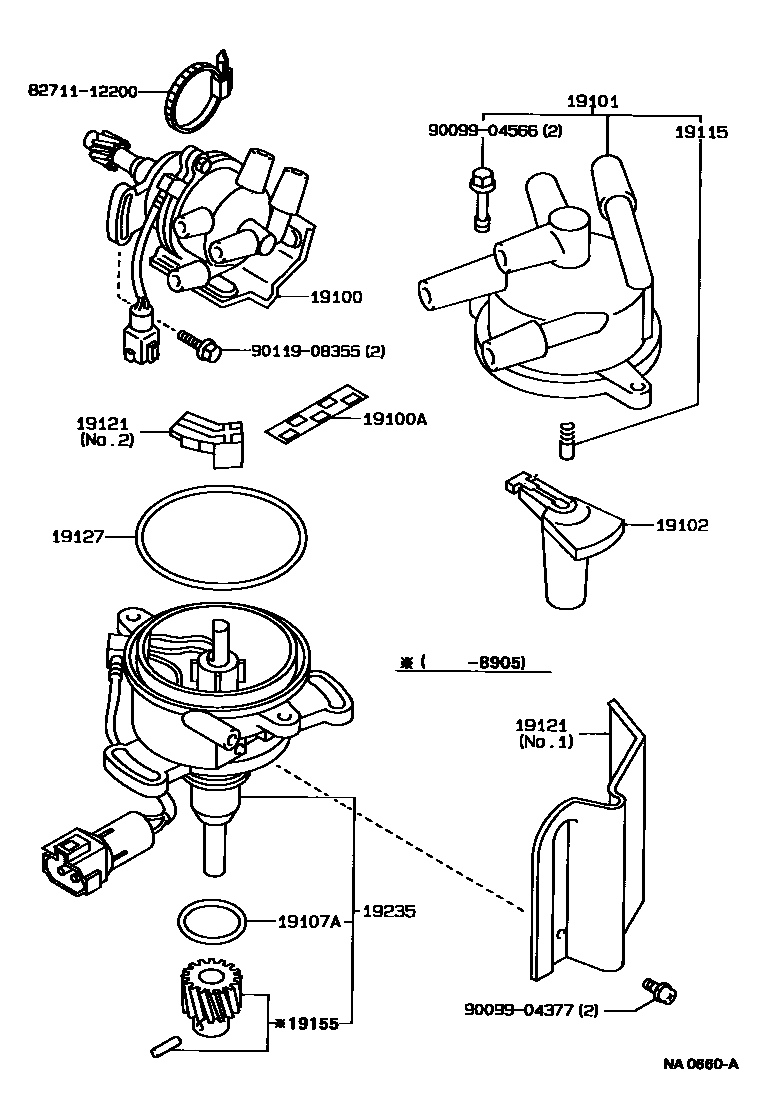

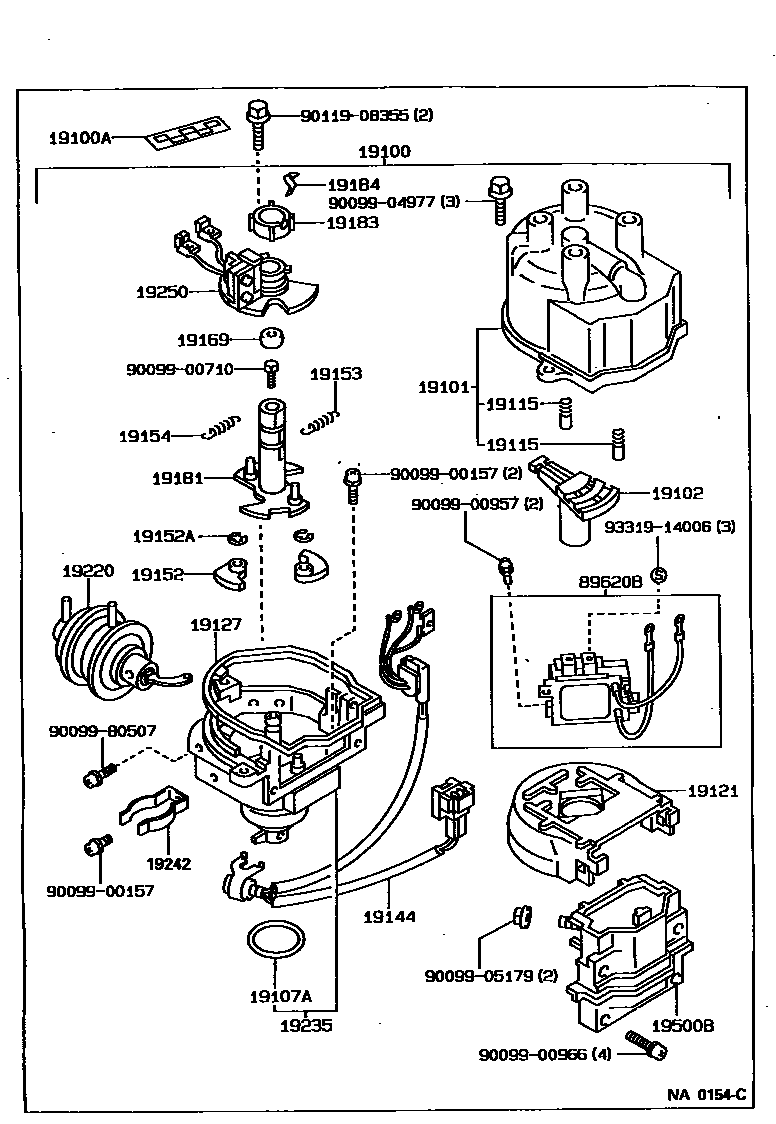

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-15120 · 19020-15130 · 19020-15140 · 19020-15170 · 19100-16160 · 19100-16250 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-15120 · 19101-15140 · 19101-16160 · 19101-16250 |
| 19102 | Distributor flame head sub-assembly | 19102-11010 · 19102-11031 · 19102-16040 |
| 19107A | Distributor housing O-ring | 90099-14091 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 |
| 19121 | dust cover | 19121-11080 · 19121-16020 · 19121-16040 · 19121-16090 · 19121-16150 · 19121-16160 · 19121-63040 · 19121-63090 |
| 19127 | Dust seal | 19127-15021 · 19127-15120 · 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-15120 · 19144-15130 · 19144-15140 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-15290 |
| 19154 | B governor spring | 19154-15130 |
| 19155 | Distributor spiral gear | 19195-16040 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-15140 · 19181-15220 · 19181-15230 · 19181-15240 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-15210 · 19220-15250 |
| 19235 | Distributor housing | 19235-15120 · 19235-15130 · 19235-15140 · 19235-16160 · 19235-16250 |
| 19242 | Cable clip | 19242-15120 · 19242-15140 · 19242-70010 |
| 19250 | Signal generator assembly | 19251-15091 · 19251-16100 |
| 19300 | Cam position sensor assembly | 19300-16010 · 19300-16011 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 · 90919-02164 |
| 89620B | Ignition assembly | 89620-10120 · 89620-12340 · 89620-12430 · 89620-20250 |
