Toyota COROLLA 点火线圈和火花塞 — Figure 1901

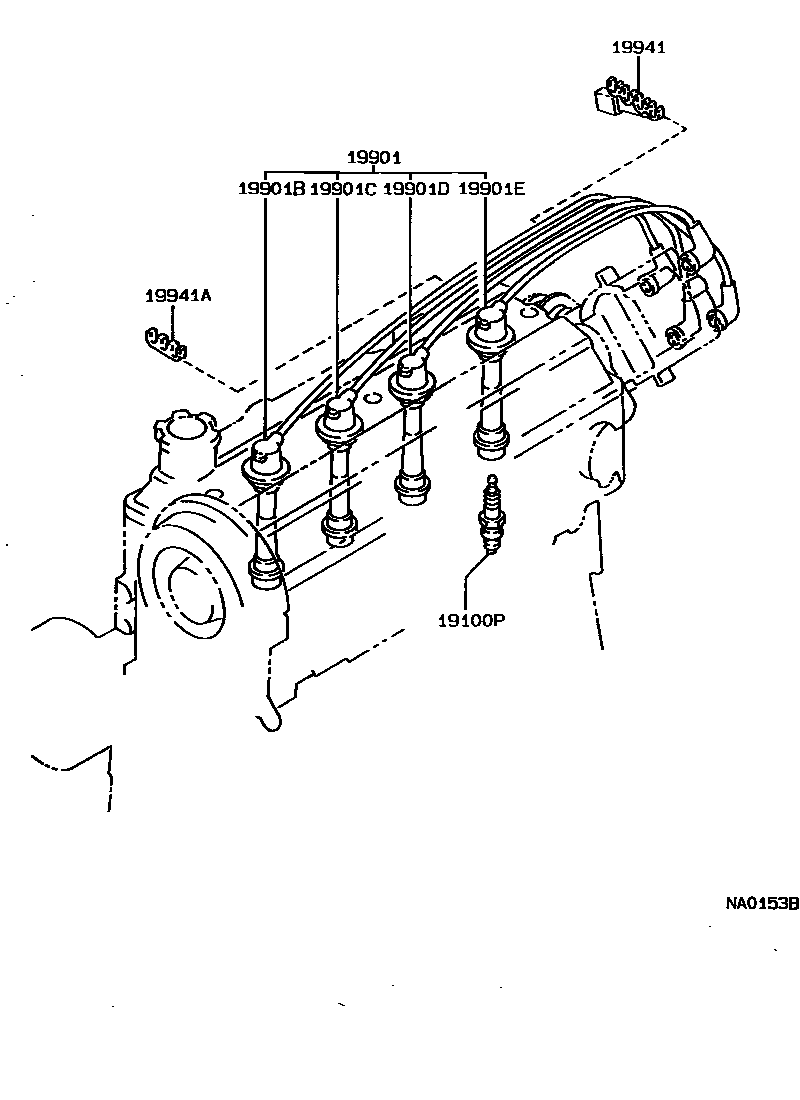

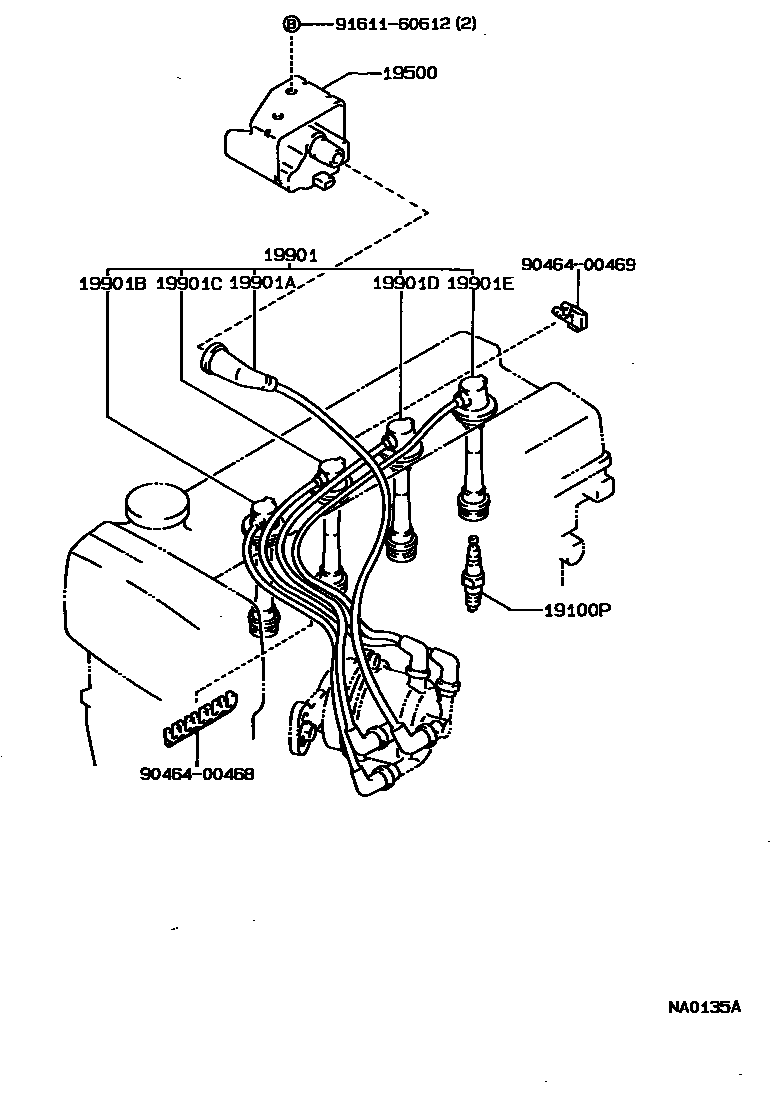

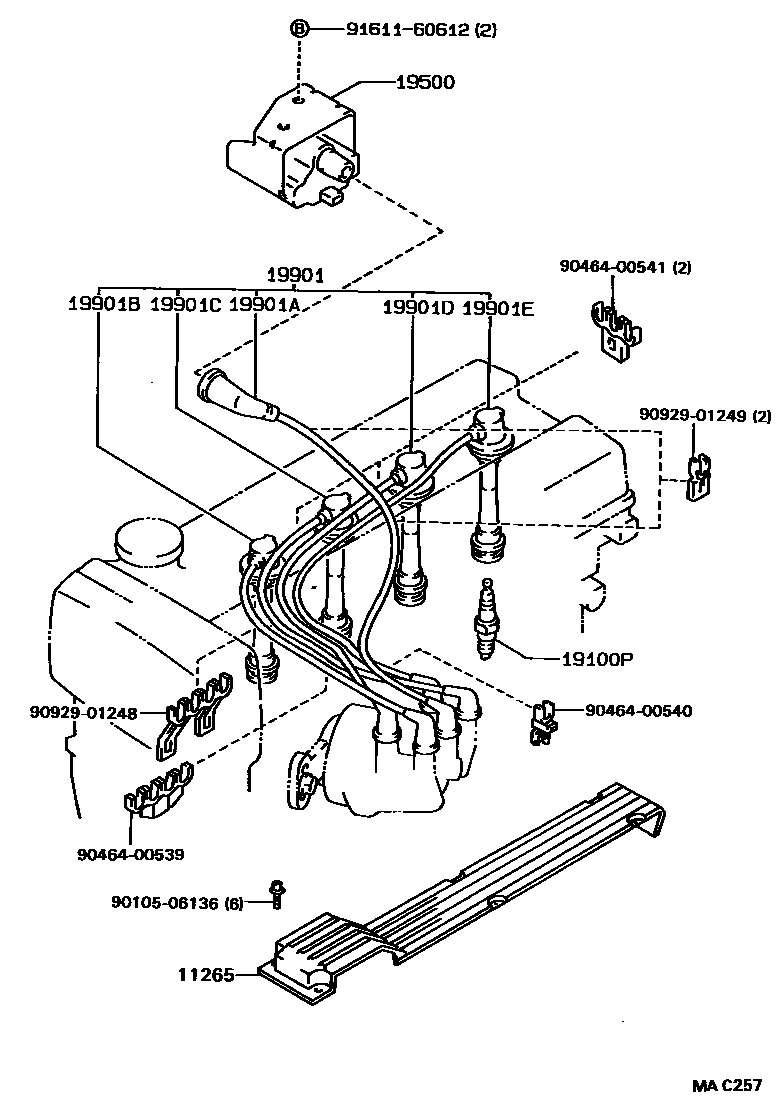

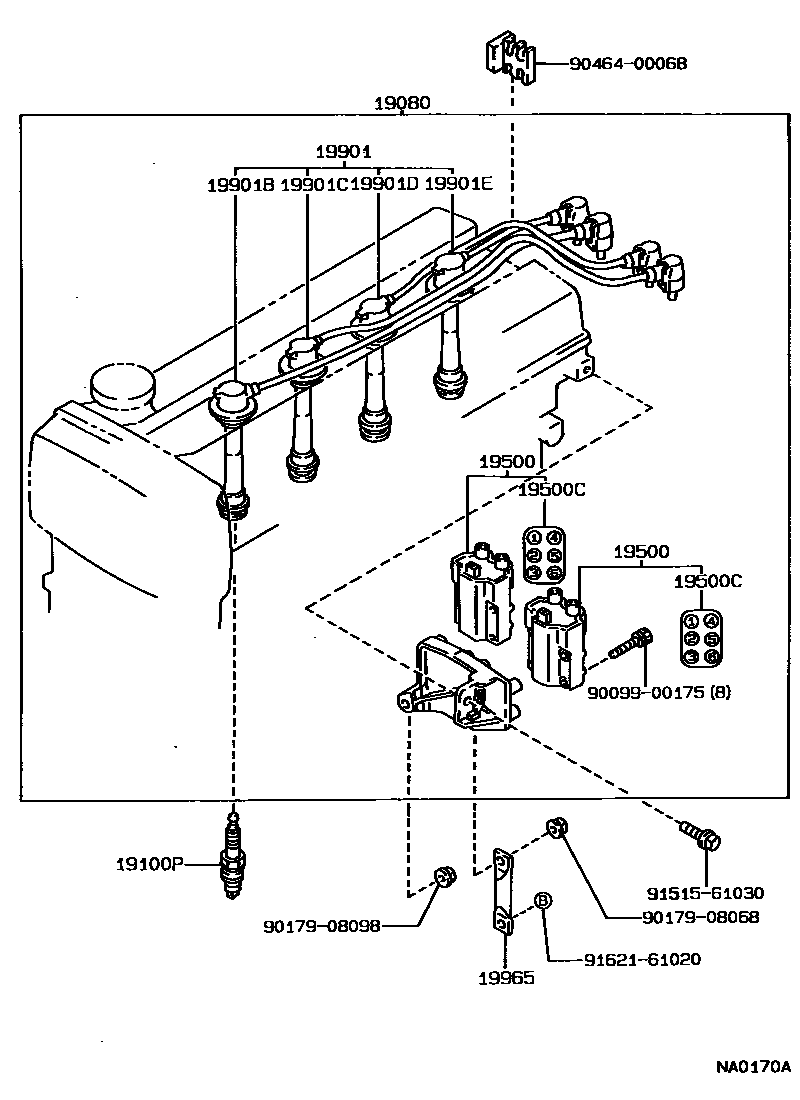

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-16010 |
| 19080 | Coil assembly with bracket and wires | 19080-16020 |
| 19100P | spark plug | 90919-01121 · 90919-01122 · 90919-01145 · 90919-01146 · 90919-01153 · 90919-01159 · 90919-01180 · 90919-01181 |
| 19500 | Ignition coil assembly | 19080-16030 · 90919-02180 · 90919-02183 |
| 19500C | Plate (for ignition coil) | 11293-70130 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21395 · 90919-21461 · 90919-22194 · 90919-22196 · 90919-22198 · 90919-22214 · 90919-22284 |
| 19901A | coil damping line | 90919-13264 · 90919-13337 |
| 19901B | No. 1 spark plug damper wire | 90919-12699 · 90919-12707 · 90919-12715 · 90919-12741 · 90919-12791 · 90919-12982 · 90919-15058 |
| 19901C | No. 2 spark plug damper wire | 90919-12700 · 90919-12708 · 90919-12716 · 90919-12742 · 90919-12792 · 90919-12983 · 90919-15059 |
| 19901D | No. 3 spark plug damper wire | 90919-12701 · 90919-12709 · 90919-12717 · 90919-12743 · 90919-12793 · 90919-12984 · 90919-15060 |
| 19901E | No. 4 spark plug damper wire | 90919-12702 · 90919-12718 · 90919-12744 · 90919-12794 · 90919-12985 · 90919-15061 |
| 19941 | No. 1 damping wire clip | 90929-01165 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
| 19965 | No. 1 ignition coil band | 19968-16010 |
