Toyota COROLLA vacuum tube — Figure 1708

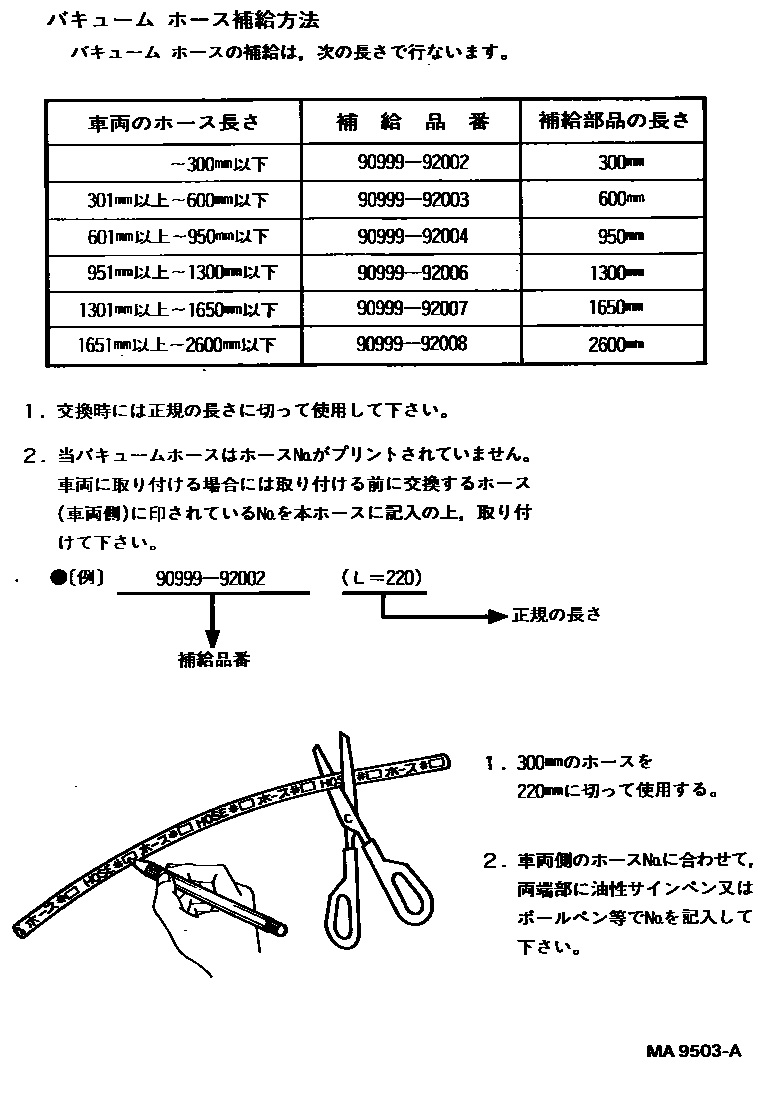

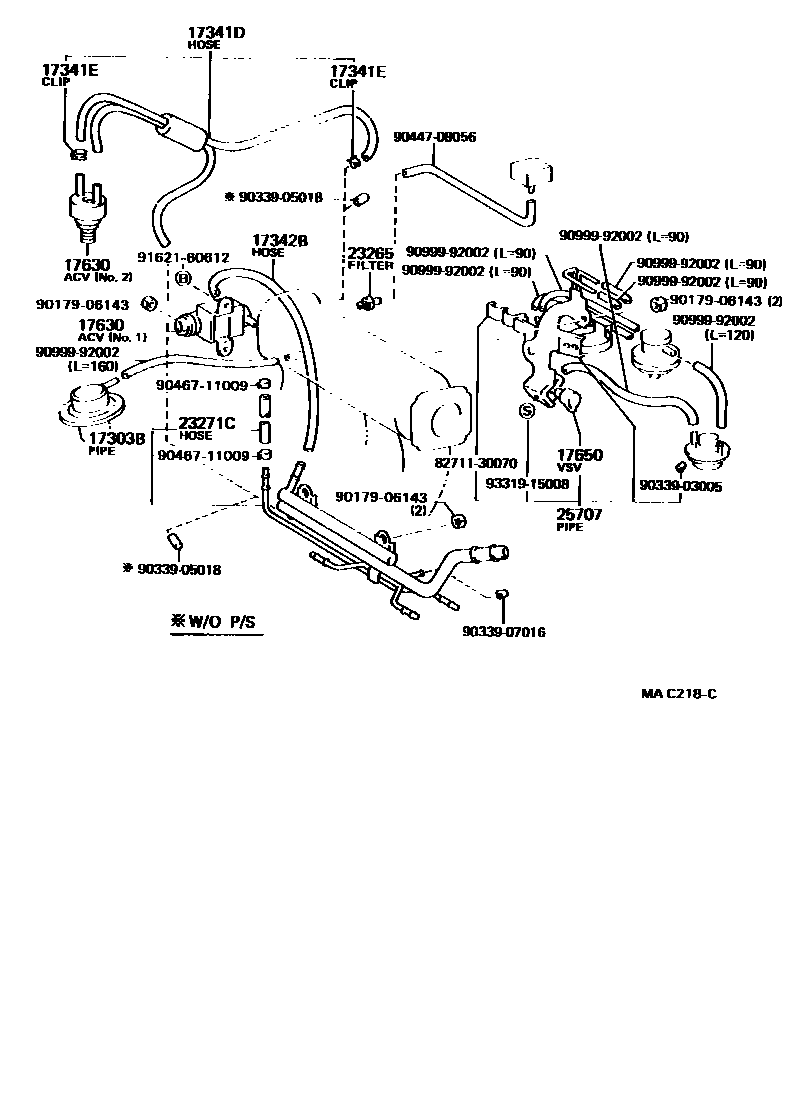

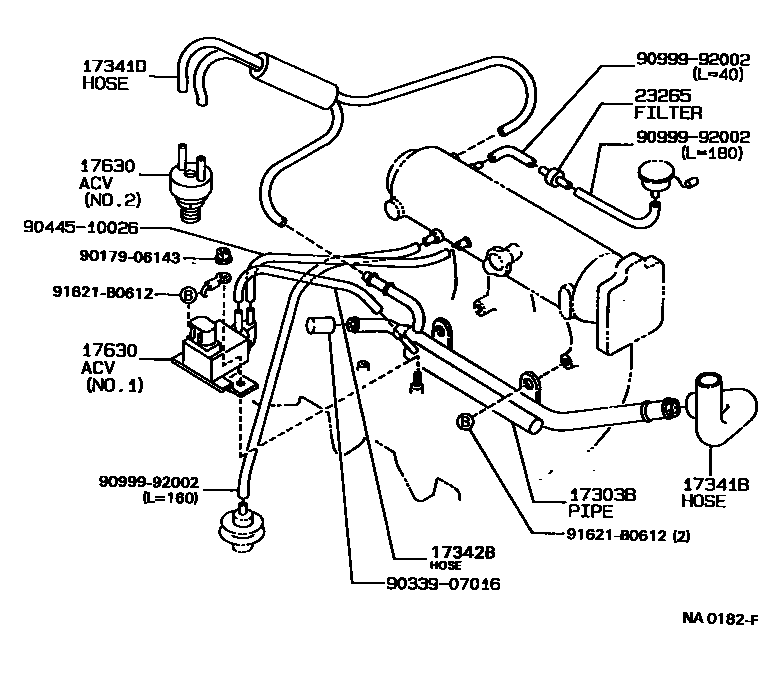

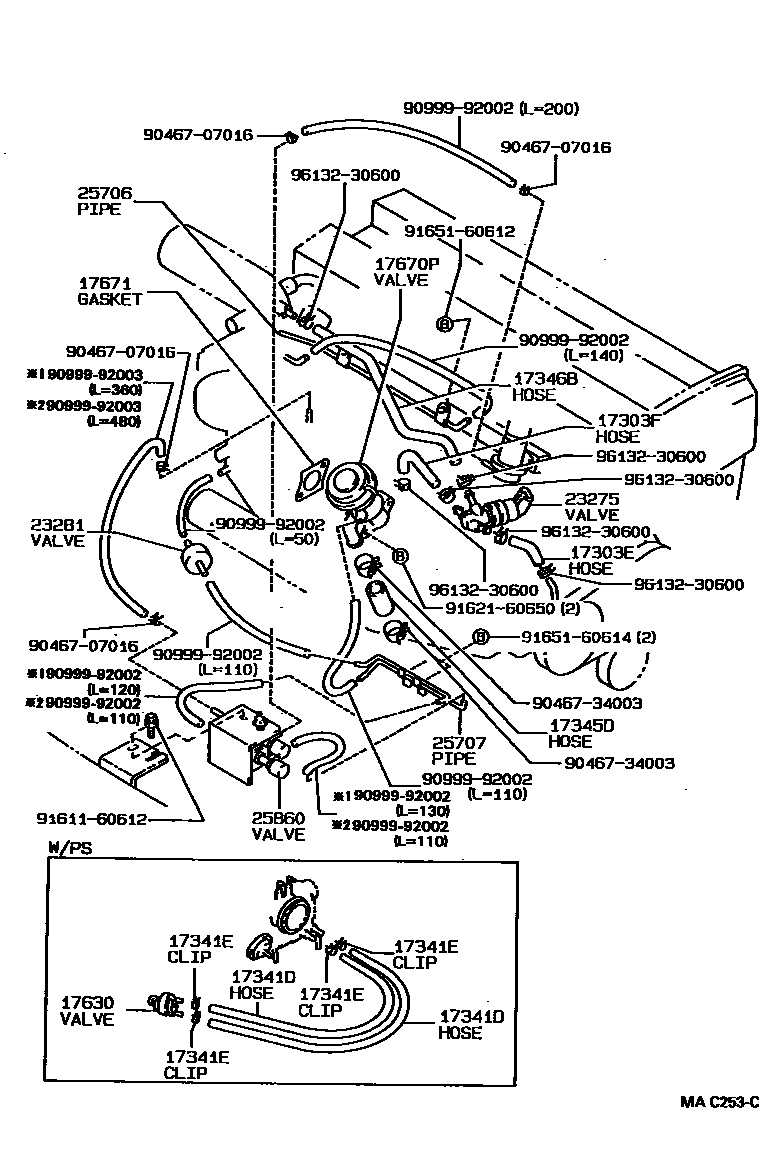

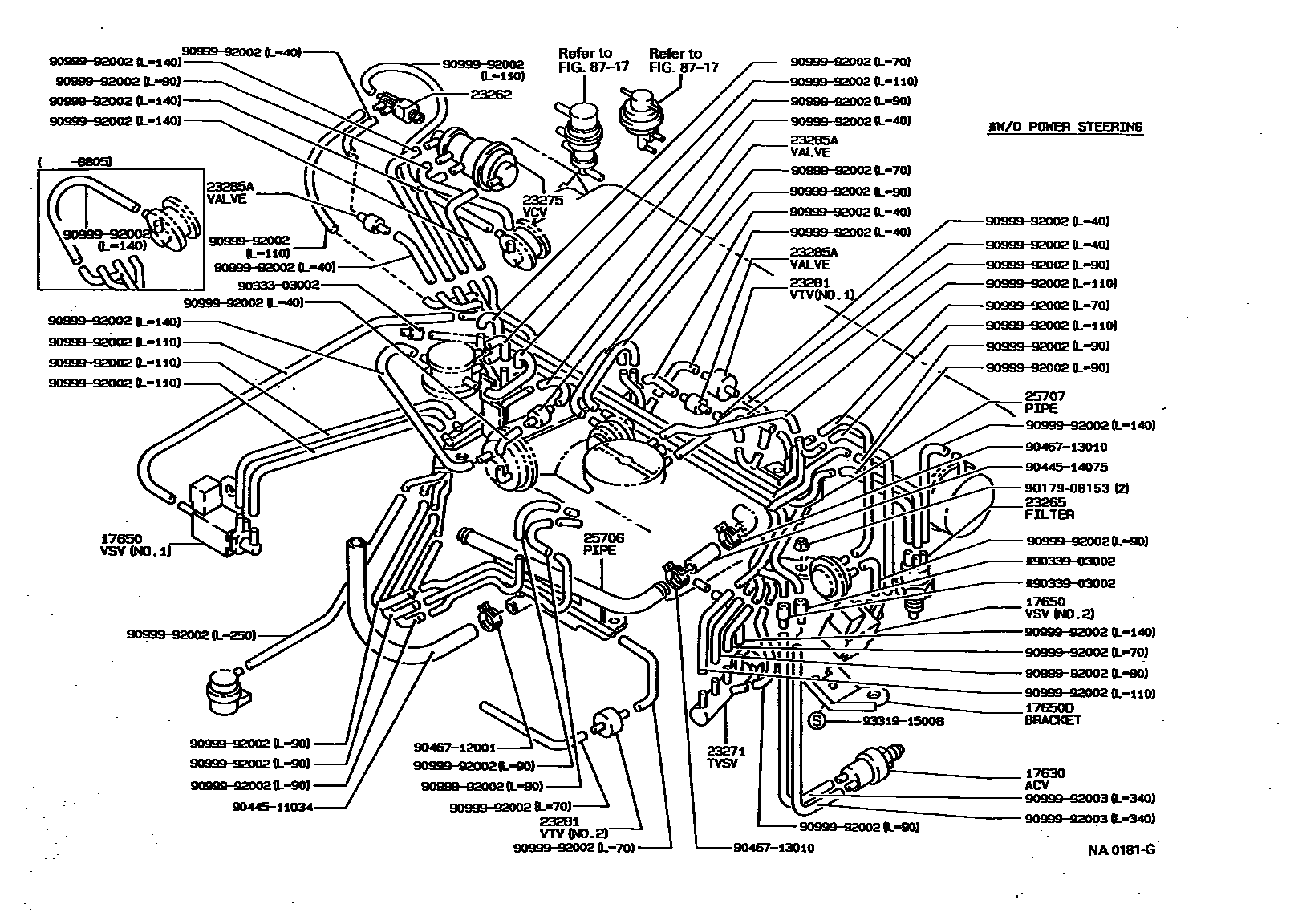

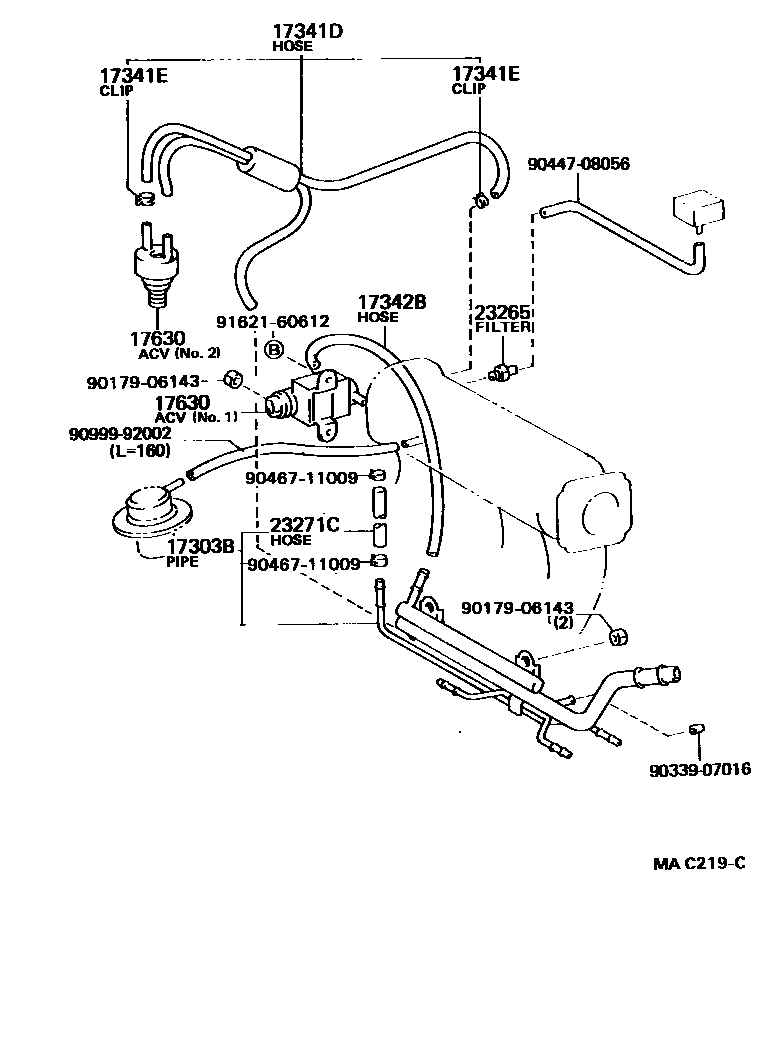

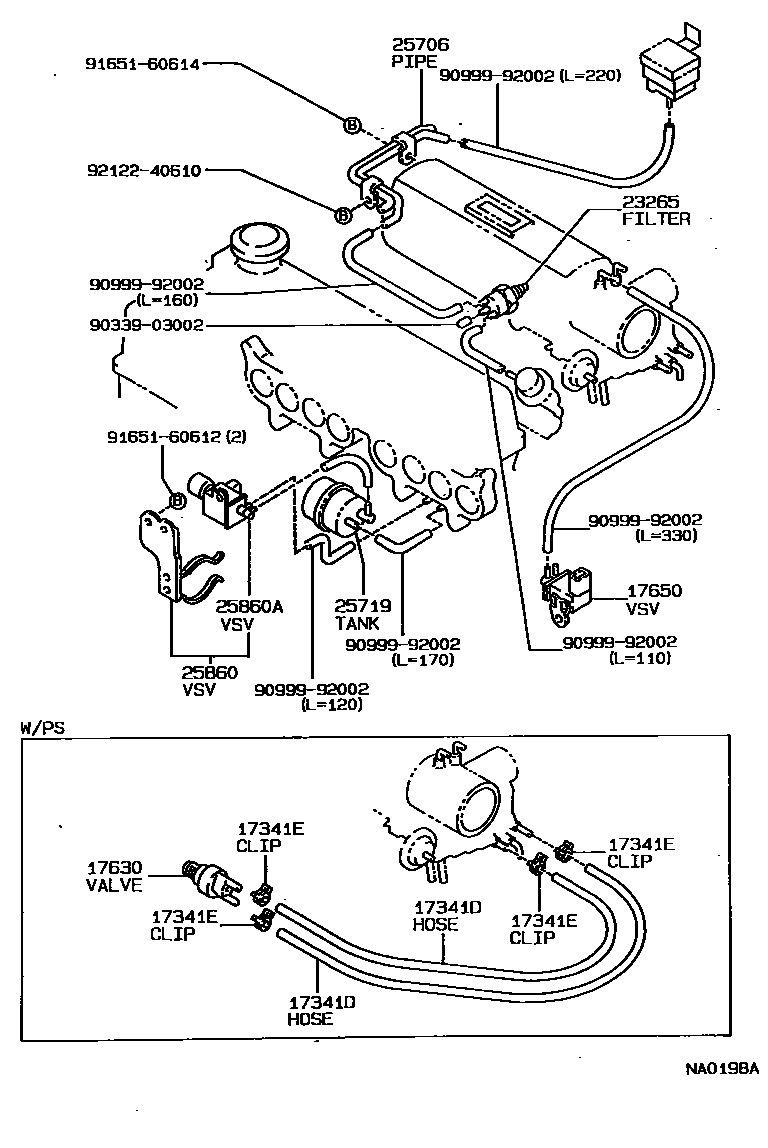

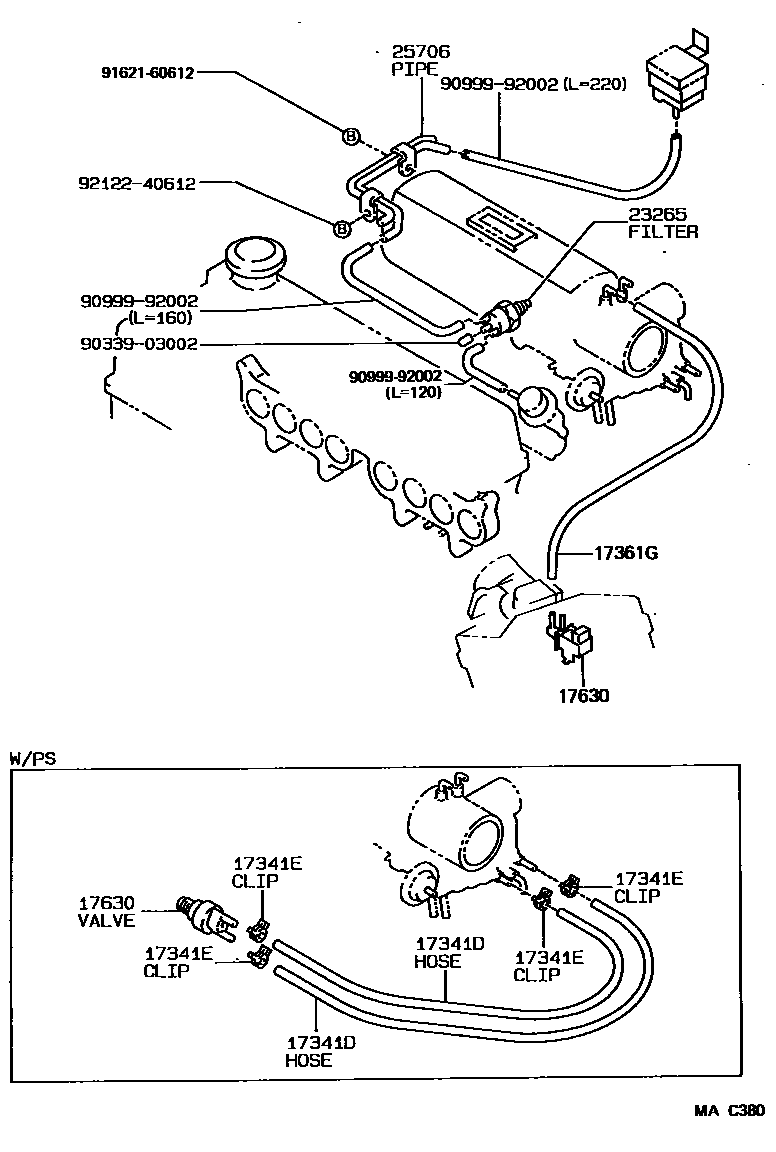

Toyota COROLLA EPC diagram 1708, vacuum tube, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-15050 · 17303-16131 |
| 17303E | No. 1 hose (for air pipe) | 90910-05193 |
| 17303F | No. 2 hose (for air pipe) | 90910-05194 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-15130 |
| 17341D | No. 1 hose (for idle boost) | 17302-16010 · 17341-15150 · 17341-16110 · 17341-16130 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-15070 · 90445-10029 |
| 17345D | No. 5 air hose | 17345-70010 |
| 17346B | No. 6 air hose | 17346-16010 |
| 17361G | Air pipe (for idle boost) | 17361-16100 |
| 17630 | Air control valve assembly | 17630-15021 · 17630-15040 · 17630-15050 · 17630-15070 · 17630-16040 · 17630-16080 |
| 17650 | Vacuum switch valve assembly | 90910-12026 · 90910-12055 · 90910-12060 · 90910-12091 |
| 17650D | Vacuum switch valve bracket | 25861-15010 |
| 17670P | Air bypass valve assembly | 17670-16010 |
| 17671 | air bypass valve gasket | 17671-16010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05085 |
| 23265 | No. 1 gas filter | 90917-11021 · 90917-11022 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02082 |
| 23271C | fuel hose | 95333-06020 |
| 23275 | Vacuum control valve No. 1 | 25740-16020 · 90925-03135 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01041 · 90925-01095 · 90925-01100 · 90925-01101 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15210 · 25706-16190 · 25706-16240 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-15180 · 25707-15181 · 25707-16110 · 25707-16190 |
| 25719 | Vacuum pressure tank | 25719-16020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-16070 · 25860-16080 |
| 25860A | No. 1 vacuum switch valve | 90910-12052 |
