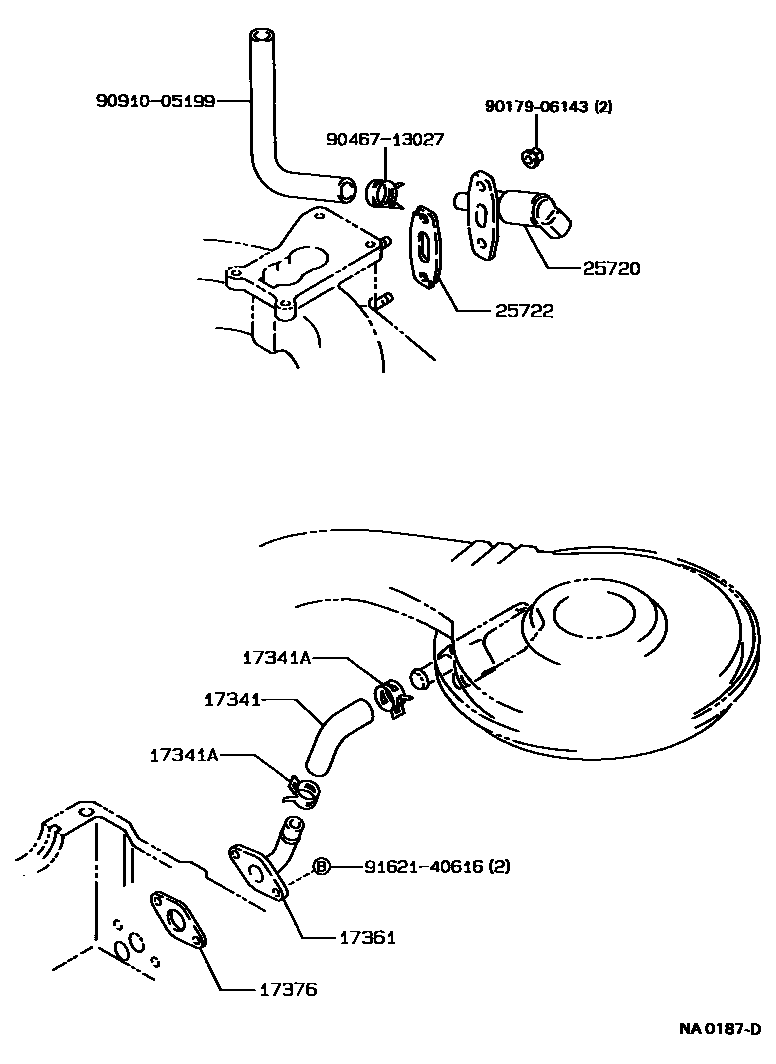

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-15140 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-26004 |
| 17361 | air tube | 17361-15080 |
| 17376 | Air tube gasket No. 1 | 17376-15020 |
| 25720 | Electronic air control valve assembly | 25720-15060 |
| 25722 | Electronic air control valve gasket | 25722-15020 |
