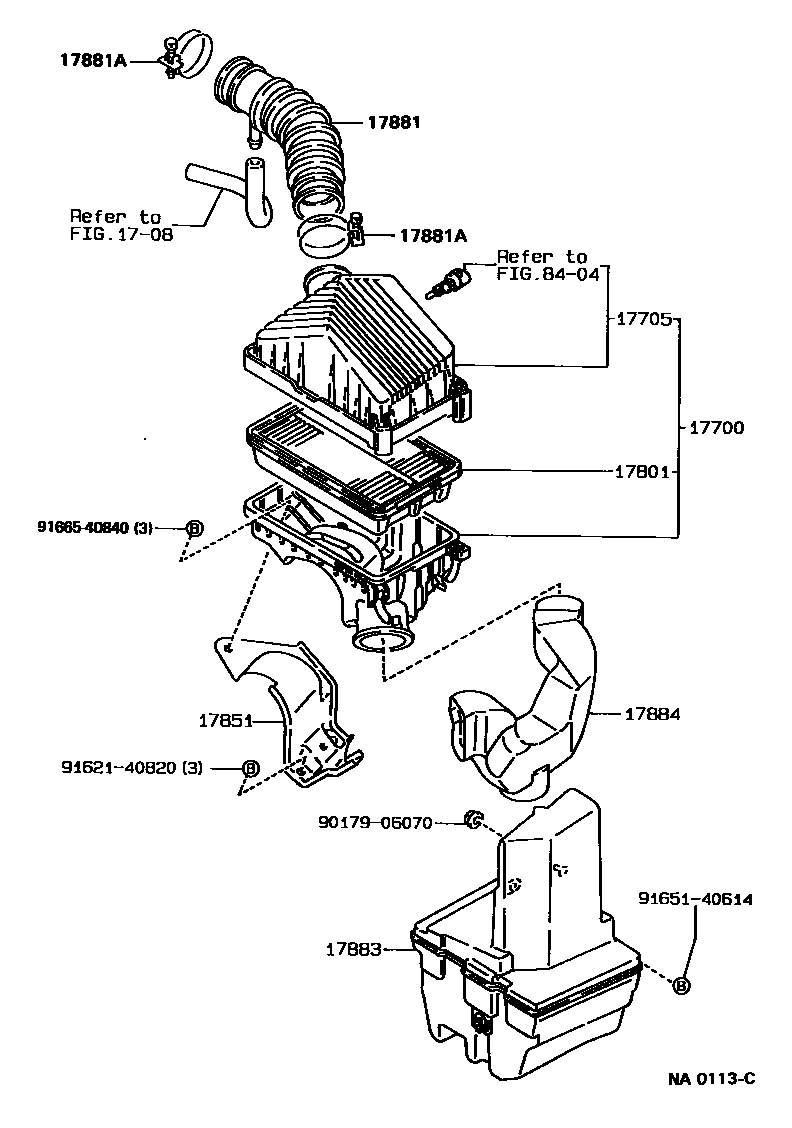

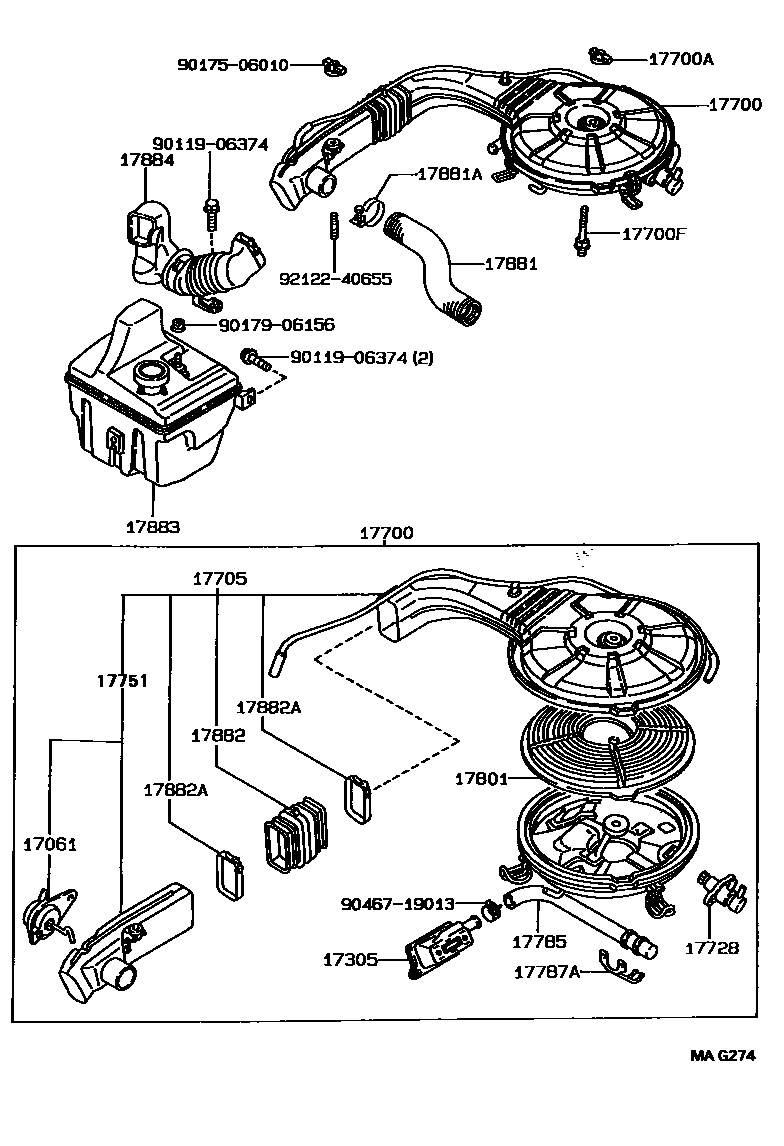

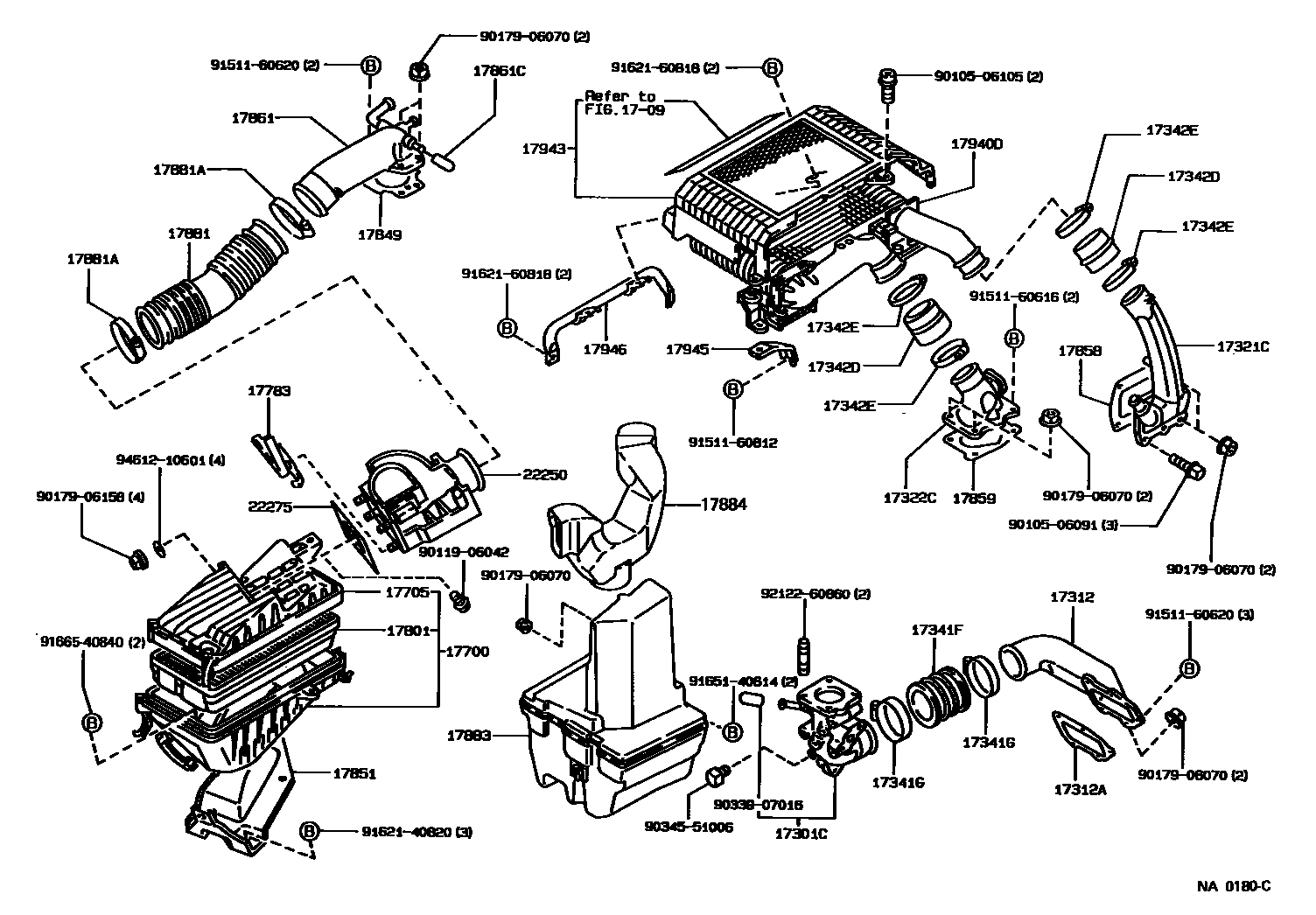

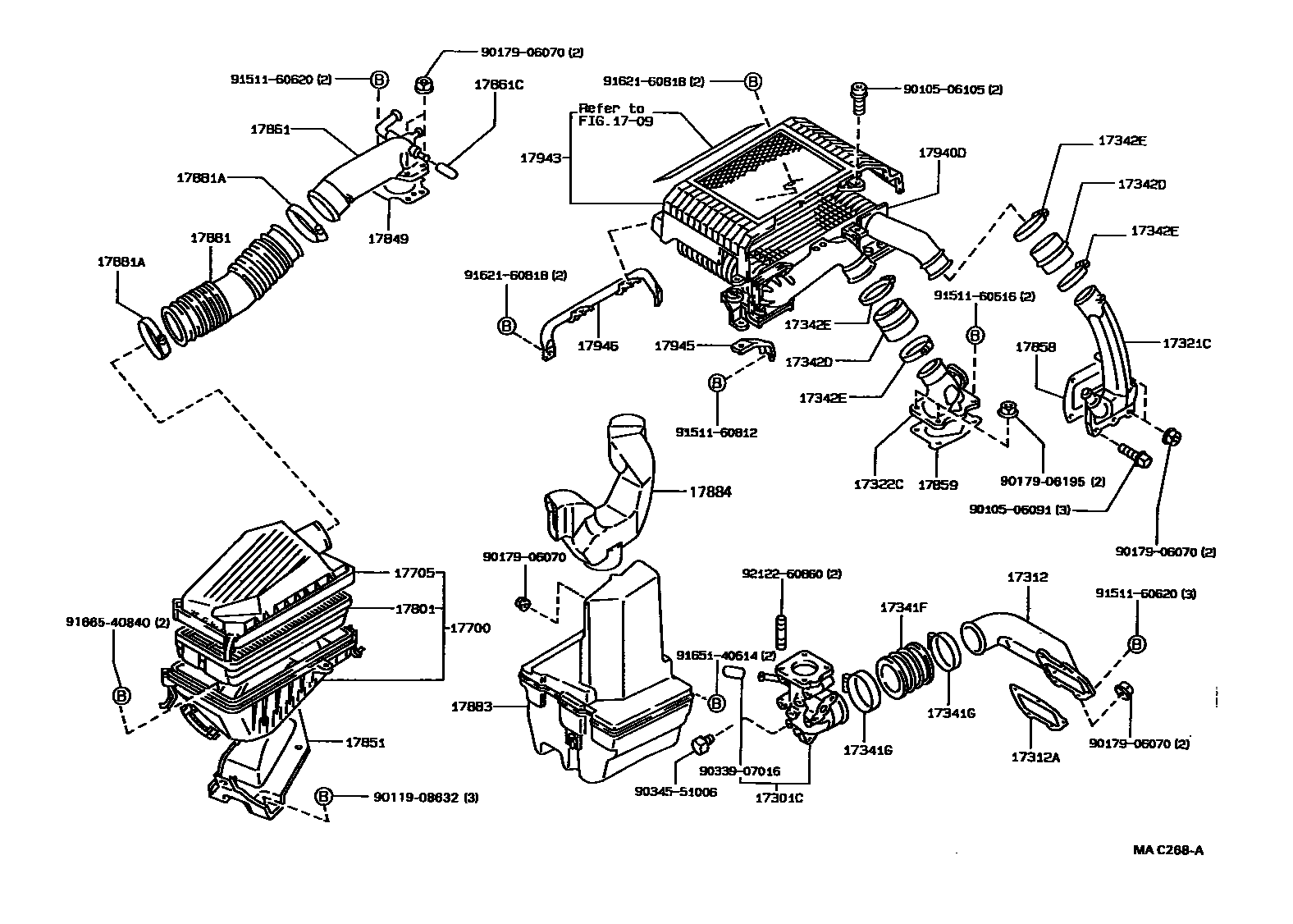

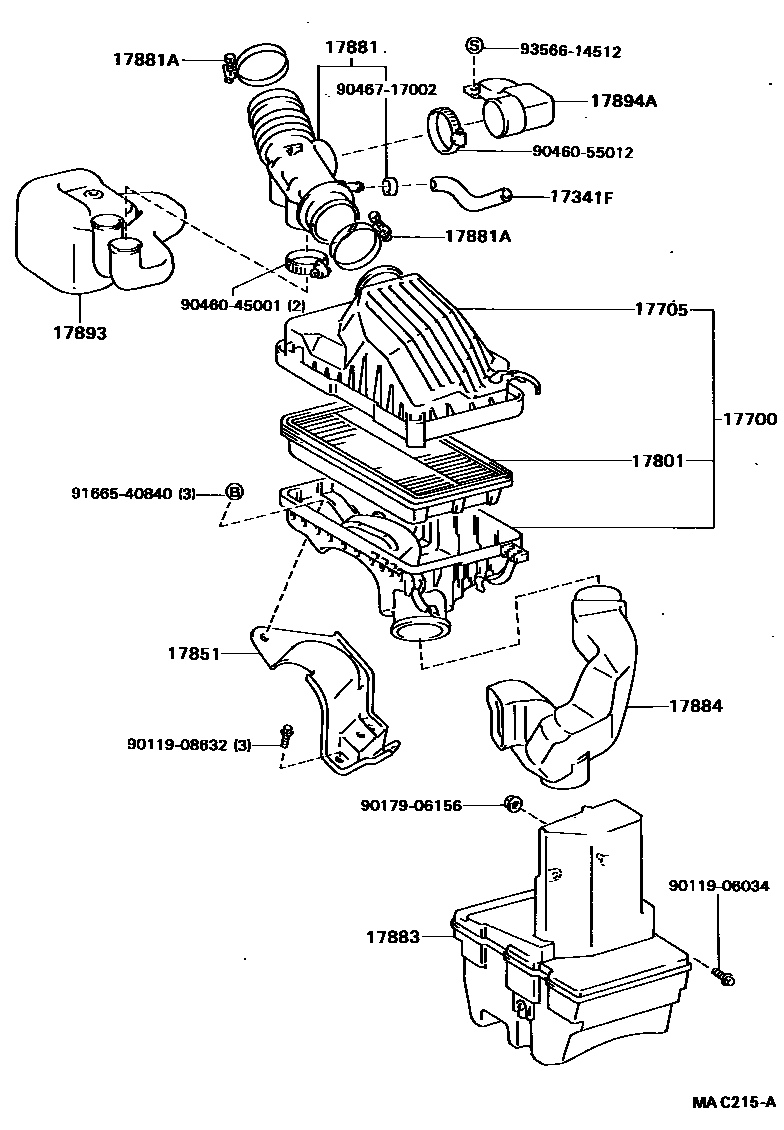

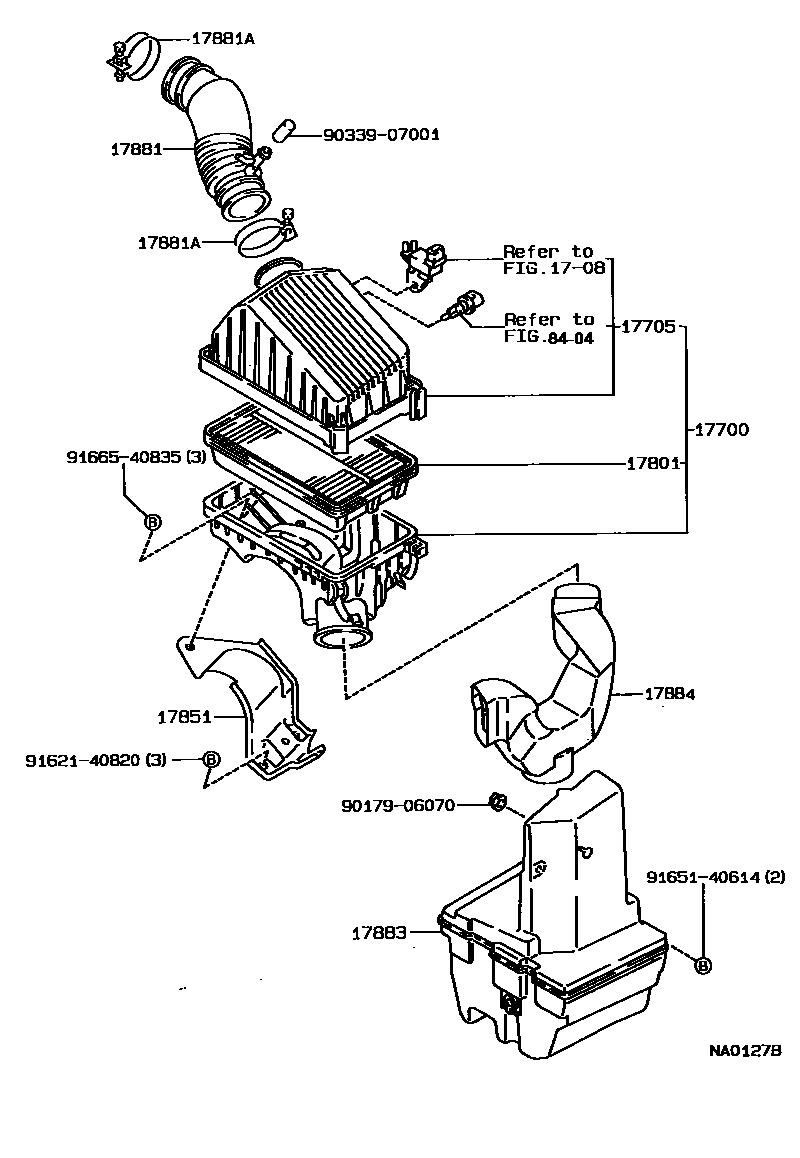

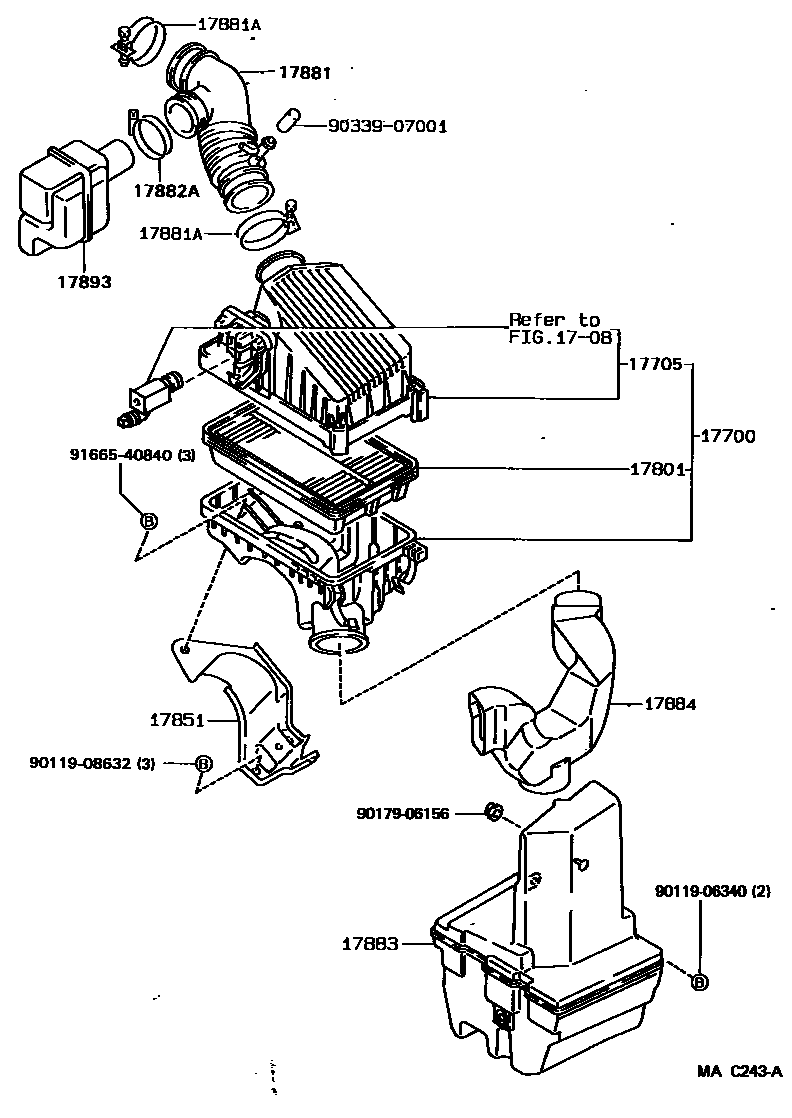

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15040 |
| 17301C | No. 1 air inlet duct sub-assembly | 17301-16010 · 17301-16011 |
| 17305 | Reed valve sub-assembly | 17350-15100 · 17350-15110 |
| 17312 | No. 2 air inlet duct | 17312-16010 |
| 17312A | No. 2 air inlet duct gasket | 17857-16010 |
| 17321C | No. 1 air outlet duct | 17321-16020 |
| 17322C | No. 2 air outlet duct | 17322-16010 |
| 17341F | Air hose No. 1 | 17341-15160 · 17341-16100 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-73001 |
| 17342D | Air hose No. 2 | 17342-16070 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-65006 |
| 17700 | air filter assembly | 17700-15240 · 17700-15250 · 17700-16370 · 17700-16440 · 17700-16640 · 17700-16660 · 17700-16680 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06018 |
| 17705 | Air filter cover sub-assembly | 17705-15140 · 17705-15150 · 17705-16160 · 17705-16180 · 17705-16320 · 17705-16340 · 17705-16360 |
| 17728 | thermostat valve | 17728-15080 |
| 17751 | No. 1 air filter air inlet | 17751-15010 |
| 17783 | air filter baffle | 17783-74020 |
| 17785 | Air filter silencer pad | 17785-15010 |
| 17787A | Air filter muffler pad bracket | 17787-15010 |
| 17801 | Air filter element sub-assembly | 17801-15060 · 17801-16020 · 17801-74020 |
| 17849 | Intake connecting pipe gasket | 17849-16010 |
| 17851 | air filter bracket | 17851-15010 |
| 17858 | No. 1 air outlet duct gasket | 17858-16010 |
| 17859 | No. 2 air outlet duct gasket | 17859-16010 |
| 17861 | Intake connecting pipe | 17860-16020 |
| 17861C | Cover (for air inlet connection pipe) | 90339-07016 |
| 17881 | No. 1 air cleaner hose | 17881-15120 · 17881-15130 · 17881-15150 · 17881-15160 · 17881-16130 · 17881-16150 · 17881-16240 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73005 · 90460-80001 · 90460-80002 · 96111-10460 · 96111-10730 · 96111-10800 · 96111-10830 |
| 17882 | No. 2 air cleaner hose | 17881-15140 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17786-15010 · 90460-58003 |
| 17883 | No. 3 air cleaner hose | 17883-16030 · 17883-16031 · 17883-16040 · 17883-16041 |
| 17884 | No. 4 air cleaner hose | 17880-16010 · 17882-16100 · 17882-16130 |
| 17893 | Intake resonator | 17893-15010 · 17893-15020 · 17893-16040 |
| 17894A | No. 2 intake resonator | 17894-15010 |
| 17940D | Intercooler assembly | 17940-16020 |
| 17943 | Intercooler protection device | 17943-16020 |
| 17945 | intercooler bracket | 17945-16010 |
| 17946 | No. 2 intercooler bracket | 17946-16010 |
| 22250 | Intake air flow meter assembly | 22250-16070 |
| 22275 | air flow meter gasket | 22275-41010 |
