Toyota COROLLA Exhaust Pipe — Figure 1702

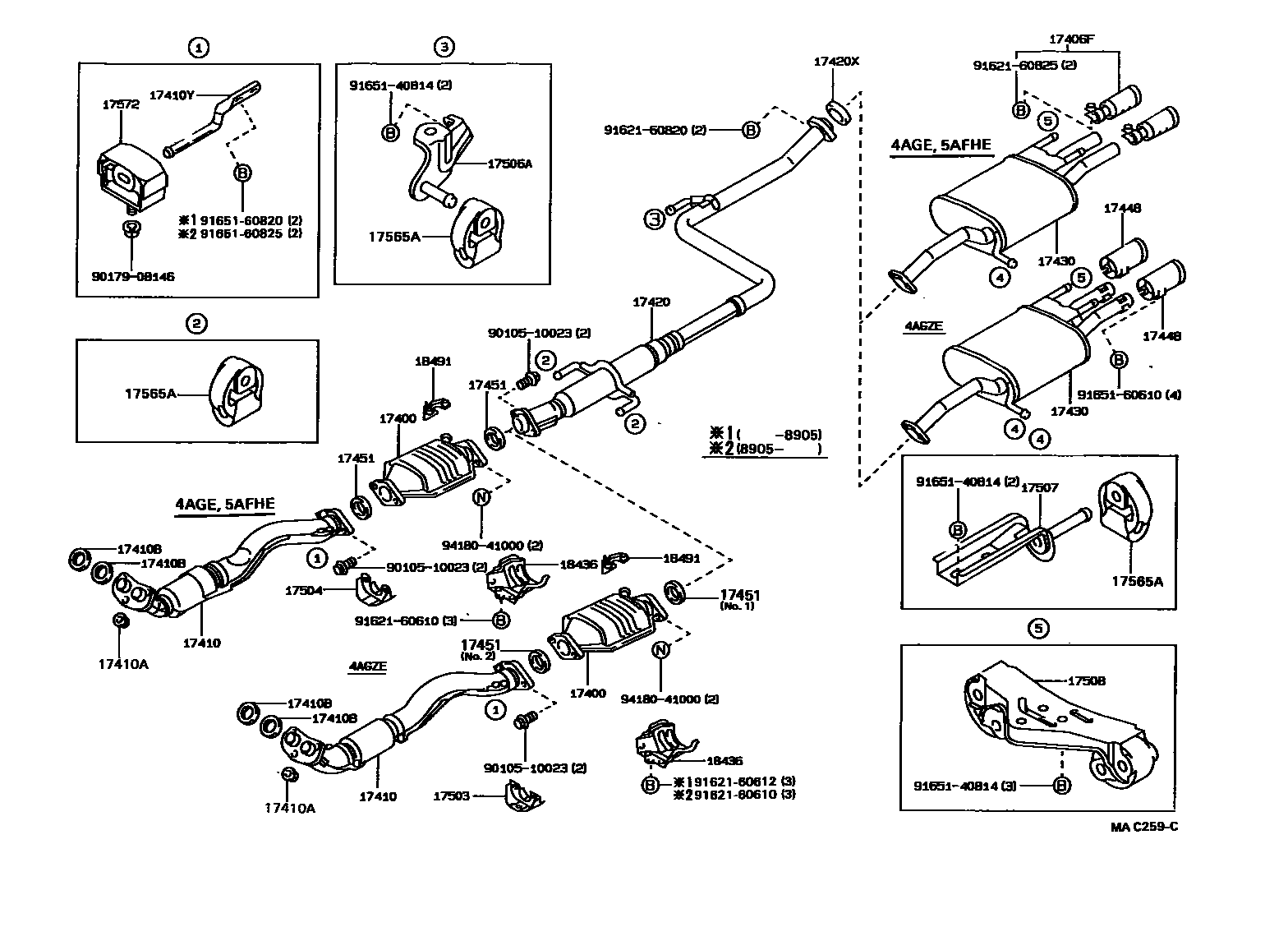

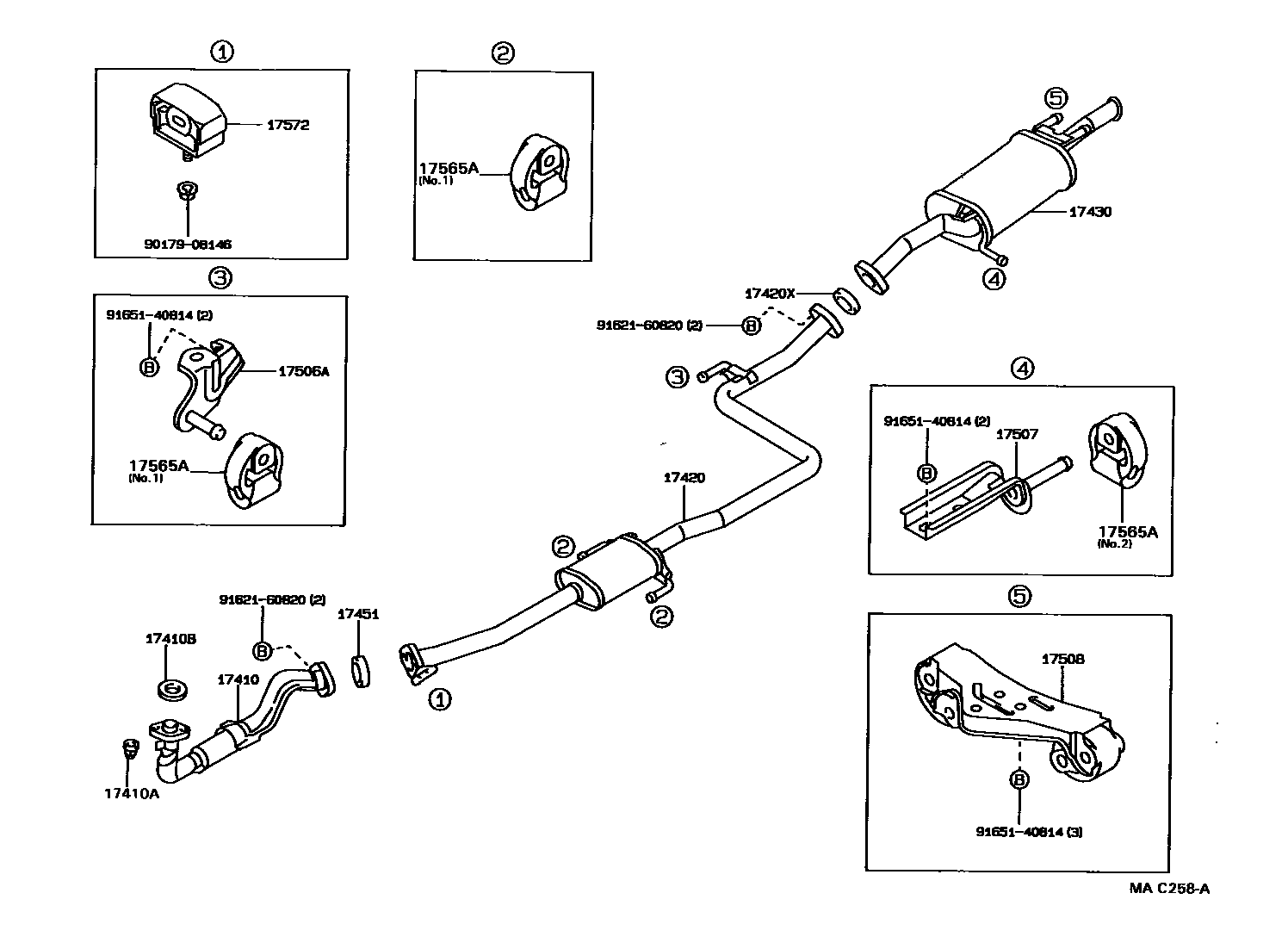

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16240 · 18450-16410 · 18450-74050 · 18450-74110 |
| 17406F | Exhaust diffuser sub-assembly | 17406-19015 · 17406-19025 |
| 17410 | Front exhaust pipe assembly | 17410-15240 · 17410-15241 · 17410-16350 · 17410-16360 · 17410-16670 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06039 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16130 |
| 17420 | Central exhaust pipe assembly | 17420-11060 · 17420-15110 · 17420-16100 · 17420-16110 · 17420-16111 · 17420-16380 · 17420-16420 |
| 17420X | Center exhaust pipe liner | 90917-06001 · 90917-06012 · 90917-06038 · 90917-06045 |
| 17430 | Exhaust tailpipe assembly | 17430-15370 · 17430-15450 · 17430-16350 · 17430-16370 · 17430-16680 · 17430-16700 · 17430-16720 |
| 17448 | Exhaust pipe tail throat | 17448-74030 · 17448-79015 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06031 · 90917-06032 · 90917-06039 · 90917-06043 · 90917-06045 · 90917-06054 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-74020 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16020 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15060 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15030 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15050 · 17565-15070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-63010 · 18436-74020 |
| 18491 | Thermal sensor air inlet flange | 18491-16010 · 18491-63010 |
