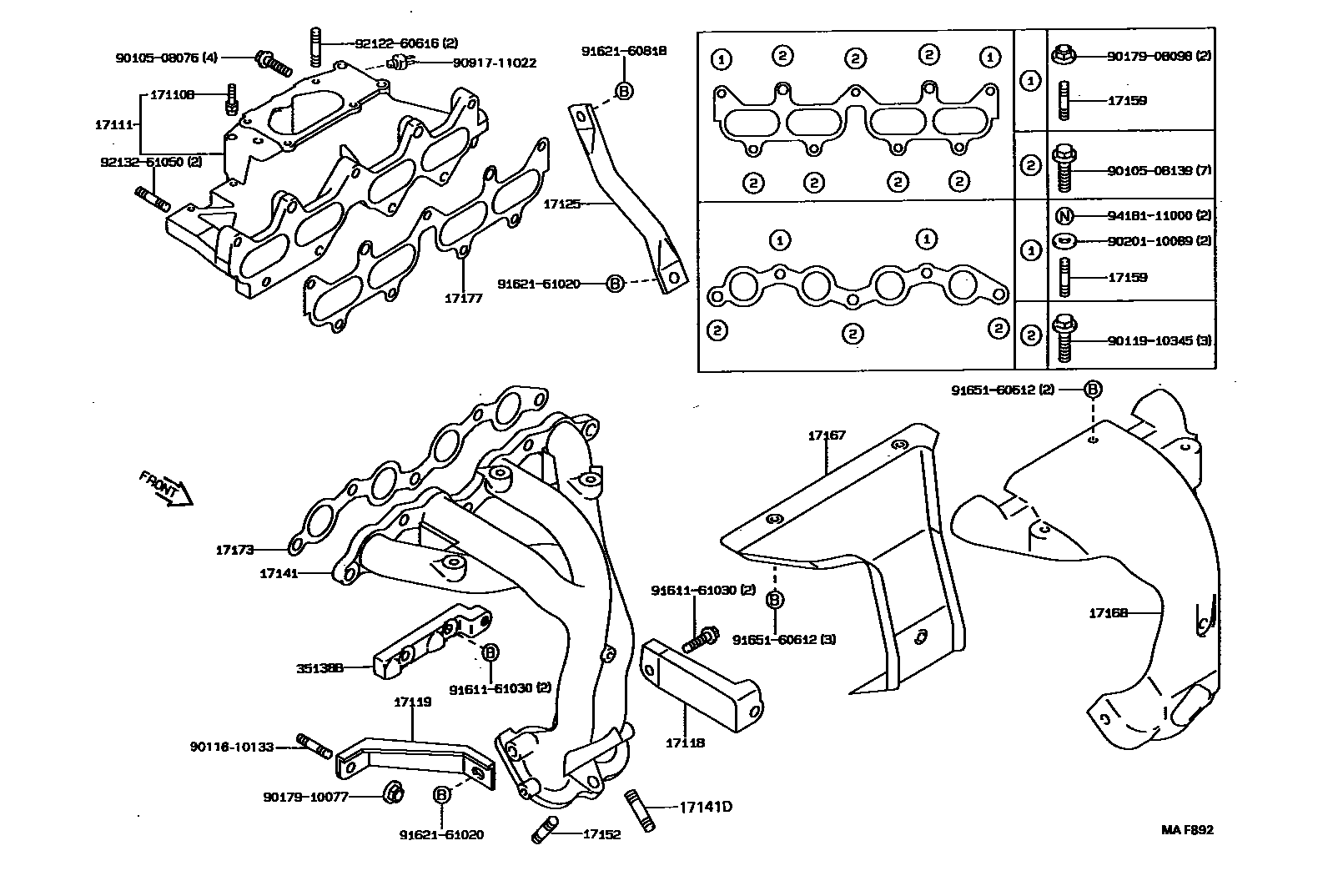

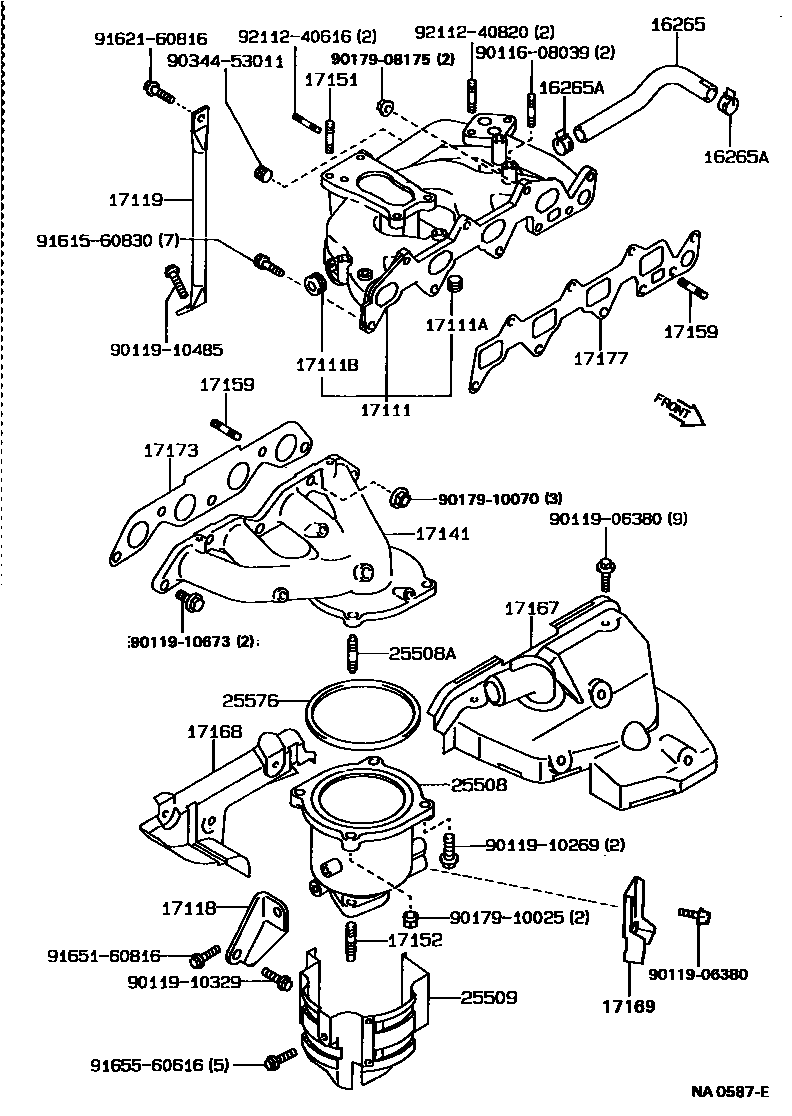

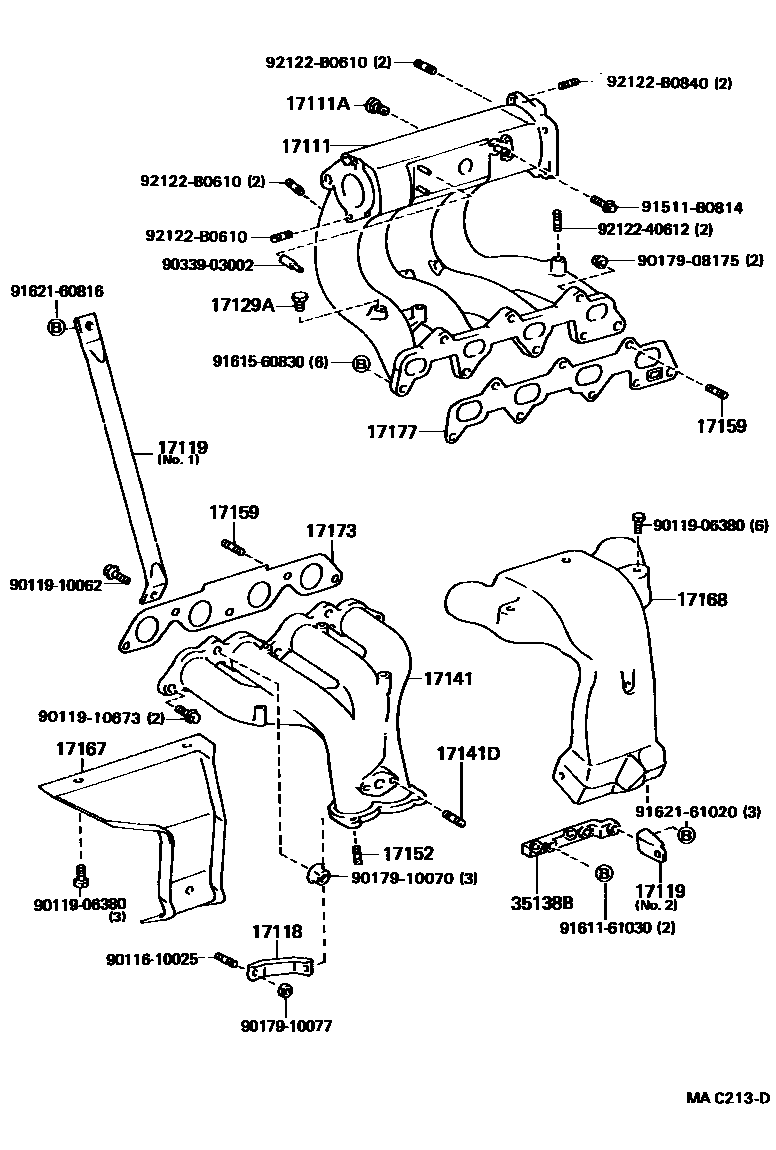

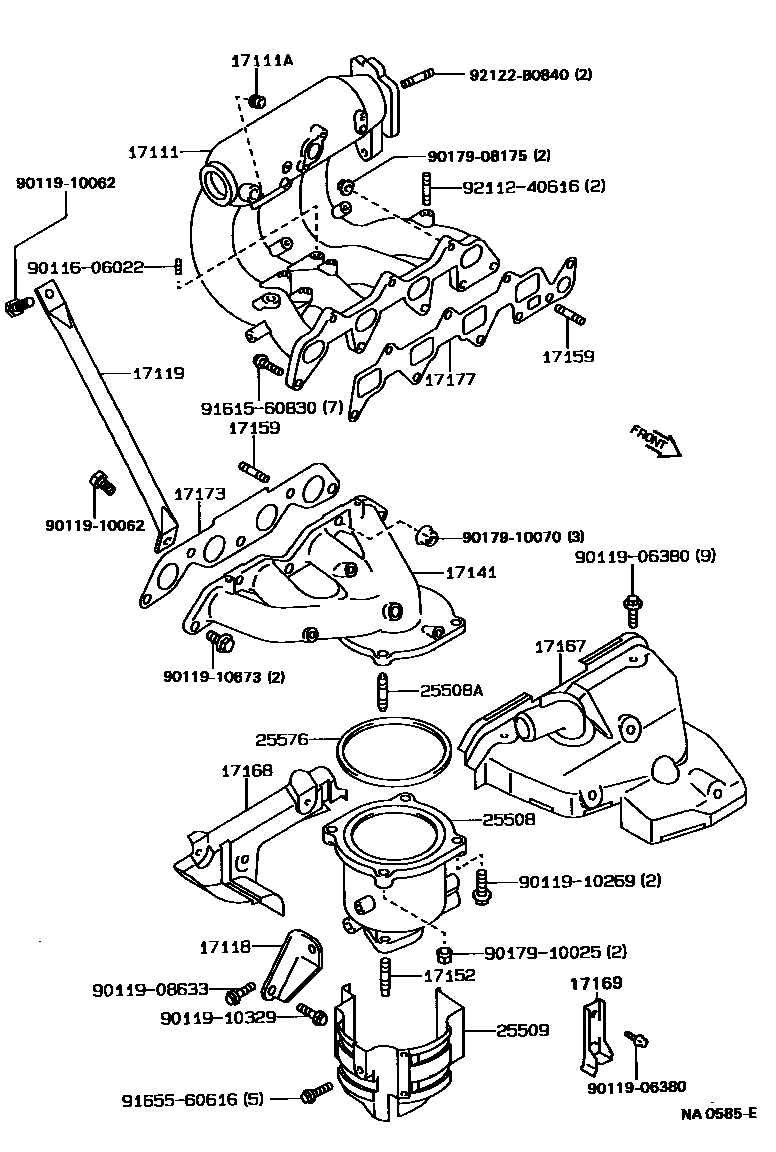

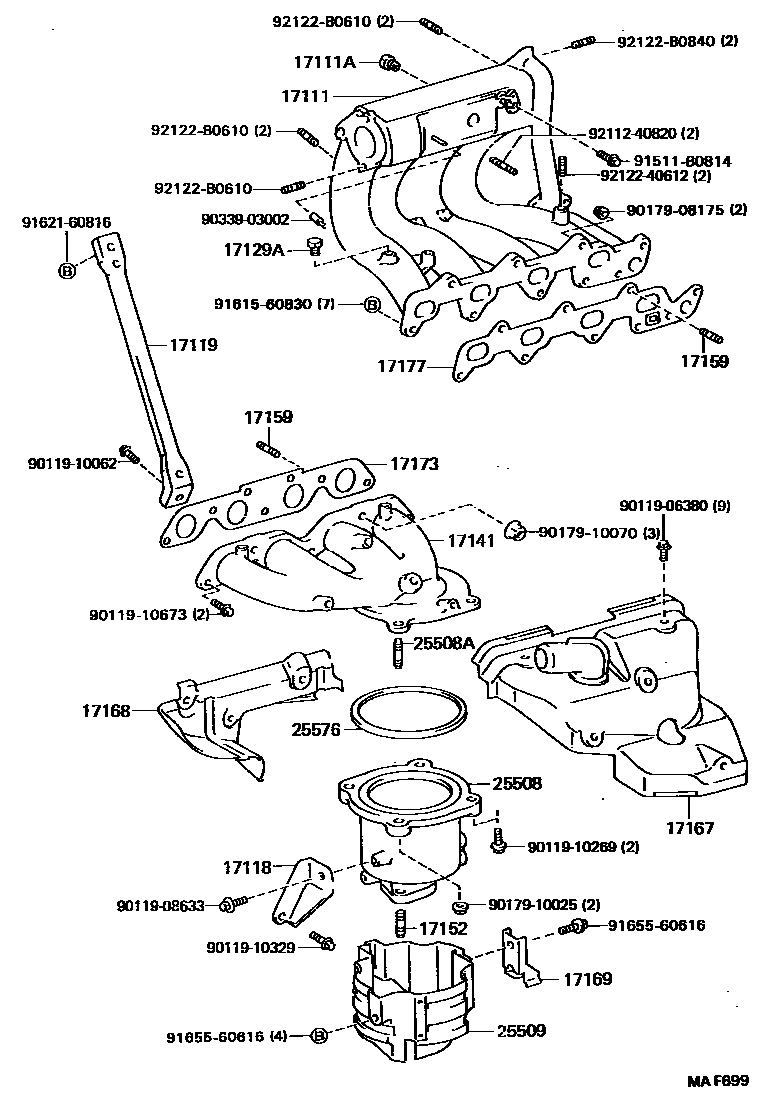

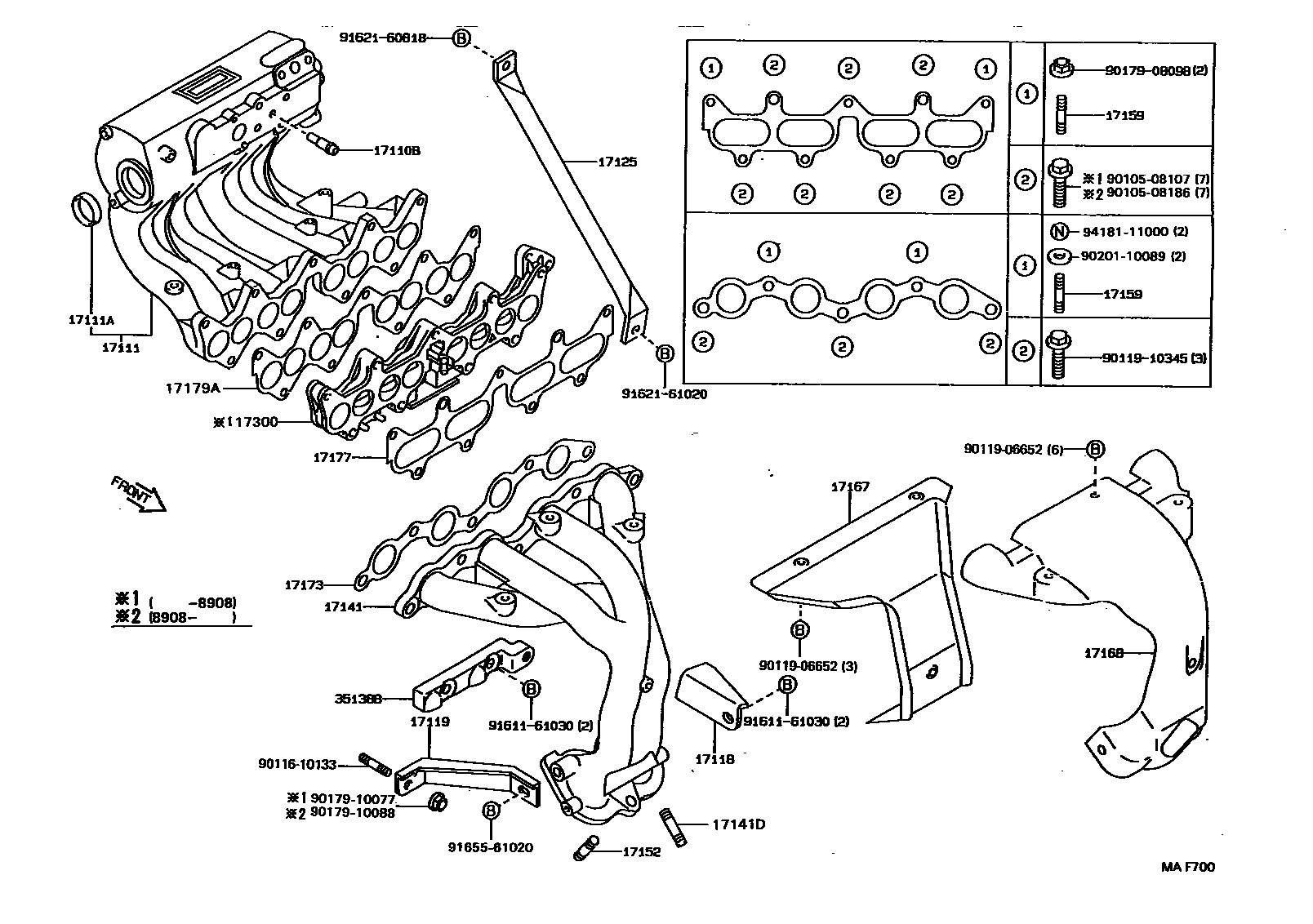

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13570 | No. 1 poly-ribbed belt idler assembly | 13570-16010 |
| 13583 | Poly V-belt idler shaft (for supercharger) | 13583-16010 |
| 16265 | Intake manifold water hose | 16265-15020 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21001 · 90467-21006 |
| 17064 | Rotor housing sub-assembly | 17064-16011 |
| 17064A | Bend pipe (for supercharger) | 90407-06004 |
| 17065 | Rotor housing rear plate sub-assembly | 17065-16011 |
| 17065A | Connector (for supercharger) | 90406-06002 |
| 17067 | Clutch pulley sub-assembly | 17067-16010 · 17067-16020 |
| 17067A | Shaft snap ring (for clutch pulley sub-assembly) | 90179-30005 · 90179-30006 · 90520-28060 |
| 17068 | Clutch hub sub-assembly | 17068-16010 · 17068-16020 |
| 17068A | Gasket (for supercharger) | 90564-08001 · 90564-08002 · 90564-08003 · 90564-08004 · 90564-08005 · 90564-08006 · 90564-08007 · 90564-08008 · 90564-08009 |
| 17069 | Clutch stator sub-assembly | 17069-16010 · 17069-16020 |
| 17069A | Shaft snap ring (for clutch stator sub-assembly) | 90520-37003 |
| 17110B | Fitting (for vent hose to manifold) | 90405-04002 · 90405-10009 |
| 17111 | Intake Manifold | 17101-15020 · 17101-15030 · 17101-15040 · 17101-15050 · 17101-16050 · 17101-16130 · 17101-16210 · 17101-16230 |
| 17111A | No. 1 screw plug | 90344-53011 · 90345-51006 · 96411-43500 |
| 17111B | No. 2 screw plug | 90344-54003 |
| 17118 | Manifold stays | 17118-15070 · 17118-16040 · 17139-16040 |
| 17119 | No. 2 manifold stay | 17118-16040 · 17118-16080 · 17139-15020 · 17139-15030 · 17139-16030 · 17139-16040 |
| 17125 | No. 1 pressure tank stay | 17125-16031 · 17125-16040 · 17125-16050 |
| 17129A | Connector No. 1 | 90345-51006 |
| 17141 | exhaust manifold | 17141-15120 · 17141-15130 · 17141-16210 · 17141-16260 |
| 17141D | Studs (for oxygen sensor) | 90116-08168 |
| 17151 | Studs (for manifold to carburetor) | 92112-40832 · 92112-60832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10146 · 90126-10003 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08218 · 90116-08254 · 90116-08317 · 90116-10037 · 92112-60825 · 92112-61028 · 92112-61032 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-15010 · 17167-15070 · 17167-16050 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-15010 · 17168-15020 · 17168-16060 |
| 17169 | Exhaust manifold No. 3 heat shield | 17169-15010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15010 · 17173-15011 · 17173-16010 · 17173-16011 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15020 · 17171-15021 · 17171-16030 · 17171-16031 · 17171-16040 · 17177-16012 |
| 17179A | No. 2 intake manifold gasket | 17171-16012 |
| 17300 | Intake control valve assembly | 17300-16011 |
| 17303N | Air pipe subassembly | 17303-16060 |
| 17347 | No. 7 air hose | 17347-16010 · 90445-12196 |
| 17347A | Clamp (for No. 7 air hose) | 96132-30600 |
| 17605A | Supercharger bracket sub-assembly | 17625-16010 |
| 17620E | supercharger assembly | 17620-16010 · 17620-16020 |
| 17665 | clutch flange | 17665-16010 · 17665-16011 · 17665-16020 |
| 17666 | Rear cover (for supercharger) | 17666-16010 |
| 17666A | Headed straight thread plug sub-assembly (for supercharger) | 90341-12019 |
| 17666B | Bearing gasket (for supercharger) | 90430-12005 |
| 17667 | Rear cover gasket (for supercharger) | 17667-70010 |
| 17668 | clutch hub cover | 17668-16010 |
| 17676 | front cover | 17676-16011 |
| 17677 | Front cover gasket | 17677-70010 |
| 17678 | Supercharger oil level gauge guide | 17678-16010 |
| 17679 | Supercharger oil level gauge | 17679-16010 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-15020 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-10017 · 90116-10146 |
| 25509 | Manifold purifier vibration isolation pad sub-assembly | 25509-15020 · 25509-15021 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-15010 |
| 35138B | Reinforcement plate connector | 35138-12020 |
