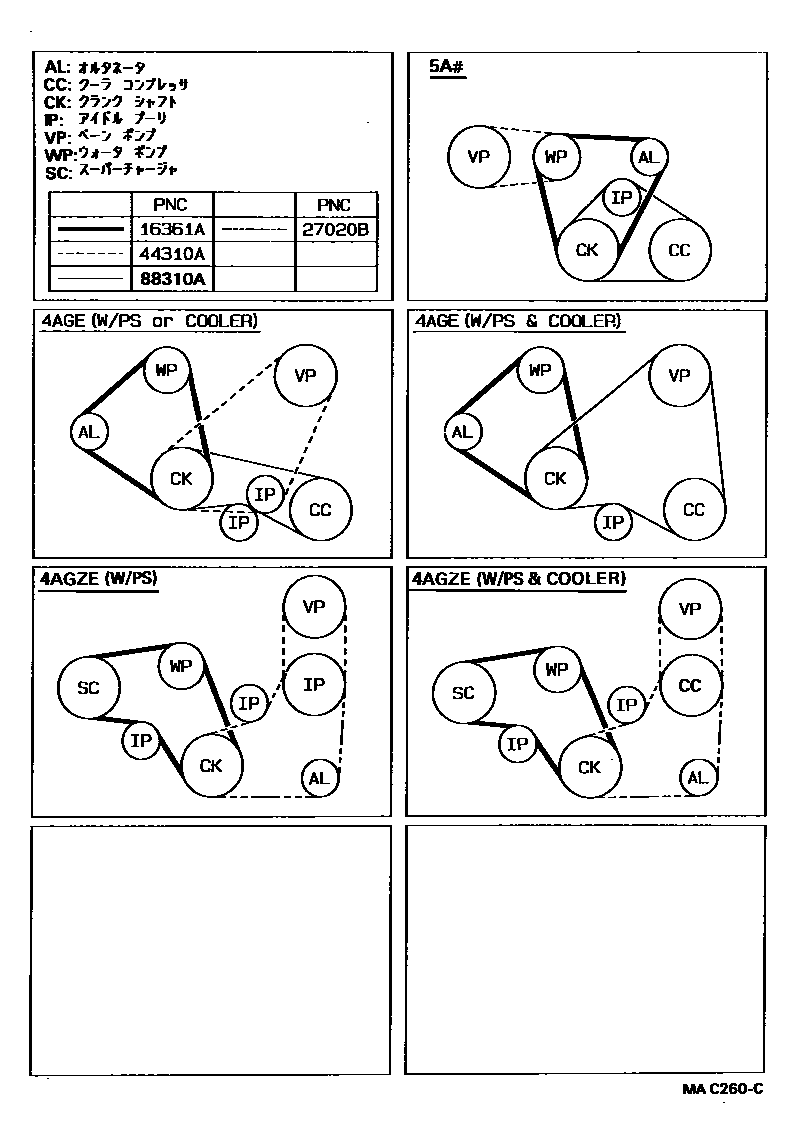

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02148 · 90916-02157 · 90916-02232 · 99365-00970 · 99365-00980 · 99365-20970 · 99365-20980 · 99365-50820 |
| 27020B | V-belt (for generator) | 90916-02173 |
| 44310A | V-belt (for vane pump) | 90916-02179 · 99363-50630 · 99365-50920 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02184 · 90916-02186 · 90916-02187 · 90916-02200 · 90916-02201 · 99364-50840 |
