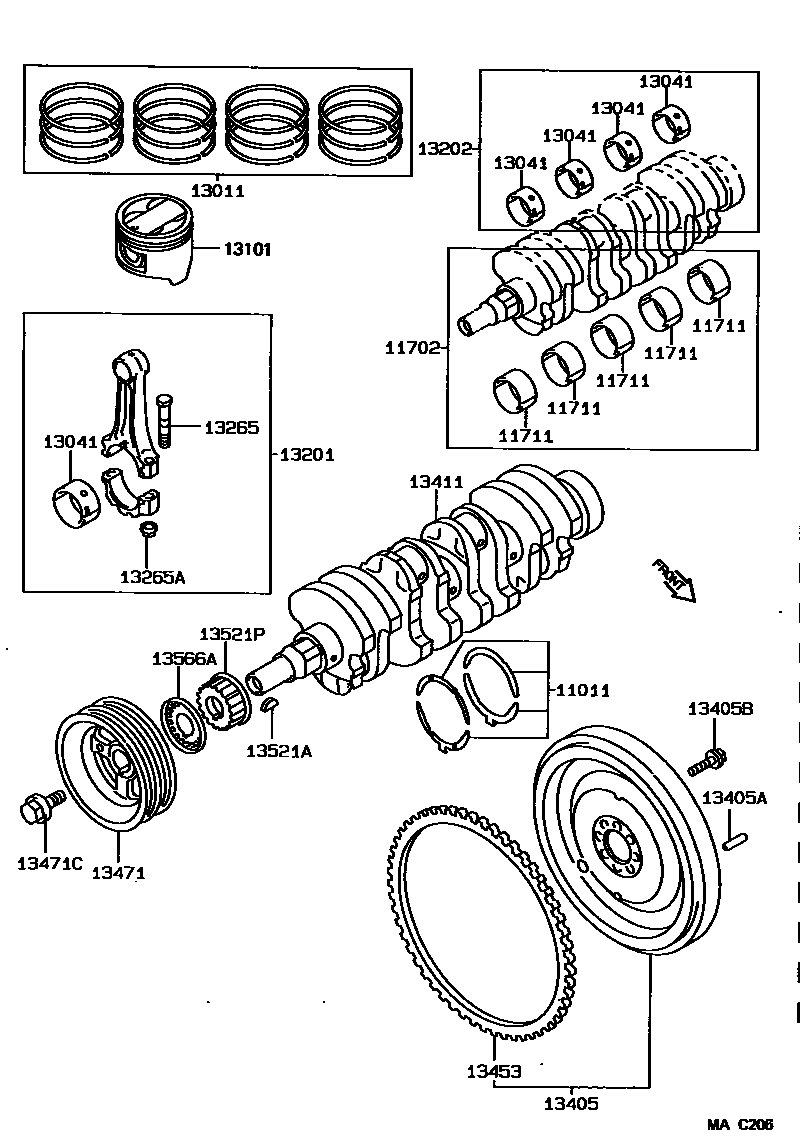

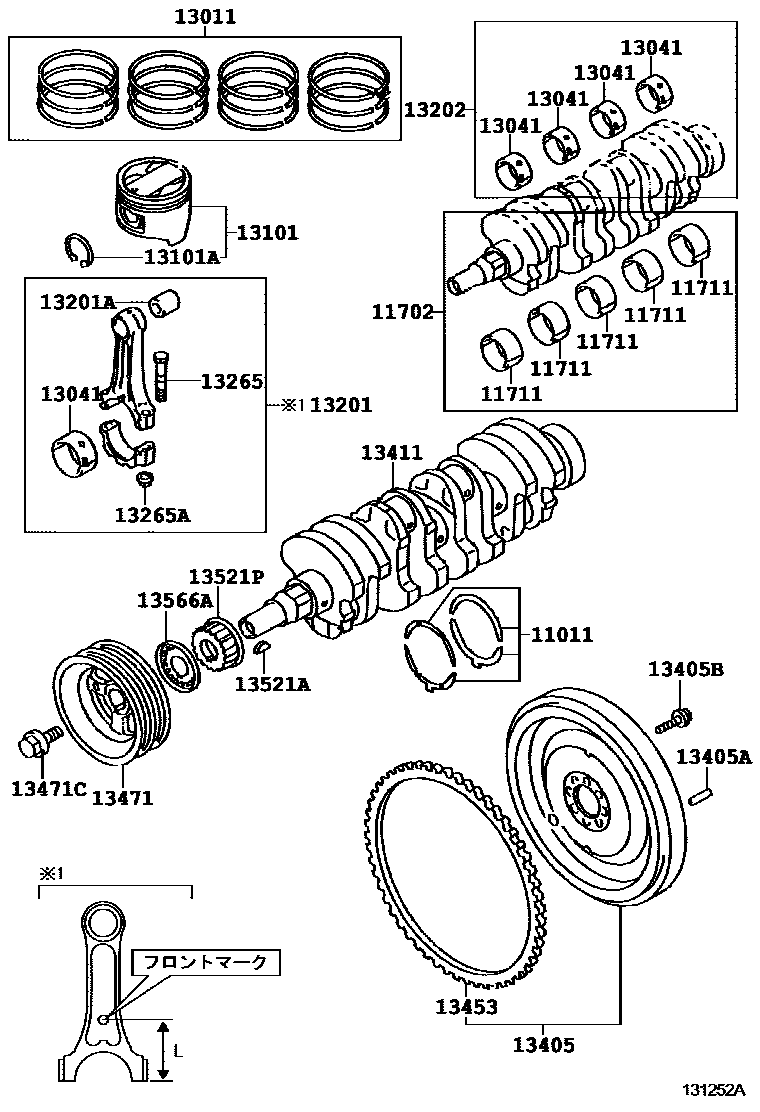

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-15010 |
| 11702 | crankshaft bearing assembly | 11704-15050 · 11704-16010 |
| 13011 | Piston ring assembly | 13011-15050 · 13011-16090 · 13011-16160 · 13011-16170 · 13011-16200 · 13011-16210 · 13013-15050 · 13013-16090 · 13013-16160 · 13013-16170 · 13013-16200 · 13013-16210 |
| 13101 | Piston sub-assembly with pin | 13101-15030 · 13101-16060 · 13101-16070 · 13101-16100 · 13103-15030 · 13103-15040 · 13103-16060 · 13103-16070 · 13103-16100 · 13103-16120 · 13103-16121 · 13103-16130 · 13103-16131 |
| 13101A | Bore snap ring (for piston pin) | 90521-23003 · 90521-23005 |
| 13201 | Connecting rod sub-assembly | 13201-19055 · 13201-19095 · 13201-19125 |
| 13201A | Bushing (for connecting rod small end) | 90999-73111 |
| 13202 | Connecting rod bearing assembly | 13204-15030 · 13204-16070 |
| 13265 | Connecting rod bolts | 13265-15020 · 13265-16010 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-09001 · 90170-09003 |
| 13405 | Flywheel sub-assembly | 13405-15030 · 13405-16010 · 13405-16030 · 13405-16050 · 13405-16051 · 13405-19145 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 · 90105-10076 |
| 13411 | crankshaft | 13401-16020 · 13411-15040 |
| 13453 | flywheel ring gear | 13453-10010 |
| 13471 | crankshaft pulley | 13470-15070 · 13470-15080 · 13470-15100 · 13470-16030 · 13470-16040 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12101 · 90119-12127 |
| 13521A | Key (for crankshaft timing gear) | 90280-05010 · 95161-20519 |
| 13521P | crankshaft timing pulley | 13521-15010 · 13521-16010 |
| 13566A | timing belt guide | 13566-15010 |
