Toyota COROLLA Engine Mounting — Figure 1107

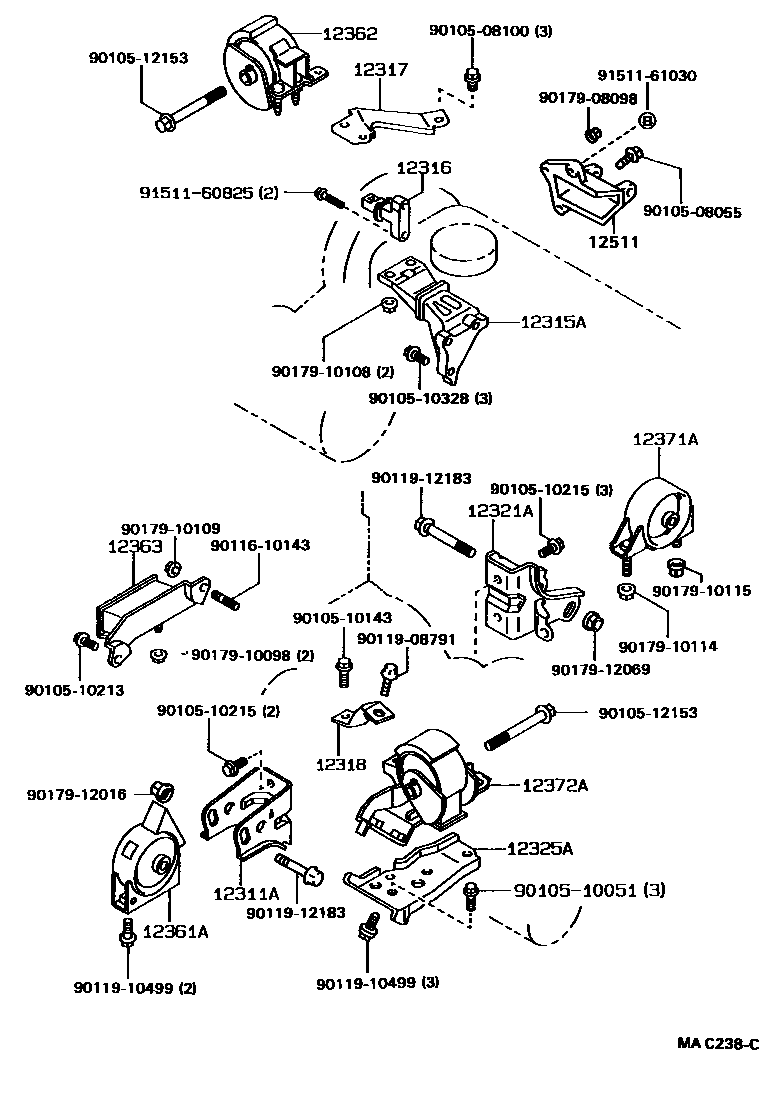

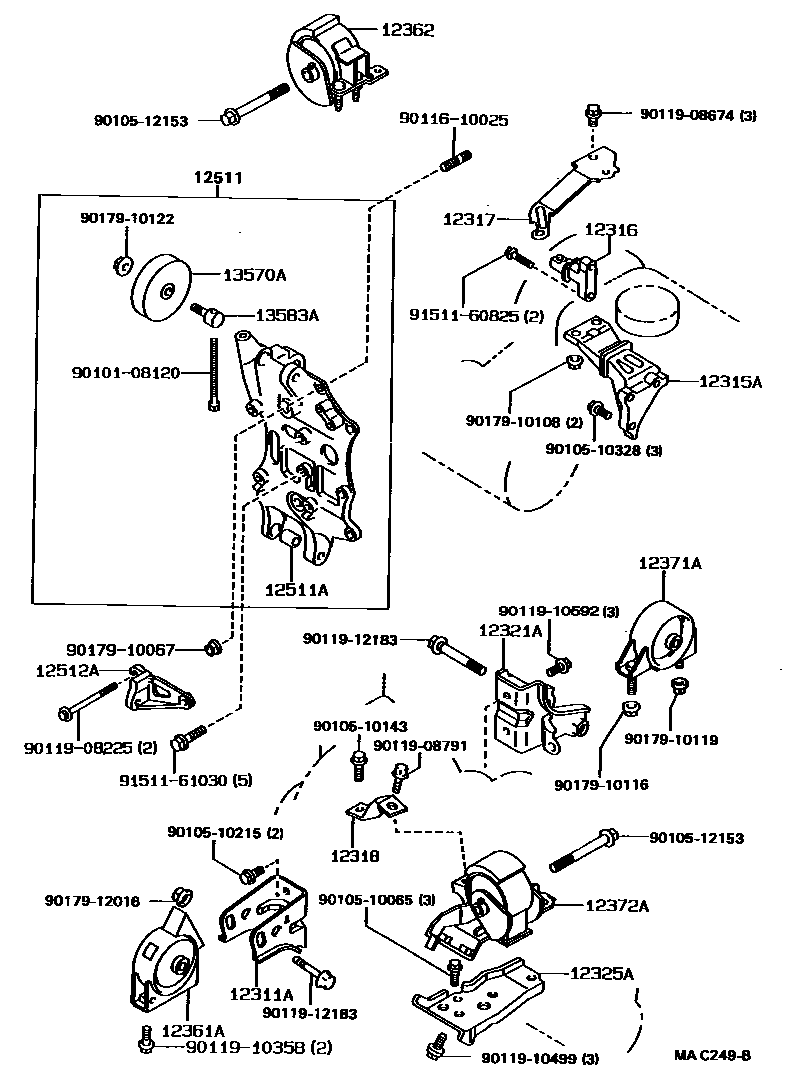

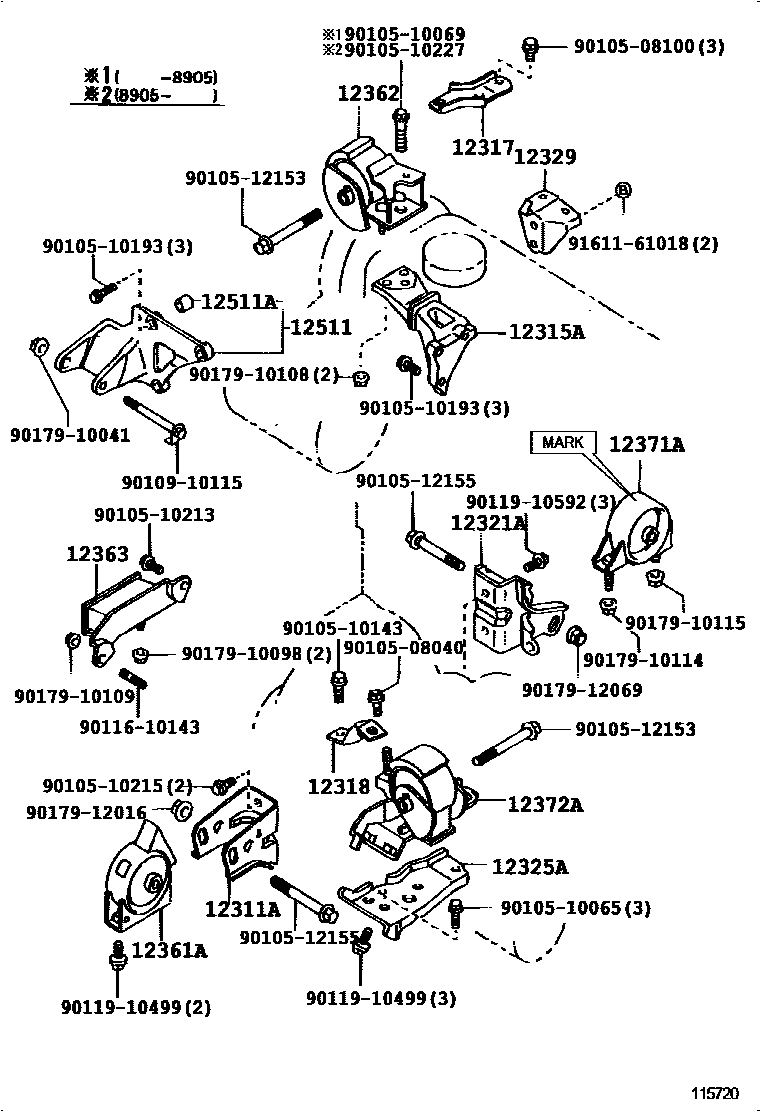

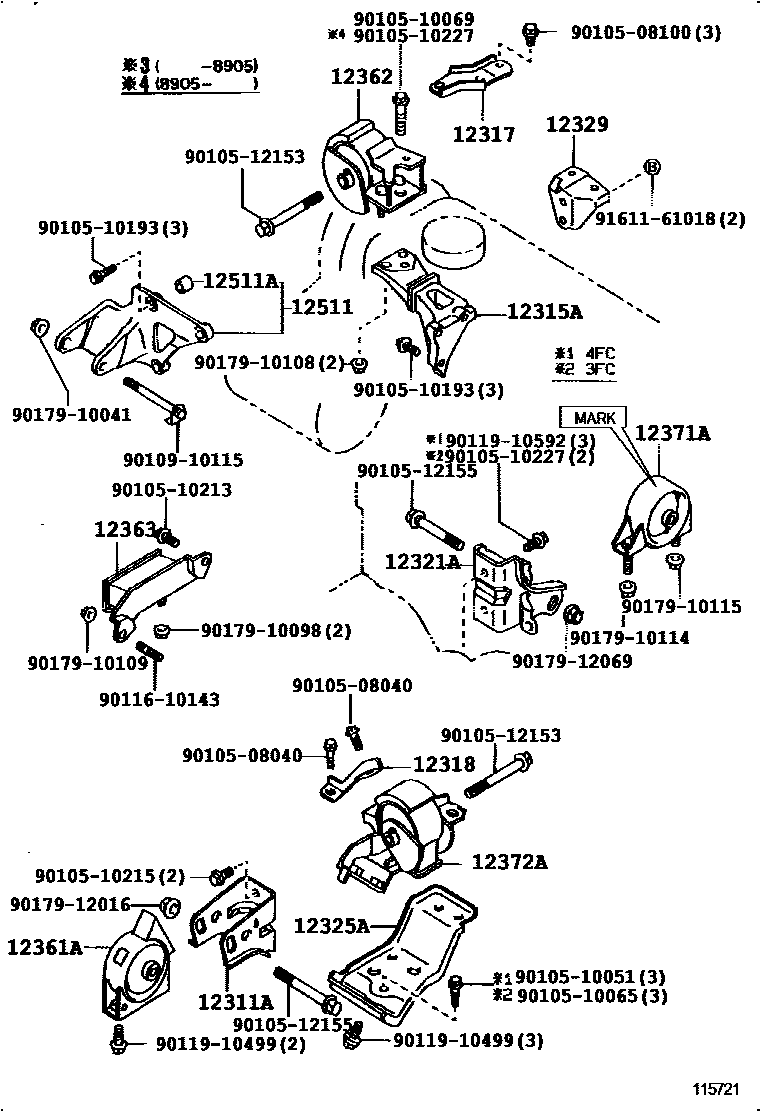

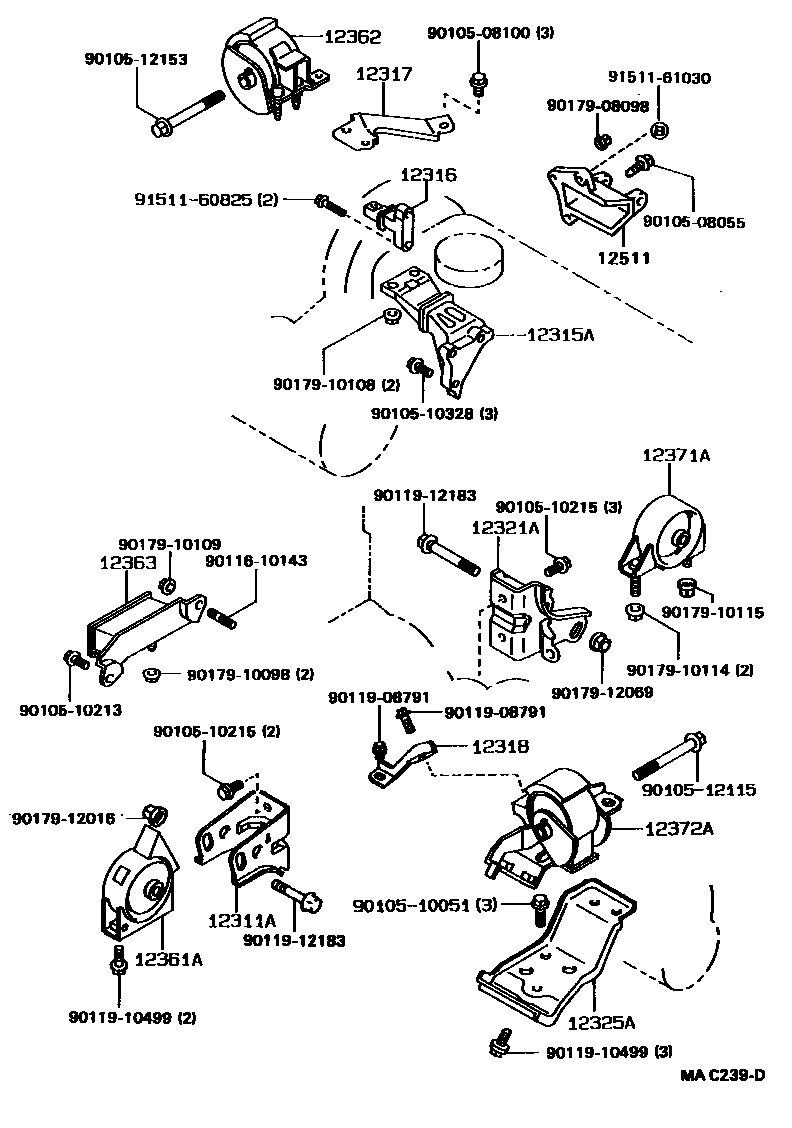

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-16040 · 12311-16050 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15070 · 12315-16040 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-16010 |
| 12317 | Engine right mounting bracket | 12317-15010 · 12317-15020 · 12317-16010 · 12317-16020 |
| 12318 | Engine left mounting bracket | 12318-15010 · 12318-16010 · 12318-16030 · 12318-16040 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-15050 · 12321-15060 · 12321-15070 · 12321-15110 · 12321-16080 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-15050 · 12325-16060 · 12325-16070 · 12325-16080 |
| 12329 | Engine mounting bracket | 12329-15010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-16040 · 12361-16090 · 12361-16100 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-15130 · 12362-15160 · 12362-16070 · 12362-16090 · 12362-16150 |
| 12363 | Engine center mount vibration isolation pad | 12363-15010 · 12363-15020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-15200 · 12371-15230 · 12371-16110 · 12371-16111 · 12371-16190 · 12371-64130 · 12371-64141 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-15110 · 12372-15130 · 12372-16060 · 12372-16100 · 12372-16110 |
| 12511 | No. 1 generator bracket | 12501-16020 · 12511-15040 · 12511-16030 |
| 12511A | Generator bracket bushing | 90387-10013 · 90387-10101 |
| 12512A | No. 2 generator bracket | 12512-16010 |
| 13570A | No. 1 poly-ribbed belt idler assembly | 13570-16010 |
| 13583A | Poly V-belt idler shaft | 13583-16010 |
