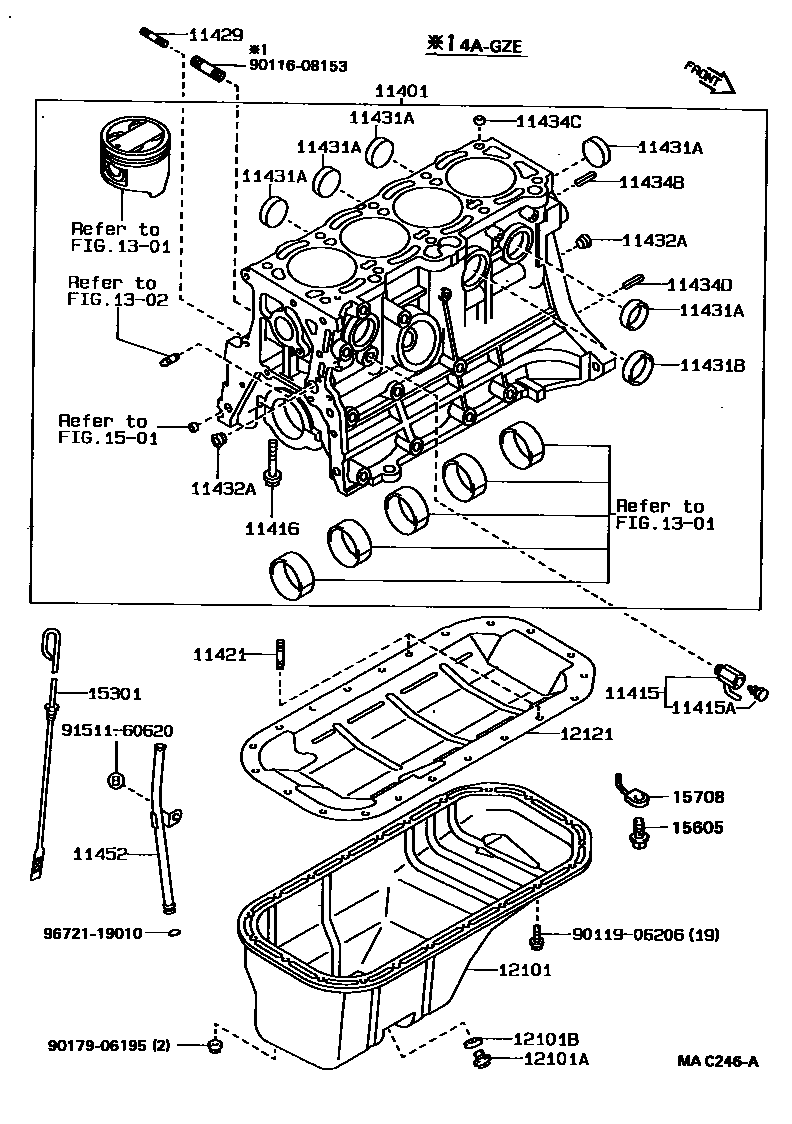

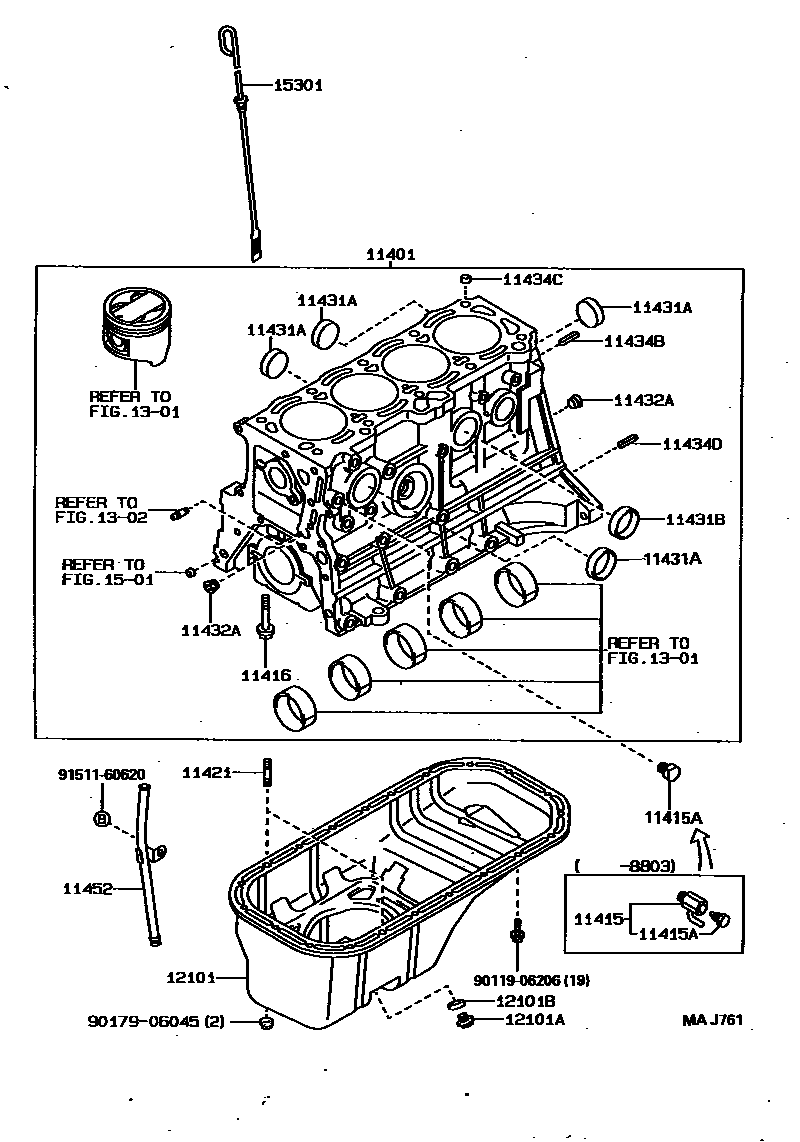

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19405 · 11401-19425 · 11401-19455 · 11401-19475 · 11401-19476 · 11401-19485 · 11401-19486 · 11401-19495 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09088 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52003 · 90345-52013 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 |
| 11429 | Studs (for generator bracket) | 90116-08170 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11432A | No. 1 headed tapered thread plug | 90344-53008 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11452 | Engine oil level gauge guide | 11452-15020 · 11452-16010 · 11452-16030 |
| 12101 | Oil pan sub-assembly | 12101-15070 · 12101-16080 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12019 · 90430-12027 |
| 12121 | No. 1 oil pan baffle | 12122-16011 |
| 15301 | Engine oil level scoring assembly | 15301-15040 · 15301-15041 · 15301-16040 · 15301-16041 · 15301-16060 |
| 15605 | Oil check valve sub-assembly | 15703-16010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-16010 · 15708-16020 |
