Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

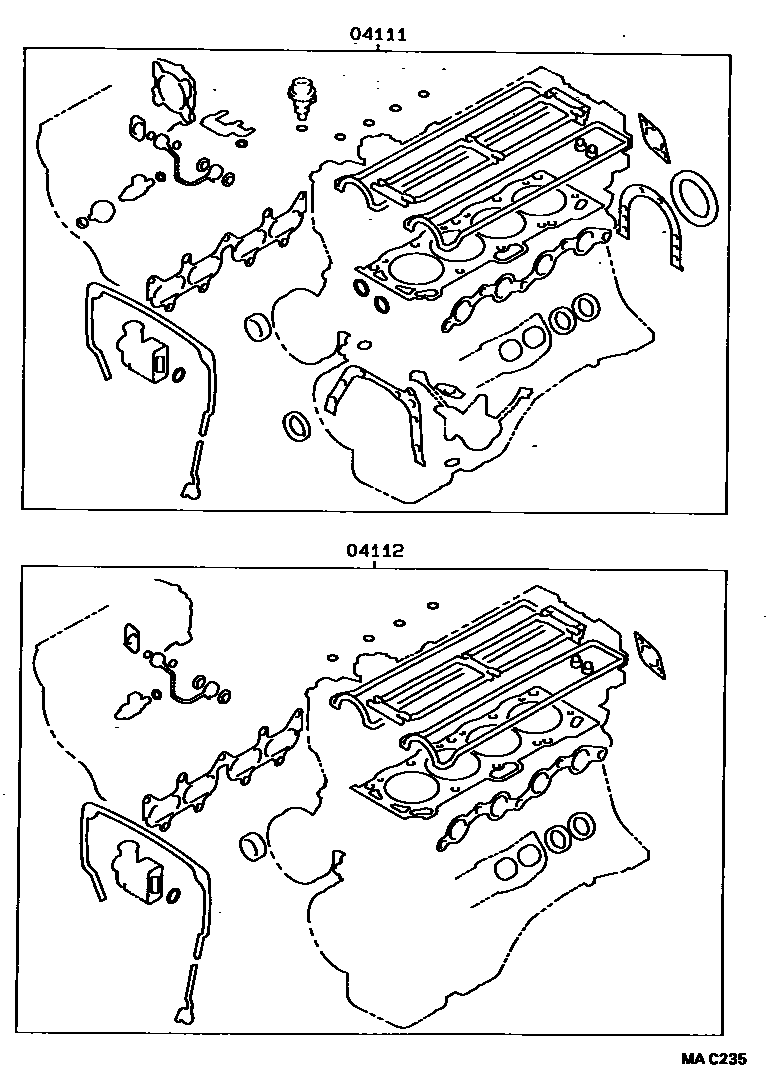

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MAC235
Engine Overhaul Gasket Kit — MAC235 (198905 – 999999)

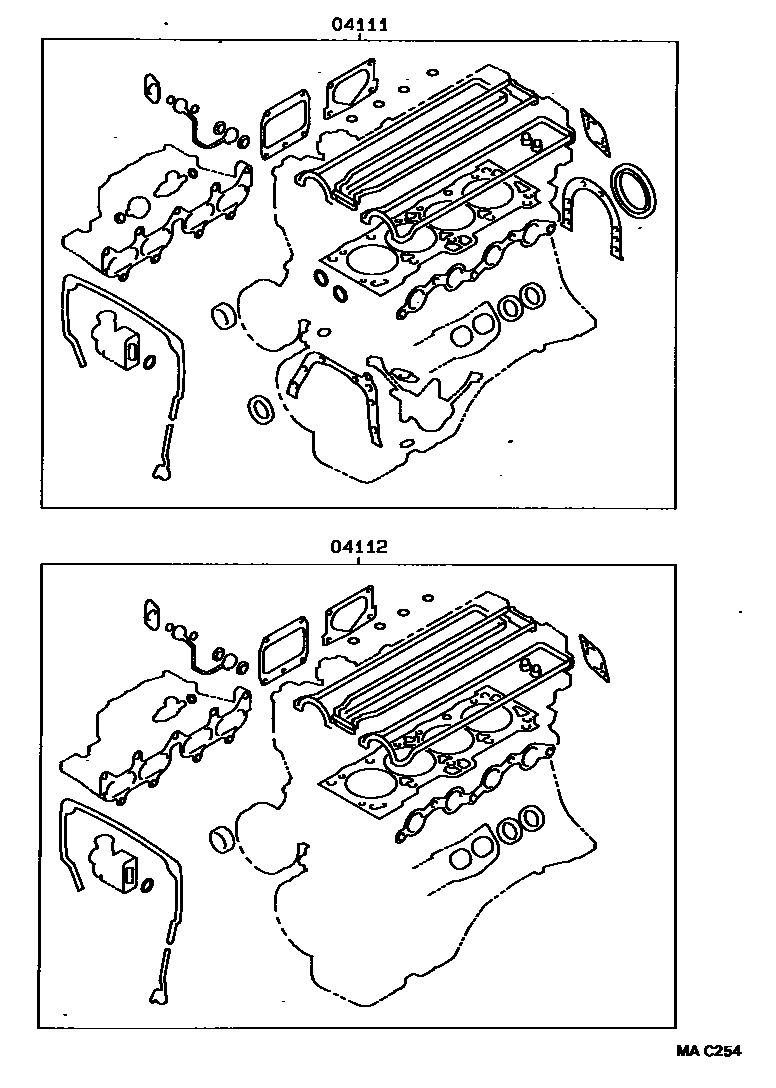

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MAC254
Engine Overhaul Gasket Kit — MAC254 (198905 – 999999)

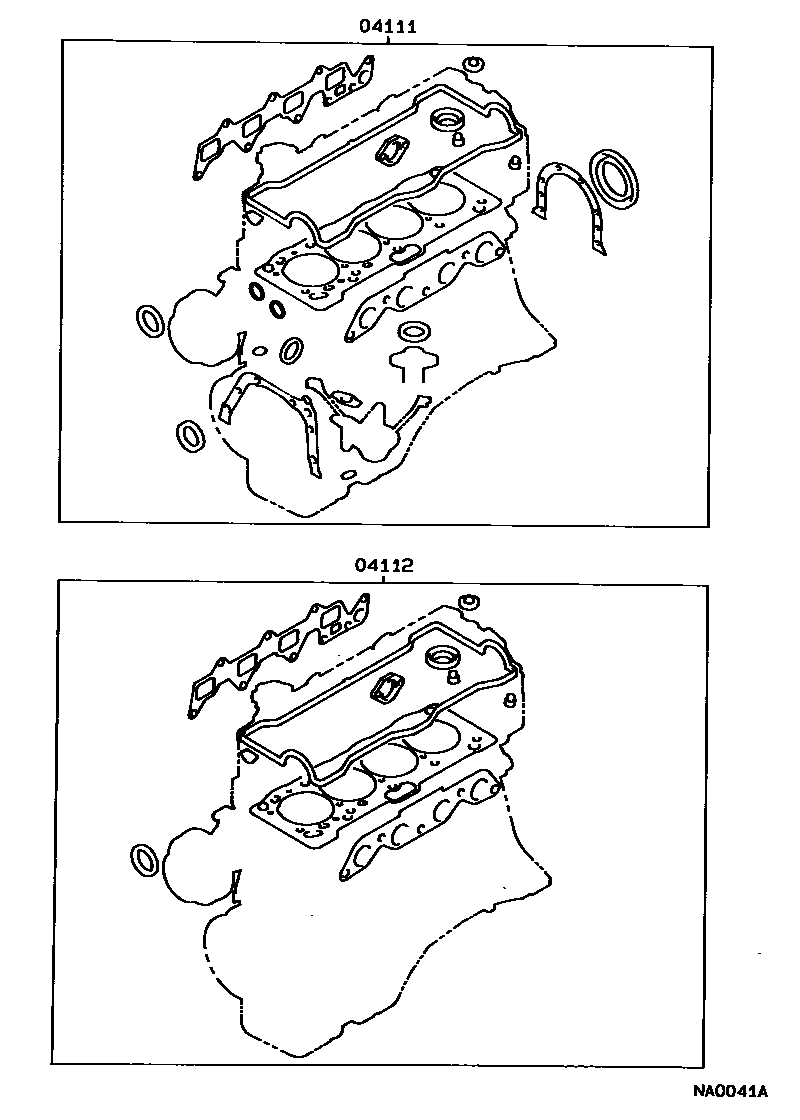

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0041A
Engine Overhaul Gasket Kit — NA0041A (198705 – 198905)

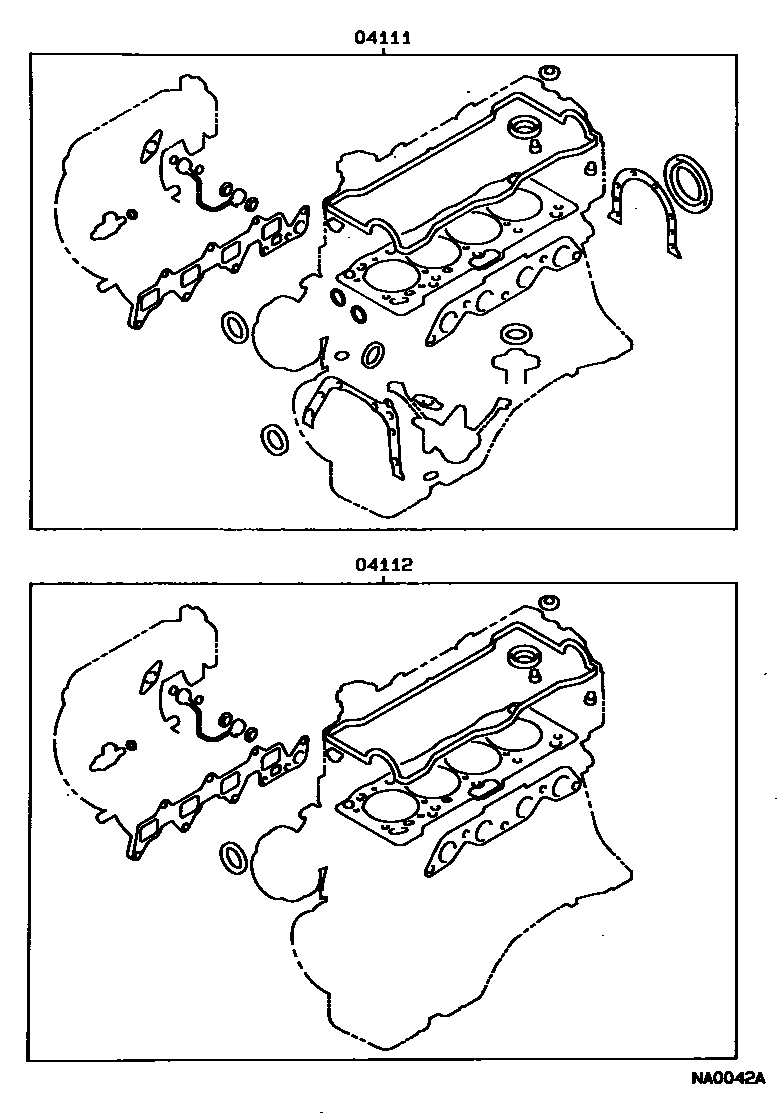

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0042A
Engine Overhaul Gasket Kit — NA0042A (198705 – 999999)

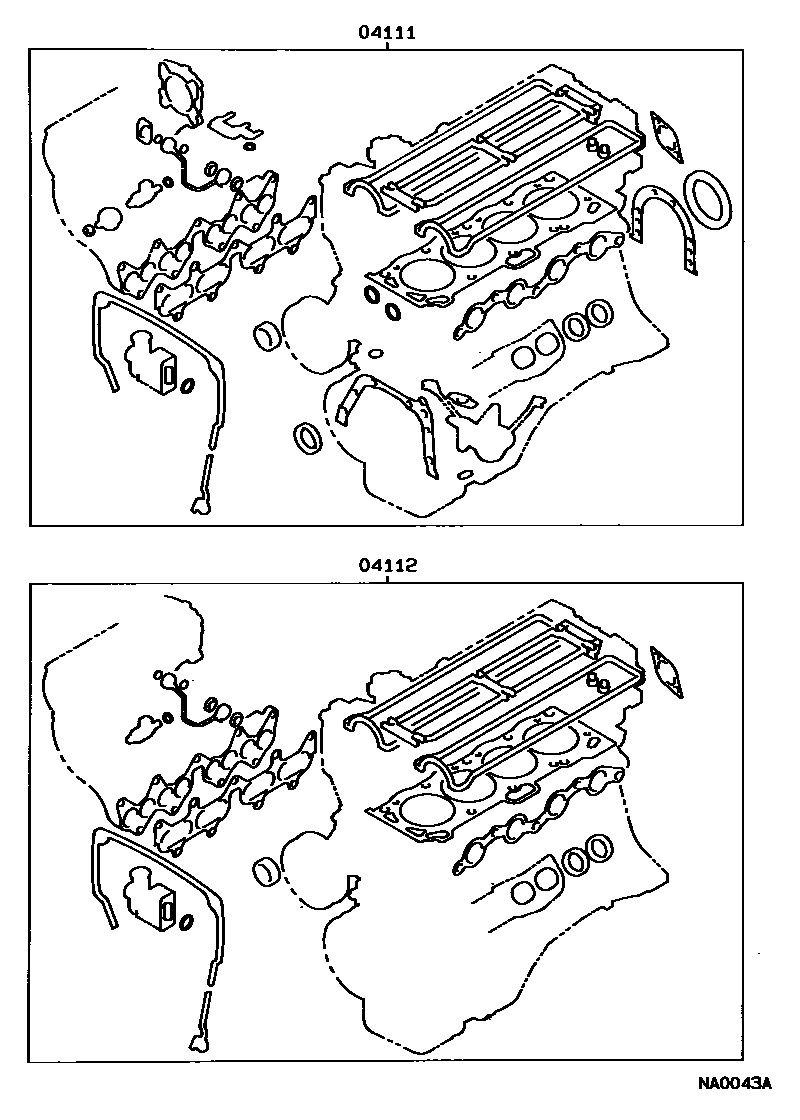

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0043A
Engine Overhaul Gasket Kit — NA0043A (198705 – 198905)

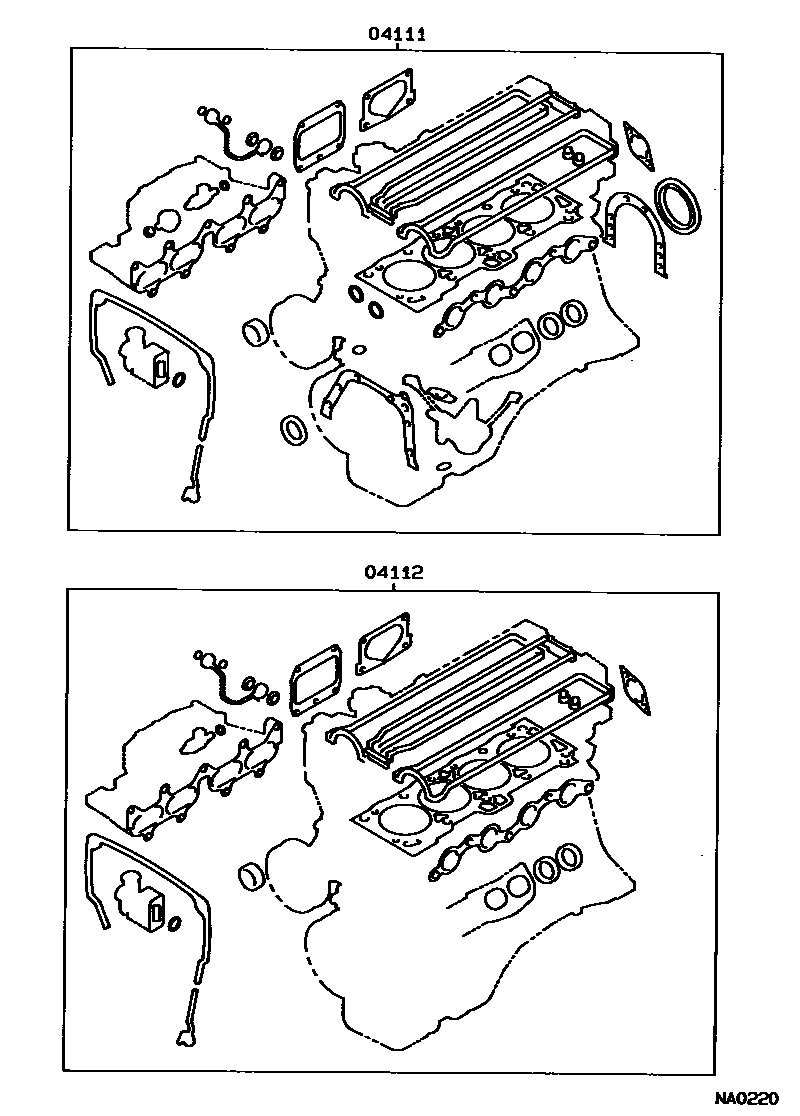

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0220
Engine Overhaul Gasket Kit — NA0220 (198705 – 198905)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-15080 · 04111-15090 · 04111-15091 · 04111-15092 · 04111-15100 · 04111-15101 · 04111-16073 · 04111-16074 · 04111-16110 · 04111-16191 · 04111-16192 · 04111-16200 · 04111-16201
04112Engine valve grinding pad assembly04112-15090 · 04112-15091 · 04112-15100 · 04112-15101 · 04112-15102 · 04112-15103 · 04112-15110 · 04112-15111 · 04112-16023 · 04112-16024 · 04112-16110 · 04112-16191 · 04112-16200
