Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

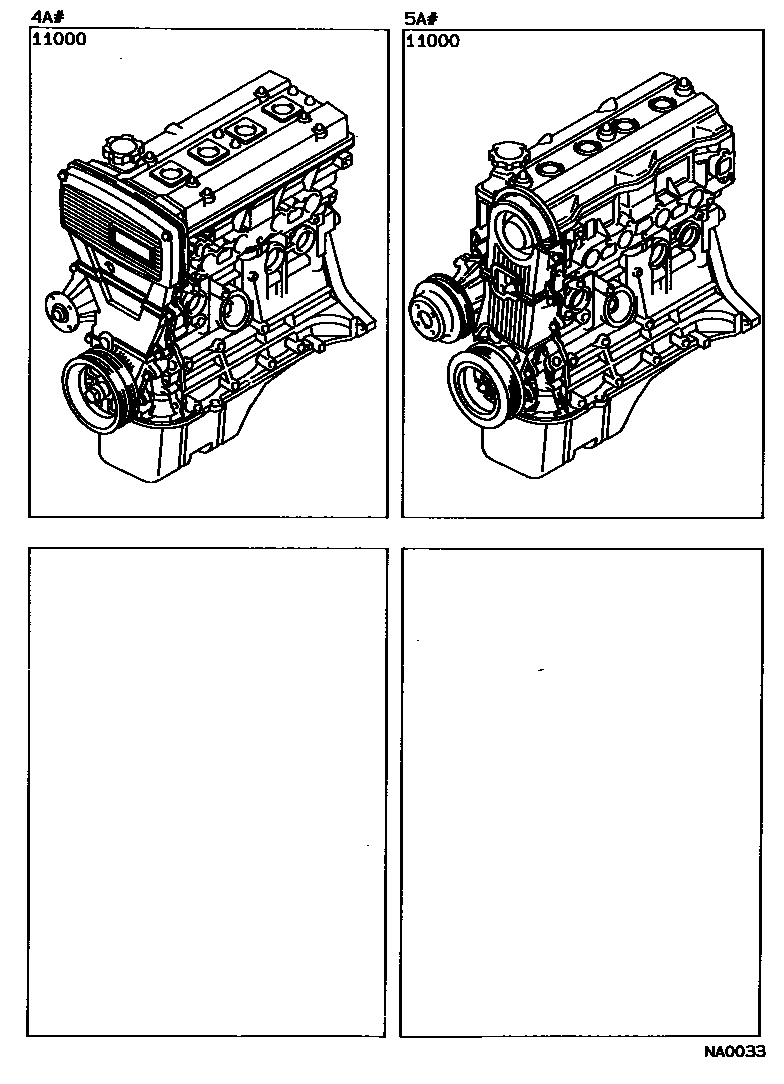

Toyota COROLLA Partial Engine Assembly EPC diagram — NA0033
Partial Engine Assembly — NA0033 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-15310 · 19000-15311 · 19000-15320 · 19000-15321 · 19000-15322 · 19000-15340 · 19000-15350 · 19000-16360 · 19000-16400 · 19000-16830 · 19000-16831 · 19000-16870 · 19000-16871
