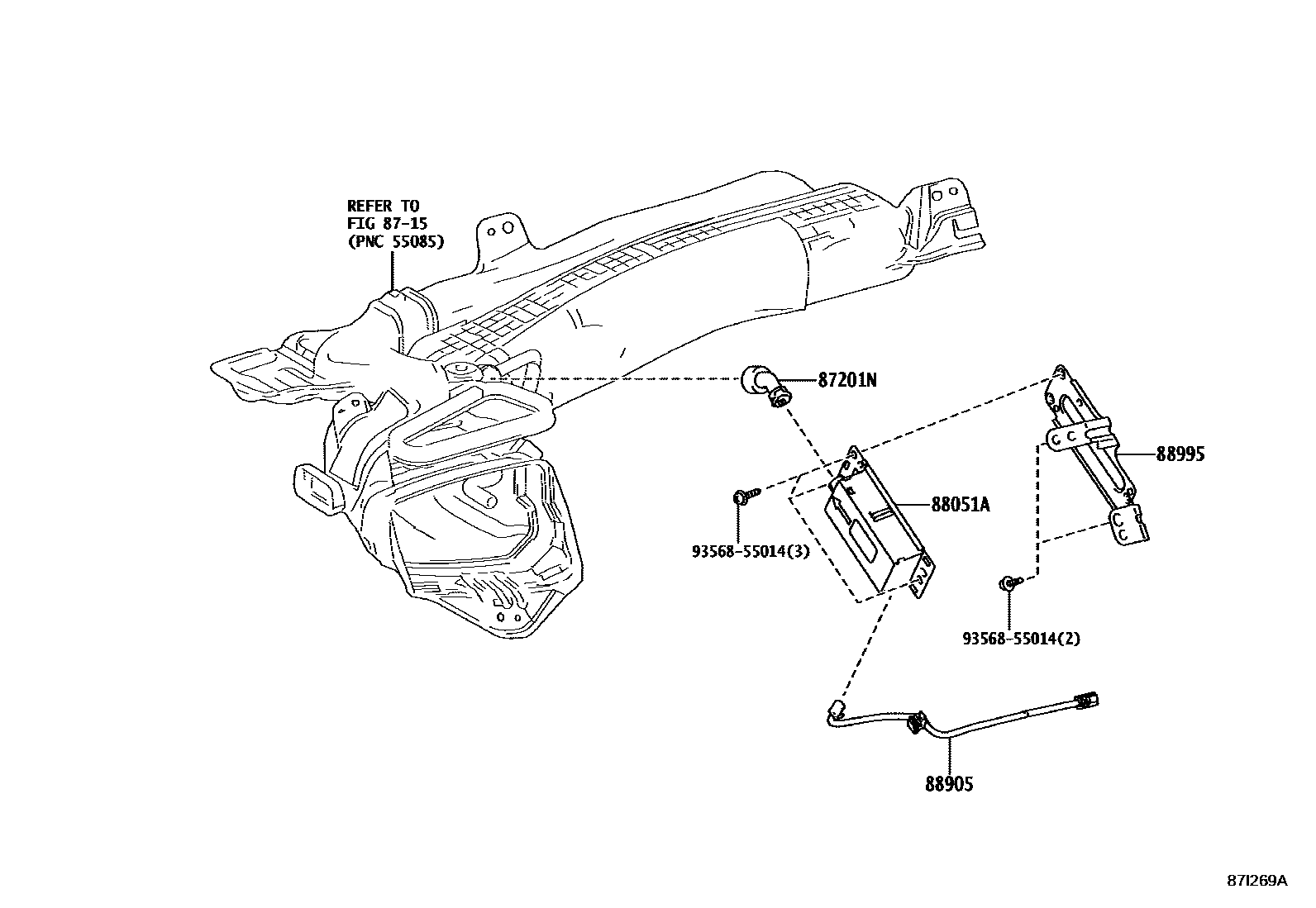

Toyota COROLLA 空气净化器或离子发生器 — Figure 8724
Toyota COROLLA EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87201N | Air duct sub-assembly | 55848-12030 |
| 88051A | Ion generator sub-assembly | 88051-28060 · 88051-48010 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 82144-12120 · 82144-12140 |
| 88995 | Toyota part | 88995-12010 |
