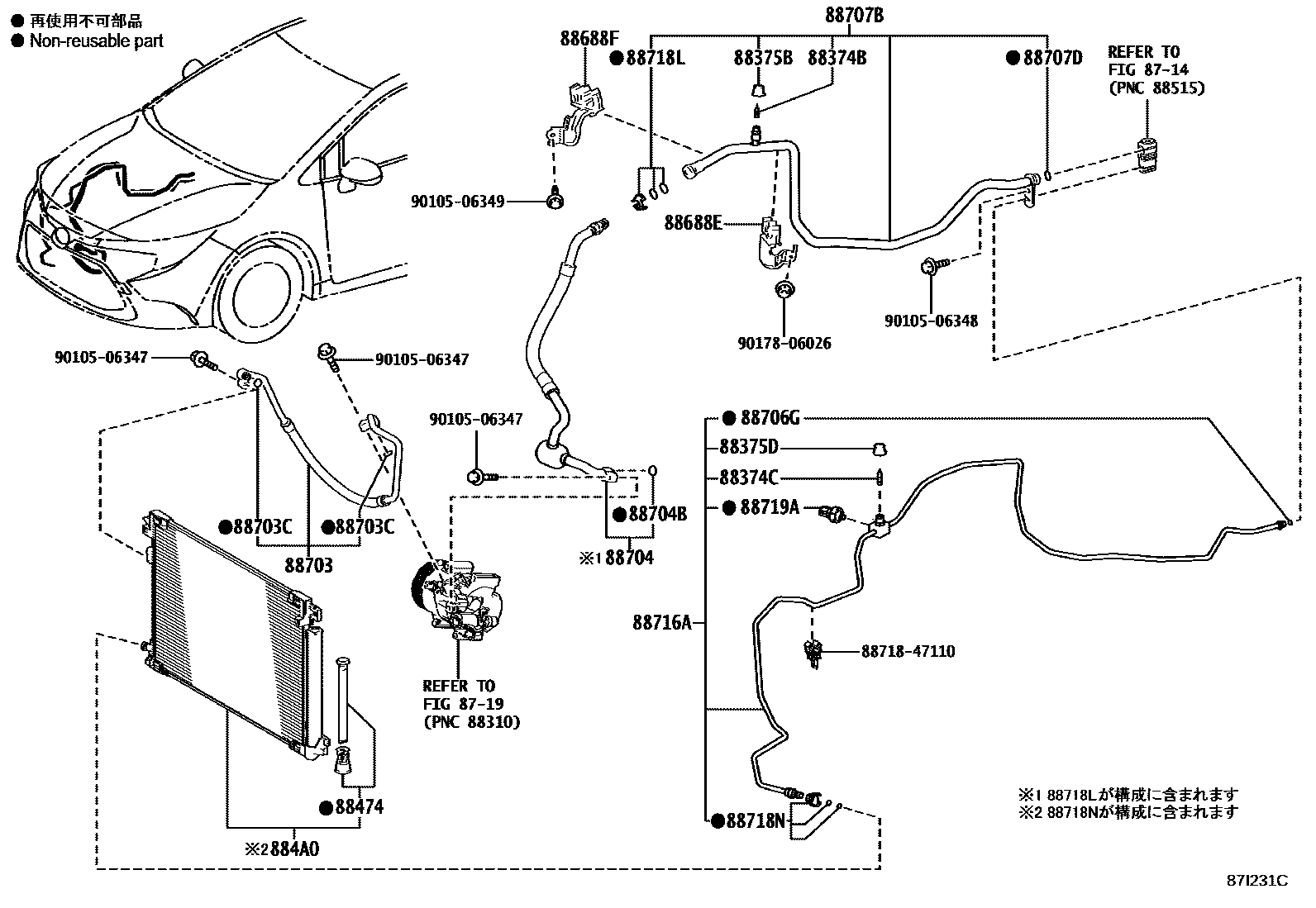

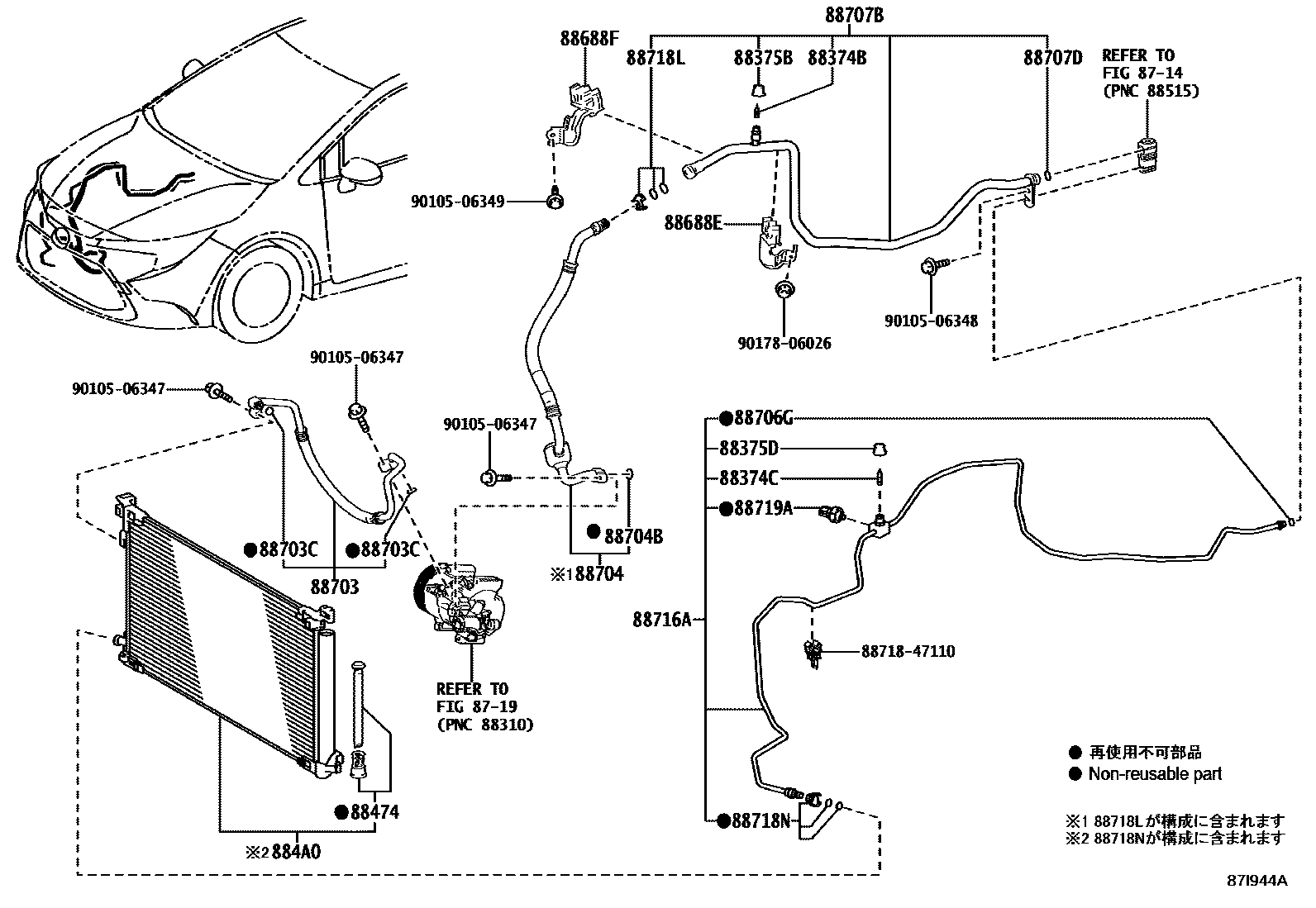

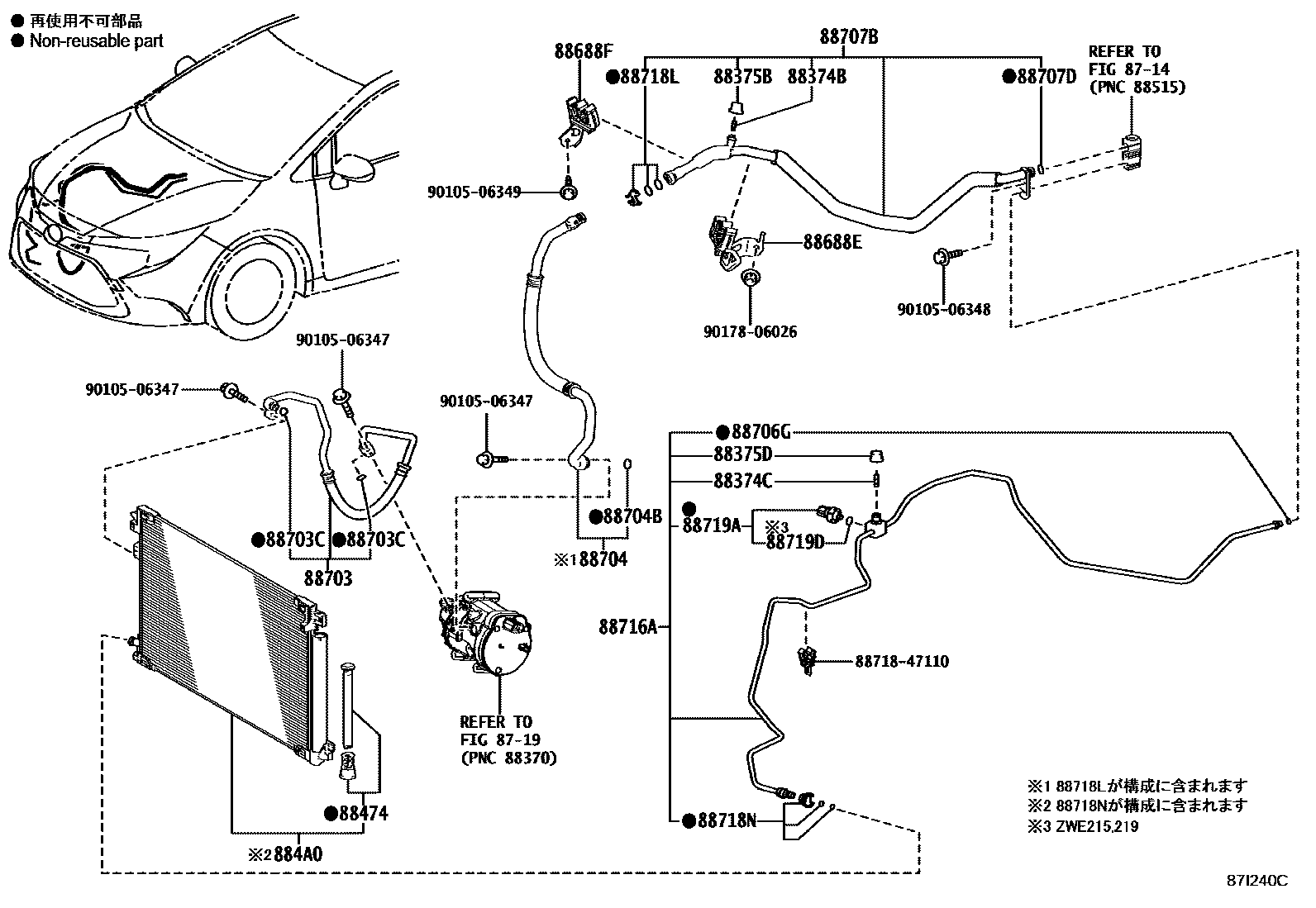

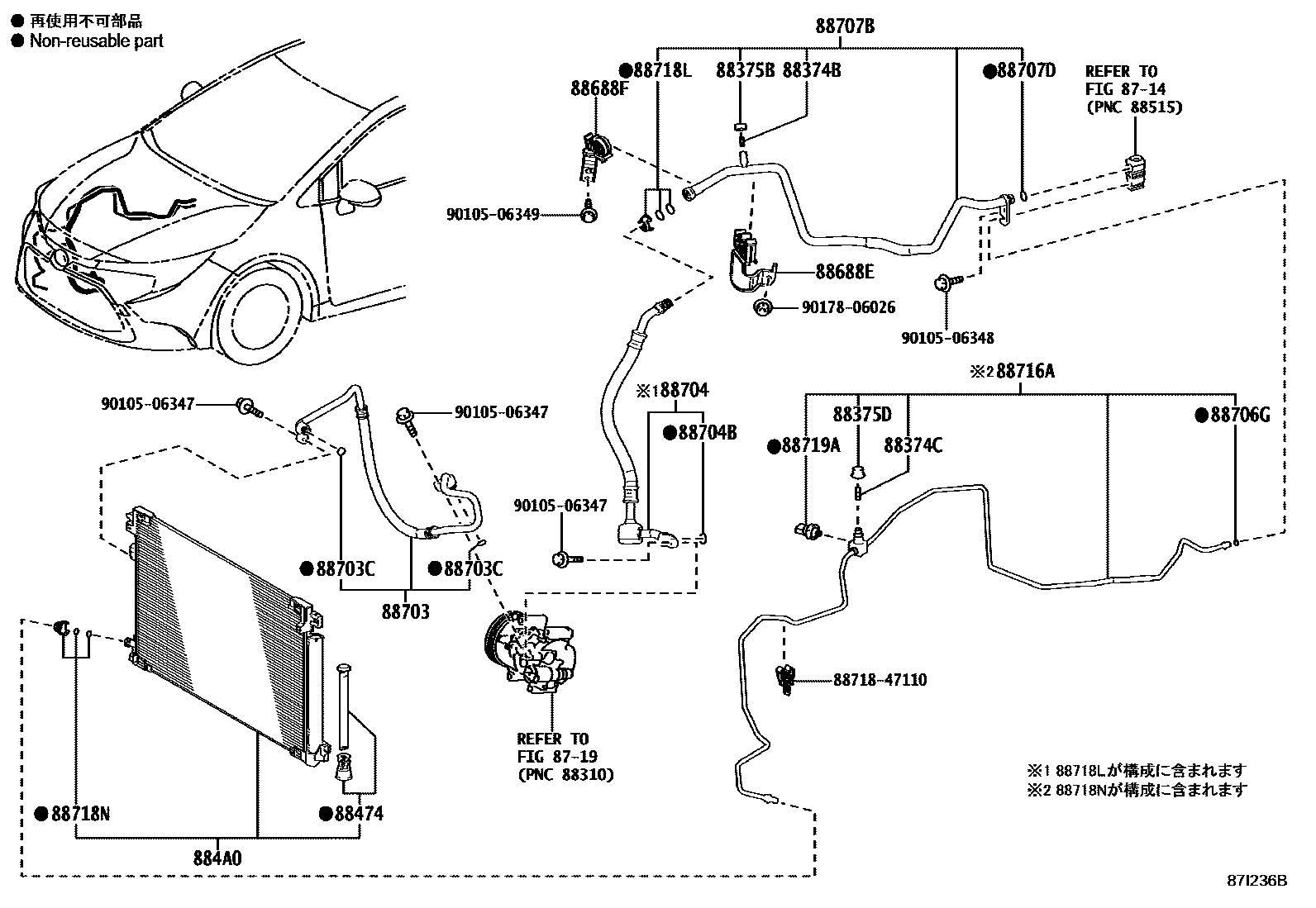

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | Toyota part | 88460-10320 · 884A0-12010 · 884A0-12030 · 884A0-12060 · 884A0-12110 · 884A0-12120 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-10560 · 88688-47710 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-10540 · 88688-12A20 · 88688-47700 |
| 88703 | Discharge hose sub-assembly | 88703-10100 · 88703-12A20 · 88703-12A80 · 88703-12B20 · 88703-16340 · 88703-47080 |
| 88703C | Toyota part | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-10260 · 88704-12A90 · 88704-12B40 · 88704-12B50 · 88704-16500 · 88704-47100 |
| 88704B | Toyota part | 90099-14121 |
| 88706G | Toyota part | 90099-14119 |
| 88707B | Suction pipe B sub-assembly | 88707-12420 · 88707-12450 · 88707-47100 |
| 88707D | Toyota part | 90099-14121 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12B30 · 88710-12B90 · 88710-12C60 · 88710-12D50 · 88710-47170 · 88710-47171 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Toyota part | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 · 88719-47010 |
| 88719D | Toyota part | 90099-14122 |
