Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

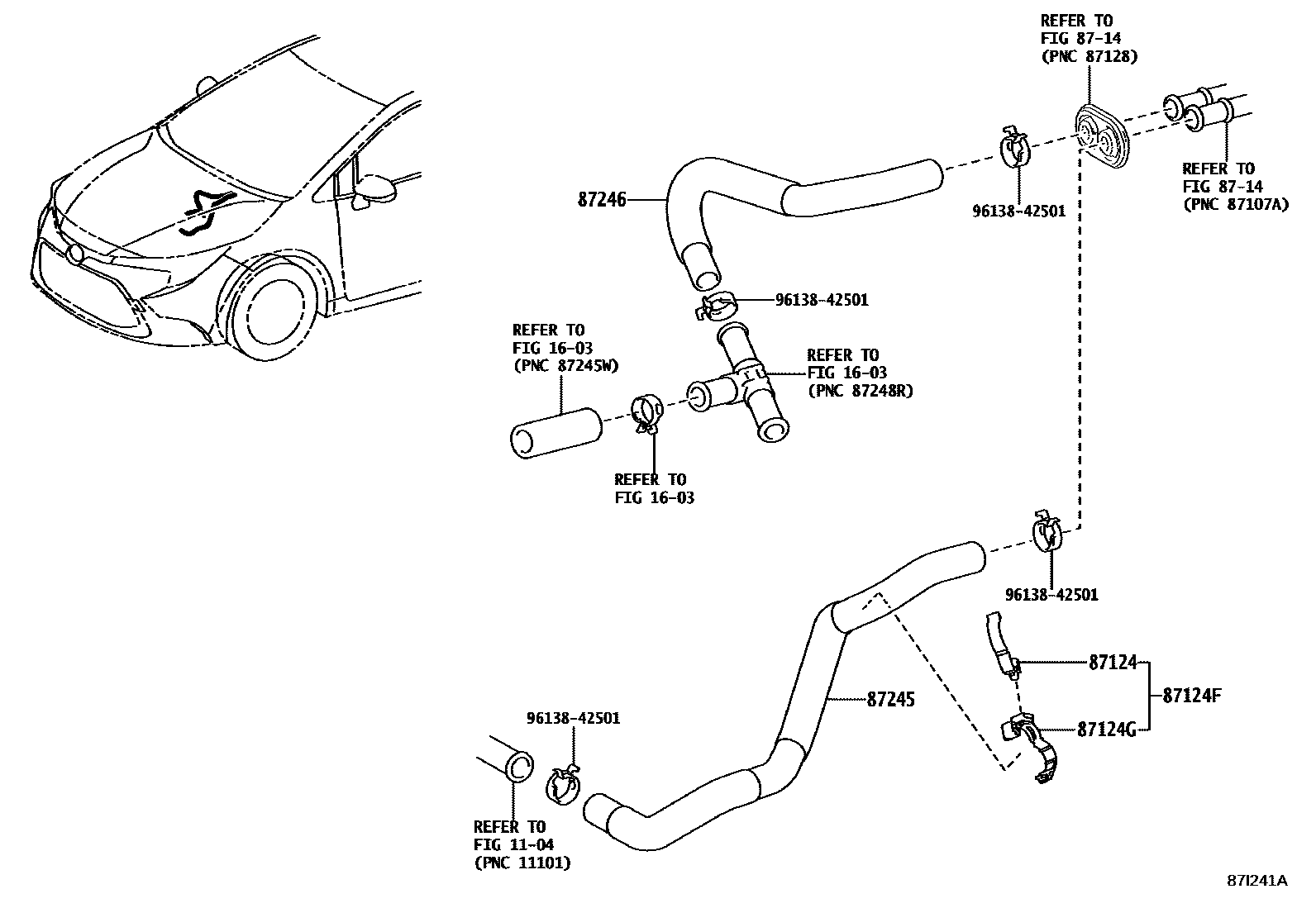

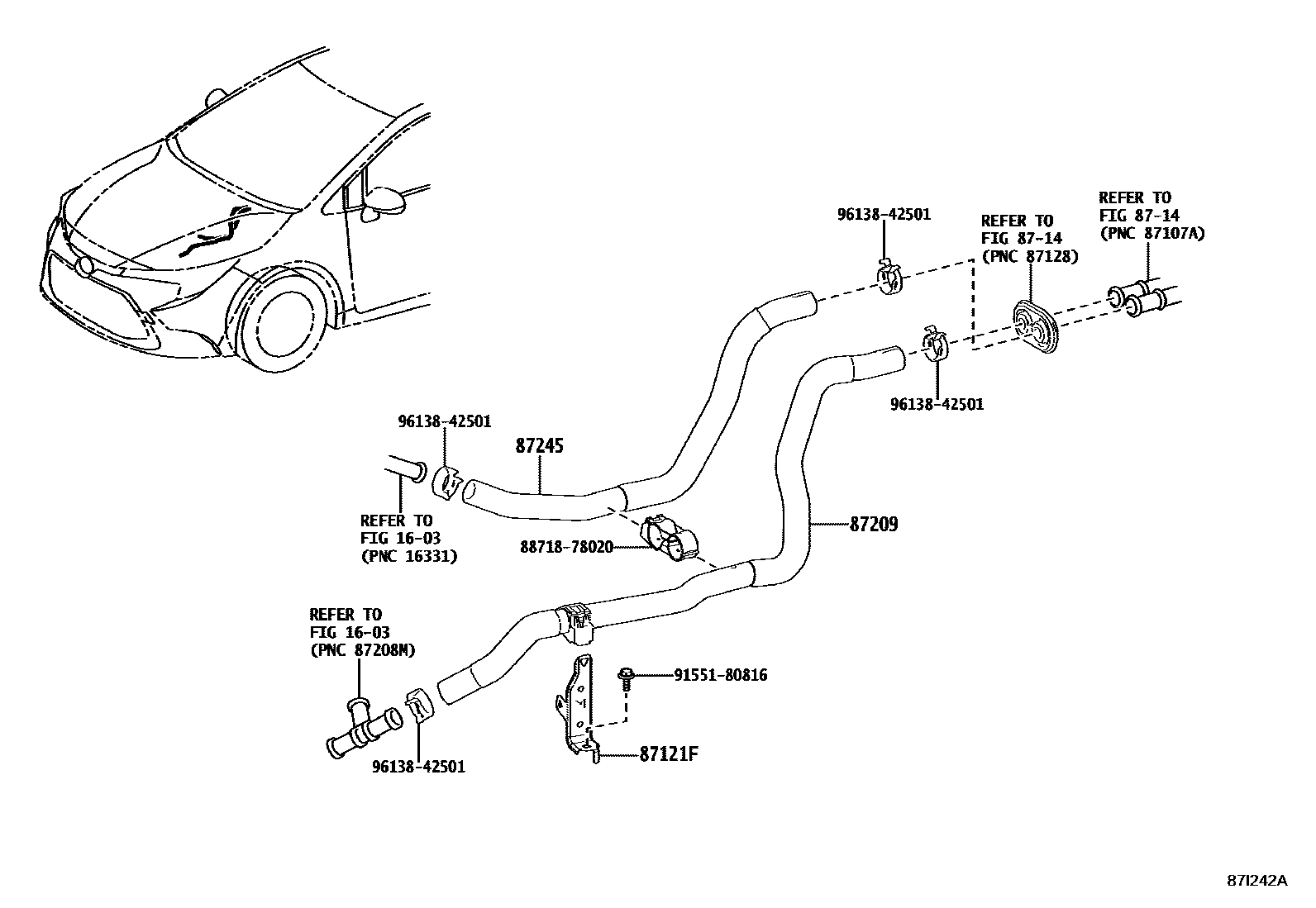

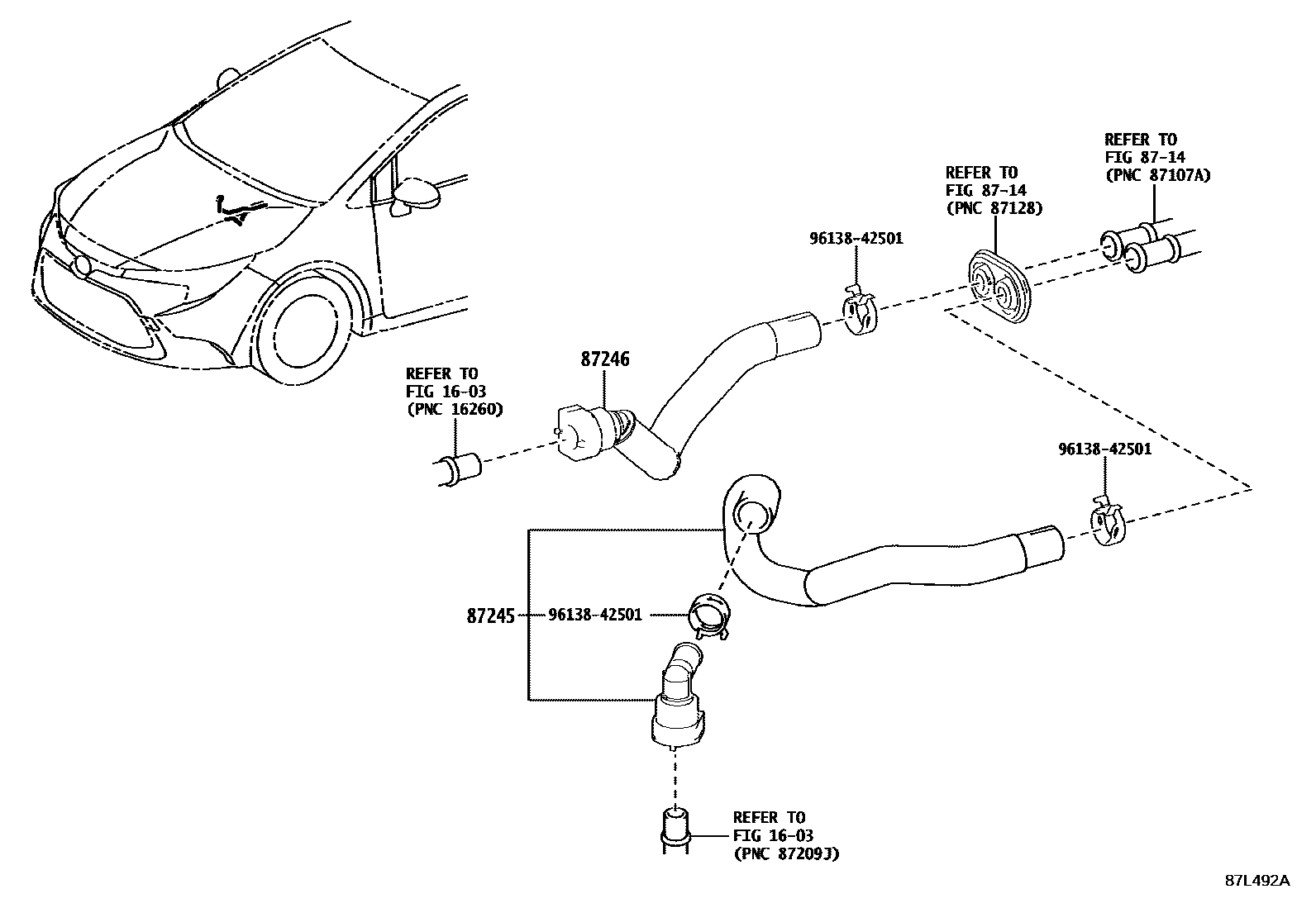

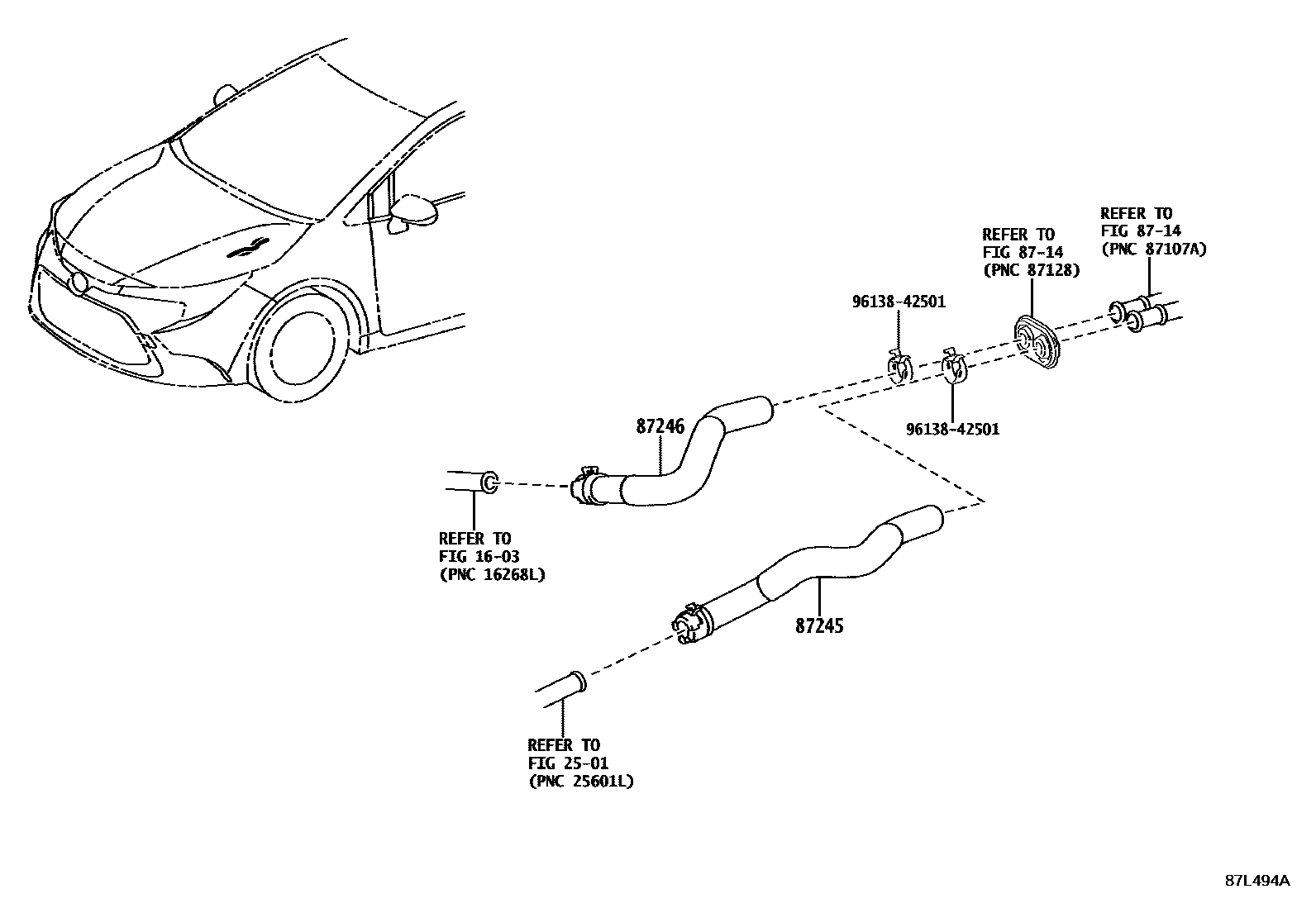

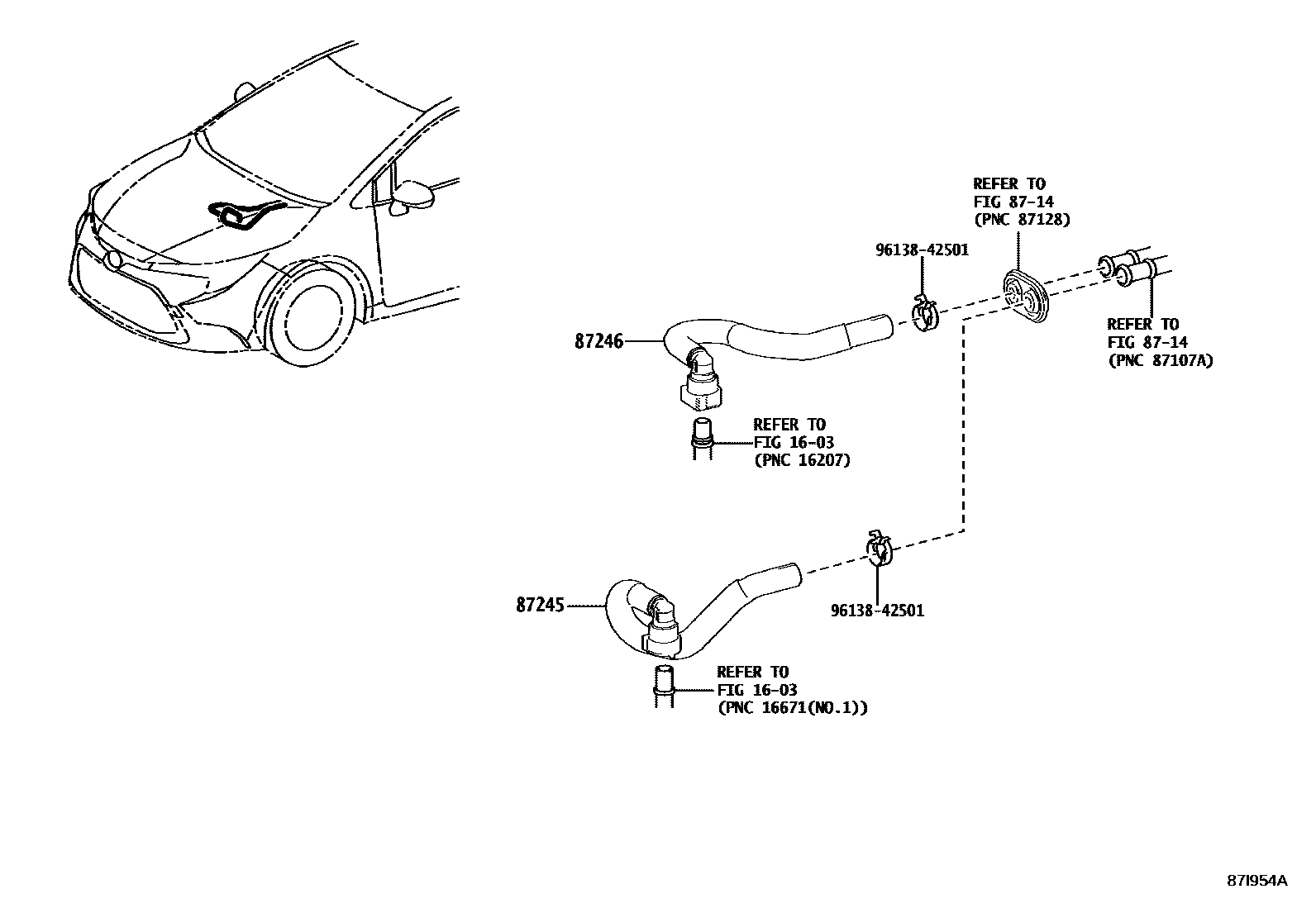

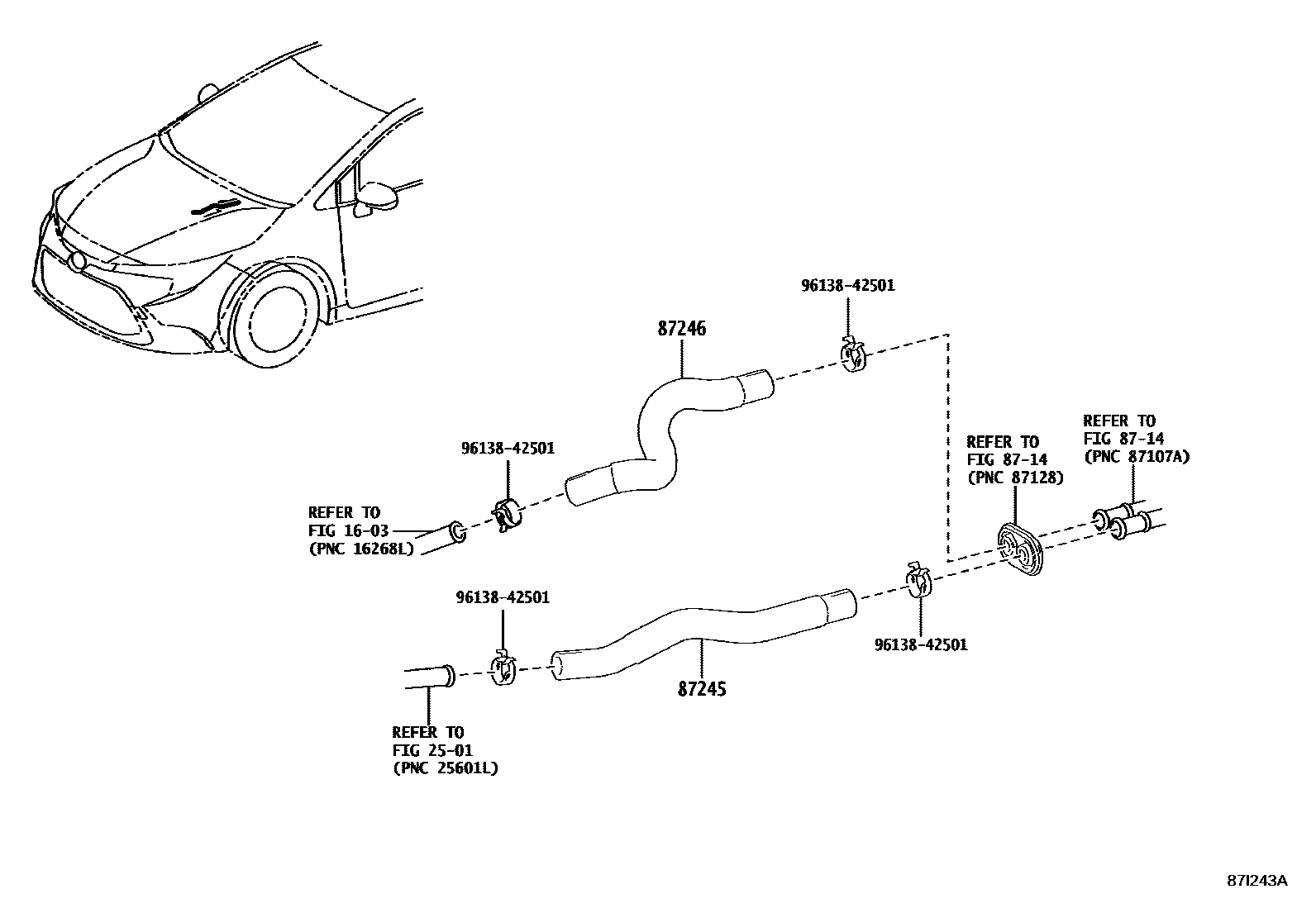

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87121F | heater bracket | 87121-10020 |
| 87124 | heater clip | 87124-11030 |
| 87124F | No. 1 heater hose clamp | 16581-70060 |
| 87124G | No. 2 heater hose clamp | 87124-50060 |
| 87209 | Water hose sub-assembly | 87209-10350 |
| 87245 | Heater water inlet hose | 87209-12640 · 87209-12770 · 87209-47010 · 87245-10470 · 87245-12D60 · 87245-47370 |
| 87246 | Heater outlet hose | 87209-12710 · 87209-12780 · 87209-47030 · 87245-12G40 · 87245-47340 |
