Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 21 PNC and OE references.

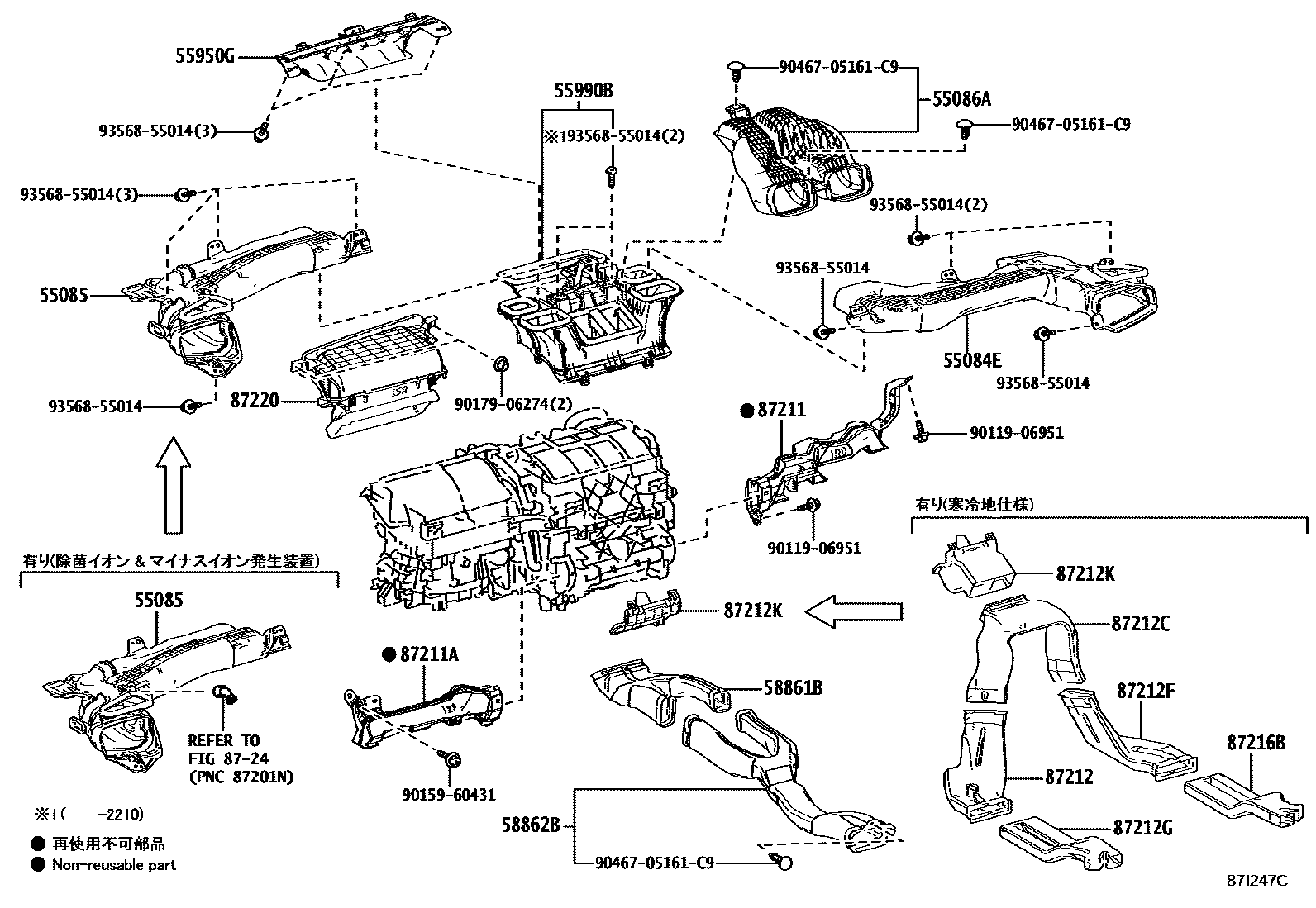

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-12260 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-12210 · 55085-12220 · 55085-12230 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-12300 |

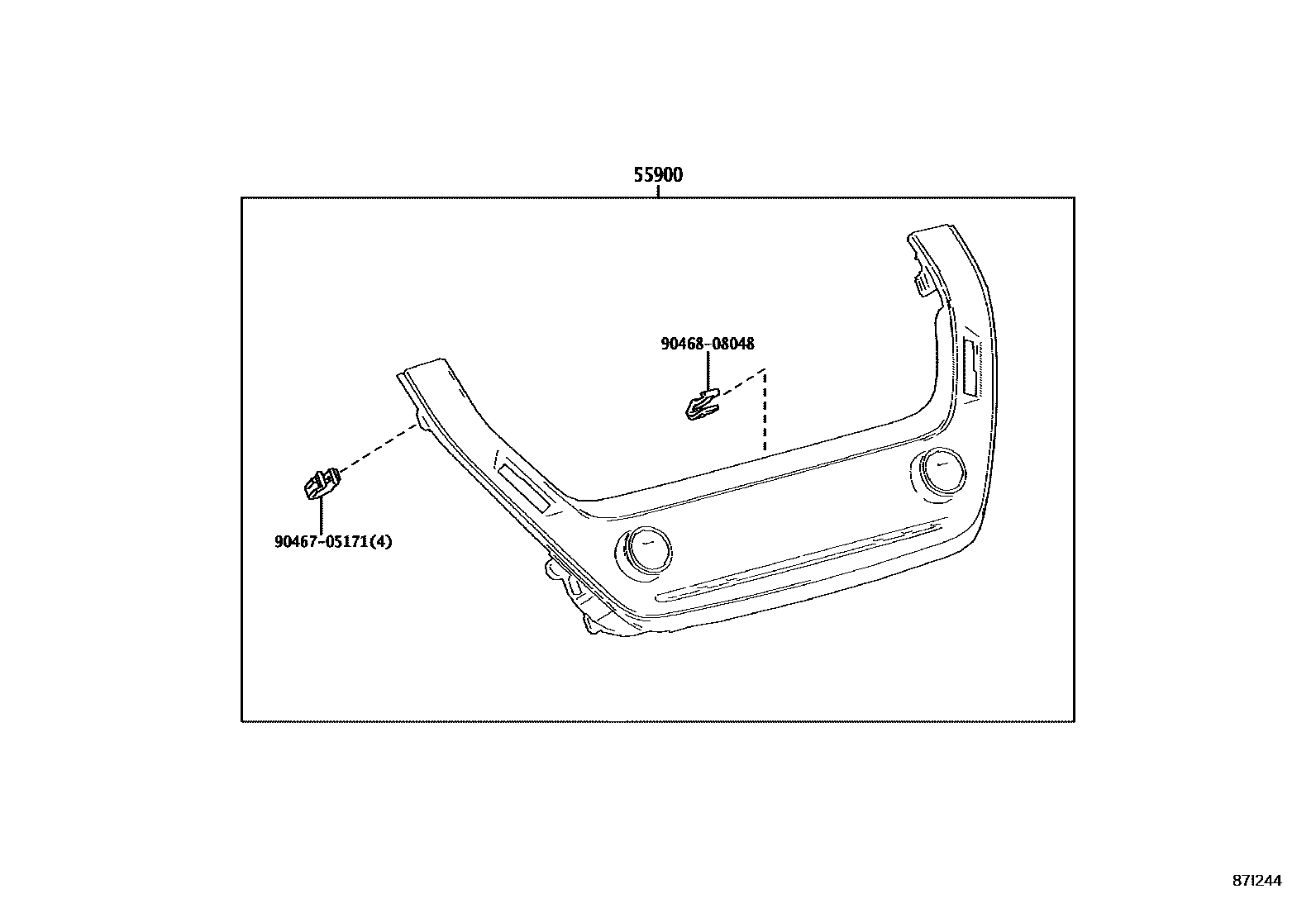

| 55900 | Air conditioning control assembly | 55900-12K30 |
| 55950G | Defroster nozzle assembly | 55950-12340 |
| 55990B | Lower defroster nozzle assembly | 55990-12110 |
| 58861B | Air duct No. 1 for armrest box | 58861-12050 |
| 58862B | Air duct No. 2 for armrest box | 58862-12030 |
| 87211 | No. 1 air duct | 87211-12470 |
| 87211A | Duct No. 2 | 87211-12530 |
| 87212 | No. 1 rear air duct | 87213-47050 |
| 87212C | Rear air duct | 87215-12070 · 87215-47040 |
| 87212F | No. 2 rear air duct | 87212-47040 |
| 87212G | No. 3 rear air duct | 87217-10060 |
| 87212K | No. 6 rear air duct | 87114-10100 · 87413-12010 |
| 87216B | No. 4 rear air duct | 87216-10010 |
| 87220 | Air duct assembly | 87220-12120 · 87220-12121 |

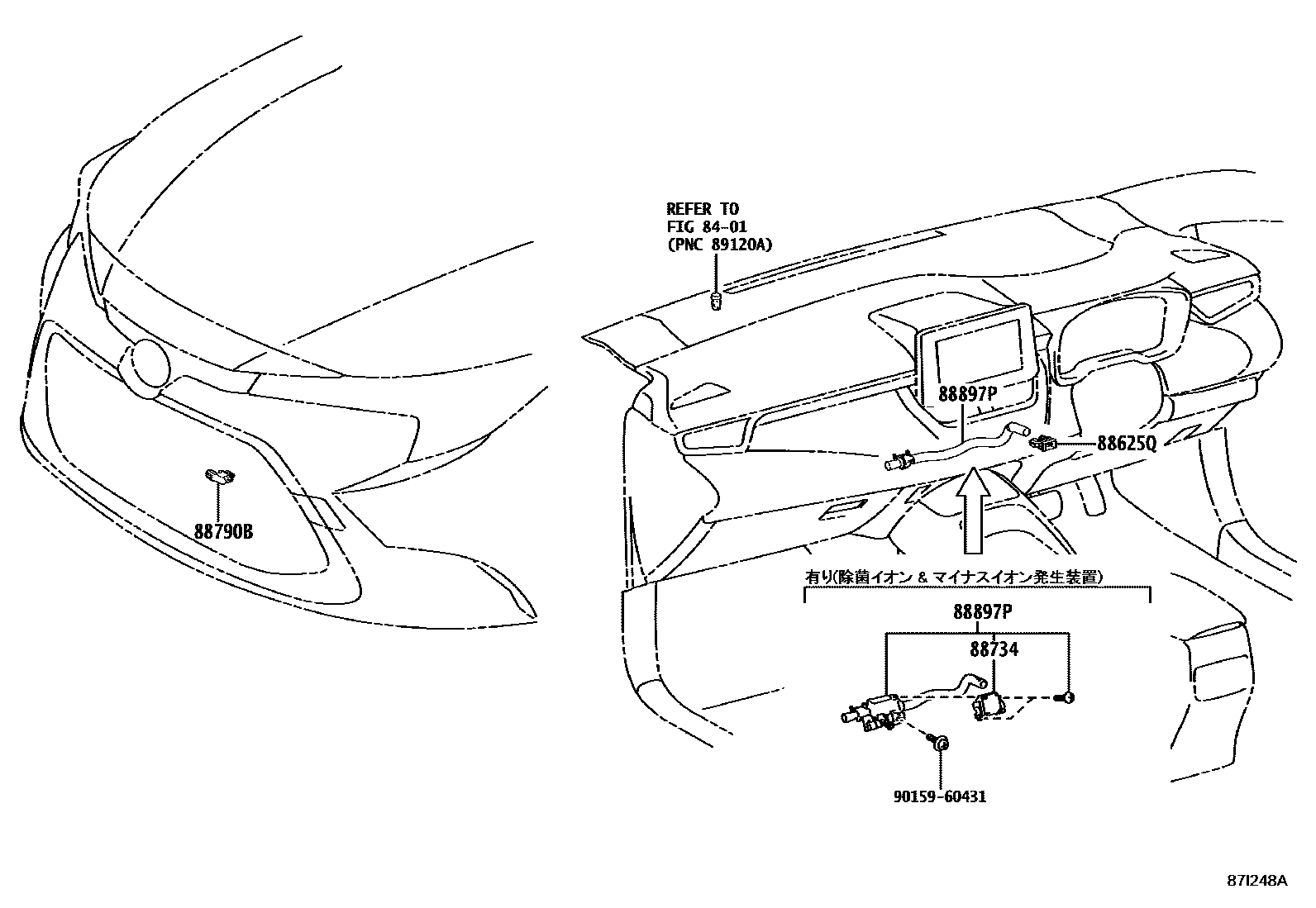

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88734 | Toyota part | 88734-12020 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-12120 · 88505-47060 |
