Toyota COROLLA 车载电话和呼救装置 — Figure 8615

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.

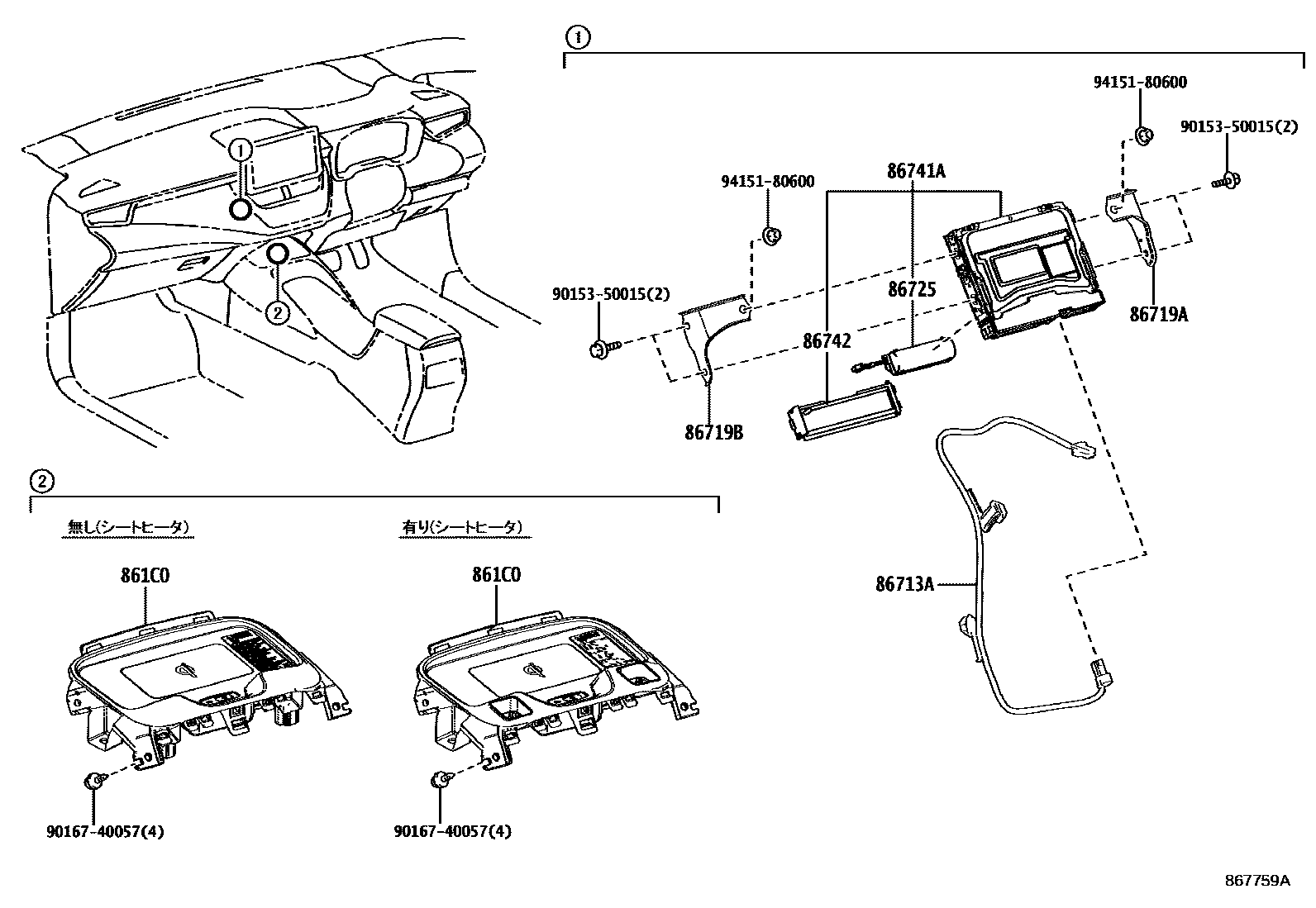

Toyota COROLLA 车载电话和呼救装置 EPC diagram — 867759A
车载电话和呼救装置 — 867759A (201908 – 999999)

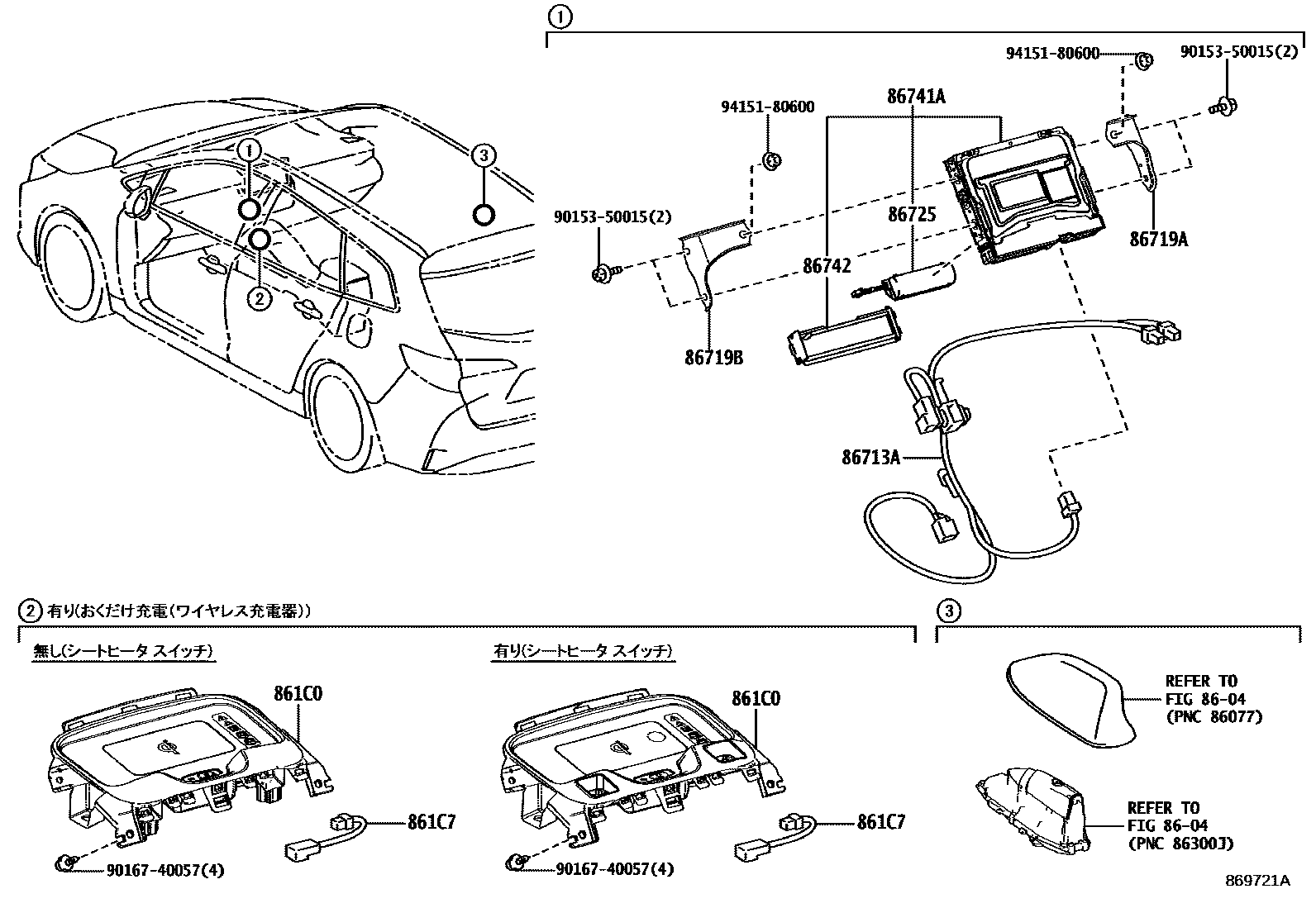

Toyota COROLLA 车载电话和呼救装置 EPC diagram — 869721A
车载电话和呼救装置 — 869721A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
861C0Toyota part861C0-12010 · 861C0-12011 · 861C0-12020 · 861C0-12040 · 861C0-12041 · 861C0-12050 · 861C0-12051
861C7Toyota part861C7-12010
86713ATelephone ECU harness (to transceiver)86713-12050 · 86713-12100
86719APhone holder No. 186719-12010
86719BPhone holder No. 286719-12020
86725mobile phone battery86725-26010 · 86725-78020
86741ATelecommunications transceiver86741-11041 · 86741-11042 · 86741-42220 · 86741-42221 · 86741-K0011
86742transceiver cover86742-26010
