Toyota COROLLA 倒车影像和摄像头 — Figure 8606

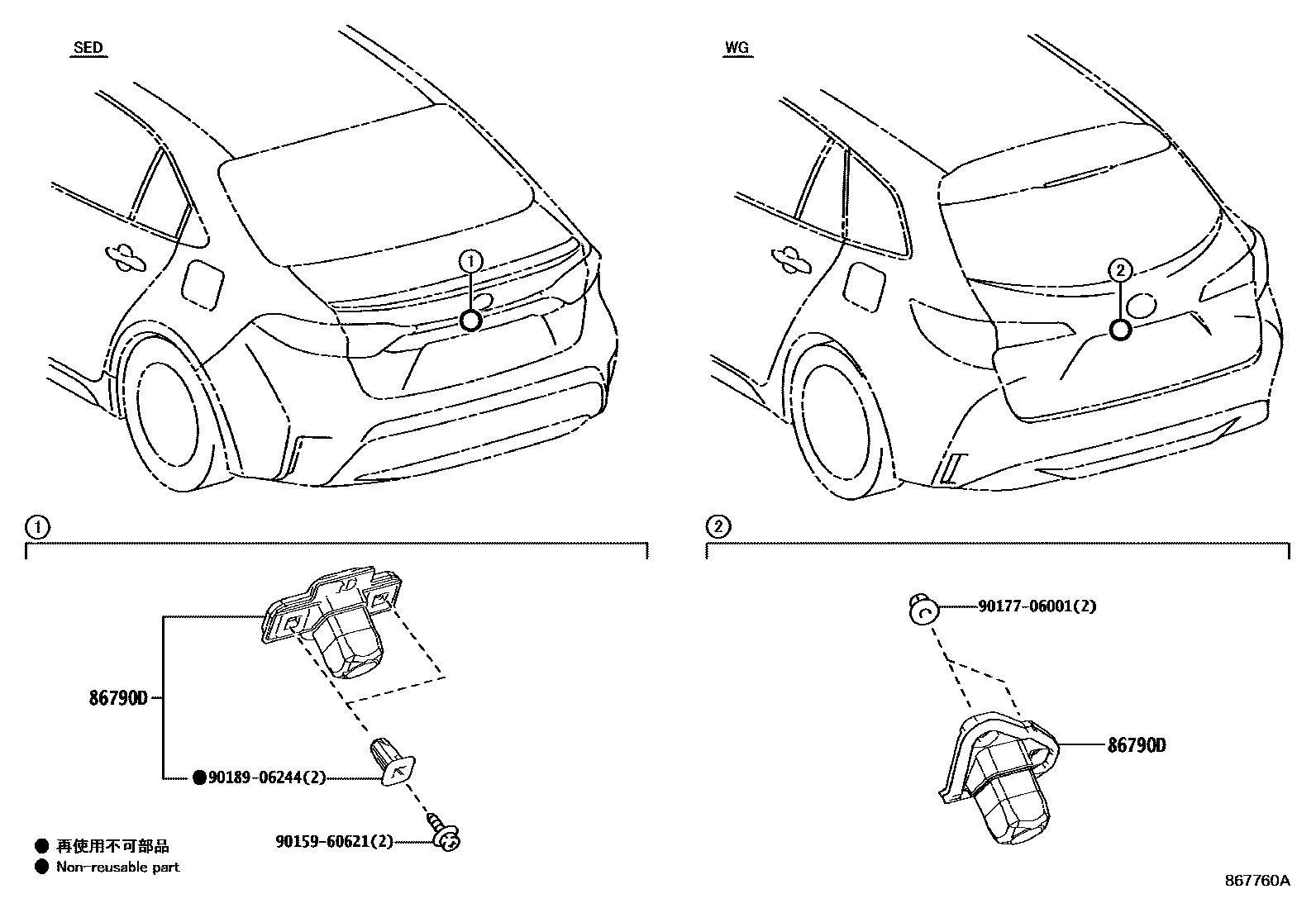

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790D | Rear reversing image camera assembly | 86790-12320 · 86790-12350 · 867B0-12030 · 867B0-12040 · 867B0-12080 · 867B0-12090 |
