Toyota COROLLA 扬声器 — Figure 8602

Toyota COROLLA EPC diagram 8602, 扬声器, with 4 images and 4 PNC and OE references.

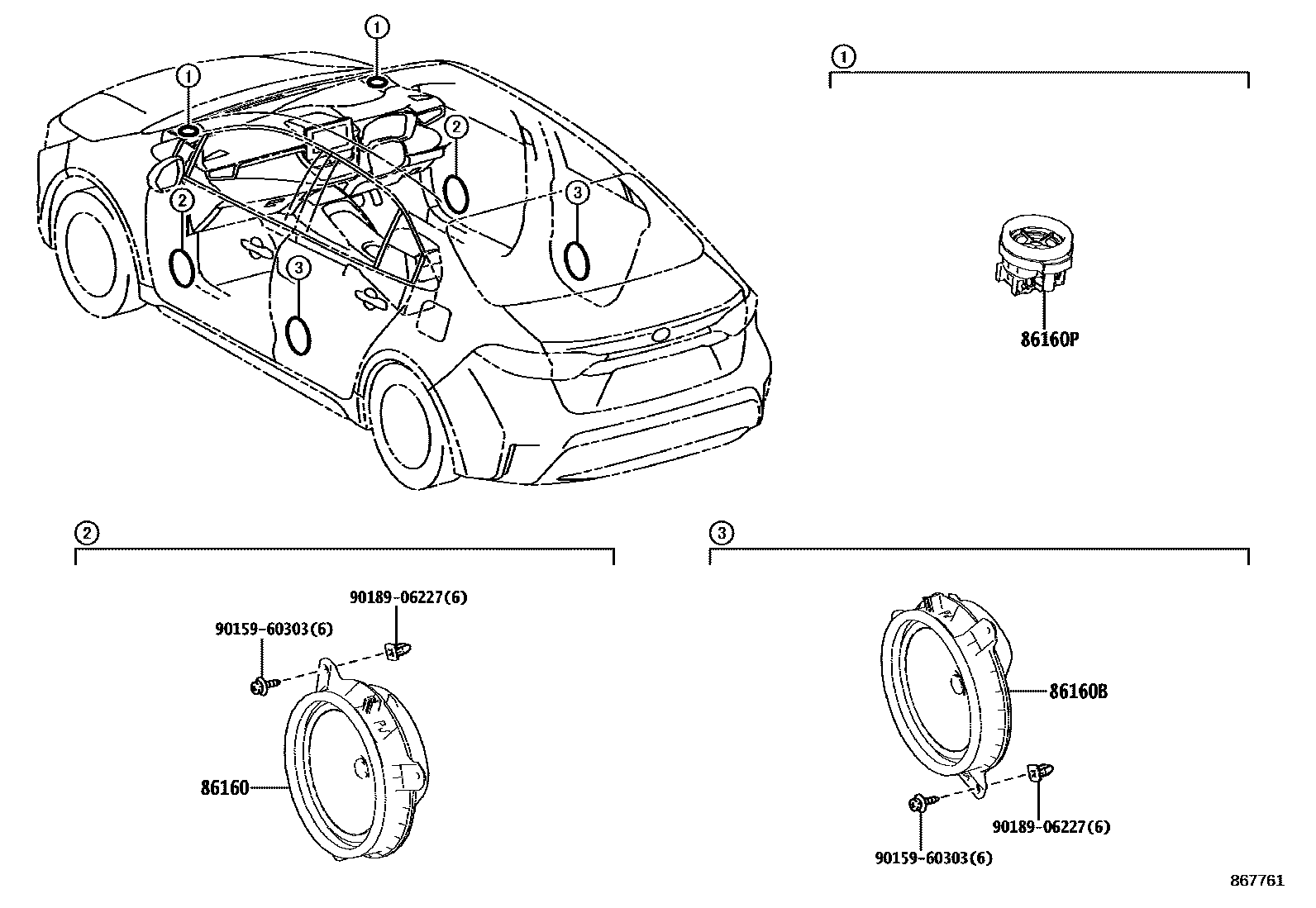

Toyota COROLLA 扬声器 EPC diagram — 867761
扬声器 — 867761 (201908 – 202107)

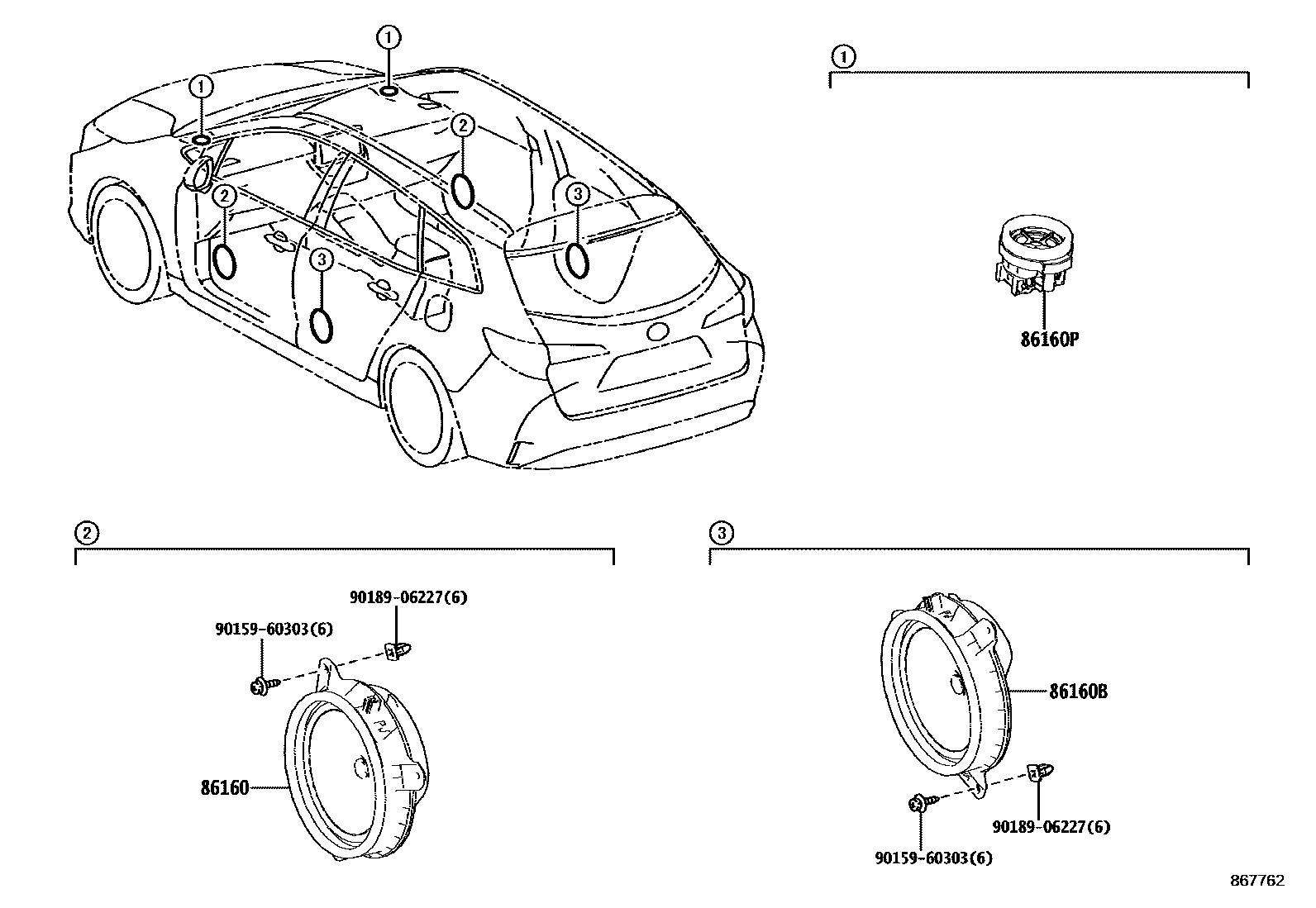

Toyota COROLLA 扬声器 EPC diagram — 867762
扬声器 — 867762 (201909 – 202107)

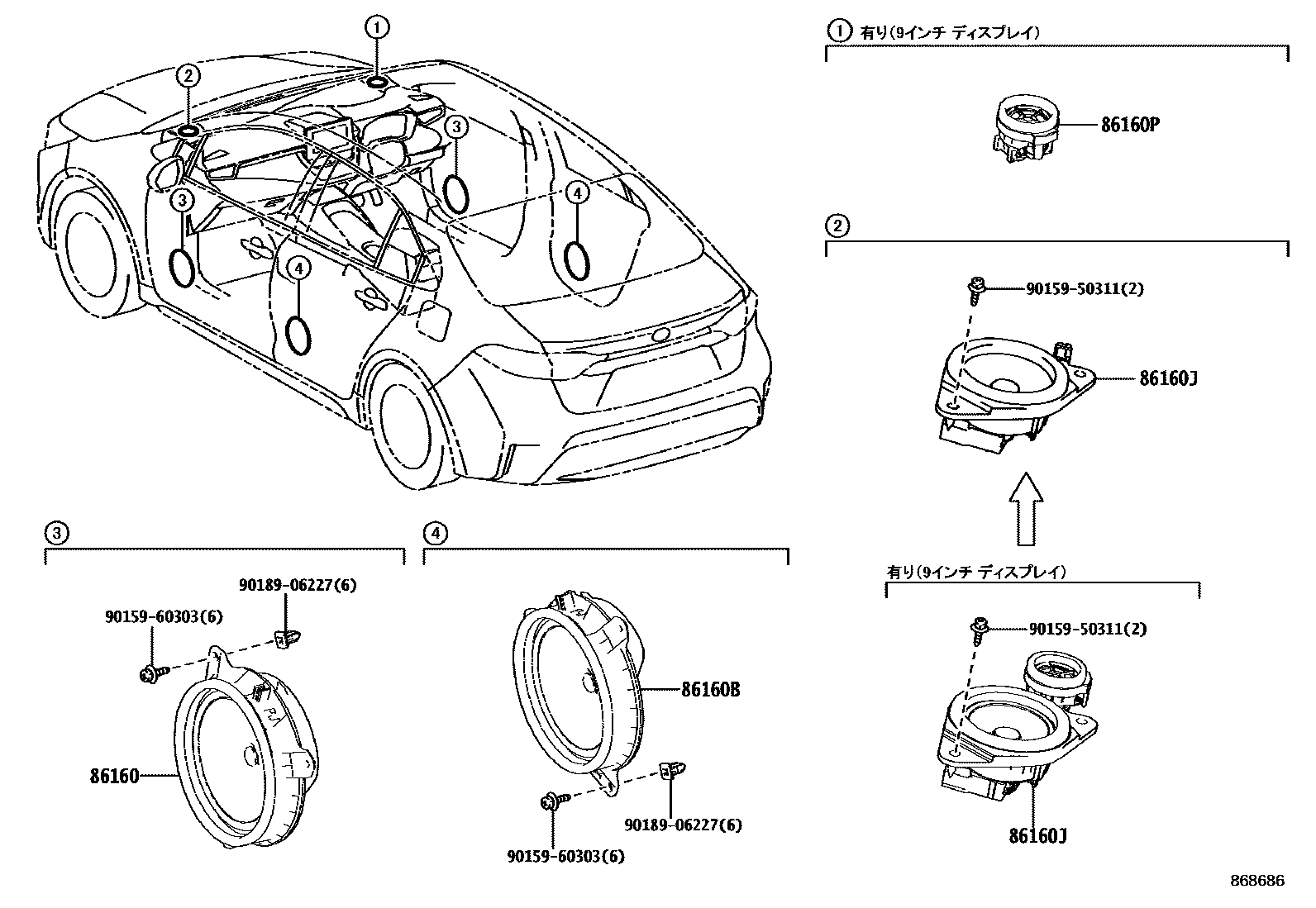

Toyota COROLLA 扬声器 EPC diagram — 868686
扬声器 — 868686 (202107 – 999999)

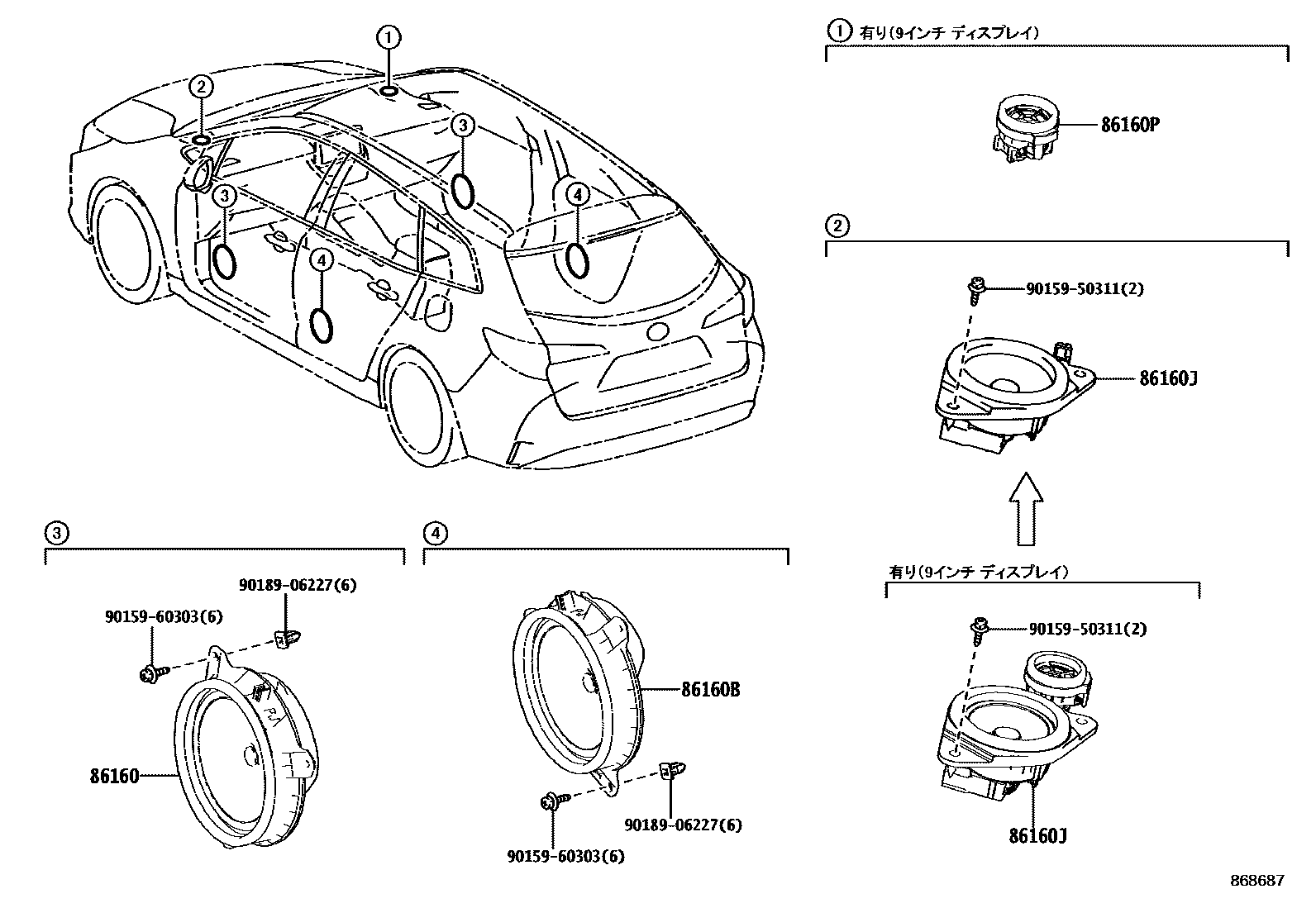

Toyota COROLLA 扬声器 EPC diagram — 868687
扬声器 — 868687 (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
86160No. 1 front speaker assembly86160-1A210
86160BRear speaker assembly86160-1A210
86160JNo. 3 front speaker assembly86150-12270 · 86150-12280
86160PNo. 2 front speaker assembly86160-52340
