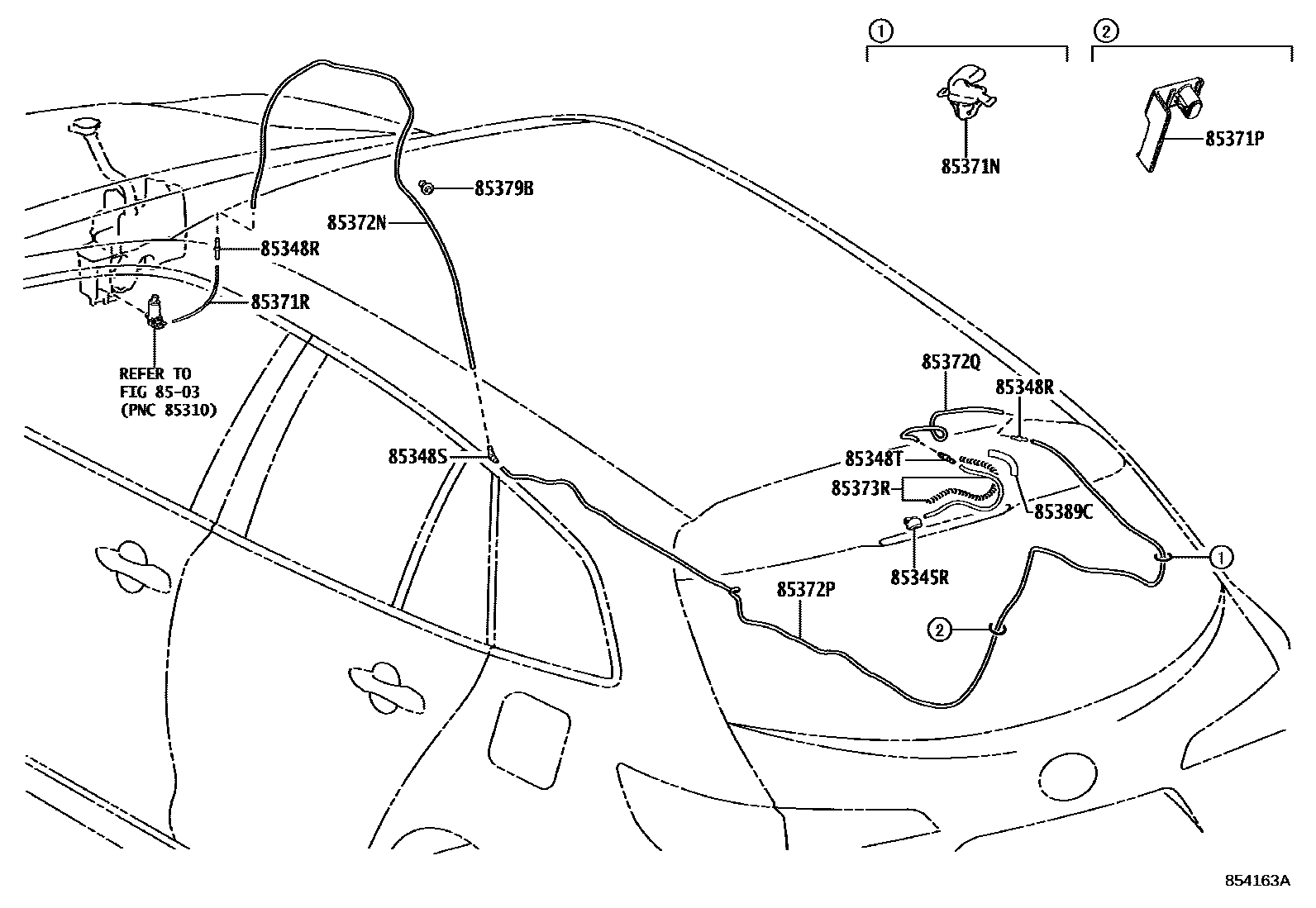

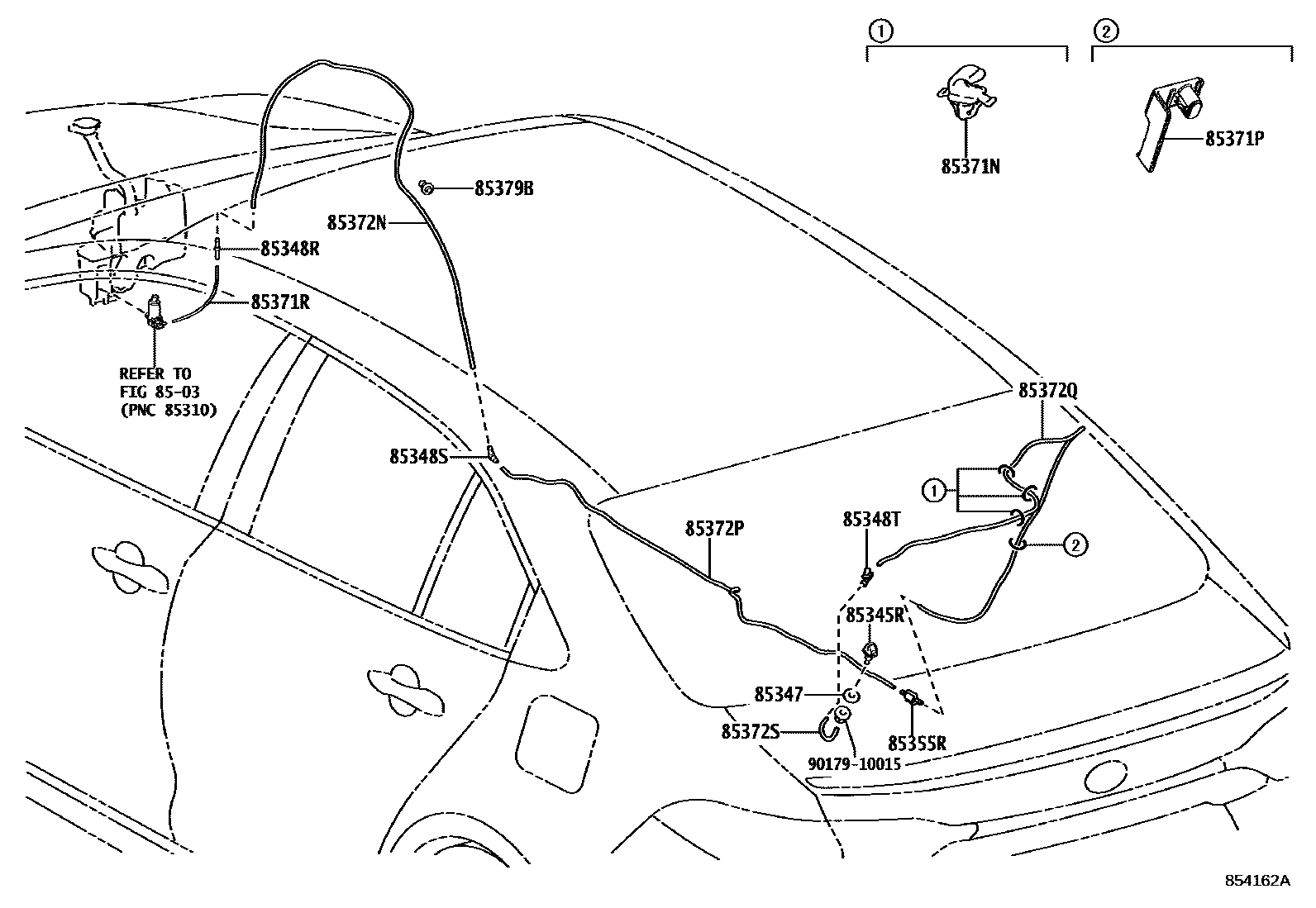

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-12110 · 85391-12120 |
| 85347 | Rear washer seal | 85347-12010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 · 85375-20800 |
| 85355R | Rear washer hose valve | 85321-26020 |
| 85371N | Rear washer hose clamp | 85371-12040 |
| 85371P | Toyota part | 85371-12050 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90099-62199 |
| 85379B | Cleaner seal A | 85379-12850 |
| 85389C | Cleaner protection device | 85389-72030 |
