Toyota COROLLA 后刮水器 — Figure 8502

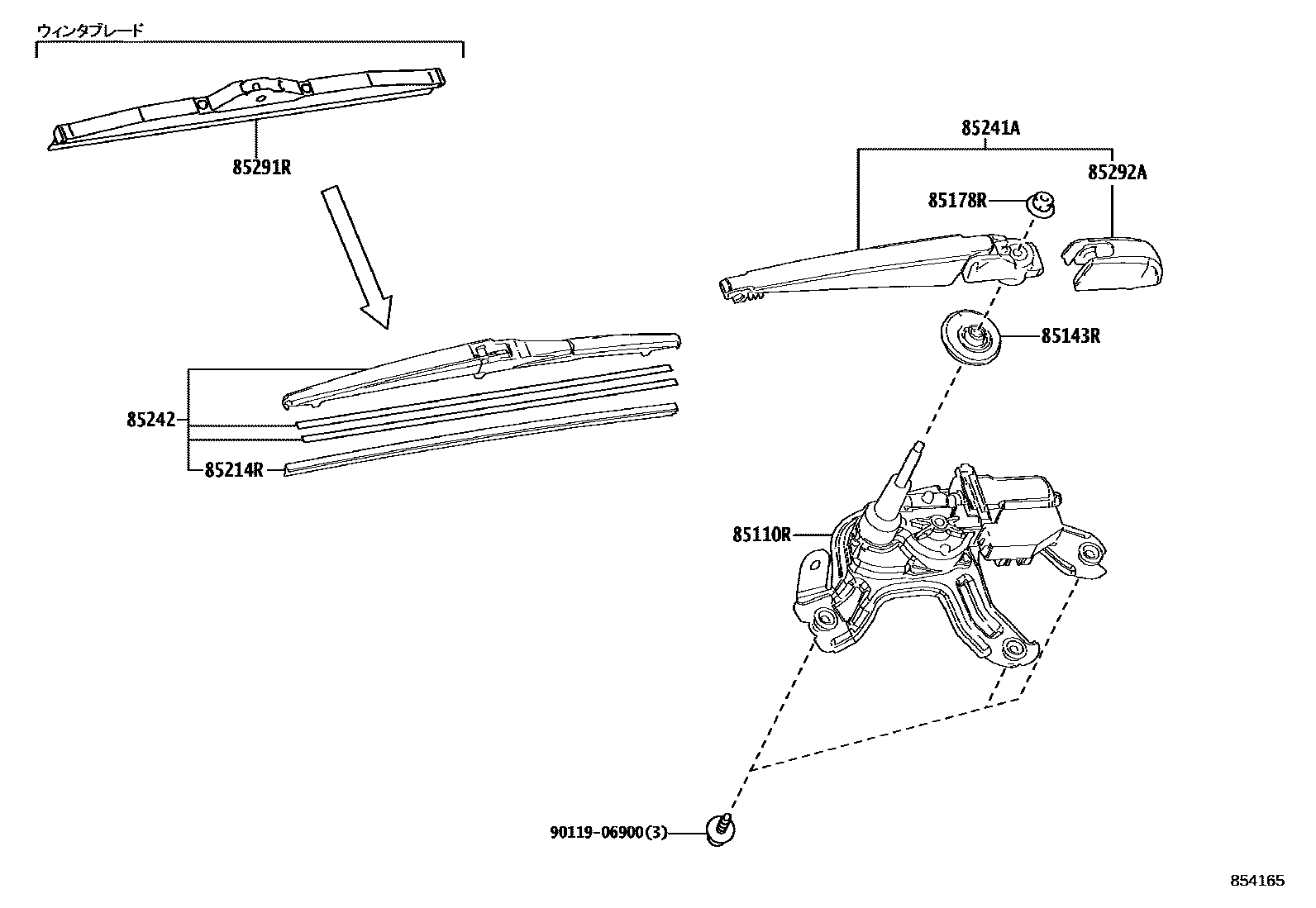

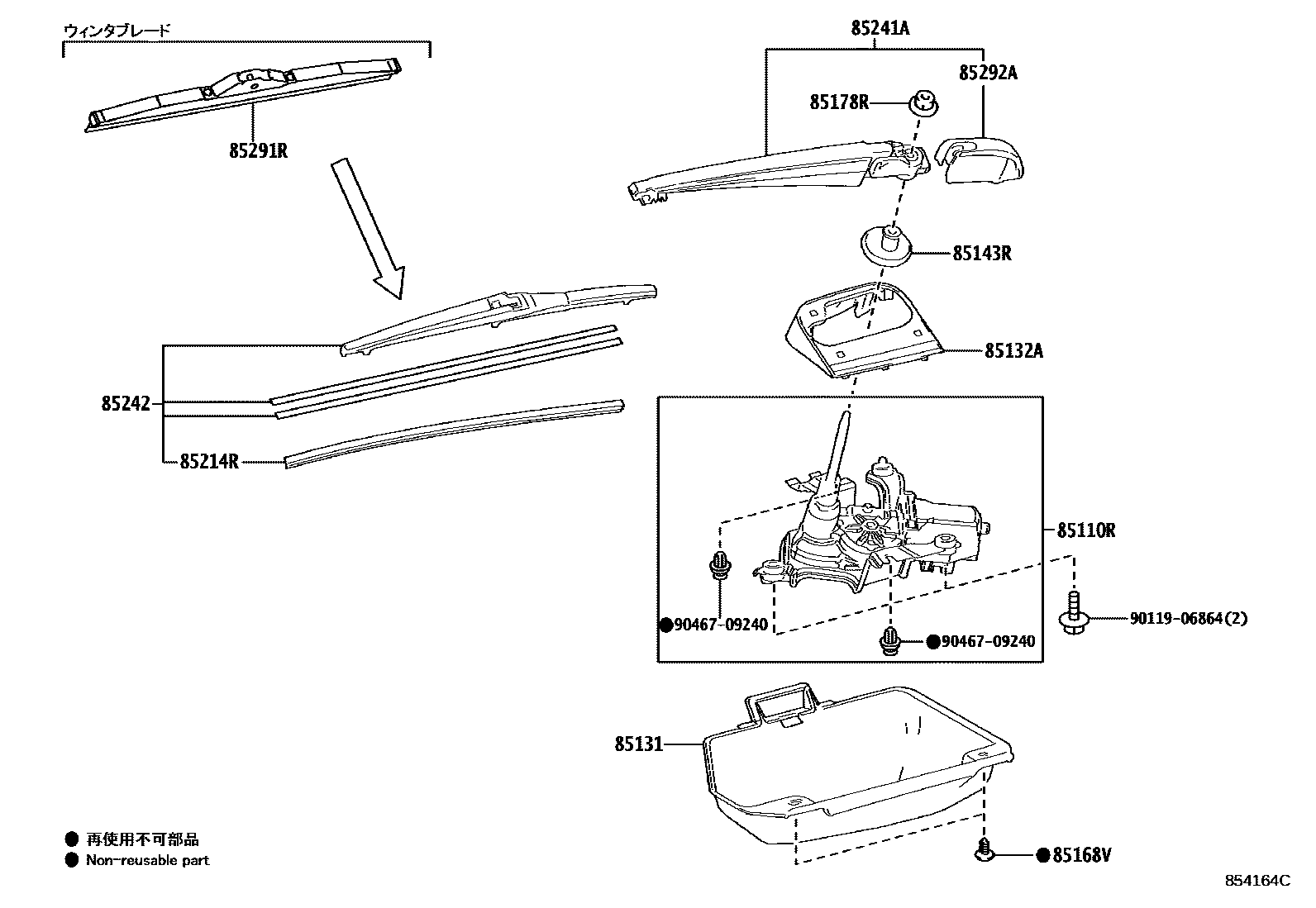

Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-12A50 · 85130-12A60 |
| 85131 | Rear wiper motor cover | 85131-12820 |
| 85143R | Rear wiper motor seal | 85143-28070 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85214R | Rear wiper rubber strip | 85214-42040 |
| 85241A | rear wiper arm | 85241-12220 · 85241-42060 |
| 85242 | Rear wiper blade | 85242-12190 · 85242-78010 |
| 85291R | Rear wiper blade for winter | 85291-13060 |
| 85292A | Rear wiper arm cap | 85292-42010 |
