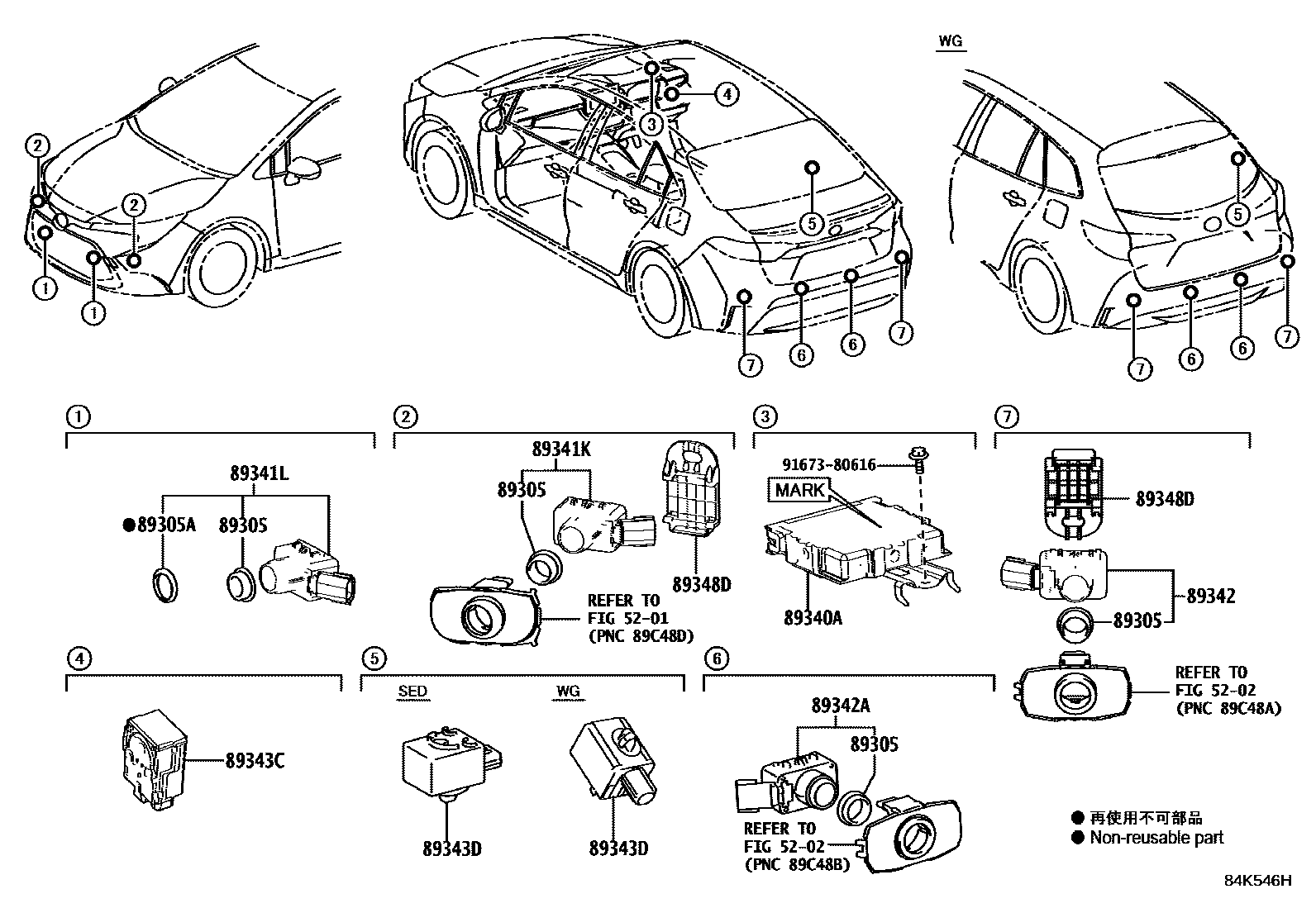

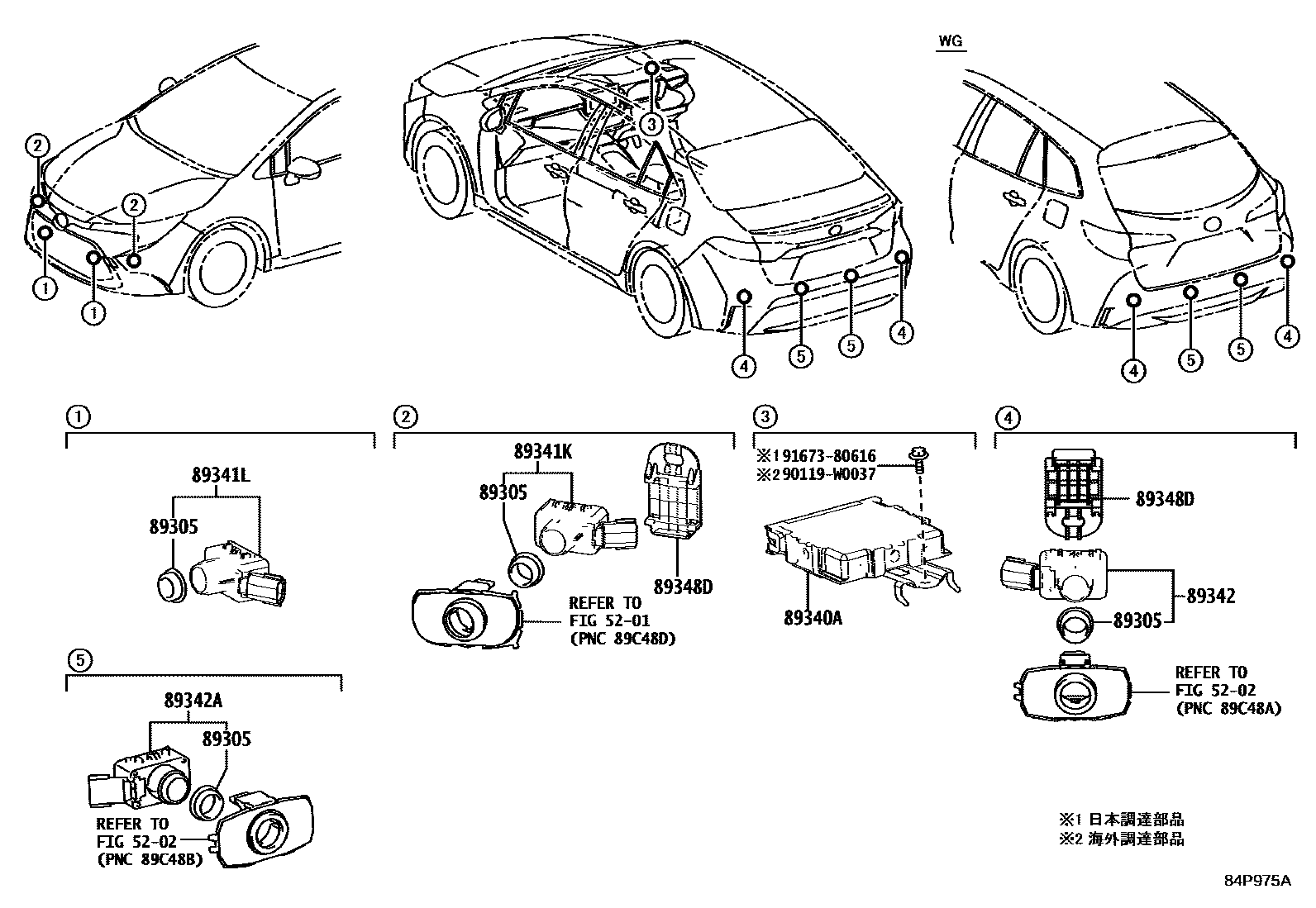

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Toyota part | 89305-47010 · 89305-52010 |
| 89305A | Toyota part | 89305-12030 |
| 89340A | Distance warning ECU assembly | 89340-12320 · 89340-12321 · 89340-12322 · 89340-12340 · 89340-12410 · 89340-12411 · 89340-12590 · 89340-12600 · 89340-12780 · 89340-12790 · 89340-12870 · 89340-12880 · 89340-12890 · 89340-12A00 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-30040 |
| 89348D | Ultrasonic sensor clip | 89348-58130 |
