Toyota COROLLA 后组合灯 — Figure 8111

Toyota COROLLA EPC diagram 8111, 后组合灯, with 3 images and 25 PNC and OE references.

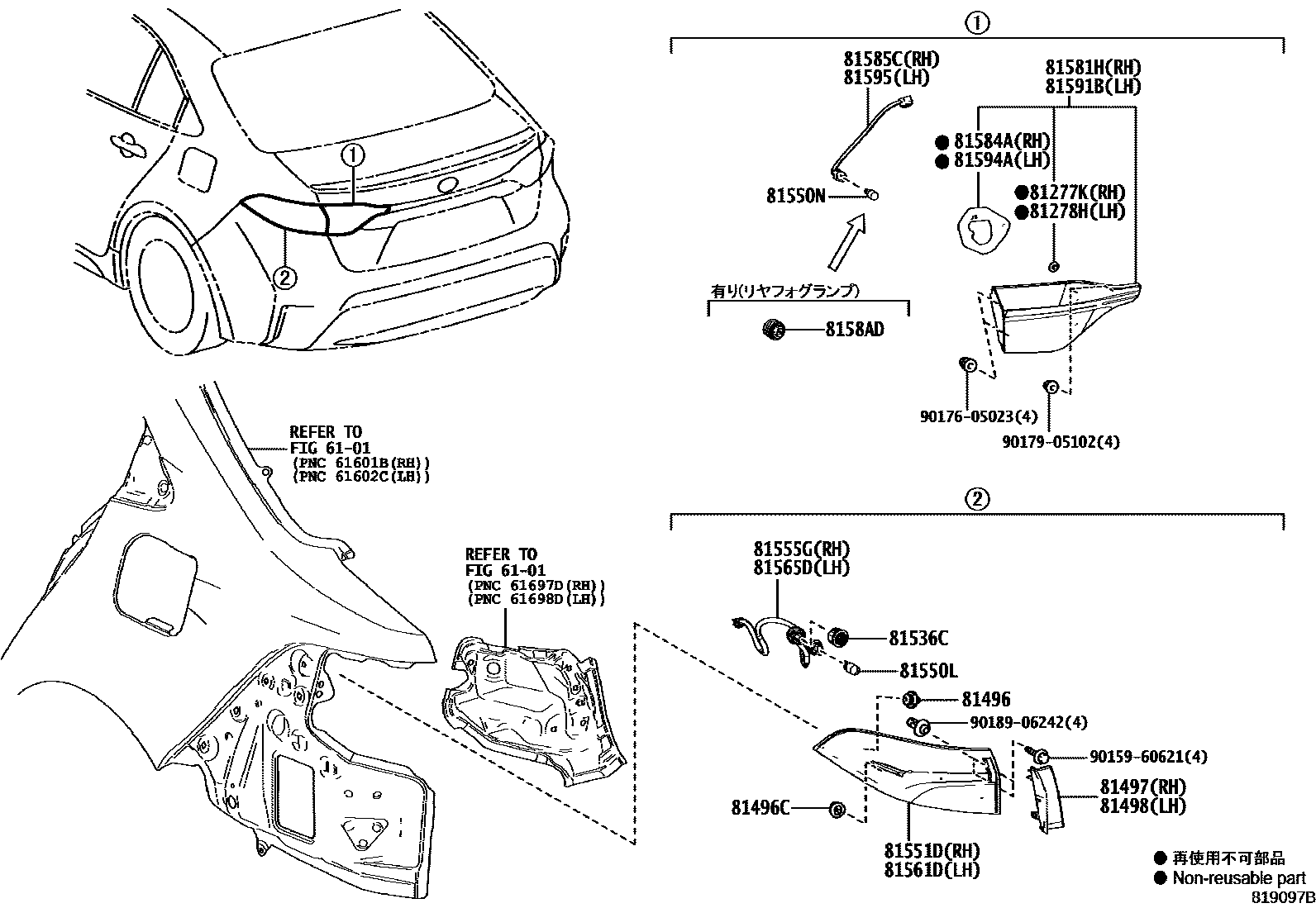

Toyota COROLLA 后组合灯 EPC diagram — 819097B
后组合灯 — 819097B (201908 – 999999)

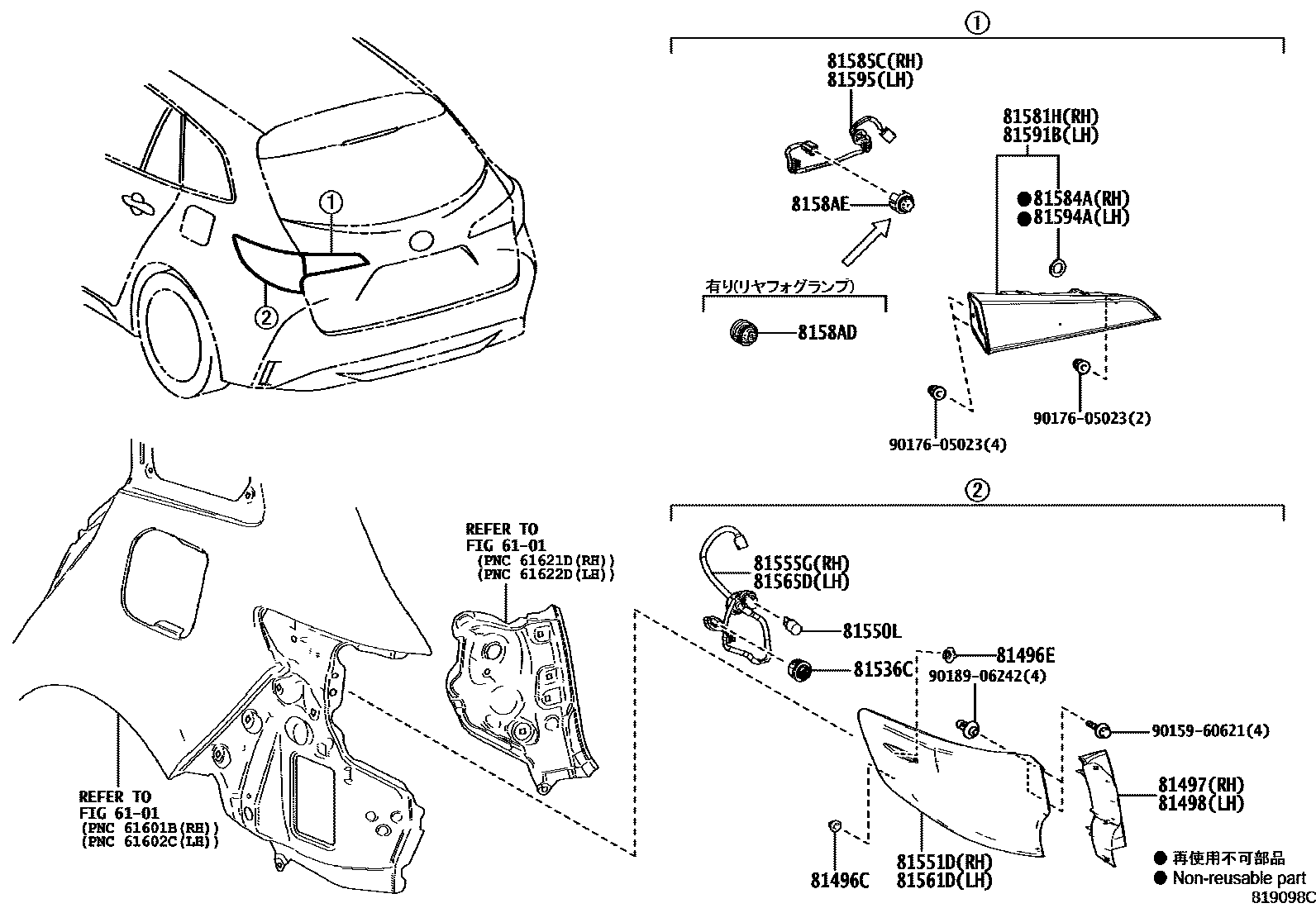

Toyota COROLLA 后组合灯 EPC diagram — 819098C
后组合灯 — 819098C (201909 – 999999)

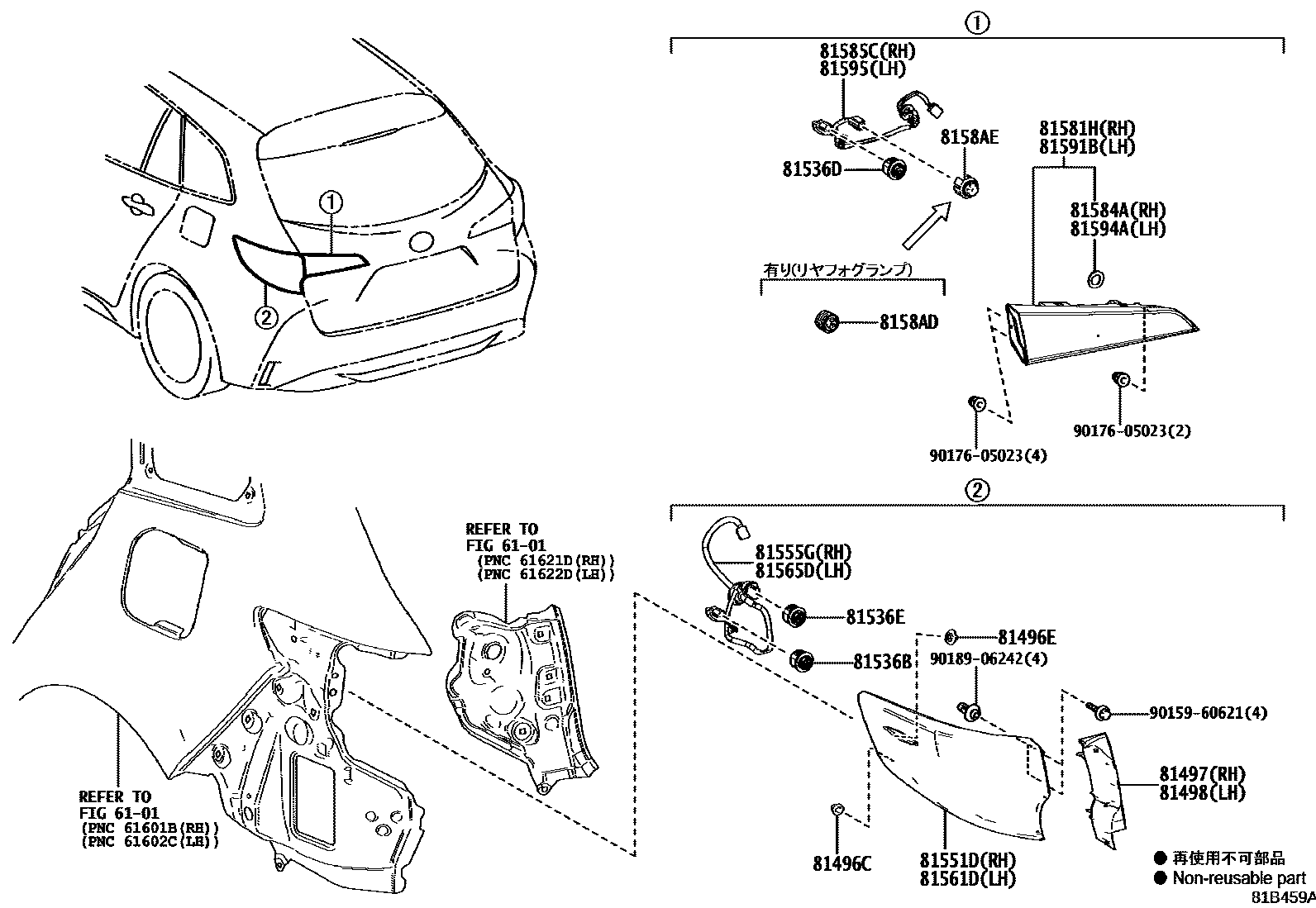

Toyota COROLLA 后组合灯 EPC diagram — 81B459A
后组合灯 — 81B459A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
81277KRight license plate light shade81277-20240
81278HLeft license plate light shade81277-20240
81496Rear combination light guide block81496-60010
81496CNo. 2 rear combination light guide block81496-52020
81496EToyota part81496-12070
81497Right rear combination lamp cover81497-12040 · 81497-12050
81498Left rear combination lamp cover81498-12040 · 81498-12050
81536BToyota part81536-12D30 · 81965-48030
81536CToyota part81536-15120 · 81965-70010
81536DToyota part8158A-0D610
81536EToyota part81965-70010
81550LRear turn signal light bulb90981-15021
81550Nreversing light bulb90981-11059
81551DRight rear combination lamp shade and lamp body81551-12D90 · 81551-12E00 · 81551-12E01 · 81551-12E20
81555GToyota part81555-12D90 · 81555-12E00 · 81555-12E20
81561DLeft rear combination lamp lampshade and lamp body81561-12D70 · 81561-12D90 · 81561-12E00 · 81561-12E01
81565DToyota part81565-12D70 · 81565-12D90 · 81565-12E00
81581HToyota part81581-12340 · 81581-12341 · 81581-12350 · 81581-12351 · 81581-12380 · 81581-12390 · 81581-12460 · 81581-12470
81584ARight rear light gasket81584-12340 · 81584-12380
81585CRight rear light lamp holder and wiring harness81585-12340 · 81585-12350 · 81585-12380 · 81585-12390 · 81585-12460 · 81585-12470
8158ADToyota part8158A-0D610
8158AEToyota part8158A-12260
81591BLeft rear light shade and body81591-12340 · 81591-12341 · 81591-12380 · 81591-12460
81594ALeft rear light gasket81584-12340 · 81584-12380
81595Left rear light lamp holder and wiring harness81585-12340 · 81595-12380 · 81595-12460
