Toyota COROLLA 挡泥板和扰流板 — Figure 7601

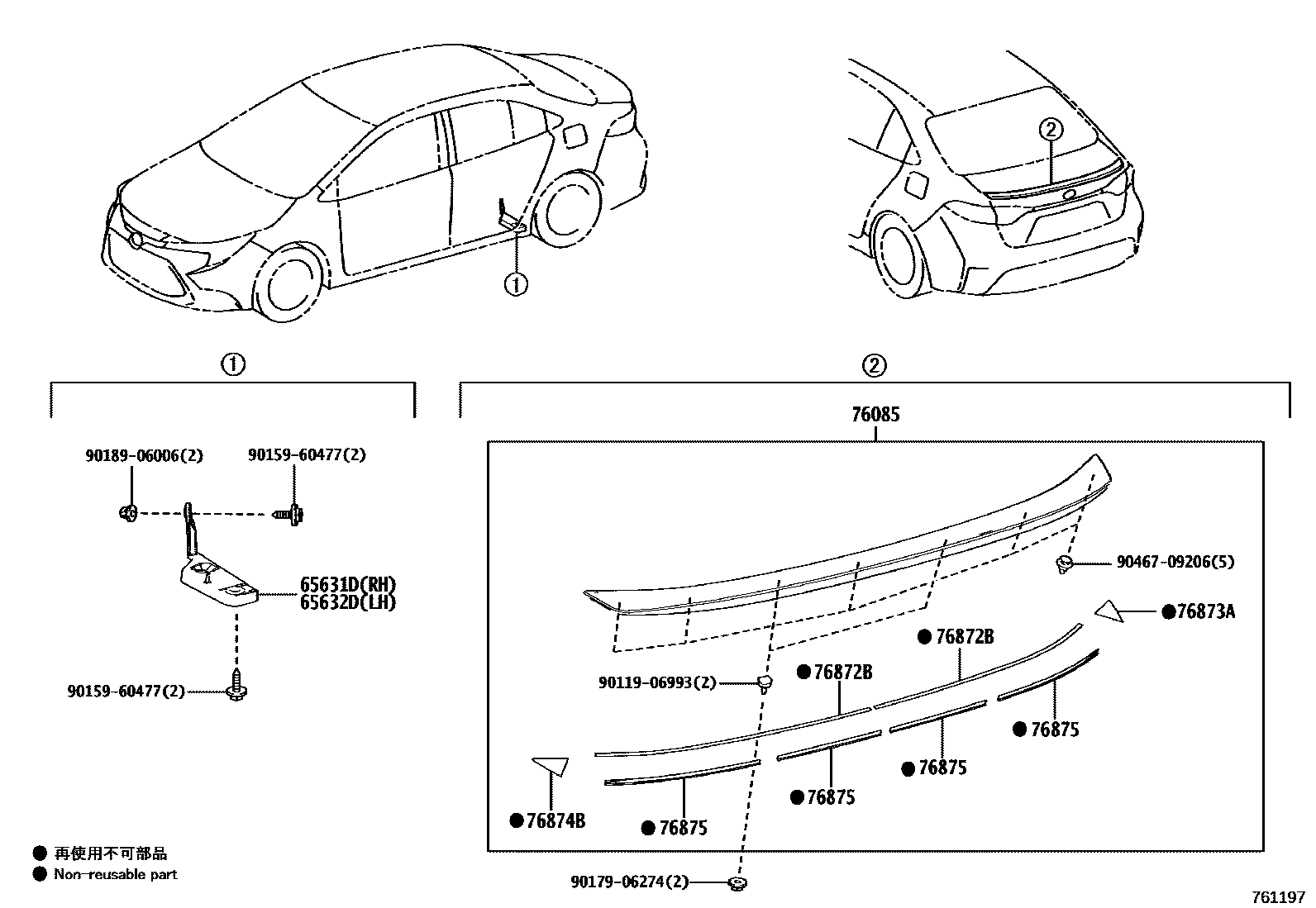

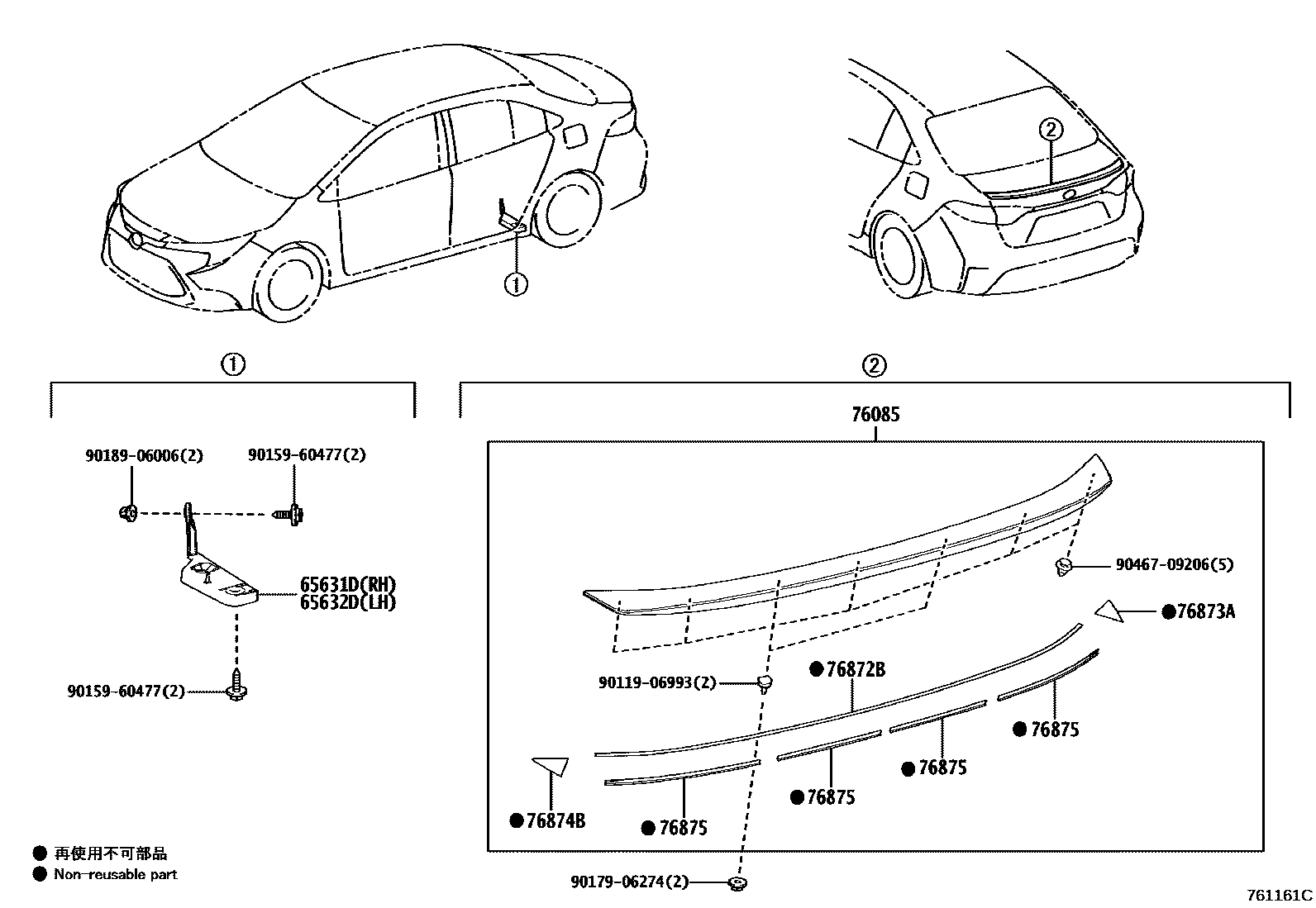

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12140 |
| 65632D | Left rear wheel house front panel | 65632-12140 |
| 76085 | Rear spoiler sub-assembly | 76085-12640 |
| 76872B | Rear center spoiler protective strip | 76872-12280 |
| 76873A | Right rear spoiler protective strip | 76873-12260 |
| 76874B | Left rear spoiler protective strip | 76874-12260 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12170 |
