Toyota COROLLA 侧防护条 — Figure 7503

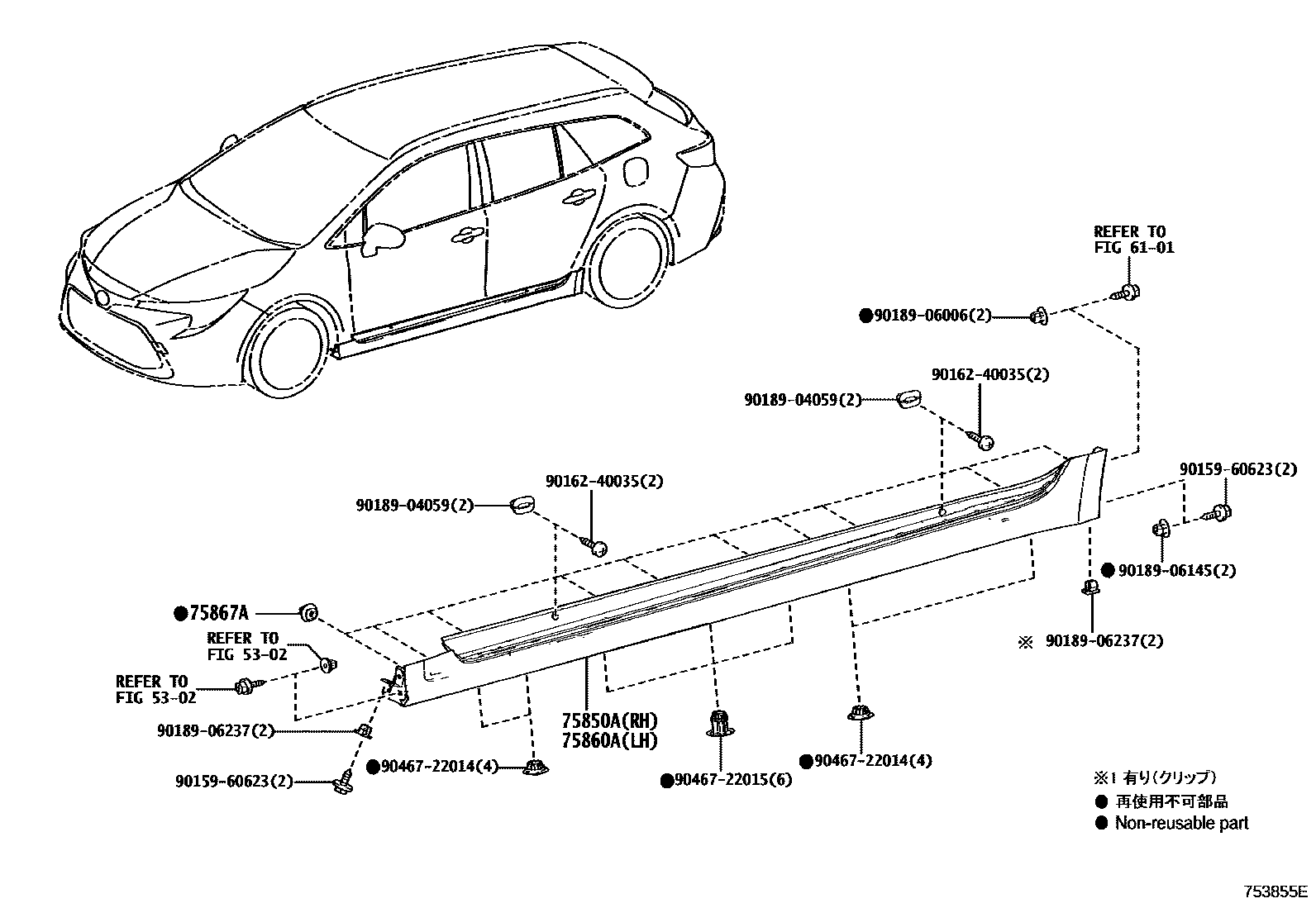

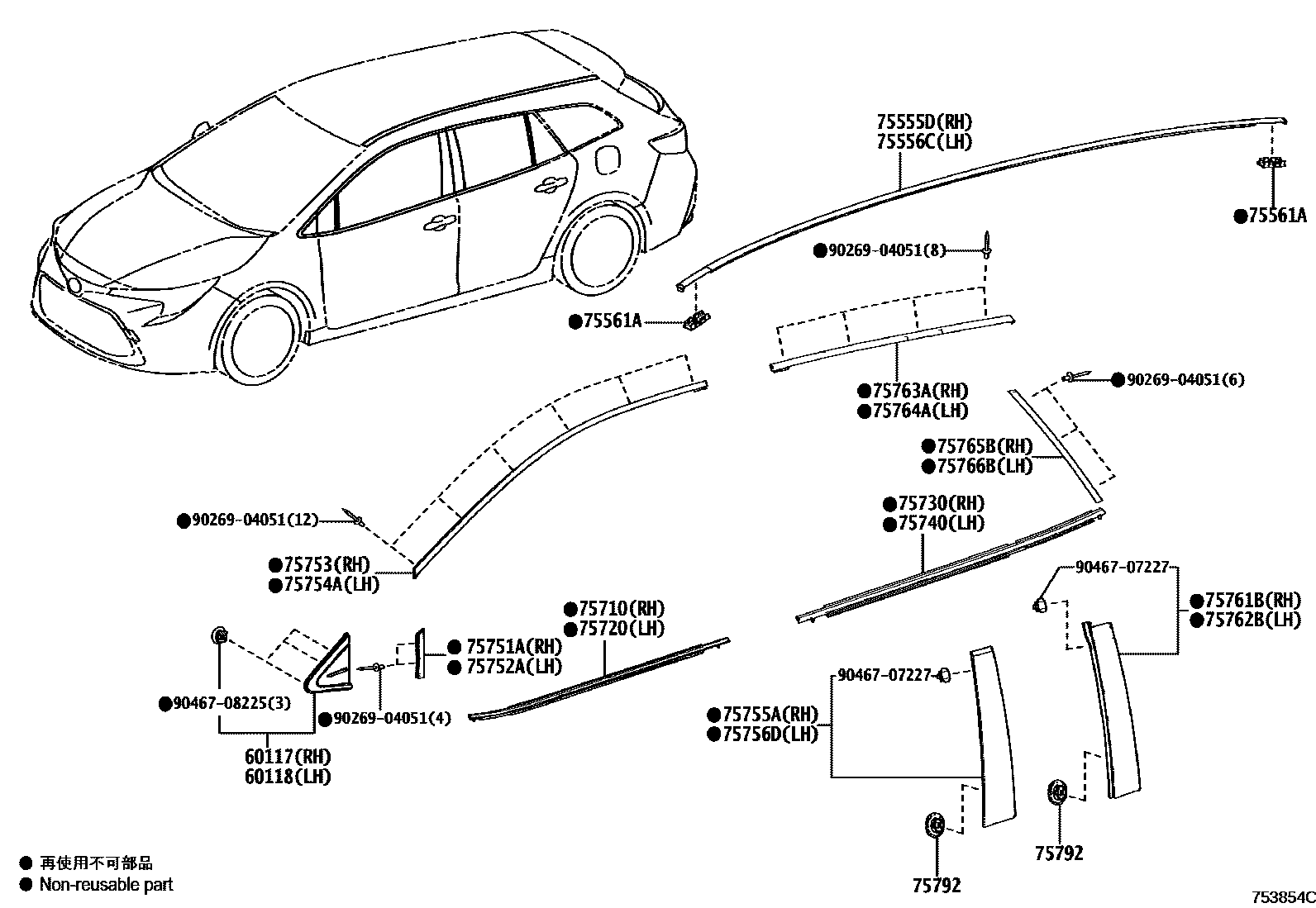

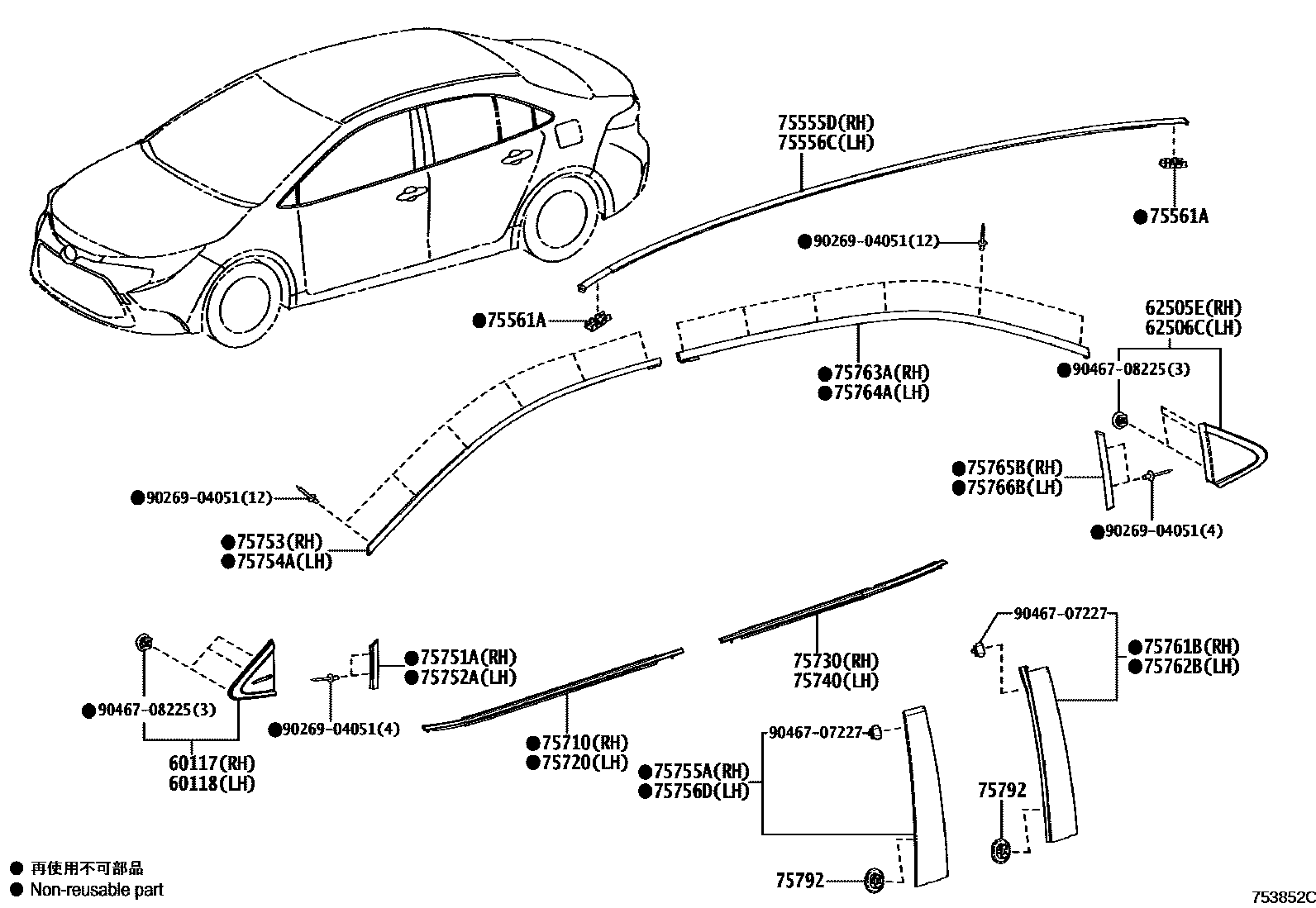

Toyota COROLLA EPC diagram 7503, 侧防护条, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-12070 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12070 |
| 62505E | Toyota part | 62505-12030 |
| 62506C | Toyota part | 62506-12030 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12220 · 75555-12230 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12230 · 75556-12240 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-12890 |
| 75720 | Left front door waistline protection strip assembly | 75720-12A30 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12470 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12560 |
| 75751A | Toyota part | 75751-12250 |
| 75752A | Toyota part | 75752-12250 |
| 75753 | Protective strip on right front door window frame | 75753-12100 |
| 75754A | Protective strip on left front door window frame | 75754-12080 |
| 75755A | Toyota part | 75755-12140 |
| 75756D | Toyota part | 75756-12160 |
| 75761B | Toyota part | 75761-12090 |
| 75762B | Toyota part | 75762-12090 |
| 75763A | Protective strip on right rear door window frame | 75763-12130 · 75763-12140 |
| 75764A | Protective strip on left rear door window frame | 75764-12140 · 75764-12150 |
| 75765B | Toyota part | 75765-12150 · 75765-12160 |
| 75766B | Toyota part | 75766-12150 · 75766-12160 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
