Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

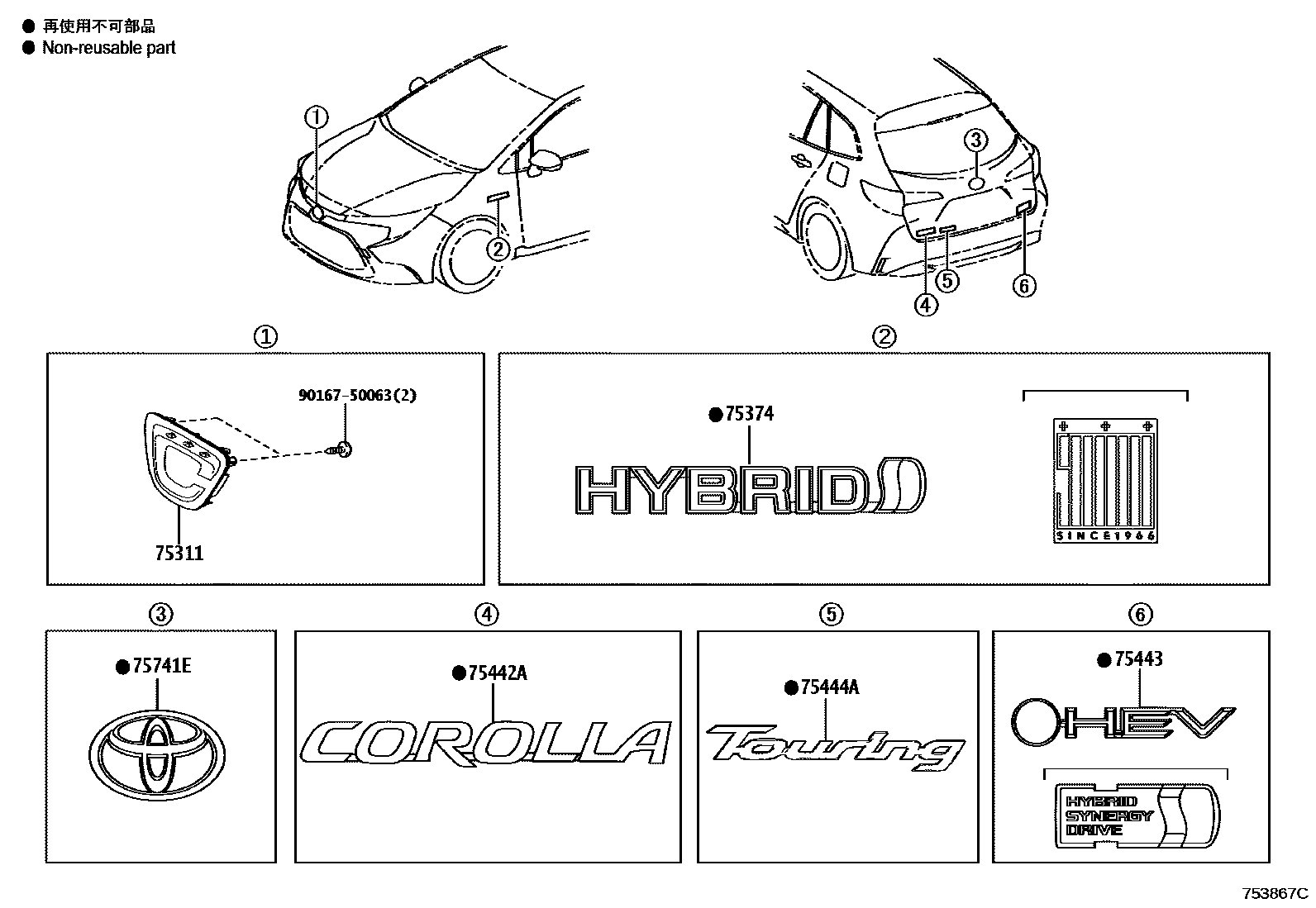

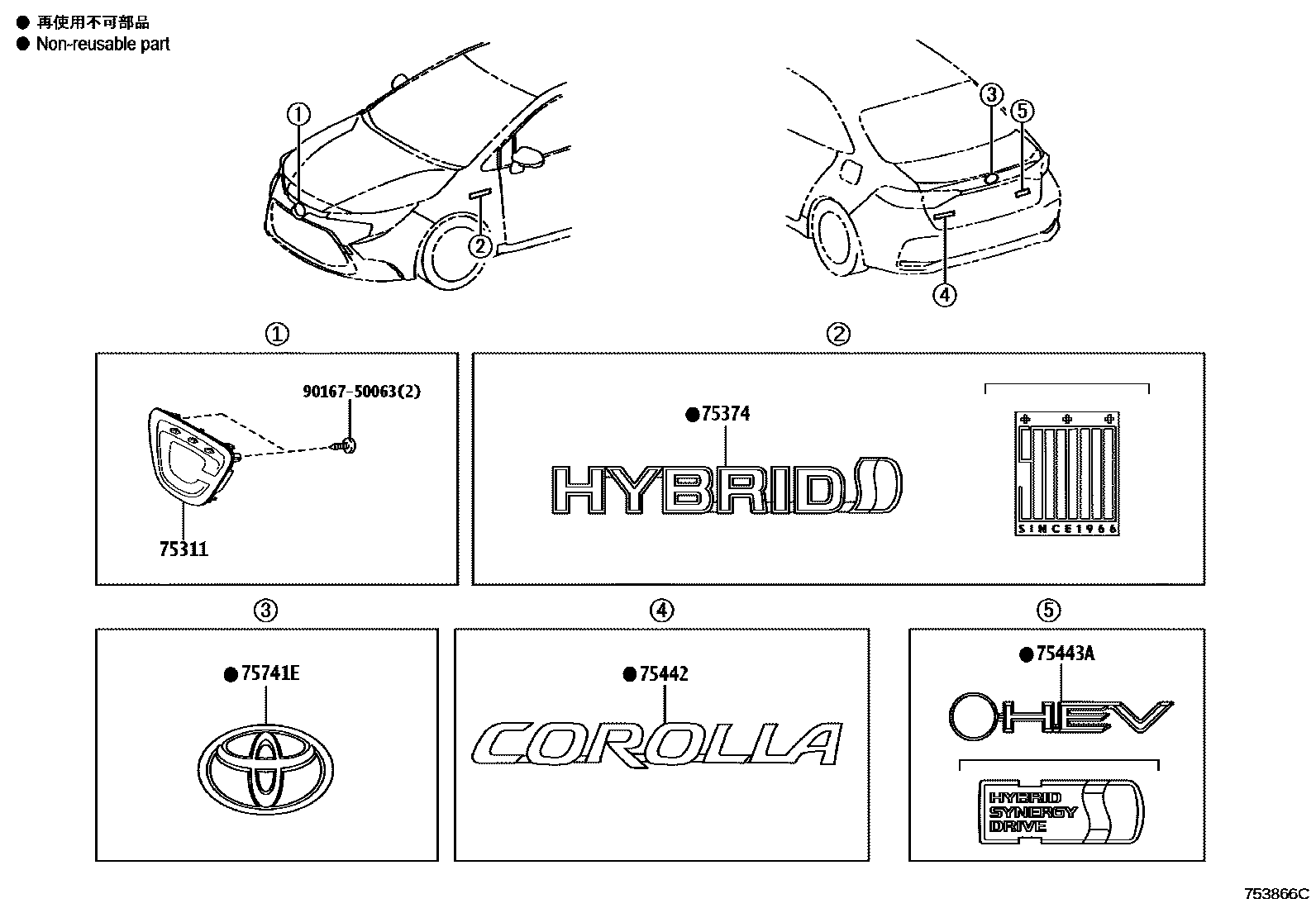

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-12320 · 53141-12330 |
| 75374 | side panel sign | 75374-12110 · 75374-12120 |
| 75442 | Trunk door number plate No. 2 | 75442-12C30 |
| 75442A | No. 2 nameplate on back door | 75442-12C40 |
| 75443 | No. 3 nameplate on back door | 75440-16010 · 75443-12B50 |
| 75443A | Trunk door No. 3 nameplate | 75440-12010 · 75443-12B40 |
| 75444A | No. 4 nameplate on back door | 75444-12E80 |
| 75741E | logo | 75403-12040 · 75403-12070 · 75403-28020 · 90975-02064 · 90975-02069 · 90975-02072 |
