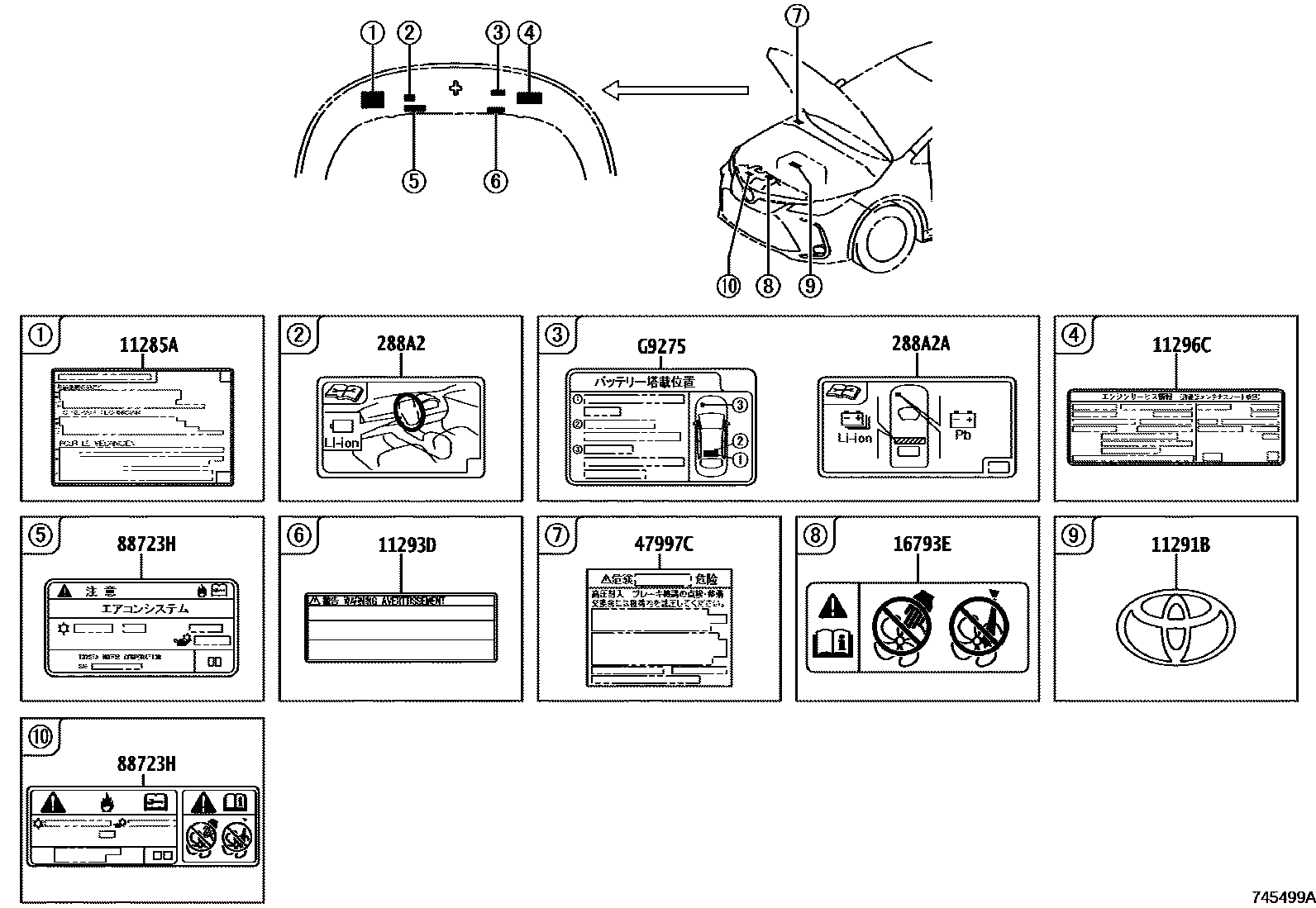

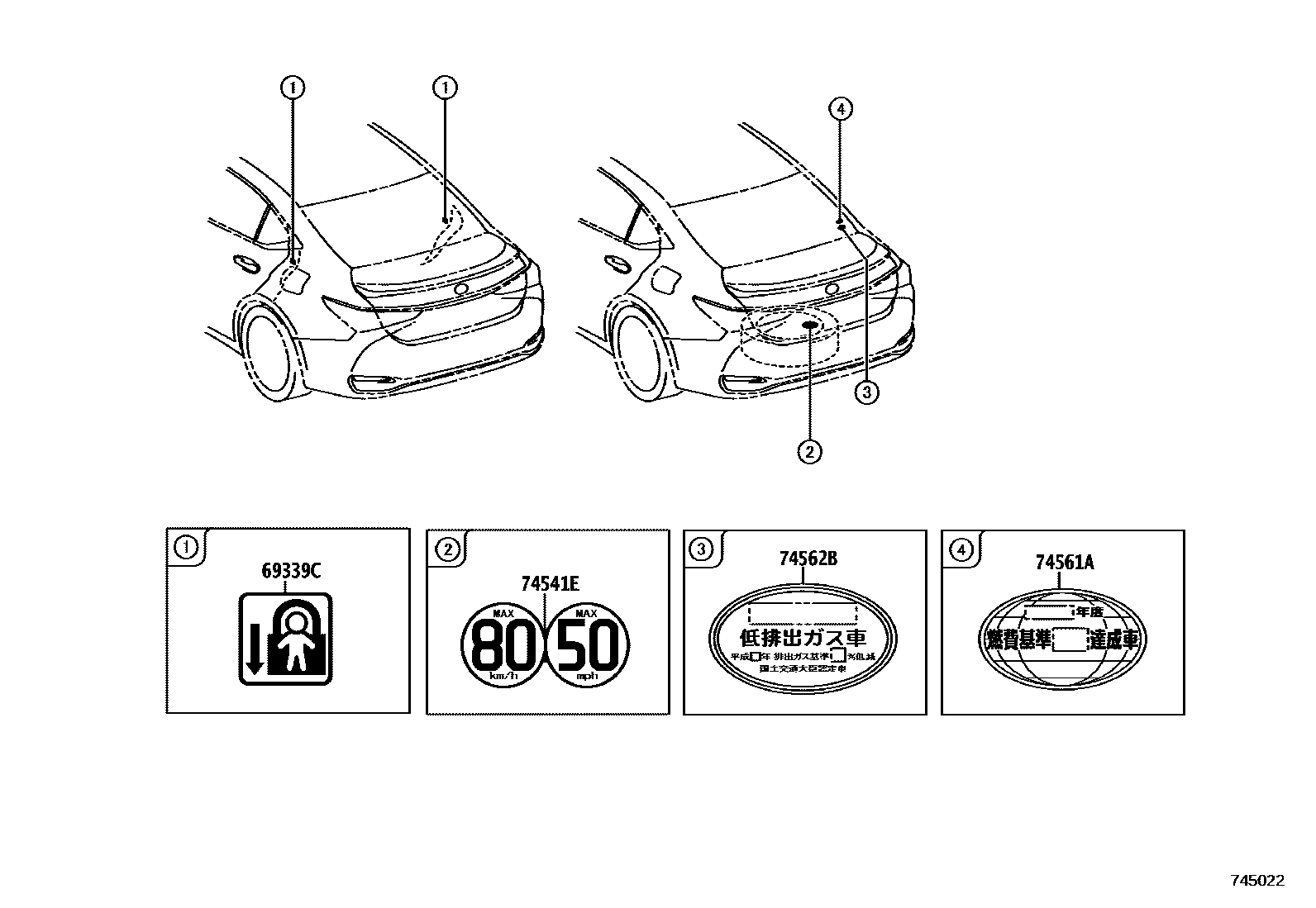

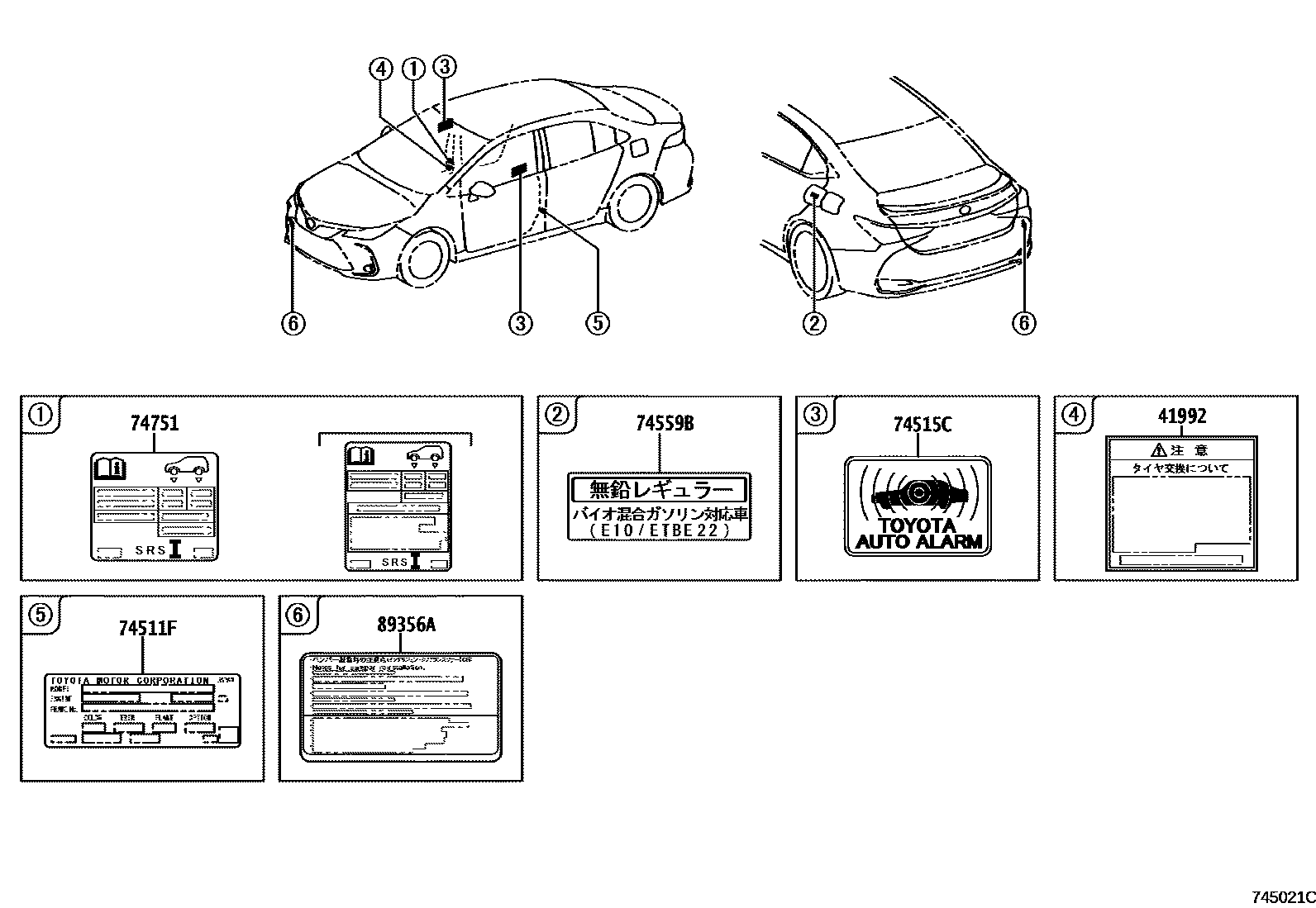

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-33040 · 11285-36040 |
| 11291B | Toyota part | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-37070 |
| 11296C | Engine maintenance information label | 11296-24020 · 11296-36080 · 11296-47080 |
| 16793E | Toyota part | 16793-36030 |
| 288A2 | Toyota part | 288A2-15050 |
| 288A2A | Toyota part | 288A2-37020 |
| 41992 | Differential attention label | 41992-33010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559B | fuel information label | 74559-48060 |
| 74561A | fuel consumption information label | 74561-47130 |
| 74562B | Emission information label | 74562-30700 |
| 74751 | tire pressure information label | 42661-12S50 · 42661-12S60 · 42661-12S70 · 42661-12S80 |
| 88723H | Cooler maintenance warning label | 88723-12310 · 88723-12320 · 88723-16120 · 88723-16130 |
| 89356A | Toyota part | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-47100 · G9275-47130 |
