Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 4 images and 3 PNC and OE references.

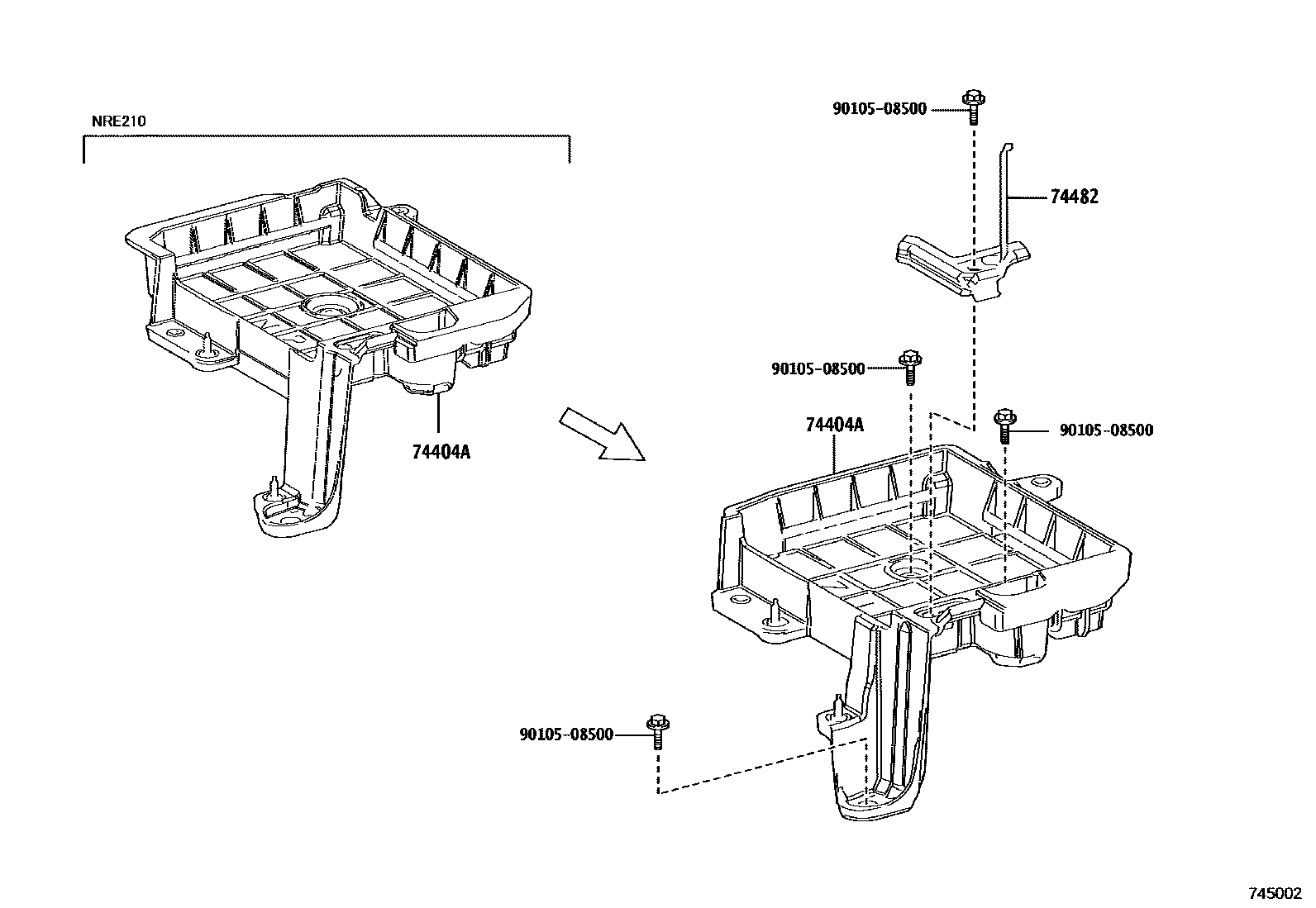

Toyota COROLLA battery holder EPC diagram — 745002
battery holder — 745002 (201908 – 999999)

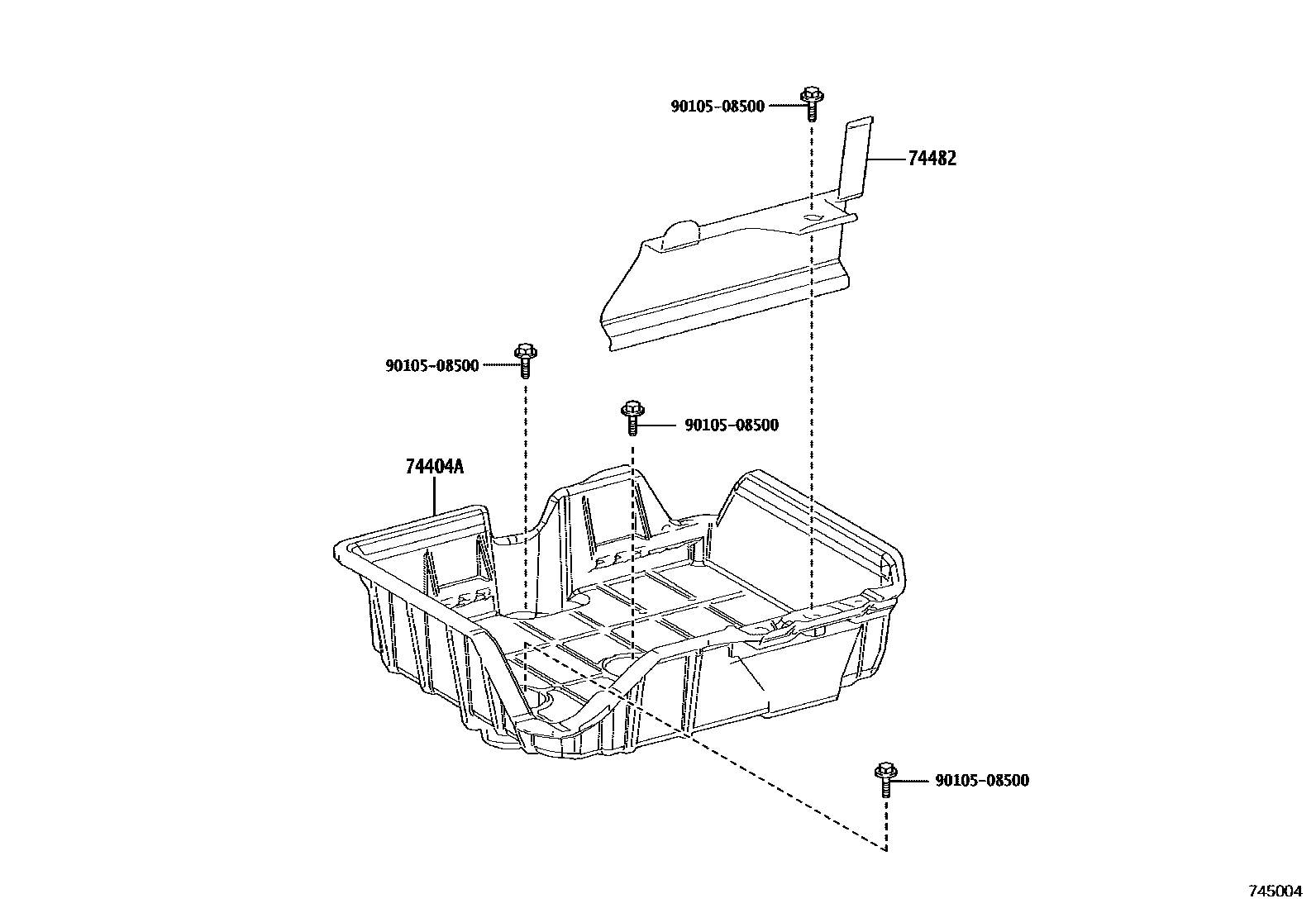

Toyota COROLLA battery holder EPC diagram — 745004
battery holder — 745004 (201908 – 999999)

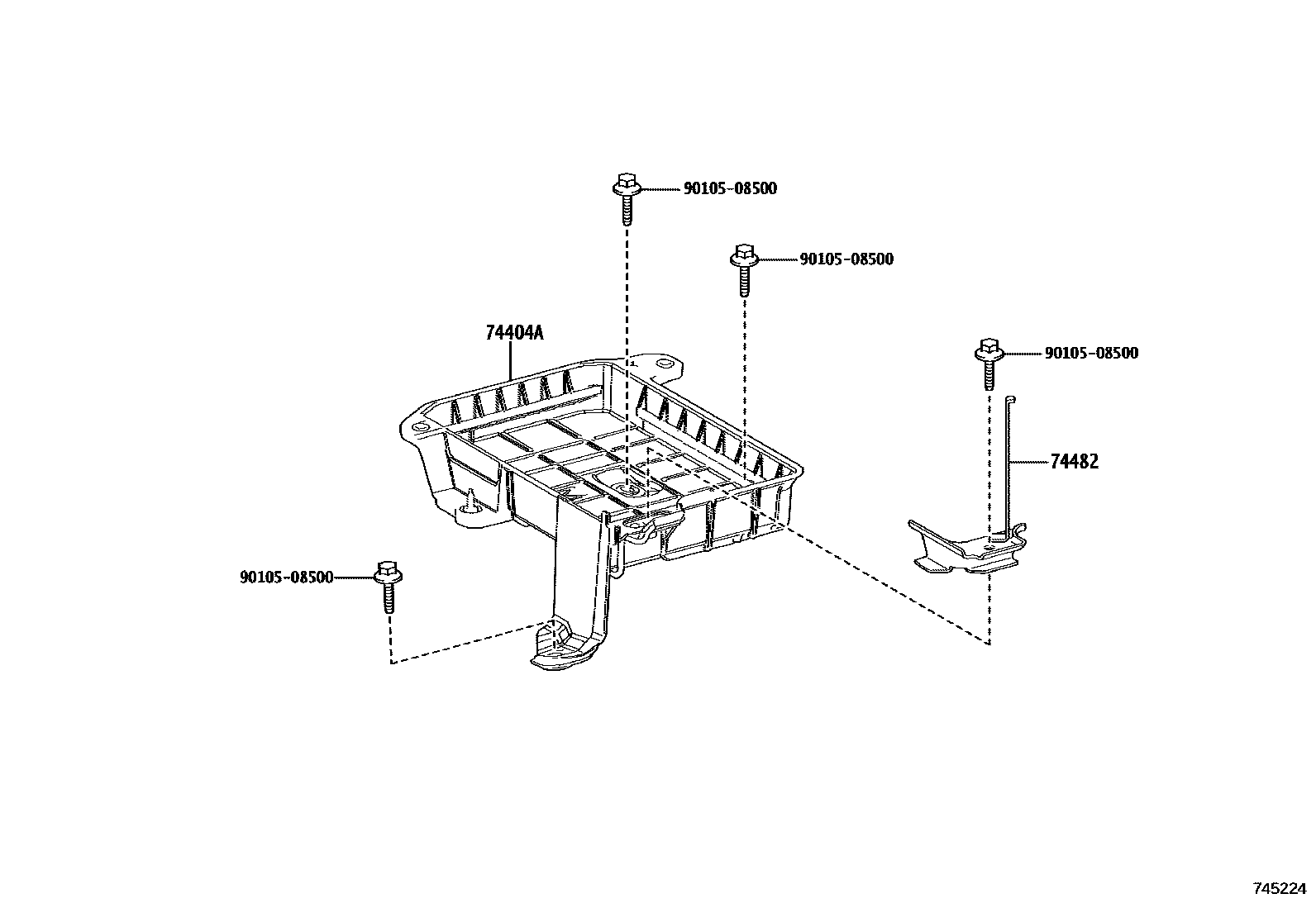

Toyota COROLLA battery holder EPC diagram — 745224
battery holder — 745224 (202005 – 999999)

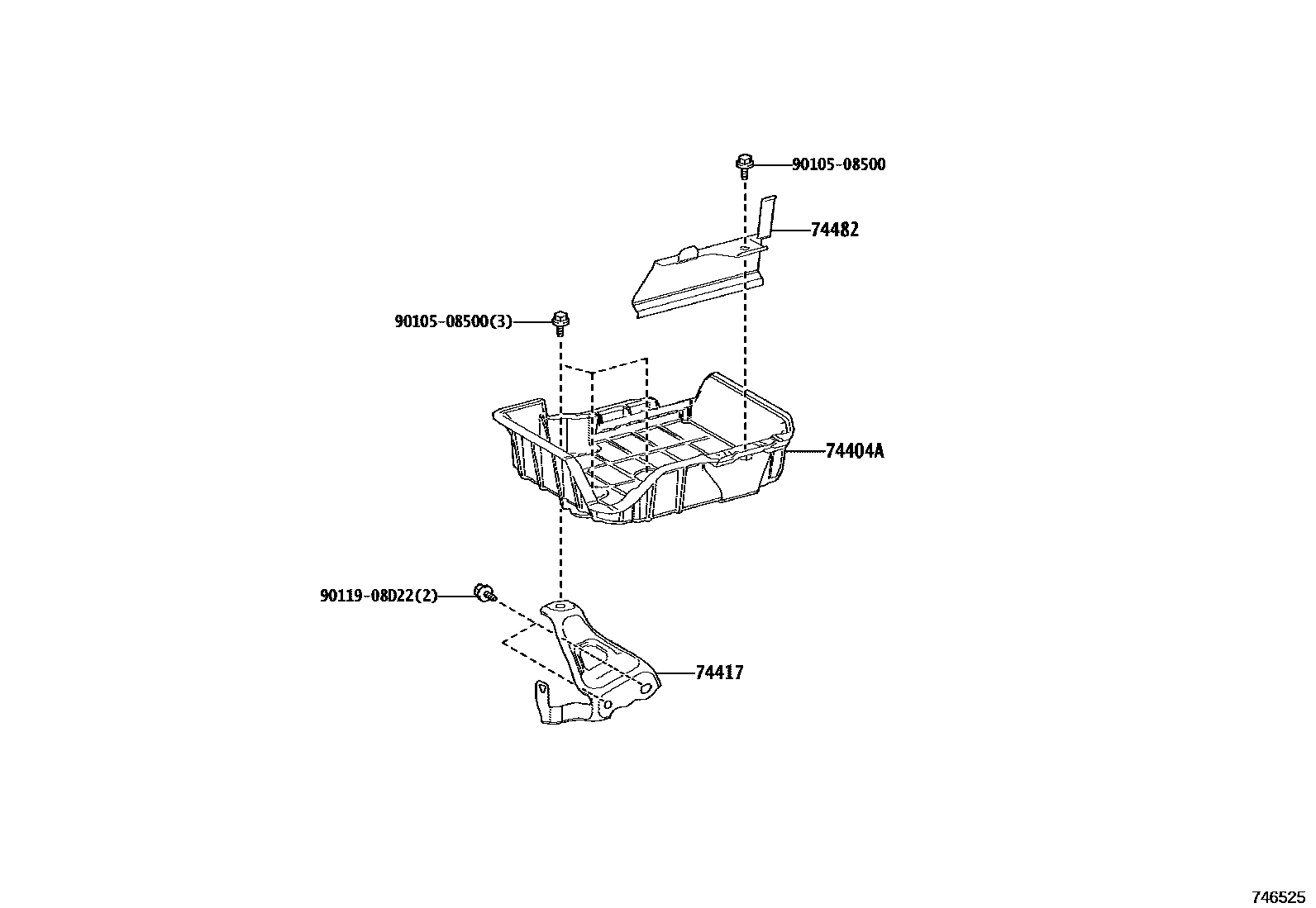

Toyota COROLLA battery holder EPC diagram — 746525
battery holder — 746525 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-10211 · 74404-12540 · 74404-12560 · 74404-12570 · 74404-12610 · 74404-47030
74417battery holder bracket74417-12060
74482No. 2 battery clip74405-76021 · 74482-47010
