Toyota COROLLA 扶手和遮阳板 — Figure 7401

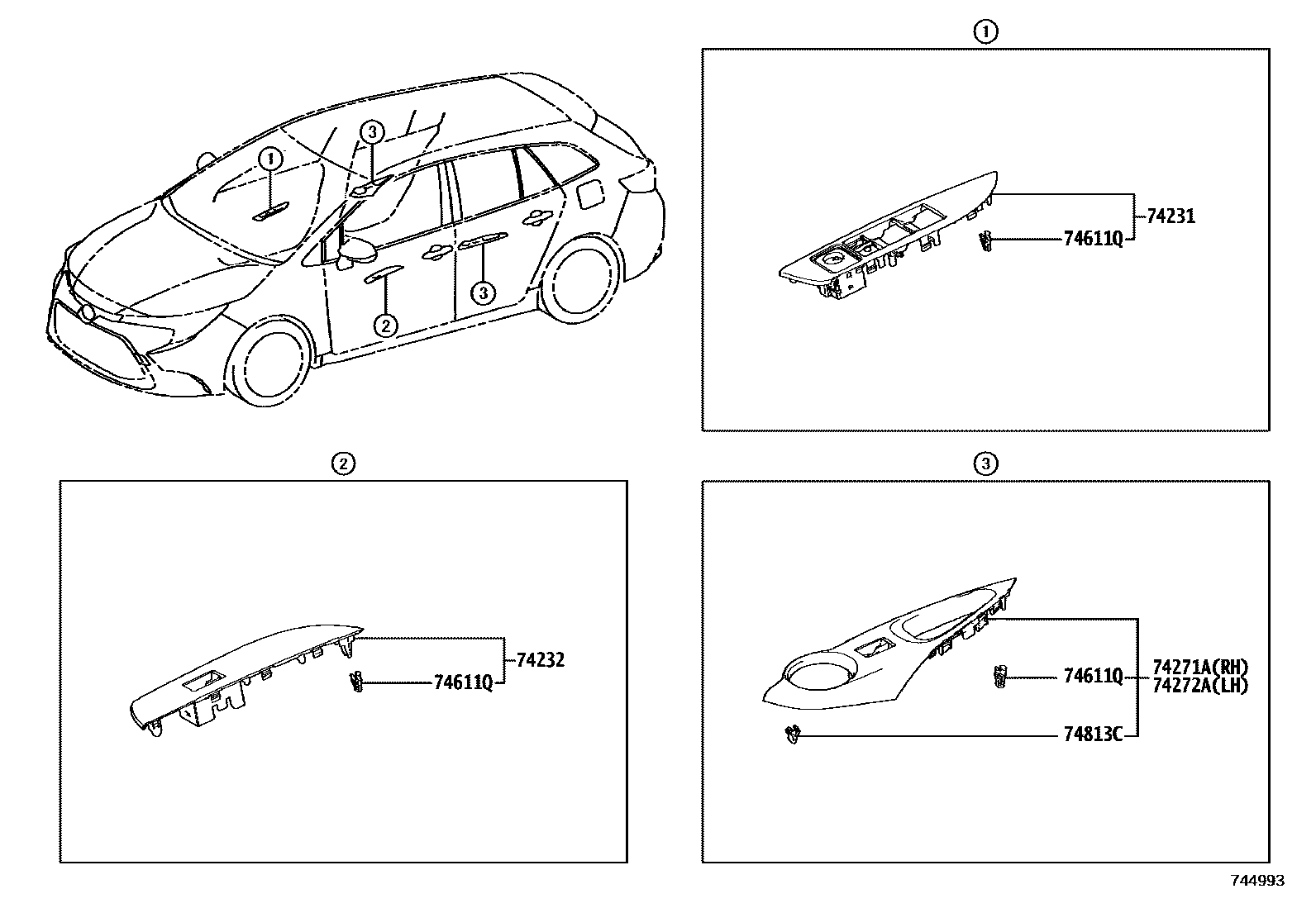

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-12D70 · 74231-12E30 |
| 74232 | Left front armrest upper panel | 74232-12B00 · 74232-12B80 |
| 74271A | Right rear door armrest upper panel | 74271-12550 · 74271-12560 |
| 74272A | Left rear door armrest upper panel | 74272-12490 · 74272-12530 |
| 74611Q | clip | 90467-10203 |
| 74614C | Toyota part | 74614-12020 |
| 74645A | Right door auxiliary handle cover | 74645-12140 |
| 74646 | Left door auxiliary handle cover | 74646-12140 |
| 74813C | clip | 90467-12080 |
