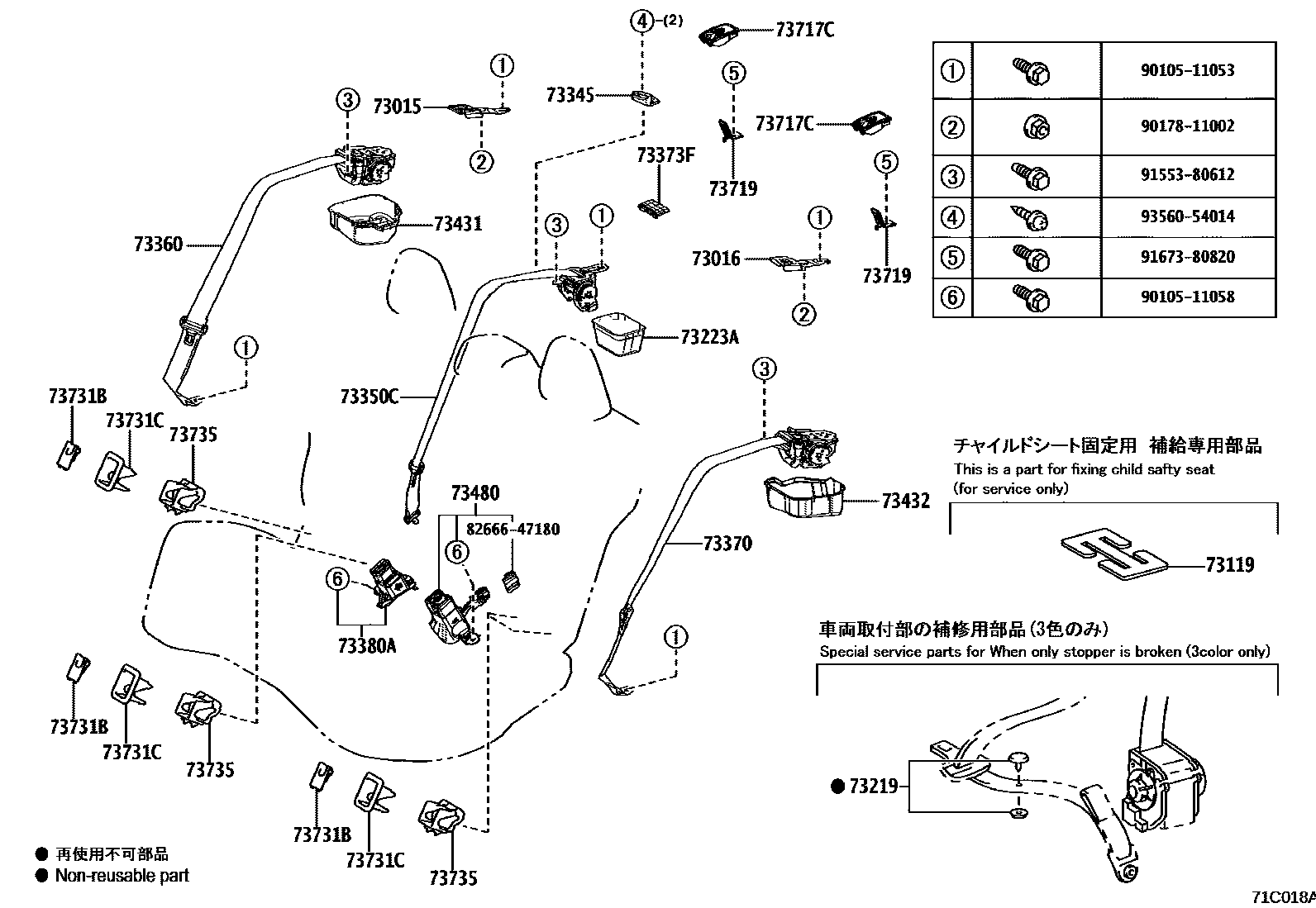

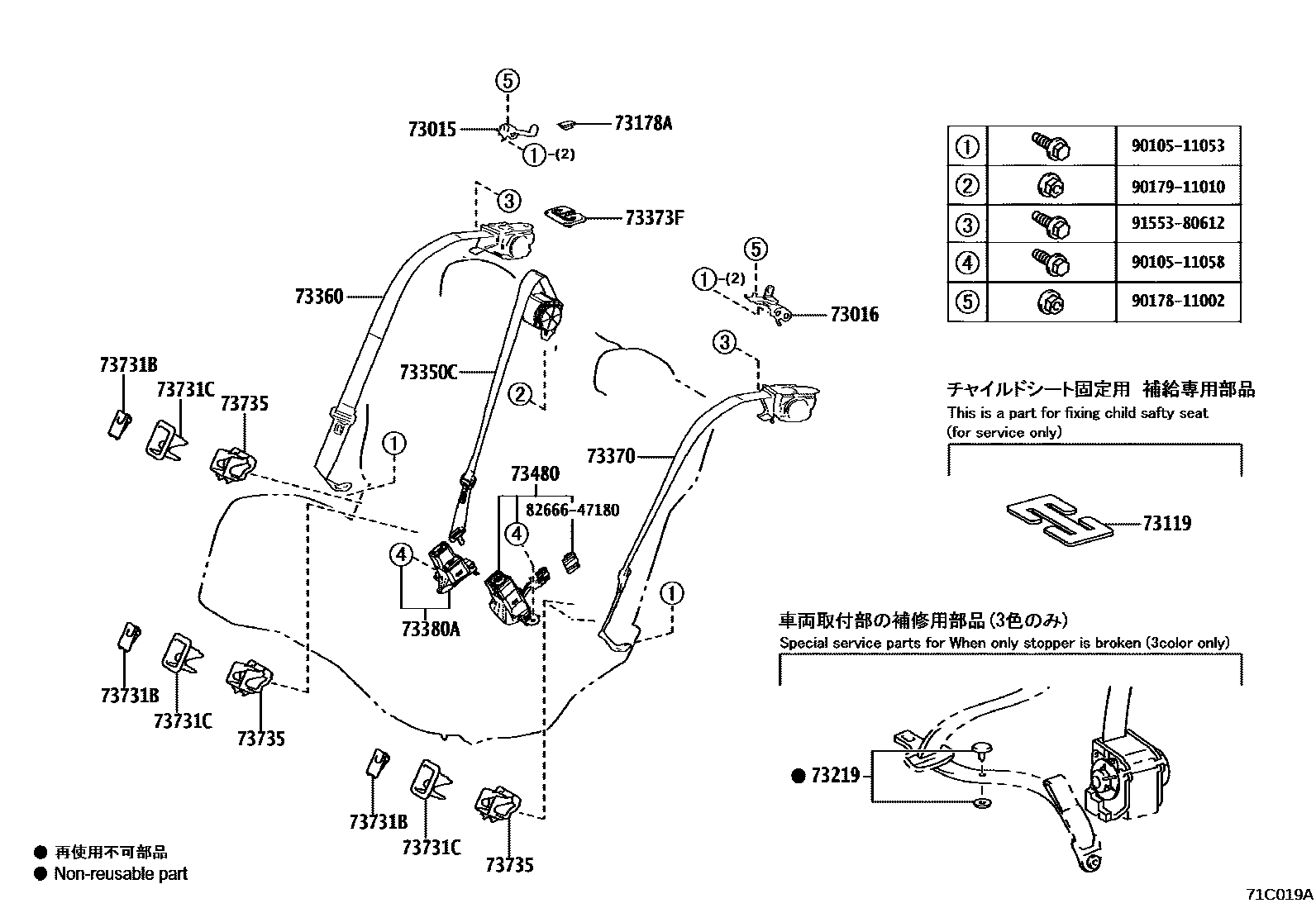

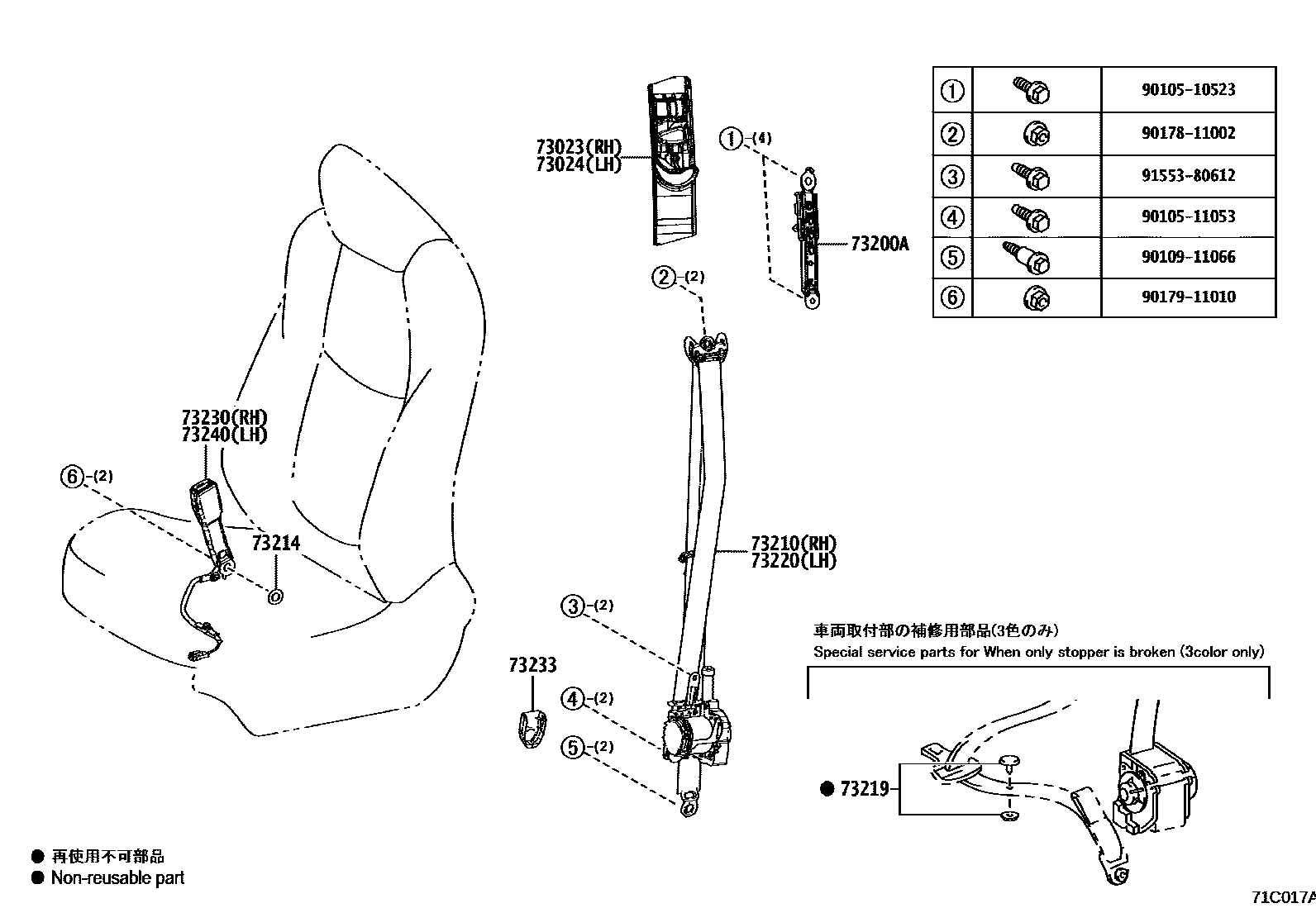

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-12070 · 73015-13030 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-12060 · 73016-13030 |
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 |
| 73214 | Front seat belt anchor plate | 73214-75010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73223A | seat belt retractor cover | 73223-12080 · 73223-12081 |
| 73431 | Rear right seat belt retractor cover | 73431-12050 · 73431-12051 |
| 73432 | Rear left seat belt retractor cover | 73432-12050 · 73432-12051 |
| 73719 | Child restraint seat tether anchor bracket | 73719-12050 |
| 73735 | Child restraint seat belt guide cover | 73735-12030 · 73735-16010 |
