Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

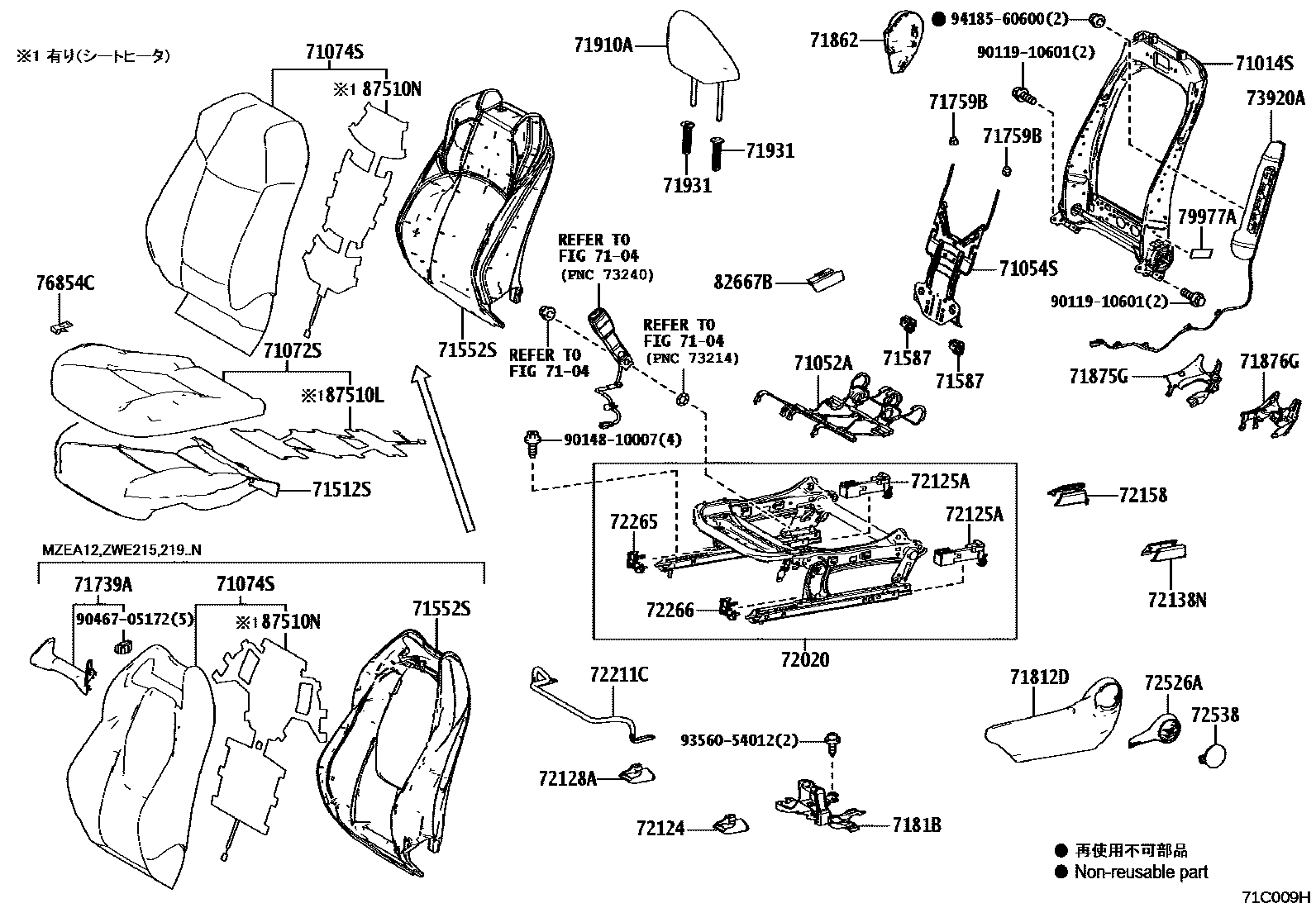

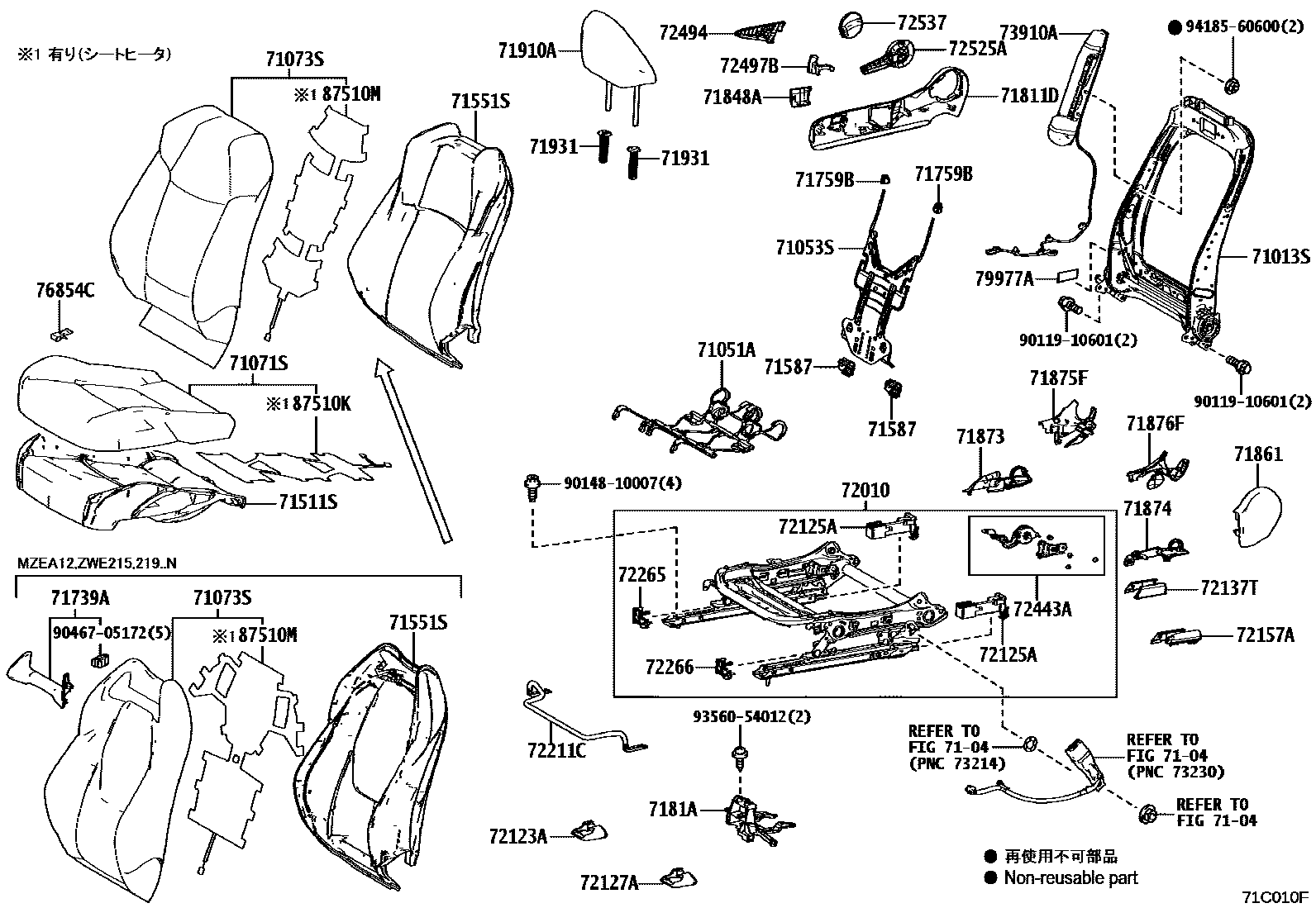

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33550 · 71013-42210 |
| 71014S | Front left seat back frame sub-assembly | 71014-33390 · 71014-42190 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71073S | Front right seat back cover (for split seats) | 71073-1AT31 |
| 71074S | Front left seat back cover (for split seats) | 71074-1AQ11 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12C50 · 71511-12C70 · 71511-12C90 · 71511-12D20 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12170 · 71502-12180 · 71502-12190 · 71502-12200 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12D40 · 71551-12E20 · 71551-12E30 · 71551-12E40 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12700 · 71552-12710 · 71552-12740 · 71552-12760 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71739A | Front seat back frame | 71739-12030 · 71739-12040 |
| 71759B | Front seat back hook | 71759-50040 · 71759-52050 |
| 7181A | Toyota part | 7181A-47010 |
| 7181B | Toyota part | 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71874 | Front left seat cushion lower guard | 71873-47080 |
| 72010 | Front right seat adjuster assembly | 72010-47361 |
| 72020 | Front left seat adjuster assembly | 72020-47381 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 |
| 72125A | Rear seat upper slide rail cover | 72125-47010 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-10100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-10100 |
| 72137T | Toyota part | 72137-47060 |
| 72138N | Toyota part | 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-47080 |
| 72158 | Left seat inner slide rail bracket cover | 72158-47080 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 |
| 72266 | Left seat rail upper rail cover | 72265-47010 |
| 72443A | Toyota part | 72443-47011 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 73910A | Front right seat airbag assembly | 73910-12100 |
| 73920A | Front left seat airbag assembly | 73920-12090 |
| 76854C | Toyota part | 76854-44010 |
| 79977A | Seat back felt pad | 79977-12090 |
| 82667B | Connector holder | 82666-47630 |
| 87510K | Front right seat cushion heater assembly | 87510-12320 · 87510-12330 · 87510-12360 · 87510-12361 |
| 87510L | Front left seat cushion heater assembly | 87510-12380 · 87510-12381 · 87510-12400 · 87510-12420 |
| 87510M | Front right seat back heater assembly | 87530-12080 · 87530-12090 · 87530-12110 |
| 87510N | Front left seat back heater assembly | 87530-12080 · 87530-12090 · 87530-12110 |
