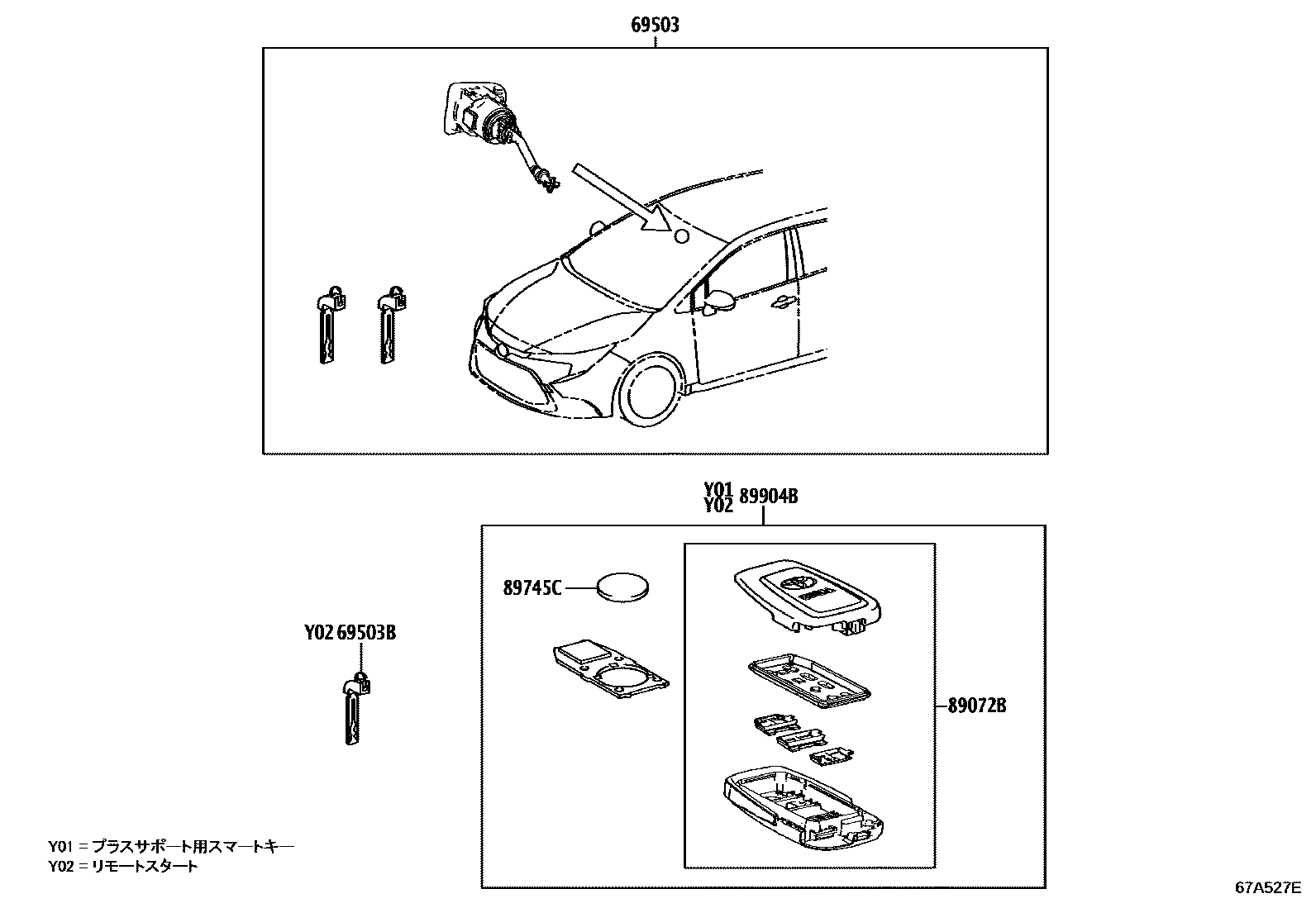

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-12G80 · 69005-12G81 · 69005-12K60 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12500 · 89072-12510 · 89072-12720 · 89072-12730 · 89072-12A40 · 89072-K0010 |
| 89745C | Transmitter battery | 89745-50020 · 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12150 · 8990H-12160 · 8990H-12220 · 8990H-12230 · 8990H-12410 · 8990H-12411 · 8990H-52160 · 8990H-52161 |
