Toyota COROLLA 后门板和后门玻璃 — Figure 6705

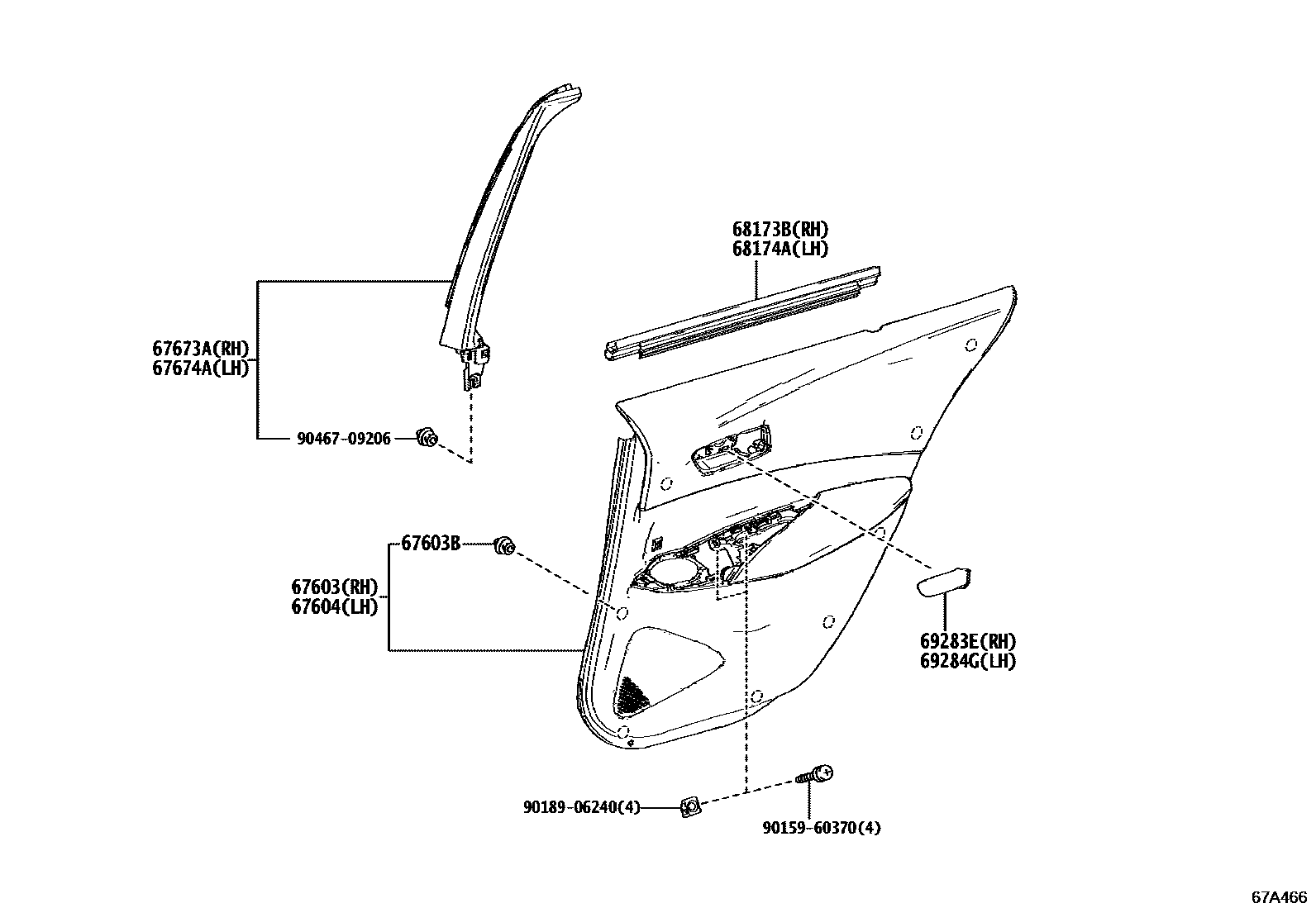

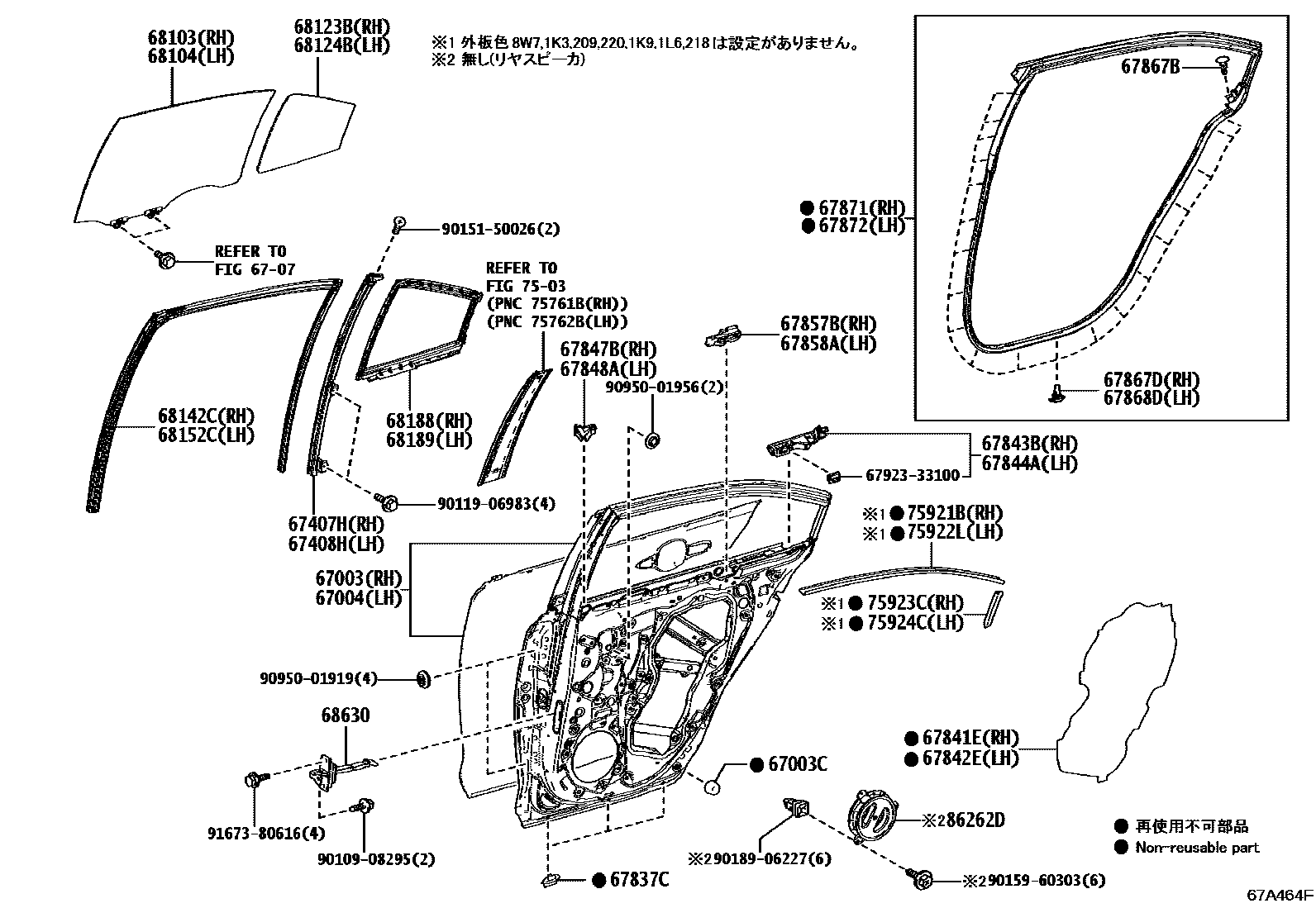

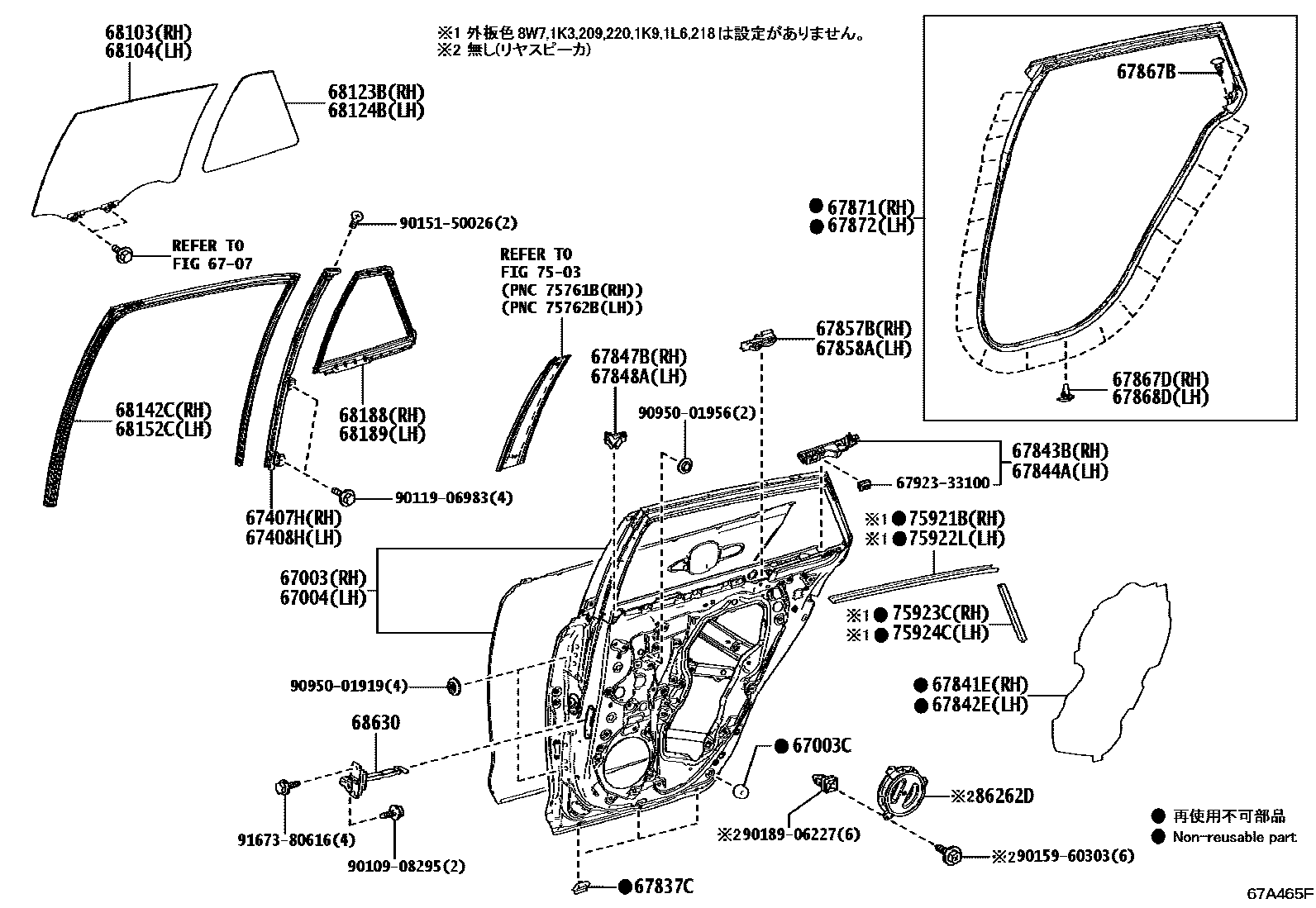

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12C10 · 67003-12C20 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-12C10 · 67004-12C20 |
| 67407H | Right sliding door window divider sub-assembly | 67407-12380 · 67407-12390 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-12380 · 67408-12390 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-12021 |
| 67674A | Left rear door frame decorative strip | 67674-12011 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841E | Right rear door access hole cover | 67841-12510 |
| 67842E | Left rear door access hole cover | 67842-12320 |
| 67843B | Right rear door No. 2 access hole cover | 67843-12040 · 67843-12050 |
| 67844A | Left rear door No. 2 access hole cover | 67844-12040 · 67844-12050 |
| 67847B | No. 1 right rear door ventilator seal | 67847-12030 |
| 67848A | No. 1 left rear door ventilator seal | 67848-12030 |
| 67857B | Right rear door panel protector | 67857-12180 |
| 67858A | Left rear door panel protector | 67858-12130 |
| 67867B | Door seal strip clip (for rear door) | 67868-30030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12600 · 67871-12610 |
| 67872 | Left rear door sealing strip | 67872-12600 · 67872-12610 |
| 68103 | Right rear door glass sub-assembly | 68103-12A20 · 68103-12A30 · 68103-12A40 · 68103-12A50 · 68103-12A90 |
| 68104 | Left rear door glass sub-assembly | 68104-12A30 · 68104-12A40 · 68104-12A50 · 68104-12A60 · 68104-12B00 |
| 68123B | Right rear door corner window glass | 68123-12A50 · 68123-12A60 · 68123-12A70 · 68123-12A80 · 68123-12B20 |
| 68124B | Left rear door corner window glass | 68124-12A50 · 68124-12A60 · 68124-12A70 · 68124-12A80 · 68124-12B20 |
| 68142C | Right rear door glass lift slot | 68142-12360 · 68142-12370 |
| 68152C | Left rear door glass lift slot | 68152-12270 · 68152-12280 |
| 68173B | Right rear door glass inner sealing strip | 68173-12390 |
| 68174A | Left rear door glass inner sealing strip | 68174-12250 |
| 68188 | Right rear door corner window seal | 68188-12390 · 68188-12400 |
| 68189 | Left rear door corner window seal | 68189-12390 · 68189-12400 |
| 68630 | Rear door opening limiter assembly | 68630-12220 |
| 75921B | No. 1 right side light-shielding film | 75979-12060 · 75979-12070 |
| 75922L | No. 1 left shading film | 75989-12030 · 75989-12040 |
| 75923C | No. 2 right side light-shielding film | 75987-12480 · 75987-12490 |
| 75924C | No. 2 left shading film | 75988-12350 · 75988-12360 |
| 86262D | Rear door speaker cover | 86262-12030 |
