Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

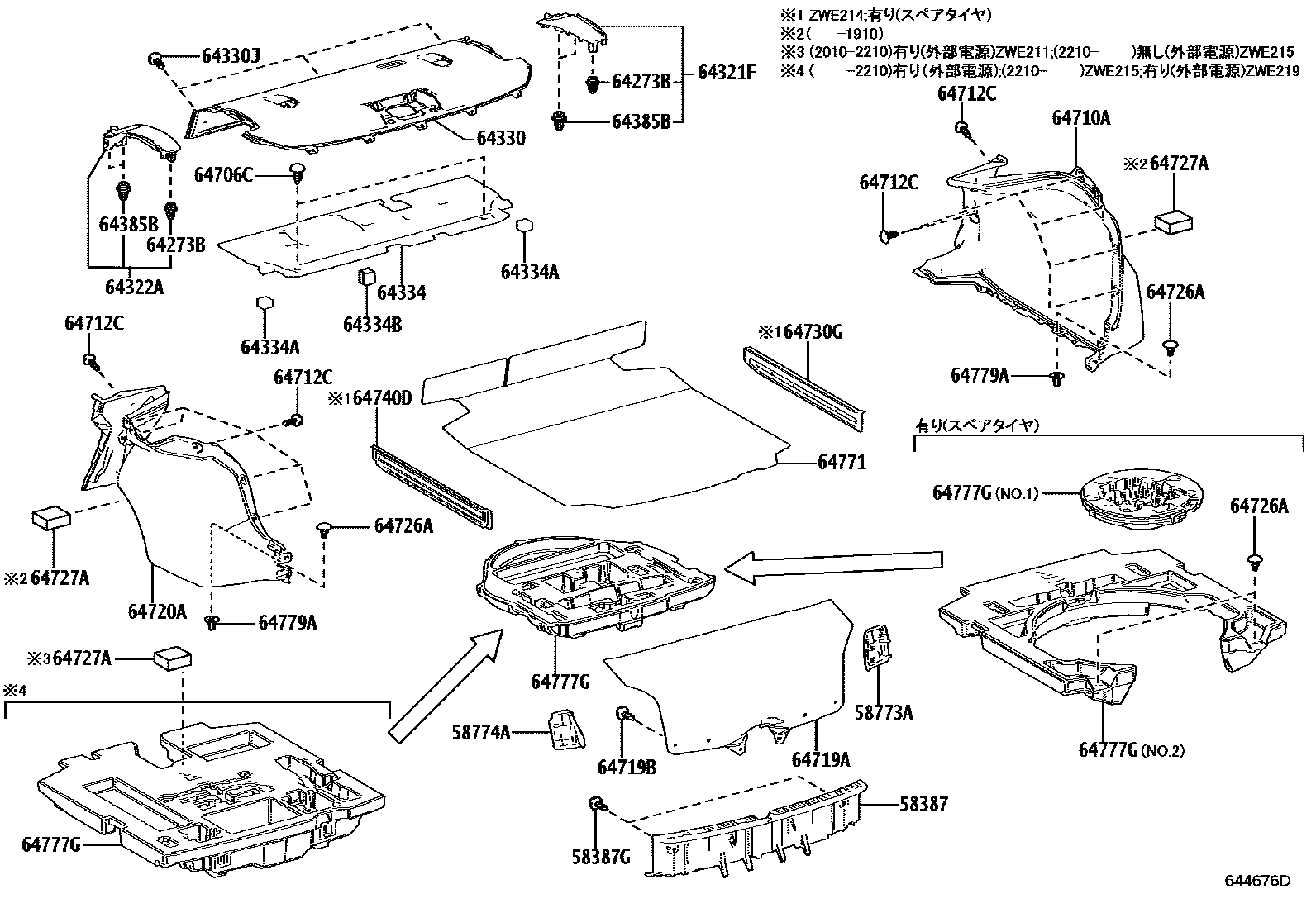

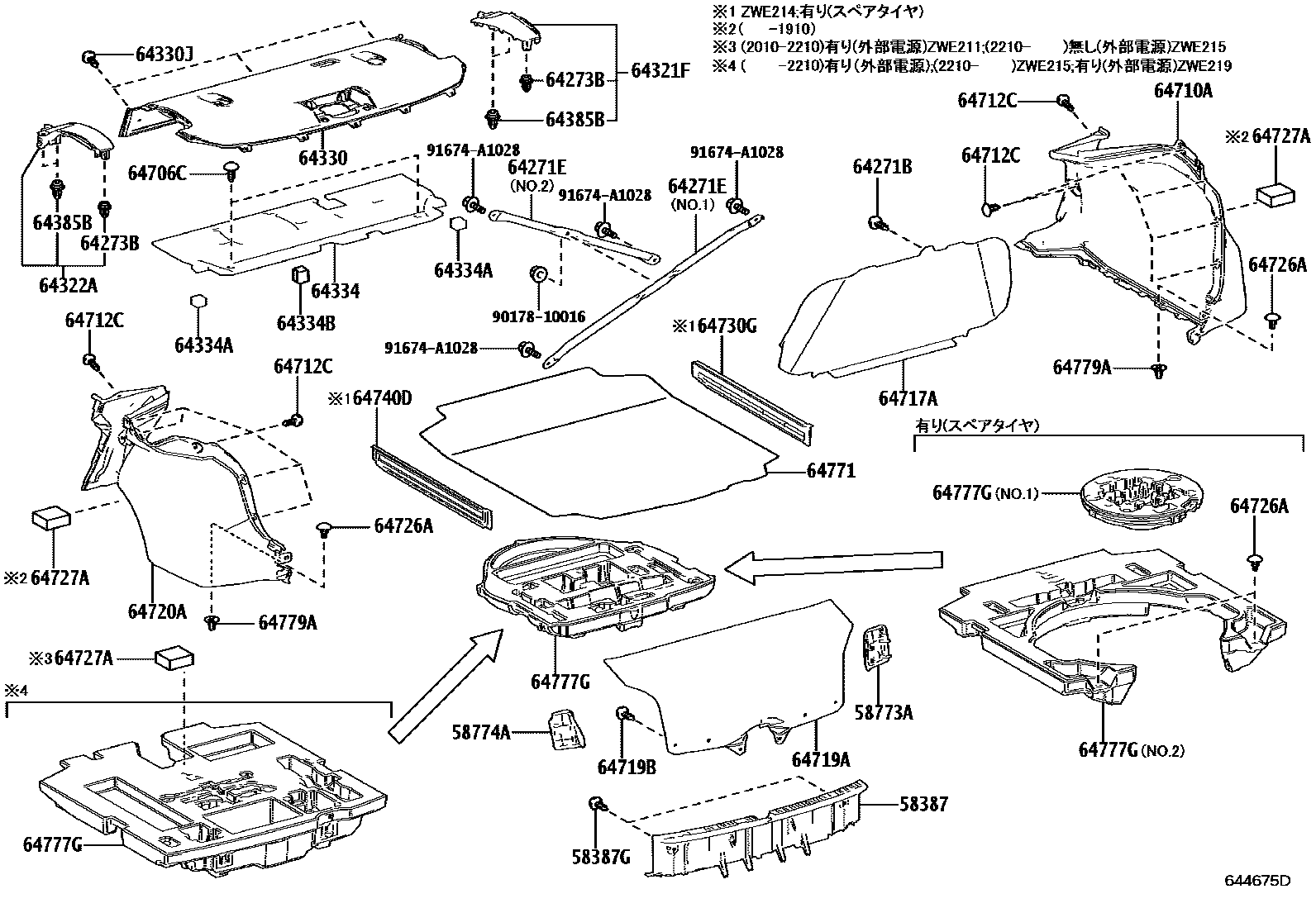

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64271E | compartment partition | 64241-12080 · 64242-12070 |
| 64273B | Back panel decorative bag | 90467-09240 |
| 64334 | Glove box decorative panel muffler pad | 64334-12420 |
| 64334A | Glove box decorative mat | 64334-12450 |
| 64334B | Toyota part | 64334-12460 |
| 64385B | clip | 90467-10161 |
| 64727A | Luggage interior decorative mat | 64727-12080 · 64727-12100 · 64727-12130 |
| 64777G | Spare tire cushion | 64777-12240 · 64777-12250 · 64777-12260 · 64777-12310 · 64777-12340 · 64777-12410 · 64777-12480 |
| 64779A | Spare tire cover stop | 64779-26010 |
