Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

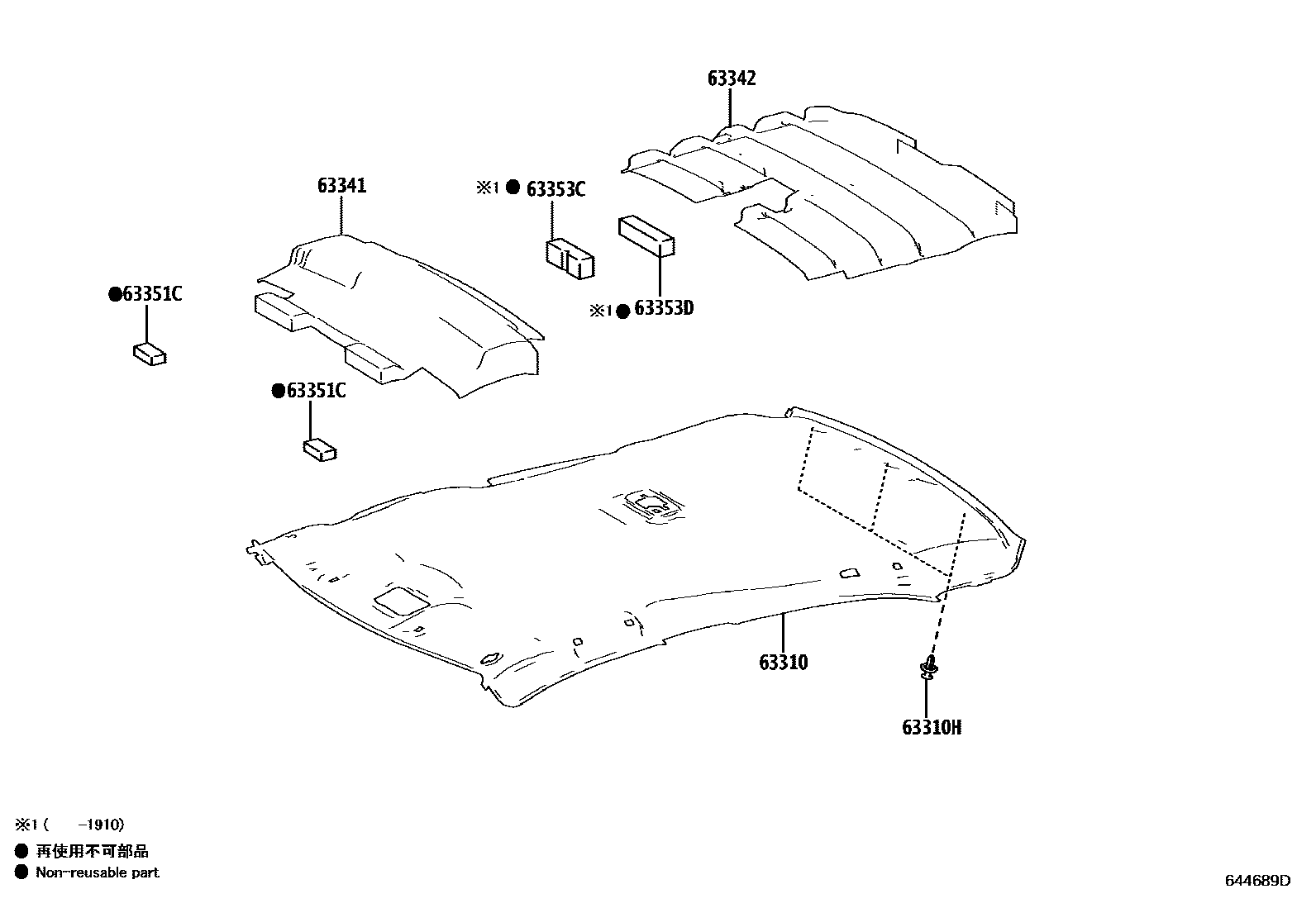

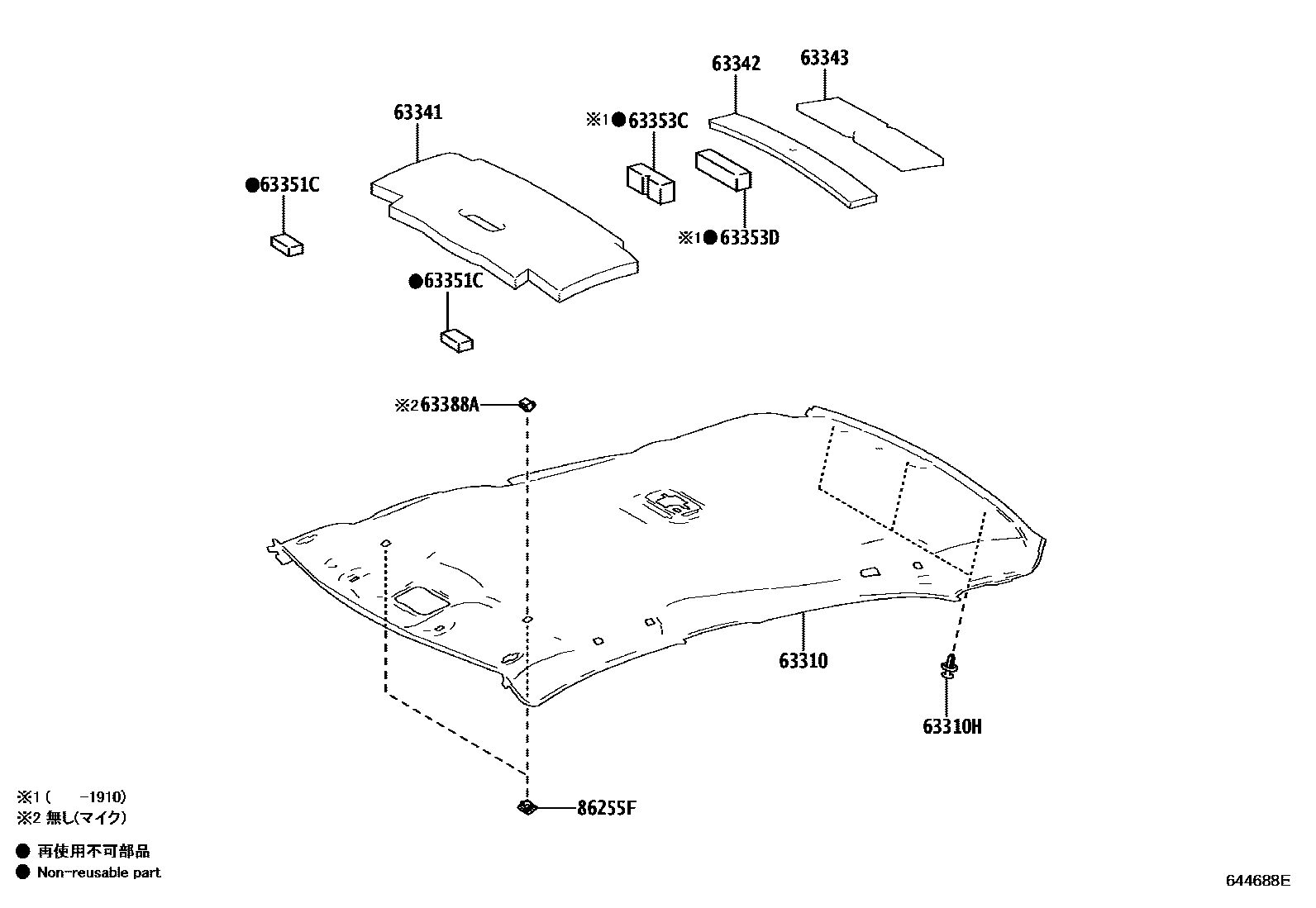

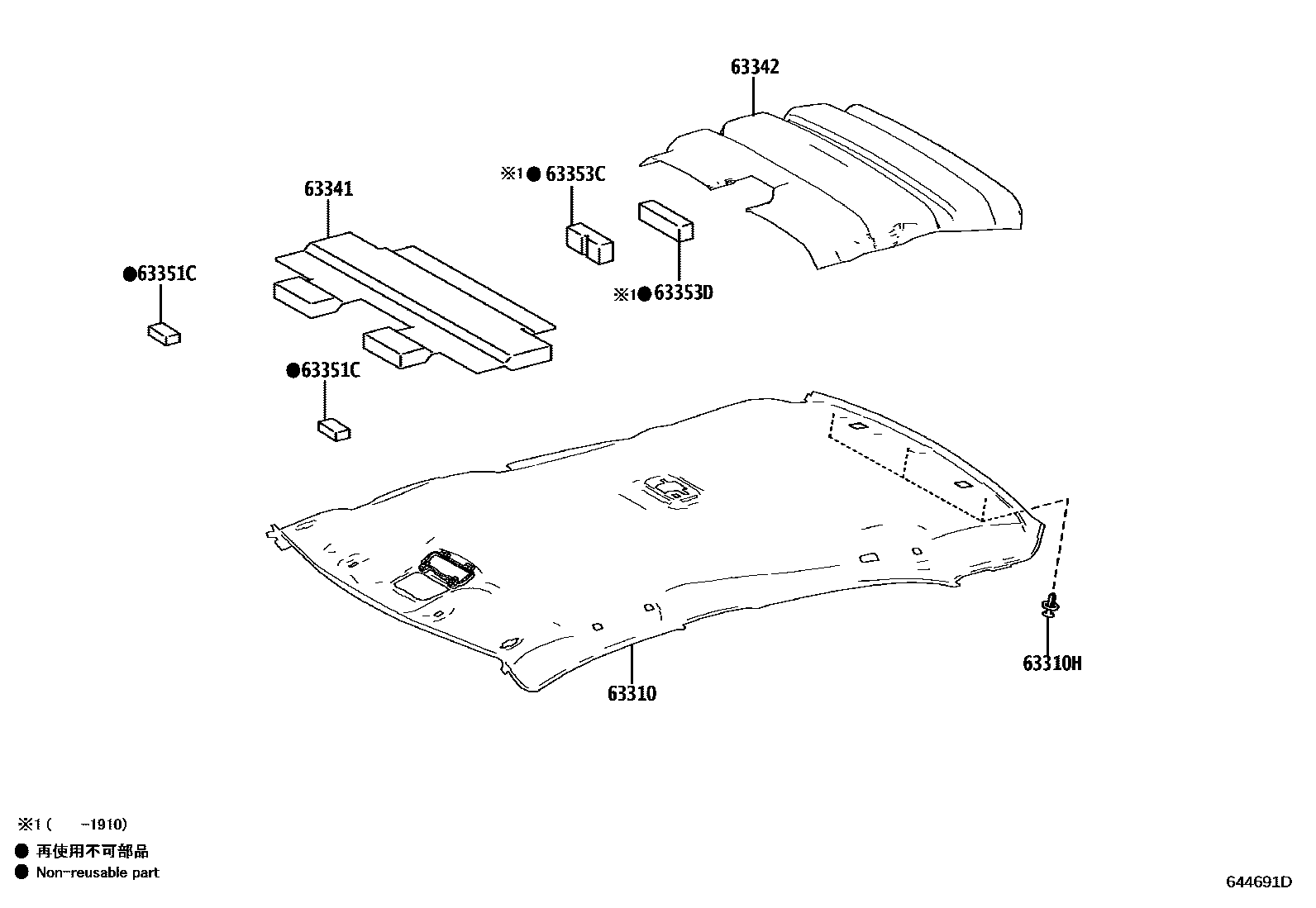

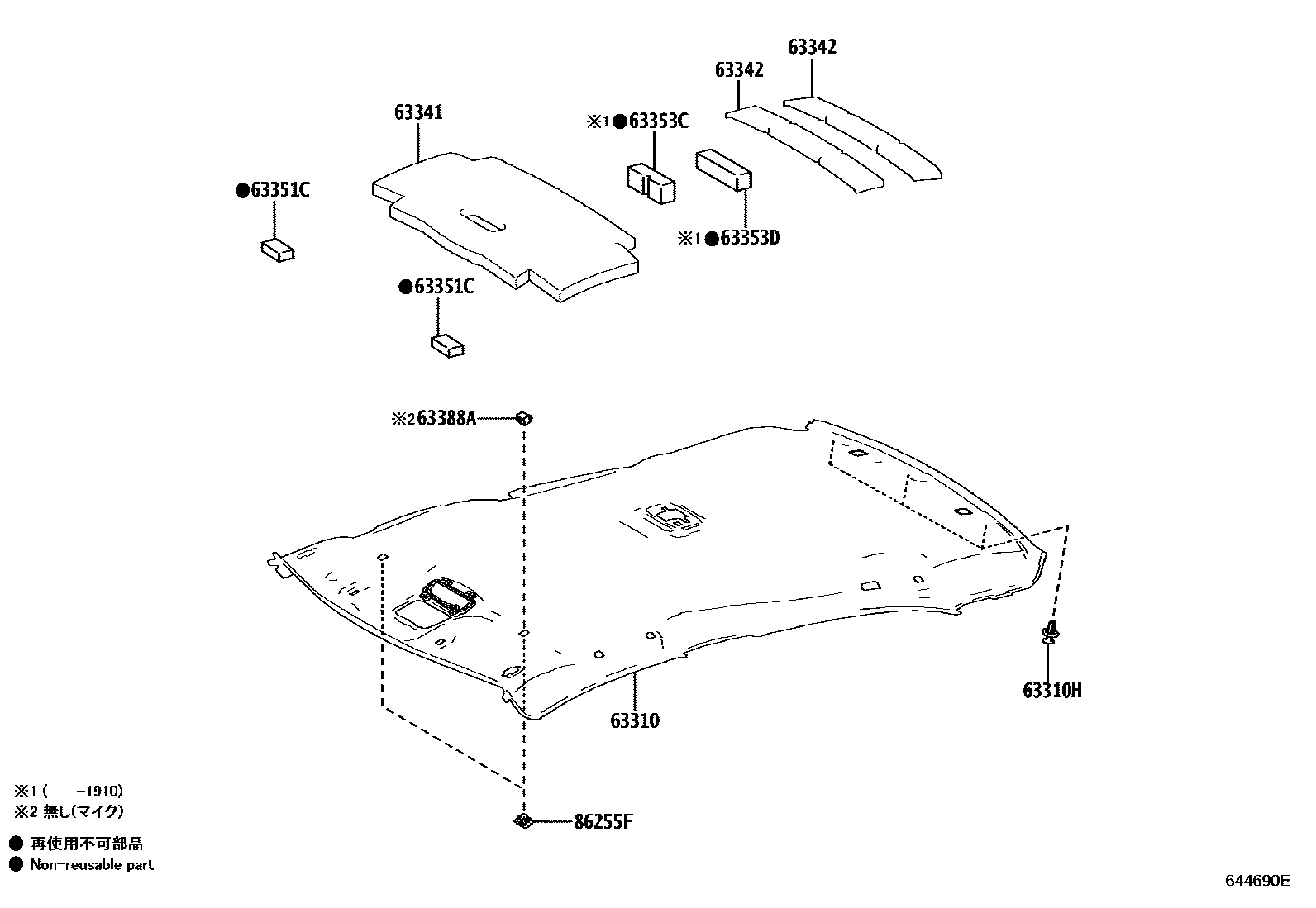

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12370 · 63341-12380 · 63341-12381 |
| 63342 | No. 2 roof muffler pad | 63342-12390 · 63342-12450 · 63342-12460 · 63342-12470 |
| 63343 | No. 3 roof muffler pad | 63342-12440 |
| 63351C | roof lining pads | 63351-12120 |
| 63353C | Center roof lining lining | 63353-12030 · 63353-12060 |
| 63353D | Center roof lining lining | 63353-12040 |
| 63388A | headliner fixing cover | 63388-52030 |
