Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

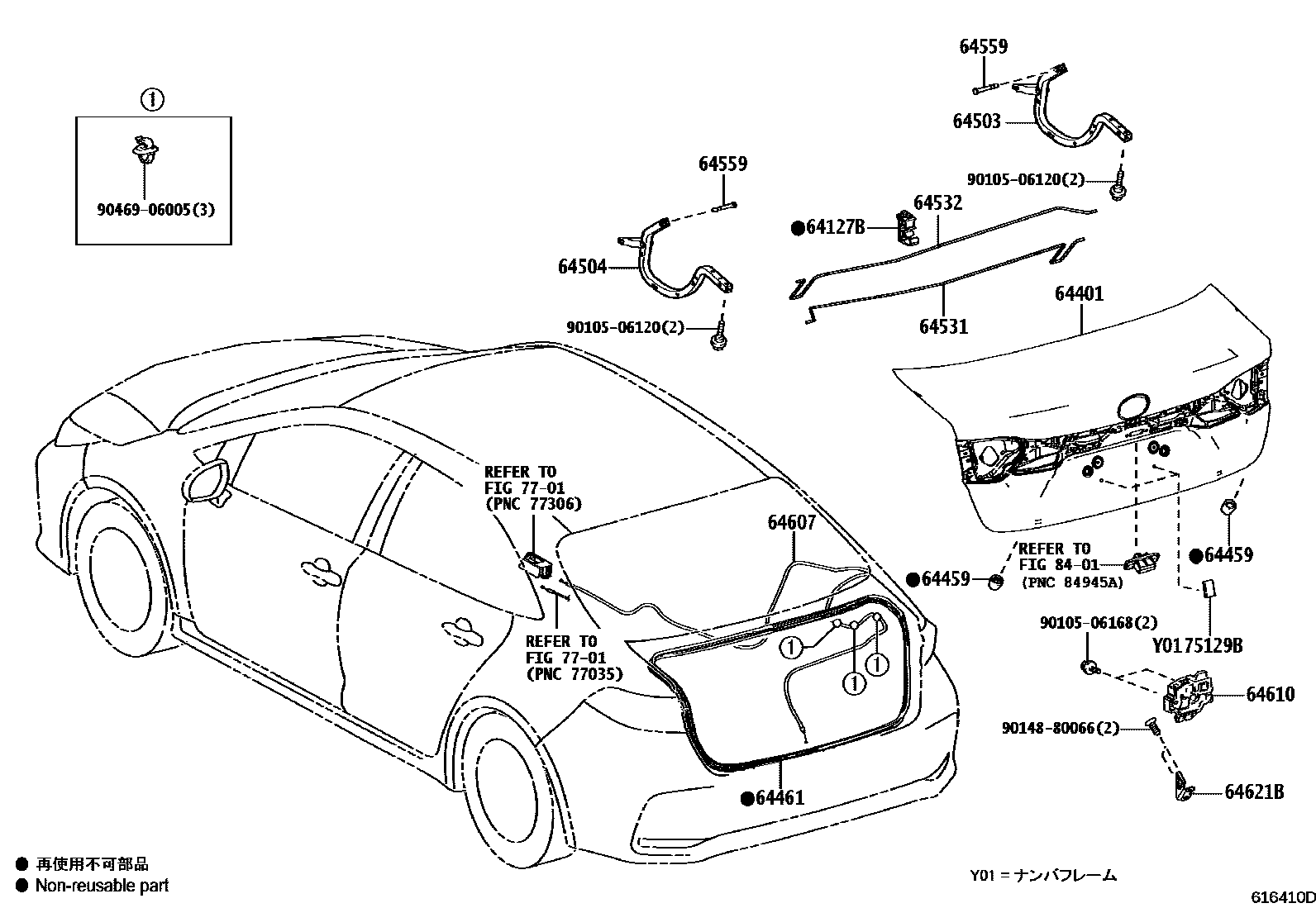

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-12F10 · 64401-12F20 · 64401-12F30 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-12620 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12210 · 64503-12211 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12210 · 64503-12211 |
| 64531 | Trunk door right hinge torsion bar | 64531-12A40 · 64531-12A41 · 64531-12A50 · 64531-12A51 · 64531-12A60 · 64531-12A61 · 64531-12A70 · 64531-12A71 |
| 64532 | Trunk door left hinge torsion bar | 64532-12A30 · 64532-12A31 · 64532-12A40 · 64532-12A41 · 64532-12A50 · 64532-12A51 · 64532-12A60 · 64532-12A61 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12A80 |
| 64610 | Trunk door lock assembly | 64600-12100 |
| 64621B | Trunk door latch | 64621-33030 |
| 75129B | rear license plate cushion | 75129-30010 |
